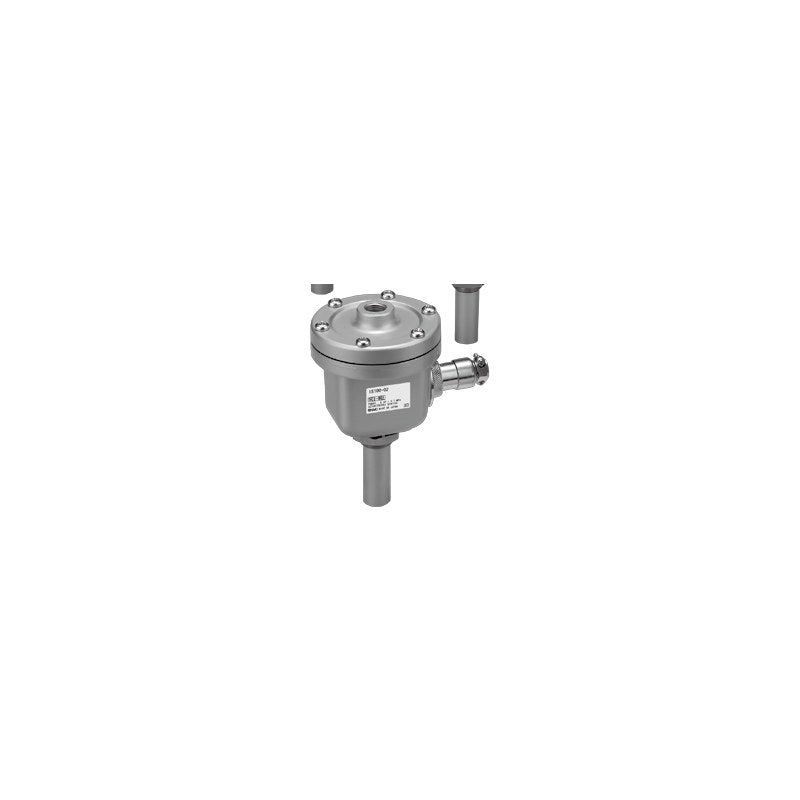

SMC IS100 Pressure Switch (Micro Switch Type, Rc1/4)

SMC IS100 Pressure Switch (Micro Switch Type, Rc1/4)

SMC IS100 series diaphragm pressure switch with micro switch for automatic pneumatic pressure control in industrial machinery and chemical plants.

Key features

  • Set pressure range 0.02 to 0.1 MPa, adjusted by screw under the cap
  • Wiring choices: 3-pin metal connector, exposed or covered terminal block, conduit ground or female-thread cable entry
  • SPDT contact (COM/NO/NC), rated AC125/250 V 5 A, DC30 V 5 A
  • Diaphragm stroke limited by stopper to protect the micro switch; mechanical life 100,000 cycles

Specifications

Proof pressure 0.2 MPa
Set pressure range 0.02 to 0.1 MPa
Differential 0.0015 MPa or less
Repeatability ±5% F.S.
Fluid Air
Ambient and fluid temperature -5 to 60°C (no freezing)
Port size Rc1/4
Electrical rating AC125/250 V 5 A, DC30 V 5 A
Mechanical life 100,000 cycles
Source SMC Korea catalog IS100 (SMCKR_IS100.pdf), p. 187-188 (PDF p. 1-2)
IS100-02 Wiring: 3-pin metal connector | Cable entry: -
IS101-02 Wiring: Exposed terminal block | Cable entry: -
IS112-02 Wiring: Terminal block with cover | Cable entry: -
IS113-02-04 Wiring: Covered terminal, conduit ground | Cable entry: 15a, G1/2
IS113-02-06 Wiring: Covered terminal, conduit ground | Cable entry: 20a, G3/4
IS114-02-04 Wiring: Covered terminal, female thread | Cable entry: 15a, G1/2
IS114-02-06 Wiring: Covered terminal, female thread | Cable entry: 20a, G3/4
Pressure SwitchesSMC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IS100 Pressure Switch (Micro Switch Type, Rc1/4)

Brand SMC·Pressure Switches

Available part numbers (7)

IS100-02, IS101-02, IS112-02, IS113-02-04, IS113-02-06, IS114-02-04, IS114-02-06

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IS100-02Wiring: 3-pin metal connector | Cable entry: -
IS101-02Wiring: Exposed terminal block | Cable entry: -
IS112-02Wiring: Terminal block with cover | Cable entry: -
IS113-02-04Wiring: Covered terminal, conduit ground | Cable entry: 15a, G1/2
IS113-02-06Wiring: Covered terminal, conduit ground | Cable entry: 20a, G3/4
IS114-02-04Wiring: Covered terminal, female thread | Cable entry: 15a, G1/2
IS114-02-06Wiring: Covered terminal, female thread | Cable entry: 20a, G3/4
