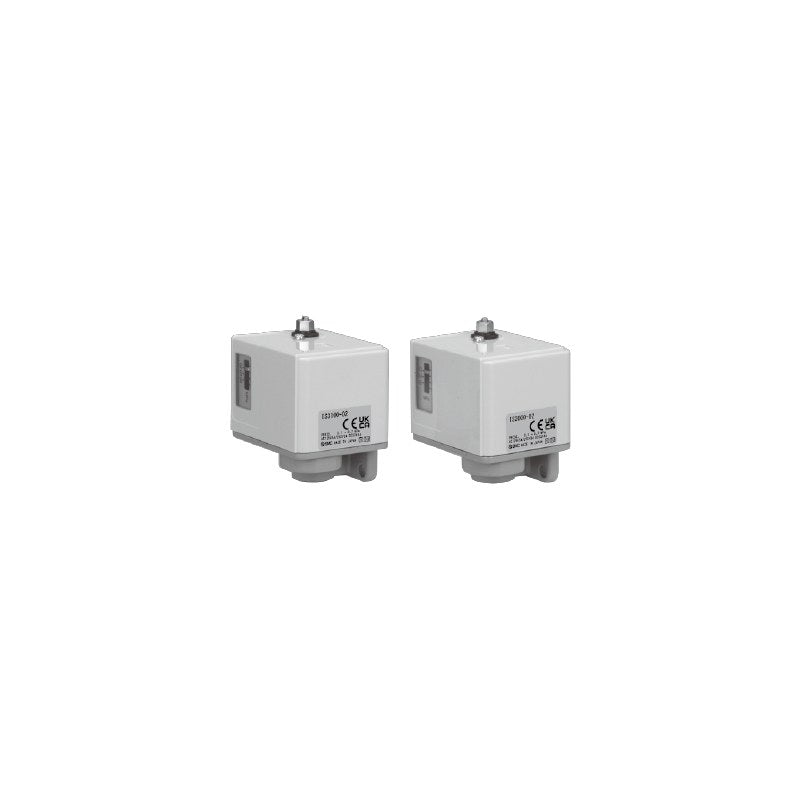

SMC IS3000 Pressure Switch for Pneumatics (Microswitch Type)

SMC IS3000 series mechanical pressure switch for compressed air, with microswitch 1ab contact, 0.1 to 0.7 MPa adjustment range and optional indicator lamp.

Key features

Rc1/4 threaded (IS30_0-02) or gasket-mounted (IS31_0) body
Standard microswitch, or micro-load type (IS3_10) for about 10 mA loads such as relays and PLCs
Indicator lamp options: neon AC110V (L1), neon AC220V (L2, standard type only), LED DC24V (L5)
Wide wiring space with G1/2 conduit entry; life 10 million cycles at 1 cycle/s
NPT1/4 (N02) and MPa/psi scale (P) available; spare lamp assemblies 1530118-1/-2/-5

Specifications

Fluid	Air and inert gas
Proof pressure	1.0 MPa
Max. operating pressure	0.8 MPa
Pressure adjustment range	0.1 to 0.7 MPa
Contact	1ab microswitch
Scale accuracy	±0.1 MPa
Hysteresis	0.05 MPa or less
Repeatability	±0.05 MPa
Ambient and fluid temperature	-5 to 60°C
Enclosure	IP40 equivalent
Mass	0.15 kg
Source	SMC Korea catalog (SMCKR_IS3000.pdf), PDF p. 1-2

IS3000-02		Piping: Rc1/4 threaded \| Microswitch: Standard microswitch \| Indicator lamp: No lamp
IS3000-02L1		Piping: Rc1/4 threaded \| Microswitch: Standard microswitch \| Indicator lamp: Neon lamp AC110V
IS3000-02L2		Piping: Rc1/4 threaded \| Microswitch: Standard microswitch \| Indicator lamp: Neon lamp AC220V
IS3000-02L5		Piping: Rc1/4 threaded \| Microswitch: Standard microswitch \| Indicator lamp: LED DC24V
IS3010-02		Piping: Rc1/4 threaded \| Microswitch: Micro-load microswitch \| Indicator lamp: No lamp
IS3010-02L1		Piping: Rc1/4 threaded \| Microswitch: Micro-load microswitch \| Indicator lamp: Neon lamp AC110V
IS3010-02L5		Piping: Rc1/4 threaded \| Microswitch: Micro-load microswitch \| Indicator lamp: LED DC24V
IS3100		Piping: Gasket mount \| Microswitch: Standard microswitch \| Indicator lamp: No lamp
IS3100-L1		Piping: Gasket mount \| Microswitch: Standard microswitch \| Indicator lamp: Neon lamp AC110V
IS3100-L2		Piping: Gasket mount \| Microswitch: Standard microswitch \| Indicator lamp: Neon lamp AC220V
IS3100-L5		Piping: Gasket mount \| Microswitch: Standard microswitch \| Indicator lamp: LED DC24V
IS3110		Piping: Gasket mount \| Microswitch: Micro-load microswitch \| Indicator lamp: No lamp
IS3110-L1		Piping: Gasket mount \| Microswitch: Micro-load microswitch \| Indicator lamp: Neon lamp AC110V
IS3110-L5		Piping: Gasket mount \| Microswitch: Micro-load microswitch \| Indicator lamp: LED DC24V

Pressure SwitchesSMC

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IS3000 Pressure Switch for Pneumatics (Microswitch Type)

Brand SMC·Pressure Switches

Available part numbers (14)

IS3000-02, IS3000-02L1, IS3000-02L2, IS3000-02L5, IS3010-02, IS3010-02L1, IS3010-02L5, IS3100, IS3100-L1, IS3100-L2 + 4 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
