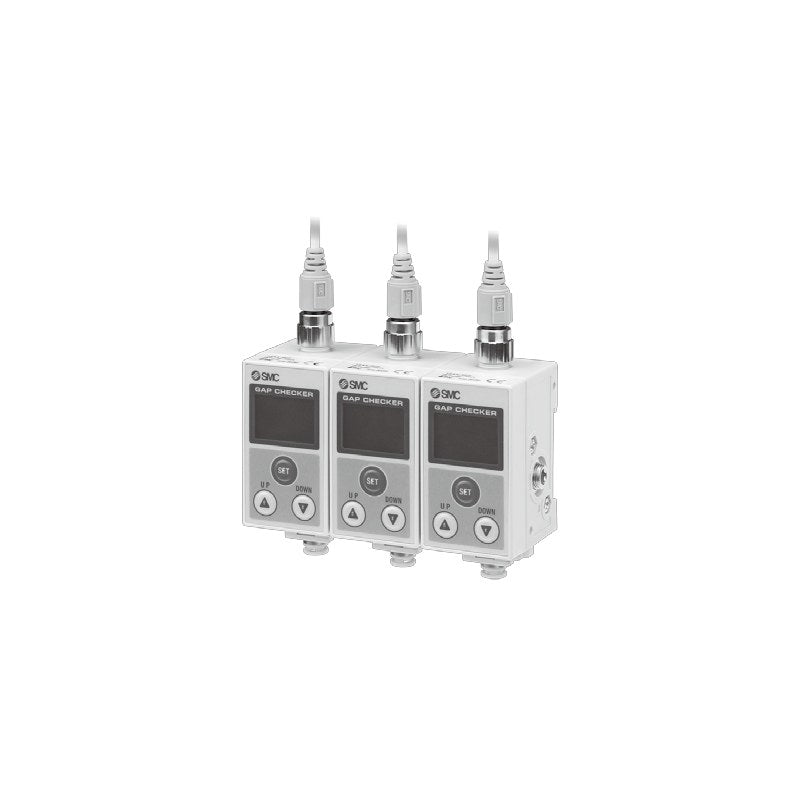

SMC ISA3-L IO-Link Digital Gap Checker (Seating Switch, 3-Screen)

SMC ISA3-L IO-Link Digital Gap Checker (Seating Switch, 3-Screen)

SMC ISA3-L IO-Link compatible digital seating (gap) switch with 3-screen display, providing gap, secondary pressure and supply pressure as process data.

Key features

  • Output L: IO-Link plus switch output 1 and 2, NPN or PNP selectable
  • Gap ranges F 0.01-0.03 mm, G 0.02-0.15 mm, H 0.05-0.30 mm; range setting of acceptable gap
  • Process data includes gap value, secondary pressure and supply pressure for nozzle clogging diagnostics
  • Manifold of 1 to 6 stations; control unit with regulator and 2-port valve on left (L) or right (R)
  • Not expanded: cable option (L/S/T/N), bracket B for units without control unit, AC valve voltages, made-to-order regulators, -X219

Specifications

Fluid Dry air (5 µm filtered)
Rated pressure range 100.0 to 200.0 kPa
Proof pressure 600 kPa
Detection nozzle ø1.5
Air consumption F 5, G 12, H 22 L/min or less
Power supply 24 VDC ±10% (IO-Link 18 to 30 VDC)
Current consumption 25 mA or less
IO-Link V1.1, COM2 38.4 kbps
Output IO-Link + 2 switch outputs (L)
Enclosure IP67 equivalent (switch body)
Operating temperature 0 to 50°C
Source SMC Korea catalog (SMCKR_ISA3-L.pdf), PDF p. 14-16
ISA3-FCL-1 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-1B-L1 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-L2 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-1B-L3 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-L4 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R1 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R2 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R3 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R4 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-2B-L1 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-L2 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2B-L3 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-L4 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R1 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R2 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R3 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R4 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-3B-L1 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-L2 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3B-L3 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-L4 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R1 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R2 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R3 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R4 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-4B-L1 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-L2 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4B-L3 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-L4 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R1 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R2 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R3 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R4 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-5B-L1 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-L2 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5B-L3 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-L4 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R1 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R2 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R3 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R4 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-6B-L1 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-L2 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6B-L3 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-L4 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R1 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R2 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R3 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R4 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-M1 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L1 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L2 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L3 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L4 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R1 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R2 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R3 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R4 Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L1 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L2 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L3 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L4 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R1 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R2 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R3 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R4 Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L1 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L2 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L3 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L4 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R1 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R2 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R3 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R4 Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L1 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L2 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L3 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L4 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R1 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R2 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R3 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R4 Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L1 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L2 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L3 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L4 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R1 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R2 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R3 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R4 Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L1 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L2 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L3 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L4 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R1 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R2 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R3 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R4 Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-1 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-1B-L1 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-L2 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-1B-L3 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-L4 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R1 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R2 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R3 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R4 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-2B-L1 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-L2 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2B-L3 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-L4 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R1 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R2 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R3 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R4 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-3B-L1 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-L2 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3B-L3 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-L4 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R1 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R2 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R3 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R4 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-4B-L1 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-L2 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4B-L3 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-L4 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R1 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R2 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R3 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R4 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-5B-L1 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-L2 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5B-L3 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-L4 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R1 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R2 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R3 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R4 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-6B-L1 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-L2 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6B-L3 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-L4 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R1 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R2 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R3 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R4 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-M1 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L1 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L2 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L3 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L4 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R1 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R2 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R3 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R4 Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L1 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L2 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L3 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L4 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R1 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R2 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R3 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R4 Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L1 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L2 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L3 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L4 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R1 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R2 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R3 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R4 Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L1 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L2 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L3 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L4 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R1 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R2 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R3 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R4 Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L1 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L2 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L3 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L4 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R1 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R2 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R3 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R4 Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L1 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L2 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L3 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L4 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R1 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R2 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R3 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R4 Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-1 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-1B-L1 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-L2 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-1B-L3 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-L4 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R1 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R2 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R3 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R4 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-2B-L1 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-L2 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2B-L3 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-L4 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R1 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R2 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R3 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R4 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-3B-L1 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-L2 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3B-L3 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-L4 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R1 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R2 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R3 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R4 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-4B-L1 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-L2 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4B-L3 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-L4 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R1 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R2 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R3 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R4 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-5B-L1 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-L2 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5B-L3 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-L4 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R1 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R2 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R3 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R4 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-6B-L1 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-L2 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6B-L3 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-L4 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R1 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R2 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R3 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R4 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-M1 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L1 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L2 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L3 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L4 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R1 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R2 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R3 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R4 Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L1 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L2 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L3 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L4 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R1 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R2 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R3 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R4 Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L1 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L2 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L3 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L4 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R1 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R2 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R3 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R4 Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L1 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L2 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L3 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L4 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R1 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R2 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R3 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R4 Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L1 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L2 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L3 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L4 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R1 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R2 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R3 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R4 Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L1 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L2 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L3 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L4 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R1 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R2 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R3 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R4 Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
Pressure SwitchesSMC
324 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ISA3-L IO-Link Digital Gap Checker (Seating Switch, 3-Screen)

Brand SMC·Pressure Switches

Available part numbers (324)

ISA3-FCL-1, ISA3-FCL-1B-L1, ISA3-FCL-1B-L2, ISA3-FCL-1B-L3, ISA3-FCL-1B-L4, ISA3-FCL-1B-R1, ISA3-FCL-1B-R2, ISA3-FCL-1B-R3, ISA3-FCL-1B-R4, ISA3-FCL-2 + 314 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ISA3-FCL-1Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-1B-L1Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-L2Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-1B-L3Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-L4Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R1Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R2Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R3Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-1B-R4Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-2B-L1Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-L2Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2B-L3Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-L4Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R1Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R2Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R3Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-2B-R4Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-3B-L1Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-L2Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3B-L3Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-L4Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R1Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R2Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R3Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-3B-R4Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-4B-L1Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-L2Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4B-L3Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-L4Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R1Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R2Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R3Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-4B-R4Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-5B-L1Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-L2Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5B-L3Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-L4Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R1Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R2Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R3Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-5B-R4Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: None | Unit: Unit switching built-in
ISA3-FCL-6B-L1Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-L2Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6B-L3Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-L4Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R1Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R2Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R3Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-FCL-6B-R4Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-FCL-M1Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L1Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L2Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L3Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-L4Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R1Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R2Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R3Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M1B-R4Gap range: 0.01 to 0.03 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L1Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L2Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L3Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-L4Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R1Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R2Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R3Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M2B-R4Gap range: 0.01 to 0.03 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L1Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L2Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L3Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-L4Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R1Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R2Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R3Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M3B-R4Gap range: 0.01 to 0.03 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L1Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L2Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L3Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-L4Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R1Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R2Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R3Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M4B-R4Gap range: 0.01 to 0.03 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L1Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L2Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L3Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-L4Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R1Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R2Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R3Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M5B-R4Gap range: 0.01 to 0.03 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L1Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L2Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L3Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-L4Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R1Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R2Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R3Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-FCL-M6B-R4Gap range: 0.01 to 0.03 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-1Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-1B-L1Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-L2Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-1B-L3Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-L4Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R1Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R2Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R3Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-1B-R4Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-2B-L1Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-L2Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2B-L3Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-L4Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R1Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R2Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R3Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-2B-R4Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-3B-L1Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-L2Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3B-L3Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-L4Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R1Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R2Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R3Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-3B-R4Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-4B-L1Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-L2Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4B-L3Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-L4Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R1Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R2Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R3Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-4B-R4Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-5B-L1Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-L2Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5B-L3Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-L4Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R1Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R2Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R3Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-5B-R4Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: None | Unit: Unit switching built-in
ISA3-GCL-6B-L1Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-L2Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6B-L3Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-L4Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R1Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R2Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R3Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-GCL-6B-R4Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-GCL-M1Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L1Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L2Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L3Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-L4Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R1Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R2Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R3Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M1B-R4Gap range: 0.02 to 0.15 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L1Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L2Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L3Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-L4Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R1Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R2Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R3Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M2B-R4Gap range: 0.02 to 0.15 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L1Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L2Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L3Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-L4Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R1Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R2Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R3Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M3B-R4Gap range: 0.02 to 0.15 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L1Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L2Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L3Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-L4Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R1Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R2Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R3Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M4B-R4Gap range: 0.02 to 0.15 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L1Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L2Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L3Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-L4Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R1Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R2Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R3Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M5B-R4Gap range: 0.02 to 0.15 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L1Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L2Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L3Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-L4Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R1Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R2Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R3Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-GCL-M6B-R4Gap range: 0.02 to 0.15 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-1Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-1B-L1Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-L2Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-1B-L3Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-L4Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R1Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R2Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R3Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-1B-R4Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-2B-L1Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-L2Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2B-L3Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-L4Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R1Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R2Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R3Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-2B-R4Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-3B-L1Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-L2Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3B-L3Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-L4Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R1Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R2Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R3Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-3B-R4Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-4B-L1Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-L2Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4B-L3Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-L4Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R1Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R2Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R3Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-4B-R4Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-5B-L1Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-L2Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5B-L3Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-L4Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R1Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R2Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R3Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-5B-R4Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: None | Unit: Unit switching built-in
ISA3-HCL-6B-L1Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-L2Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6B-L3Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-L4Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R1Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R2Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R3Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: Unit switching built-in
ISA3-HCL-6B-R4Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: Unit switching built-in
ISA3-HCL-M1Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L1Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L2Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L3Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-L4Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R1Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R2Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R3Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M1B-R4Gap range: 0.05 to 0.30 mm | Stations: 1 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L1Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L2Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L3Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-L4Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R1Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R2Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R3Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M2B-R4Gap range: 0.05 to 0.30 mm | Stations: 2 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L1Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L2Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L3Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-L4Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R1Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R2Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R3Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M3B-R4Gap range: 0.05 to 0.30 mm | Stations: 3 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L1Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L2Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L3Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-L4Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R1Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R2Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R3Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M4B-R4Gap range: 0.05 to 0.30 mm | Stations: 4 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L1Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L2Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L3Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-L4Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R1Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R2Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R3Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M5B-R4Gap range: 0.05 to 0.30 mm | Stations: 5 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: None | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L1Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L2Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L3Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-L4Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: L side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R1Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R2Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.4 MPa reg, square gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R3Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, round gauge | Unit: SI unit fixed (kPa)
ISA3-HCL-M6B-R4Gap range: 0.05 to 0.30 mm | Stations: 6 | Control unit: R side, 0.2 MPa reg, square gauge | Unit: SI unit fixed (kPa)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
