SMC ISE35 Digital Pressure Switch (Regulator Built-in Type)

SMC ISE35 Digital Pressure Switch (Regulator Built-in Type)

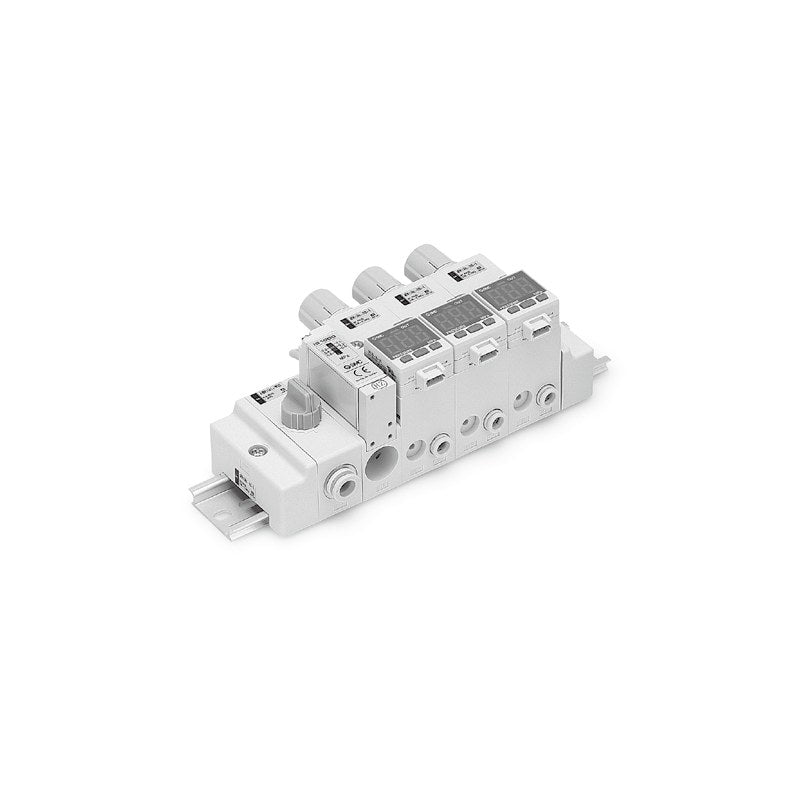

SMC ISE35 compact digital pressure switch for mounting directly on AR/AW-D regulators and ARM10/11 manifold regulators, 0 to 1 MPa.

Key features

  • Mounts on AC-D FRL combinations, AR/AW-D regulators and filter regulators, AWM/AWD-D and ARM10/11 regulators
  • Lead wire exit downward (N) or upward (R)
  • Outputs: NPN or PNP switch, 1-5 V/0-10 V analog voltage, 4-20 mA analog current, or IO-Link
  • 3-digit 2-color LED display, hysteresis and window comparator modes
  • Options not expanded: connector lead wire 2 m (L), mounting kit for AR/AW (A) or ARM10/11 (B), -X523 kit for AR/AW-D

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Rated pressure range 0 to 1 MPa
Proof pressure 1.5 MPa
Minimum display unit 0.01 MPa
Power supply 12 to 24 VDC ±10%
Current consumption 55 mA or less
Display accuracy ±2% F.S. ±1 digit
Repeatability ±1% F.S.
Enclosure IP40
Mass Approx. 14 g (body), 38 g with lead wire
Source SMC Korea catalog (SMCKR_ISE35.pdf), PDF p. 2-5
ISE35-N-25 Lead wire exit: Downward | Output: NPN 1 output | Unit: Unit switching built-in
ISE35-N-25-M Lead wire exit: Downward | Output: NPN 1 output | Unit: SI unit fixed (MPa)
ISE35-N-25-P Lead wire exit: Downward | Output: NPN 1 output | Unit: psi initial, unit switching
ISE35-N-65 Lead wire exit: Downward | Output: PNP 1 output | Unit: Unit switching built-in
ISE35-N-65-M Lead wire exit: Downward | Output: PNP 1 output | Unit: SI unit fixed (MPa)
ISE35-N-65-P Lead wire exit: Downward | Output: PNP 1 output | Unit: psi initial, unit switching
ISE35-N-26 Lead wire exit: Downward | Output: Analog voltage 1-5V/0-10V | Unit: Unit switching built-in
ISE35-N-26-M Lead wire exit: Downward | Output: Analog voltage 1-5V/0-10V | Unit: SI unit fixed (MPa)
ISE35-N-26-P Lead wire exit: Downward | Output: Analog voltage 1-5V/0-10V | Unit: psi initial, unit switching
ISE35-N-28 Lead wire exit: Downward | Output: Analog current 4-20mA | Unit: Unit switching built-in
ISE35-N-28-M Lead wire exit: Downward | Output: Analog current 4-20mA | Unit: SI unit fixed (MPa)
ISE35-N-28-P Lead wire exit: Downward | Output: Analog current 4-20mA | Unit: psi initial, unit switching
ISE35-N-L Lead wire exit: Downward | Output: IO-Link / 1 switch output | Unit: Unit switching built-in
ISE35-N-L-M Lead wire exit: Downward | Output: IO-Link / 1 switch output | Unit: SI unit fixed (MPa)
ISE35-N-L-P Lead wire exit: Downward | Output: IO-Link / 1 switch output | Unit: psi initial, unit switching
ISE35-R-25 Lead wire exit: Upward | Output: NPN 1 output | Unit: Unit switching built-in
ISE35-R-25-M Lead wire exit: Upward | Output: NPN 1 output | Unit: SI unit fixed (MPa)
ISE35-R-25-P Lead wire exit: Upward | Output: NPN 1 output | Unit: psi initial, unit switching
ISE35-R-65 Lead wire exit: Upward | Output: PNP 1 output | Unit: Unit switching built-in
ISE35-R-65-M Lead wire exit: Upward | Output: PNP 1 output | Unit: SI unit fixed (MPa)
ISE35-R-65-P Lead wire exit: Upward | Output: PNP 1 output | Unit: psi initial, unit switching
ISE35-R-26 Lead wire exit: Upward | Output: Analog voltage 1-5V/0-10V | Unit: Unit switching built-in
ISE35-R-26-M Lead wire exit: Upward | Output: Analog voltage 1-5V/0-10V | Unit: SI unit fixed (MPa)
ISE35-R-26-P Lead wire exit: Upward | Output: Analog voltage 1-5V/0-10V | Unit: psi initial, unit switching
ISE35-R-28 Lead wire exit: Upward | Output: Analog current 4-20mA | Unit: Unit switching built-in
ISE35-R-28-M Lead wire exit: Upward | Output: Analog current 4-20mA | Unit: SI unit fixed (MPa)
ISE35-R-28-P Lead wire exit: Upward | Output: Analog current 4-20mA | Unit: psi initial, unit switching
ISE35-R-L Lead wire exit: Upward | Output: IO-Link / 1 switch output | Unit: Unit switching built-in
ISE35-R-L-M Lead wire exit: Upward | Output: IO-Link / 1 switch output | Unit: SI unit fixed (MPa)
ISE35-R-L-P Lead wire exit: Upward | Output: IO-Link / 1 switch output | Unit: psi initial, unit switching
Pressure SwitchesSMC
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ISE35 Digital Pressure Switch (Regulator Built-in Type)

Brand SMC·Pressure Switches

Available part numbers (30)

ISE35-N-25, ISE35-N-25-M, ISE35-N-25-P, ISE35-N-65, ISE35-N-65-M, ISE35-N-65-P, ISE35-N-26, ISE35-N-26-M, ISE35-N-26-P, ISE35-N-28 + 20 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ISE35-N-25Lead wire exit: Downward | Output: NPN 1 output | Unit: Unit switching built-in
ISE35-N-25-MLead wire exit: Downward | Output: NPN 1 output | Unit: SI unit fixed (MPa)
ISE35-N-25-PLead wire exit: Downward | Output: NPN 1 output | Unit: psi initial, unit switching
ISE35-N-65Lead wire exit: Downward | Output: PNP 1 output | Unit: Unit switching built-in
ISE35-N-65-MLead wire exit: Downward | Output: PNP 1 output | Unit: SI unit fixed (MPa)
ISE35-N-65-PLead wire exit: Downward | Output: PNP 1 output | Unit: psi initial, unit switching
ISE35-N-26Lead wire exit: Downward | Output: Analog voltage 1-5V/0-10V | Unit: Unit switching built-in
ISE35-N-26-MLead wire exit: Downward | Output: Analog voltage 1-5V/0-10V | Unit: SI unit fixed (MPa)
ISE35-N-26-PLead wire exit: Downward | Output: Analog voltage 1-5V/0-10V | Unit: psi initial, unit switching
ISE35-N-28Lead wire exit: Downward | Output: Analog current 4-20mA | Unit: Unit switching built-in
ISE35-N-28-MLead wire exit: Downward | Output: Analog current 4-20mA | Unit: SI unit fixed (MPa)
ISE35-N-28-PLead wire exit: Downward | Output: Analog current 4-20mA | Unit: psi initial, unit switching
ISE35-N-LLead wire exit: Downward | Output: IO-Link / 1 switch output | Unit: Unit switching built-in
ISE35-N-L-MLead wire exit: Downward | Output: IO-Link / 1 switch output | Unit: SI unit fixed (MPa)
ISE35-N-L-PLead wire exit: Downward | Output: IO-Link / 1 switch output | Unit: psi initial, unit switching
ISE35-R-25Lead wire exit: Upward | Output: NPN 1 output | Unit: Unit switching built-in
ISE35-R-25-MLead wire exit: Upward | Output: NPN 1 output | Unit: SI unit fixed (MPa)
ISE35-R-25-PLead wire exit: Upward | Output: NPN 1 output | Unit: psi initial, unit switching
ISE35-R-65Lead wire exit: Upward | Output: PNP 1 output | Unit: Unit switching built-in
ISE35-R-65-MLead wire exit: Upward | Output: PNP 1 output | Unit: SI unit fixed (MPa)
ISE35-R-65-PLead wire exit: Upward | Output: PNP 1 output | Unit: psi initial, unit switching
ISE35-R-26Lead wire exit: Upward | Output: Analog voltage 1-5V/0-10V | Unit: Unit switching built-in
ISE35-R-26-MLead wire exit: Upward | Output: Analog voltage 1-5V/0-10V | Unit: SI unit fixed (MPa)
ISE35-R-26-PLead wire exit: Upward | Output: Analog voltage 1-5V/0-10V | Unit: psi initial, unit switching
ISE35-R-28Lead wire exit: Upward | Output: Analog current 4-20mA | Unit: Unit switching built-in
ISE35-R-28-MLead wire exit: Upward | Output: Analog current 4-20mA | Unit: SI unit fixed (MPa)
ISE35-R-28-PLead wire exit: Upward | Output: Analog current 4-20mA | Unit: psi initial, unit switching
ISE35-R-LLead wire exit: Upward | Output: IO-Link / 1 switch output | Unit: Unit switching built-in
ISE35-R-L-MLead wire exit: Upward | Output: IO-Link / 1 switch output | Unit: SI unit fixed (MPa)
ISE35-R-L-PLead wire exit: Upward | Output: IO-Link / 1 switch output | Unit: psi initial, unit switching
