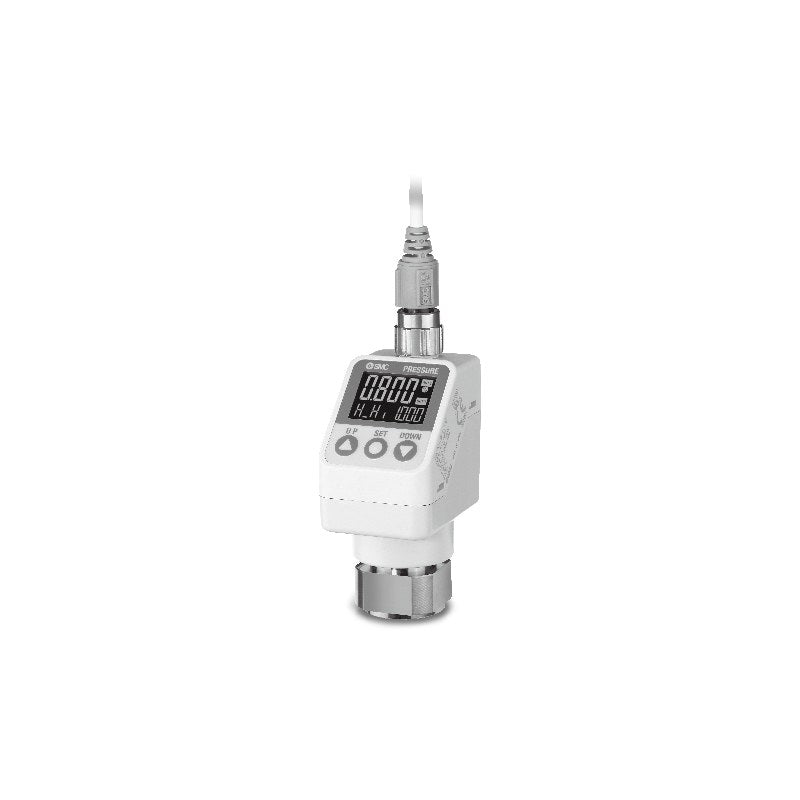

SMC ISE70/ISE71 3-Screen High-Precision Digital Pressure Switch (Air)

SMC ISE70/ISE71 3-Screen High-Precision Digital Pressure Switch (Air)

SMC ISE70/ISE71 high-precision digital pressure switch for air with a 3-screen LCD, rotating display and IO-Link or dual switch outputs.

Key features

  • 3-screen display (main plus two sub screens) shows measured value, set value, label and peak/bottom values
  • Display rotates 336 degrees after installation for visibility from any direction
  • Output L2: IO-Link plus 2 switch outputs; output AB: 2 switch outputs, NPN or PNP selectable
  • Hysteresis, window comparator, error output and output-OFF modes; delay time 0 to 60 s
  • Options not expanded: M12 connector lead wire 5 m straight (S) or right-angle (L), bracket A/B, operation manual/calibration certificate (Y/K/T)
  • Port thread NPT1/4 (N02) and G1/4 ISO1179-1 (F02) also available on order

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Port size Rc1/4 (02)
Proof pressure ISE70 1.5 MPa, ISE71 2.4 MPa
Minimum display unit 0.001 MPa
Power supply 12 to 24 VDC ±10% (IO-Link 18 to 30 VDC)
Current consumption 35 mA or less
Display accuracy ±2% F.S. ±1 digit
Repeatability ±0.5% F.S.
Max. load current 80 mA
Response time 1.5 ms or less
Enclosure IP67
Mass Approx. 153 g (Rc1/4)
Source SMC Korea catalog (SMCKR_ISE7_ISE7__G.pdf), PDF p. 8-9
ISE70-02-L2 Series: ISE70 | Rated pressure: 0 to 1 MPa | Output: IO-Link + 2 switch outputs | Unit: Unit switching built-in
ISE70-02-L2-M Series: ISE70 | Rated pressure: 0 to 1 MPa | Output: IO-Link + 2 switch outputs | Unit: SI unit fixed (MPa/kPa)
ISE70-02-AB Series: ISE70 | Rated pressure: 0 to 1 MPa | Output: 2 switch outputs NPN/PNP | Unit: Unit switching built-in
ISE70-02-AB-M Series: ISE70 | Rated pressure: 0 to 1 MPa | Output: 2 switch outputs NPN/PNP | Unit: SI unit fixed (MPa/kPa)
ISE71-02-L2 Series: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: IO-Link + 2 switch outputs | Unit: Unit switching built-in
ISE71-02-L2-M Series: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: IO-Link + 2 switch outputs | Unit: SI unit fixed (MPa/kPa)
ISE71-02-AB Series: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: 2 switch outputs NPN/PNP | Unit: Unit switching built-in
ISE71-02-AB-M Series: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: 2 switch outputs NPN/PNP | Unit: SI unit fixed (MPa/kPa)
Pressure SwitchesSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ISE70/ISE71 3-Screen High-Precision Digital Pressure Switch (Air)

Brand SMC·Pressure Switches

Available part numbers (8)

ISE70-02-L2, ISE70-02-L2-M, ISE70-02-AB, ISE70-02-AB-M, ISE71-02-L2, ISE71-02-L2-M, ISE71-02-AB, ISE71-02-AB-M

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ISE70-02-L2Series: ISE70 | Rated pressure: 0 to 1 MPa | Output: IO-Link + 2 switch outputs | Unit: Unit switching built-in
ISE70-02-L2-MSeries: ISE70 | Rated pressure: 0 to 1 MPa | Output: IO-Link + 2 switch outputs | Unit: SI unit fixed (MPa/kPa)
ISE70-02-ABSeries: ISE70 | Rated pressure: 0 to 1 MPa | Output: 2 switch outputs NPN/PNP | Unit: Unit switching built-in
ISE70-02-AB-MSeries: ISE70 | Rated pressure: 0 to 1 MPa | Output: 2 switch outputs NPN/PNP | Unit: SI unit fixed (MPa/kPa)
ISE71-02-L2Series: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: IO-Link + 2 switch outputs | Unit: Unit switching built-in
ISE71-02-L2-MSeries: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: IO-Link + 2 switch outputs | Unit: SI unit fixed (MPa/kPa)
ISE71-02-ABSeries: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: 2 switch outputs NPN/PNP | Unit: Unit switching built-in
ISE71-02-AB-MSeries: ISE71 | Rated pressure: 0 to 1.6 MPa | Output: 2 switch outputs NPN/PNP | Unit: SI unit fixed (MPa/kPa)
