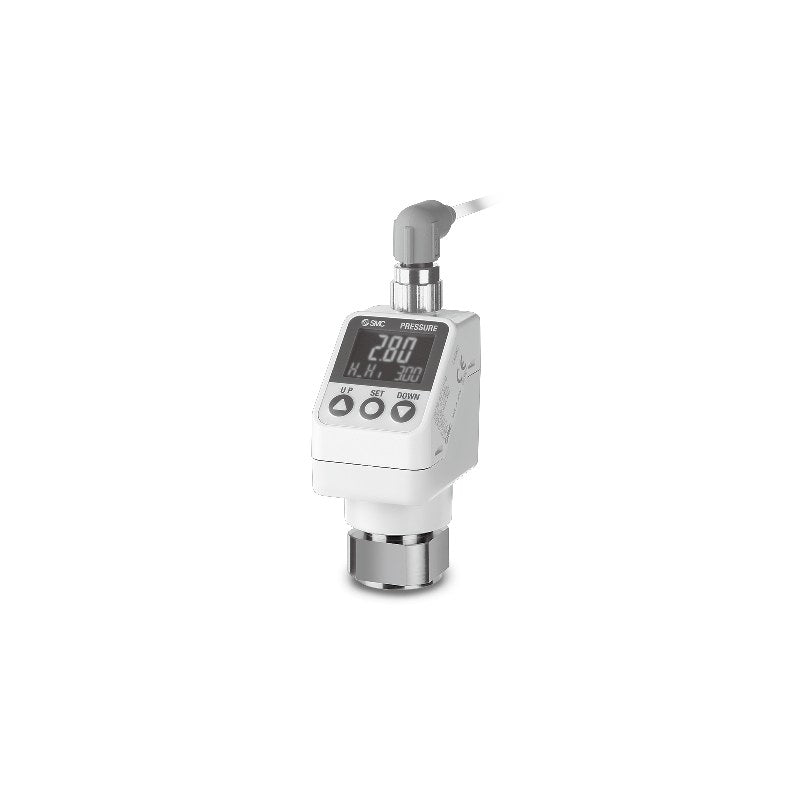

SMC ISE79S 3-Screen Digital Pressure Switch (General Fluid, 50 MPa)

SMC ISE79S high-pressure digital pressure switch for general fluids with a 0 to 50 MPa rated range, 3-screen LCD and IO-Link plus 2 switch outputs.

Key features

Rated pressure range 0 to 50 MPa, proof pressure 75 MPa, minimum display unit 0.1 MPa
3-screen LCD with rotating display for visibility from any direction
Output L2: IO-Link plus 2 switch outputs, NPN or PNP selectable
Options not expanded: M12 connector lead wire 5 m (S/L), bracket A/B, manual/calibration certificate (Y/K/T)
G1/4 (F02) port also available

Specifications

Fluid	Liquid or gas compatible with wetted parts
Rated pressure range	0 to 50.0 MPa
Display/set range	-2.5 to 52.5 MPa
Proof pressure	75 MPa
Port size	Rc1/4 (02)
Output	IO-Link + 2 switch outputs (L2)
Power supply	12 to 24 VDC ±10% (IO-Link 18 to 30 VDC)
Enclosure	IP67
Series	ISE79S
Port	Rc1/4
Source	SMC Korea catalog (SMCKR_ISE7_ISE7__G.pdf), PDF p. 12-13

ISE79S-02-L2		Unit: Unit switching built-in
ISE79S-02-L2-M		Unit: SI unit fixed (MPa/kPa)

Pressure SwitchesSMC

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ISE79S 3-Screen Digital Pressure Switch (General Fluid, 50 MPa)

Brand SMC·Pressure Switches

Available part numbers (2)

ISE79S-02-L2, ISE79S-02-L2-M

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
