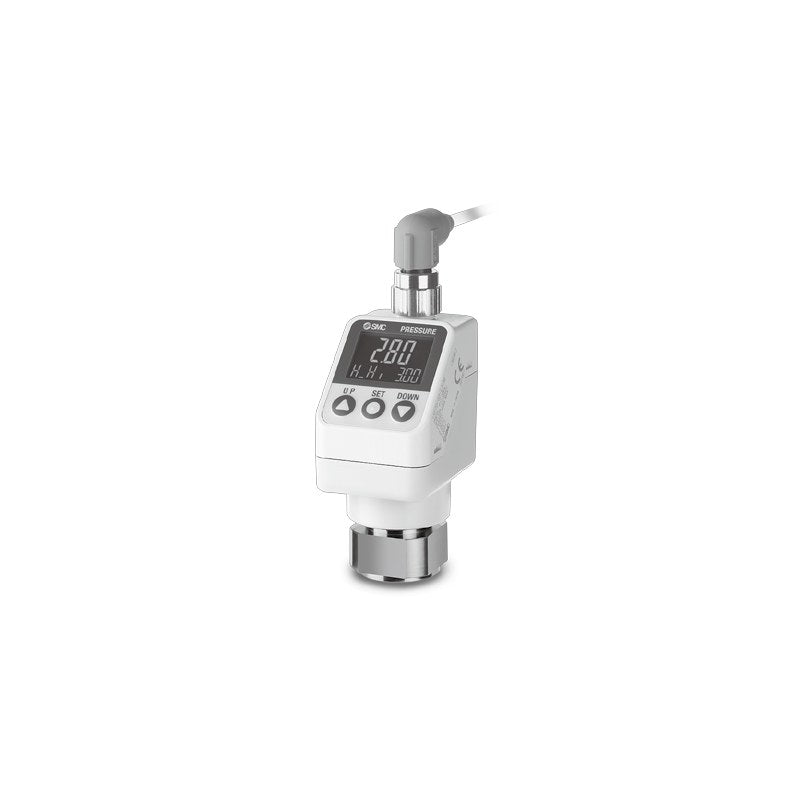

SMC ISE70G-ISE78G 3-Screen Digital Pressure Switch (General Fluid)

SMC ISE70G-ISE78G 3-Screen Digital Pressure Switch (General Fluid)

SMC ISE7_G high-precision digital pressure switch for general fluids, 1 to 16 MPa rated range, with alumina sensor, 3-screen LCD and IO-Link output.

Key features

  • For liquids or gases that do not corrode the wetted parts (alumina 96% sensor, nickel-plated C3604 port)
  • Five rated ranges: 1, 2, 5, 10 and 16 MPa
  • Output L2: IO-Link plus 2 switch outputs, NPN or PNP selectable
  • Optional enclosed orifice (T) against pressure surges
  • Options not expanded: M12 connector lead wire 5 m (S/L), bracket A/B, manual/calibration certificate (Y/K/T); analog voltage output -X504/-X101 made to order (ISE77G/78G)
  • Port thread NPT1/4 (N02) and G1/4 (F02) also available

Specifications

Fluid Liquid or gas compatible with wetted parts
Port size Rc1/4 (02)
Power supply 12 to 24 VDC ±10% (IO-Link 18 to 30 VDC)
Current consumption 35 mA or less
Display accuracy ±2% F.S. ±1 digit
Repeatability ±0.5% F.S.
Max. load current 80 mA
Response time 2 ms or less
Fluid temperature -5 to 70°C
Enclosure IP67
Mass Approx. 184 g (Rc1/4)
Output IO-Link + 2 switch outputs (L2)
Source SMC Korea catalog (SMCKR_ISE7_ISE7__G.pdf), PDF p. 10-11
ISE70G-02-L2 Series: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE70G-02-L2-M Series: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE70G-02T-L2 Series: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE70G-02T-L2-M Series: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE75G-02-L2 Series: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE75G-02-L2-M Series: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE75G-02T-L2 Series: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE75G-02T-L2-M Series: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE76G-02-L2 Series: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE76G-02-L2-M Series: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE76G-02T-L2 Series: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE76G-02T-L2-M Series: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE77G-02-L2 Series: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE77G-02-L2-M Series: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE77G-02T-L2 Series: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE77G-02T-L2-M Series: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE78G-02-L2 Series: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE78G-02-L2-M Series: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE78G-02T-L2 Series: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE78G-02T-L2-M Series: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
Pressure SwitchesSMC
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ISE70G-ISE78G 3-Screen Digital Pressure Switch (General Fluid)

Brand SMC·Pressure Switches

Available part numbers (20)

ISE70G-02-L2, ISE70G-02-L2-M, ISE70G-02T-L2, ISE70G-02T-L2-M, ISE75G-02-L2, ISE75G-02-L2-M, ISE75G-02T-L2, ISE75G-02T-L2-M, ISE76G-02-L2, ISE76G-02-L2-M + 10 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ISE70G-02-L2Series: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE70G-02-L2-MSeries: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE70G-02T-L2Series: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE70G-02T-L2-MSeries: ISE70G | Rated pressure: 0 to 1 MPa | Proof pressure: 3.0 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE75G-02-L2Series: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE75G-02-L2-MSeries: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE75G-02T-L2Series: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE75G-02T-L2-MSeries: ISE75G | Rated pressure: 0 to 2 MPa | Proof pressure: 5.0 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE76G-02-L2Series: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE76G-02-L2-MSeries: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE76G-02T-L2Series: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE76G-02T-L2-MSeries: ISE76G | Rated pressure: 0 to 5 MPa | Proof pressure: 12.5 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE77G-02-L2Series: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE77G-02-L2-MSeries: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE77G-02T-L2Series: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE77G-02T-L2-MSeries: ISE77G | Rated pressure: 0 to 10 MPa | Proof pressure: 30 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
ISE78G-02-L2Series: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: Without orifice | Unit: Unit switching built-in
ISE78G-02-L2-MSeries: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: Without orifice | Unit: SI unit fixed (MPa/kPa)
ISE78G-02T-L2Series: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: With orifice (enclosed) | Unit: Unit switching built-in
ISE78G-02T-L2-MSeries: ISE78G | Rated pressure: 0 to 16 MPa | Proof pressure: 48 MPa | Orifice: With orifice (enclosed) | Unit: SI unit fixed (MPa/kPa)
