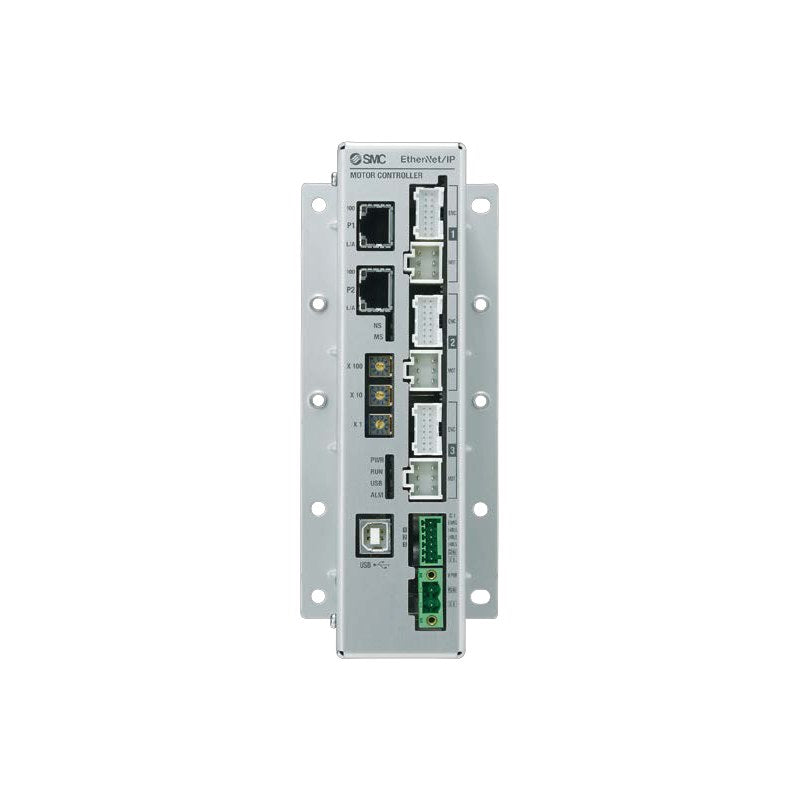

SMC JXCE/9/P/D/L/M Step Motor Controller (Fieldbus Direct Input)

SMC JXCE/9/P/D/L/M Step Motor Controller (Fieldbus Direct Input)

SMC JXC1/JXCF single-axis step motor controller with direct fieldbus input for EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link or CC-Link.

Key features

  • Position and speed set directly by numerical data over the network, plus up to 64 step data points
  • Safety function STO/SS1-t (EN61508 SIL3) versions (F) for EtherCAT, EtherNet/IP, PROFINET and IO-Link
  • Incremental and battery-less absolute encoder LE actuators supported
  • DeviceNet and CC-Link versions available with straight (S) or T-branch (T) communication plug
  • Listed codes are blank controllers (-BC); preset versions take the actuator part number in place of BC (e.g. JXCD17T-LEFS16B-100)

Specifications

Code type Blank controller (-BC), data set by customer
Motor Step motor (servo DC24V)
Power supply DC24V ±10%
Current consumption 100 to 200 mA (controller only, by protocol)
Encoder Incremental / battery-less absolute
Actuator cable length 20 m or less
Operating temperature 0 to 55°C (no freezing)
Enclosure IP30 (except connectors)
Memory EEPROM
Source SMC Korea catalog Controllers JXC/LEC (SMCKR_JXC-_LEC-.pdf), p. 1063-1070 (PDF p. 55-62)
JXCE17-BC Protocol: EtherCAT | Safety: Standard | Mounting: Screw mounting | Option: None
JXCE18-BC Protocol: EtherCAT | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCEF7-BC Protocol: EtherCAT | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXCEF8-BC Protocol: EtherCAT | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXC917-BC Protocol: EtherNet/IP | Safety: Standard | Mounting: Screw mounting | Option: None
JXC918-BC Protocol: EtherNet/IP | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXC9F7-BC Protocol: EtherNet/IP | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXC9F8-BC Protocol: EtherNet/IP | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXCP17-BC Protocol: PROFINET | Safety: Standard | Mounting: Screw mounting | Option: None
JXCP18-BC Protocol: PROFINET | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCPF7-BC Protocol: PROFINET | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXCPF8-BC Protocol: PROFINET | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXCD17-BC Protocol: DeviceNet | Safety: Standard | Mounting: Screw mounting | Option: None
JXCD17S-BC Protocol: DeviceNet | Safety: Standard | Mounting: Screw mounting | Option: Straight comm. plug
JXCD17T-BC Protocol: DeviceNet | Safety: Standard | Mounting: Screw mounting | Option: T-branch comm. plug
JXCD18-BC Protocol: DeviceNet | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCD18S-BC Protocol: DeviceNet | Safety: Standard | Mounting: DIN rail mounting | Option: Straight comm. plug
JXCD18T-BC Protocol: DeviceNet | Safety: Standard | Mounting: DIN rail mounting | Option: T-branch comm. plug
JXCL17-BC Protocol: IO-Link | Safety: Standard | Mounting: Screw mounting | Option: None
JXCL18-BC Protocol: IO-Link | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCLF7-BC Protocol: IO-Link | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXCLF8-BC Protocol: IO-Link | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXCM17-BC Protocol: CC-Link | Safety: Standard | Mounting: Screw mounting | Option: None
JXCM17S-BC Protocol: CC-Link | Safety: Standard | Mounting: Screw mounting | Option: Straight comm. plug
JXCM17T-BC Protocol: CC-Link | Safety: Standard | Mounting: Screw mounting | Option: T-branch comm. plug
JXCM18-BC Protocol: CC-Link | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCM18S-BC Protocol: CC-Link | Safety: Standard | Mounting: DIN rail mounting | Option: Straight comm. plug
JXCM18T-BC Protocol: CC-Link | Safety: Standard | Mounting: DIN rail mounting | Option: T-branch comm. plug
Electric Actuator ControllersSMC
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JXCE/9/P/D/L/M Step Motor Controller (Fieldbus Direct Input)

Brand SMC·Electric Actuator Controllers

Available part numbers (28)

JXCE17-BC, JXCE18-BC, JXCEF7-BC, JXCEF8-BC, JXC917-BC, JXC918-BC, JXC9F7-BC, JXC9F8-BC, JXCP17-BC, JXCP18-BC + 18 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JXCE17-BCProtocol: EtherCAT | Safety: Standard | Mounting: Screw mounting | Option: None
JXCE18-BCProtocol: EtherCAT | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCEF7-BCProtocol: EtherCAT | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXCEF8-BCProtocol: EtherCAT | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXC917-BCProtocol: EtherNet/IP | Safety: Standard | Mounting: Screw mounting | Option: None
JXC918-BCProtocol: EtherNet/IP | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXC9F7-BCProtocol: EtherNet/IP | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXC9F8-BCProtocol: EtherNet/IP | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXCP17-BCProtocol: PROFINET | Safety: Standard | Mounting: Screw mounting | Option: None
JXCP18-BCProtocol: PROFINET | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCPF7-BCProtocol: PROFINET | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXCPF8-BCProtocol: PROFINET | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXCD17-BCProtocol: DeviceNet | Safety: Standard | Mounting: Screw mounting | Option: None
JXCD17S-BCProtocol: DeviceNet | Safety: Standard | Mounting: Screw mounting | Option: Straight comm. plug
JXCD17T-BCProtocol: DeviceNet | Safety: Standard | Mounting: Screw mounting | Option: T-branch comm. plug
JXCD18-BCProtocol: DeviceNet | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCD18S-BCProtocol: DeviceNet | Safety: Standard | Mounting: DIN rail mounting | Option: Straight comm. plug
JXCD18T-BCProtocol: DeviceNet | Safety: Standard | Mounting: DIN rail mounting | Option: T-branch comm. plug
JXCL17-BCProtocol: IO-Link | Safety: Standard | Mounting: Screw mounting | Option: None
JXCL18-BCProtocol: IO-Link | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCLF7-BCProtocol: IO-Link | Safety: STO/SS1-t | Mounting: Screw mounting | Option: None
JXCLF8-BCProtocol: IO-Link | Safety: STO/SS1-t | Mounting: DIN rail mounting | Option: None
JXCM17-BCProtocol: CC-Link | Safety: Standard | Mounting: Screw mounting | Option: None
JXCM17S-BCProtocol: CC-Link | Safety: Standard | Mounting: Screw mounting | Option: Straight comm. plug
JXCM17T-BCProtocol: CC-Link | Safety: Standard | Mounting: Screw mounting | Option: T-branch comm. plug
JXCM18-BCProtocol: CC-Link | Safety: Standard | Mounting: DIN rail mounting | Option: None
JXCM18S-BCProtocol: CC-Link | Safety: Standard | Mounting: DIN rail mounting | Option: Straight comm. plug
JXCM18T-BCProtocol: CC-Link | Safety: Standard | Mounting: DIN rail mounting | Option: T-branch comm. plug
