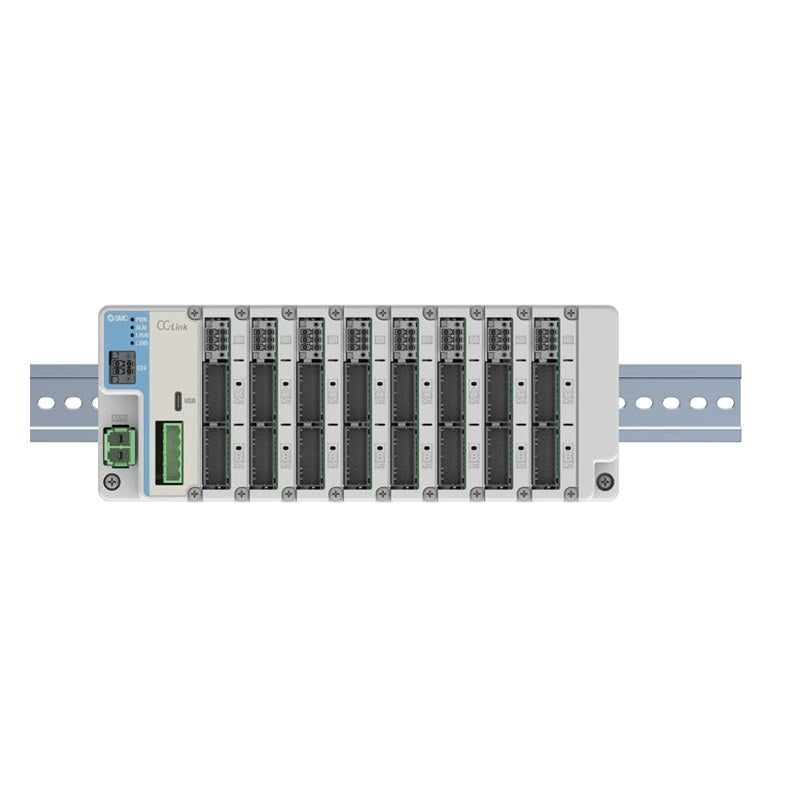

SMC JXD1-M Manifold Controller (Battery-less Absolute, up to 16 axes)

SMC JXD1-M Manifold Controller (Battery-less Absolute, up to 16 axes)

SMC JXD1-M manifold controller for battery-less absolute step motor (DC24V) LE2 series electric actuators, combining a fieldbus gateway unit, up to 8 driver units (16 axes) and an end unit.

Key features

  • Gateway unit for CC-Link, EtherNet/IP, EtherCAT or PROFINET, with USB (Type-C) setting port
  • Driver units for 1 or 2 axes each; up to 8 driver units / 16 axes per manifold
  • Fanless design, operating temperature 0 to 55°C; 66% less width than 16 individual JXC controllers
  • Connected actuators are recognised and registered by the ACT-Connected setting software; no actuator-specific controller ordering
  • DIN rail (35 mm) or direct mounting; AXT100-DR- DIN rail (No. 1 to 40) available separately

Specifications

Power supply DC24V ±10%
Controlled axes 16 max. (8 driver units max.)
Compatible encoder Battery-less absolute
Compatible actuators LE2FS (slider), LE2Y (rod) series
Actuator cable length 20 m or less
Protection functions Overcurrent, overspeed, encoder break, overload, temperature
Operating temperature 0 to 55°C (no freezing)
Operating humidity 35 to 85% RH (no condensation)
Enclosure IP20 equivalent
Cooling Natural air cooling, fanless
Source SMC Korea catalog CAT.KS100-164A (SMCKR_JXD1-M.pdf), p. 4-9 (PDF p. 5-10)
JXD1-MGW-CC-7U Component: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: No CC-Link plug, no end unit
JXD1-MGW-CC-7UR Component: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: No CC-Link plug, with end unit
JXD1-MGW-CC-7US Component: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: Straight CC-Link plug, no end unit
JXD1-MGW-CC-7USR Component: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: Straight CC-Link plug, with end unit
JXD1-MGW-CC-7UT Component: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: T-branch CC-Link plug, no end unit
JXD1-MGW-CC-7UTR Component: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: T-branch CC-Link plug, with end unit
JXD1-MGW-CC-8U Component: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: No CC-Link plug, no end unit
JXD1-MGW-CC-8UR Component: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: No CC-Link plug, with end unit
JXD1-MGW-CC-8US Component: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: Straight CC-Link plug, no end unit
JXD1-MGW-CC-8USR Component: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: Straight CC-Link plug, with end unit
JXD1-MGW-CC-8UT Component: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: T-branch CC-Link plug, no end unit
JXD1-MGW-CC-8UTR Component: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: T-branch CC-Link plug, with end unit
JXD1-MGW-EN-7U Component: Gateway unit | Detail: EtherNet/IP | Mounting: Direct mounting bracket | Options: No end unit
JXD1-MGW-EN-7UR Component: Gateway unit | Detail: EtherNet/IP | Mounting: Direct mounting bracket | Options: With end unit
JXD1-MGW-EN-8U Component: Gateway unit | Detail: EtherNet/IP | Mounting: DIN rail mounting bracket | Options: No end unit
JXD1-MGW-EN-8UR Component: Gateway unit | Detail: EtherNet/IP | Mounting: DIN rail mounting bracket | Options: With end unit
JXD1-MGW-EC-7U Component: Gateway unit | Detail: EtherCAT | Mounting: Direct mounting bracket | Options: No end unit
JXD1-MGW-EC-7UR Component: Gateway unit | Detail: EtherCAT | Mounting: Direct mounting bracket | Options: With end unit
JXD1-MGW-EC-8U Component: Gateway unit | Detail: EtherCAT | Mounting: DIN rail mounting bracket | Options: No end unit
JXD1-MGW-EC-8UR Component: Gateway unit | Detail: EtherCAT | Mounting: DIN rail mounting bracket | Options: With end unit
JXD1-MGW-PN-7U Component: Gateway unit | Detail: PROFINET | Mounting: Direct mounting bracket | Options: No end unit
JXD1-MGW-PN-7UR Component: Gateway unit | Detail: PROFINET | Mounting: Direct mounting bracket | Options: With end unit
JXD1-MGW-PN-8U Component: Gateway unit | Detail: PROFINET | Mounting: DIN rail mounting bracket | Options: No end unit
JXD1-MGW-PN-8UR Component: Gateway unit | Detail: PROFINET | Mounting: DIN rail mounting bracket | Options: With end unit
JXD1-MDP1 Component: Driver unit | Detail: 1 axis | Mounting: Manifold connection | Options: Power cut-off plug included
JXD1-MDP2 Component: Driver unit | Detail: 2 axes | Mounting: Manifold connection | Options: Power cut-off plug included
JXD1-MTR Component: End unit | Detail: Manifold end unit | Mounting: Manifold connection | Options: None
LEC-CMJ-S Component: CC-Link plug | Detail: Straight type | Mounting: Accessory | Options: None
JX-NT-M Component: CC-Link plug | Detail: T-branch type | Mounting: Accessory | Options: None
JX-NM-M Component: Power plug | Detail: Motor power M24V | Mounting: Accessory | Options: None
JX-NC-M Component: Control power plug | Detail: Control power C24V and EMG | Mounting: Accessory | Options: None
JX-NL-M Component: Power cut-off plug | Detail: Per-axis power cut and lock release | Mounting: Accessory | Options: None
JX-SC-M Component: Direct mounting bracket | Detail: Set of 2 with tapping screws | Mounting: Accessory | Options: None
JX-DR-M Component: DIN rail mounting bracket | Detail: Set of 2 with screws | Mounting: Accessory | Options: None
JX-CP-D-1 Component: Actuator cable | Detail: 1.5 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-3 Component: Actuator cable | Detail: 3 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-5 Component: Actuator cable | Detail: 5 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-8 Component: Actuator cable | Detail: 8 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-A Component: Actuator cable | Detail: 10 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-B Component: Actuator cable | Detail: 15 m, dia. 11 mm | Mounting: Accessory | Options: Made to order
JX-CP-D-C Component: Actuator cable | Detail: 20 m, dia. 11 mm | Mounting: Accessory | Options: Made to order
Electric Actuator ControllersSMC
41 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JXD1-M Manifold Controller (Battery-less Absolute, up to 16 axes)

Brand SMC·Electric Actuator Controllers

Available part numbers (41)

JXD1-MGW-CC-7U, JXD1-MGW-CC-7UR, JXD1-MGW-CC-7US, JXD1-MGW-CC-7USR, JXD1-MGW-CC-7UT, JXD1-MGW-CC-7UTR, JXD1-MGW-CC-8U, JXD1-MGW-CC-8UR, JXD1-MGW-CC-8US, JXD1-MGW-CC-8USR + 31 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JXD1-MGW-CC-7UComponent: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: No CC-Link plug, no end unit
JXD1-MGW-CC-7URComponent: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: No CC-Link plug, with end unit
JXD1-MGW-CC-7USComponent: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: Straight CC-Link plug, no end unit
JXD1-MGW-CC-7USRComponent: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: Straight CC-Link plug, with end unit
JXD1-MGW-CC-7UTComponent: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: T-branch CC-Link plug, no end unit
JXD1-MGW-CC-7UTRComponent: Gateway unit | Detail: CC-Link | Mounting: Direct mounting bracket | Options: T-branch CC-Link plug, with end unit
JXD1-MGW-CC-8UComponent: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: No CC-Link plug, no end unit
JXD1-MGW-CC-8URComponent: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: No CC-Link plug, with end unit
JXD1-MGW-CC-8USComponent: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: Straight CC-Link plug, no end unit
JXD1-MGW-CC-8USRComponent: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: Straight CC-Link plug, with end unit
JXD1-MGW-CC-8UTComponent: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: T-branch CC-Link plug, no end unit
JXD1-MGW-CC-8UTRComponent: Gateway unit | Detail: CC-Link | Mounting: DIN rail mounting bracket | Options: T-branch CC-Link plug, with end unit
JXD1-MGW-EN-7UComponent: Gateway unit | Detail: EtherNet/IP | Mounting: Direct mounting bracket | Options: No end unit
JXD1-MGW-EN-7URComponent: Gateway unit | Detail: EtherNet/IP | Mounting: Direct mounting bracket | Options: With end unit
JXD1-MGW-EN-8UComponent: Gateway unit | Detail: EtherNet/IP | Mounting: DIN rail mounting bracket | Options: No end unit
JXD1-MGW-EN-8URComponent: Gateway unit | Detail: EtherNet/IP | Mounting: DIN rail mounting bracket | Options: With end unit
JXD1-MGW-EC-7UComponent: Gateway unit | Detail: EtherCAT | Mounting: Direct mounting bracket | Options: No end unit
JXD1-MGW-EC-7URComponent: Gateway unit | Detail: EtherCAT | Mounting: Direct mounting bracket | Options: With end unit
JXD1-MGW-EC-8UComponent: Gateway unit | Detail: EtherCAT | Mounting: DIN rail mounting bracket | Options: No end unit
JXD1-MGW-EC-8URComponent: Gateway unit | Detail: EtherCAT | Mounting: DIN rail mounting bracket | Options: With end unit
JXD1-MGW-PN-7UComponent: Gateway unit | Detail: PROFINET | Mounting: Direct mounting bracket | Options: No end unit
JXD1-MGW-PN-7URComponent: Gateway unit | Detail: PROFINET | Mounting: Direct mounting bracket | Options: With end unit
JXD1-MGW-PN-8UComponent: Gateway unit | Detail: PROFINET | Mounting: DIN rail mounting bracket | Options: No end unit
JXD1-MGW-PN-8URComponent: Gateway unit | Detail: PROFINET | Mounting: DIN rail mounting bracket | Options: With end unit
JXD1-MDP1Component: Driver unit | Detail: 1 axis | Mounting: Manifold connection | Options: Power cut-off plug included
JXD1-MDP2Component: Driver unit | Detail: 2 axes | Mounting: Manifold connection | Options: Power cut-off plug included
JXD1-MTRComponent: End unit | Detail: Manifold end unit | Mounting: Manifold connection | Options: None
LEC-CMJ-SComponent: CC-Link plug | Detail: Straight type | Mounting: Accessory | Options: None
JX-NT-MComponent: CC-Link plug | Detail: T-branch type | Mounting: Accessory | Options: None
JX-NM-MComponent: Power plug | Detail: Motor power M24V | Mounting: Accessory | Options: None
JX-NC-MComponent: Control power plug | Detail: Control power C24V and EMG | Mounting: Accessory | Options: None
JX-NL-MComponent: Power cut-off plug | Detail: Per-axis power cut and lock release | Mounting: Accessory | Options: None
JX-SC-MComponent: Direct mounting bracket | Detail: Set of 2 with tapping screws | Mounting: Accessory | Options: None
JX-DR-MComponent: DIN rail mounting bracket | Detail: Set of 2 with screws | Mounting: Accessory | Options: None
JX-CP-D-1Component: Actuator cable | Detail: 1.5 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-3Component: Actuator cable | Detail: 3 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-5Component: Actuator cable | Detail: 5 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-8Component: Actuator cable | Detail: 8 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-AComponent: Actuator cable | Detail: 10 m, dia. 8 mm | Mounting: Accessory | Options: Standard
JX-CP-D-BComponent: Actuator cable | Detail: 15 m, dia. 11 mm | Mounting: Accessory | Options: Made to order
JX-CP-D-CComponent: Actuator cable | Detail: 20 m, dia. 11 mm | Mounting: Accessory | Options: Made to order
