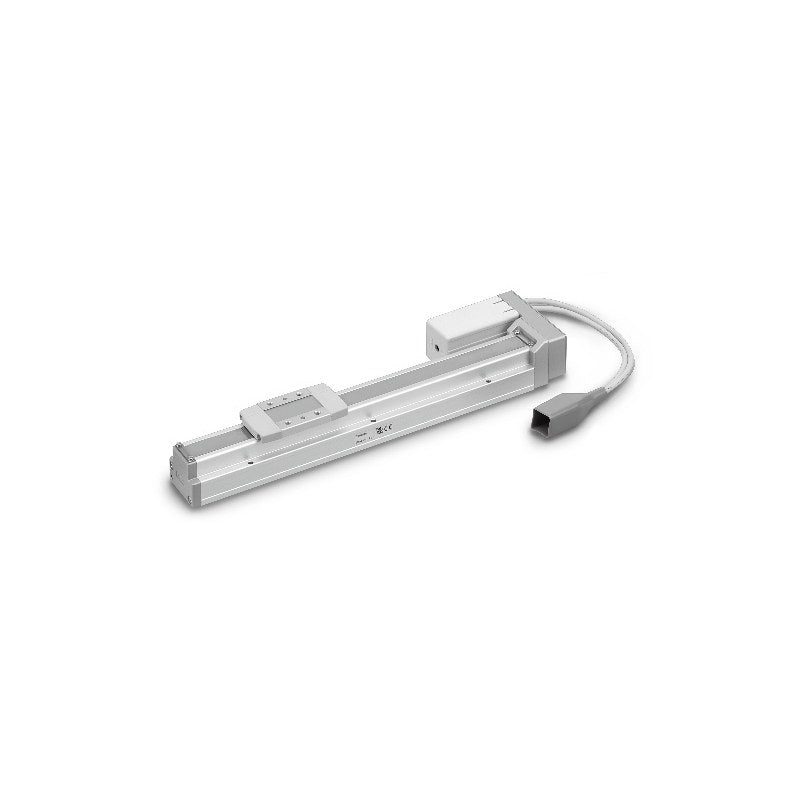

SMC LEFS Battery-less Absolute Slider Actuator (Ball Screw, 16/25)

SMC LEFS slider type electric actuator with ball screw drive and battery-less absolute encoder step motor (DC24V), sizes 16 and 25.

Key features

Battery-less absolute encoder: position is retained at power off, so no backup battery maintenance and no return to origin after restart
Basic or high precision (H) types; straight motor or right/left side parallel motor mounting
Ball screw drive with linear guide; motor lock (B) available for vertical use
Auto switch compatibility (C), grease-free seal band (N) and positioning pin holes (K) are ordered as suffix options
Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Drive	Ball screw (straight), ball screw + belt (side parallel)
Guide	Linear guide
Repeatability	±0.02 mm basic, ±0.015 mm high precision
Lost motion	0.1 mm or less basic, 0.05 mm or less high precision
Max. acceleration/deceleration	3,000 mm/s²
Motor size	28 (16), 42 (25), 56.4 (32, 40)
Motor	Battery-less absolute encoder step motor (servo/DC24V)
Encoder	Battery-less absolute (position held at power off)
Power supply voltage	DC24V ±10%
Operating temperature	5 to 40°C
Operating humidity	90% RH or less (no condensation)
Source	SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 21-25 (PDF p. 22-26)

LEFS16EA-50		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS16EA-50B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS16EA-100		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS16EA-100B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS16EA-150		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS16EA-150B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS16EA-200		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS16EA-200B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS16EA-250		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS16EA-250B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS16EA-300		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS16EA-300B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS16EA-350		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS16EA-350B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS16EA-400		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS16EA-400B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS16EA-450		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS16EA-450B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS16EA-500		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS16EA-500B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS16EB-50		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS16EB-50B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS16EB-100		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS16EB-100B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS16EB-150		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS16EB-150B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS16EB-200		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS16EB-200B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS16EB-250		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS16EB-250B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS16EB-300		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS16EB-300B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS16EB-350		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS16EB-350B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS16EB-400		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS16EB-400B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS16EB-450		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS16EB-450B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS16EB-500		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS16EB-500B		Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS16REA-50		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS16REA-50B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS16REA-100		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS16REA-100B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS16REA-150		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS16REA-150B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS16REA-200		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS16REA-200B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS16REA-250		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS16REA-250B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS16REA-300		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS16REA-300B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS16REA-350		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS16REA-350B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS16REA-400		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS16REA-400B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS16REA-450		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS16REA-450B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS16REA-500		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS16REA-500B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS16REB-50		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS16REB-50B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS16REB-100		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS16REB-100B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS16REB-150		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS16REB-150B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS16REB-200		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS16REB-200B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS16REB-250		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS16REB-250B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS16REB-300		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS16REB-300B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS16REB-350		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS16REB-350B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS16REB-400		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS16REB-400B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS16REB-450		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS16REB-450B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS16REB-500		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS16REB-500B		Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS16LEA-50		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS16LEA-50B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS16LEA-100		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS16LEA-100B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS16LEA-150		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS16LEA-150B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS16LEA-200		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS16LEA-200B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS16LEA-250		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS16LEA-250B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS16LEA-300		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS16LEA-300B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS16LEA-350		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS16LEA-350B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS16LEA-400		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS16LEA-400B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS16LEA-450		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS16LEA-450B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS16LEA-500		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS16LEA-500B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS16LEB-50		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS16LEB-50B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS16LEB-100		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS16LEB-100B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS16LEB-150		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS16LEB-150B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS16LEB-200		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS16LEB-200B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS16LEB-250		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS16LEB-250B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS16LEB-300		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS16LEB-300B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS16LEB-350		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS16LEB-350B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS16LEB-400		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS16LEB-400B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS16LEB-450		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS16LEB-450B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS16LEB-500		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS16LEB-500B		Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25EH-50		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25EH-50B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25EH-100		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25EH-100B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25EH-150		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25EH-150B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25EH-200		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25EH-200B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25EH-250		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25EH-250B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25EH-300		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25EH-300B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25EH-350		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25EH-350B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25EH-400		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25EH-400B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25EH-450		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25EH-450B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25EH-500		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25EH-500B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25EH-550		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25EH-550B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25EH-600		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25EH-600B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25EH-650		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25EH-650B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25EH-700		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25EH-700B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25EH-750		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25EH-750B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25EH-800		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25EH-800B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25EA-50		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25EA-50B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25EA-100		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25EA-100B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25EA-150		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25EA-150B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25EA-200		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25EA-200B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25EA-250		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25EA-250B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25EA-300		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25EA-300B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25EA-350		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25EA-350B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25EA-400		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25EA-400B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25EA-450		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25EA-450B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25EA-500		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25EA-500B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25EA-550		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25EA-550B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25EA-600		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25EA-600B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25EA-650		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25EA-650B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25EA-700		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25EA-700B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25EA-750		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25EA-750B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25EA-800		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25EA-800B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25EB-50		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25EB-50B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25EB-100		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25EB-100B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25EB-150		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25EB-150B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25EB-200		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25EB-200B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25EB-250		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25EB-250B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25EB-300		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25EB-300B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25EB-350		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25EB-350B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25EB-400		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25EB-400B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25EB-450		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25EB-450B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25EB-500		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25EB-500B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25EB-550		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25EB-550B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25EB-600		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25EB-600B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25EB-650		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25EB-650B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25EB-700		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25EB-700B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25EB-750		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25EB-750B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25EB-800		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25EB-800B		Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25REH-50		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25REH-50B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25REH-100		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25REH-100B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25REH-150		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25REH-150B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25REH-200		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25REH-200B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25REH-250		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25REH-250B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25REH-300		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25REH-300B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25REH-350		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25REH-350B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25REH-400		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25REH-400B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25REH-450		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25REH-450B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25REH-500		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25REH-500B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25REH-550		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25REH-550B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25REH-600		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25REH-600B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25REH-650		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25REH-650B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25REH-700		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25REH-700B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25REH-750		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25REH-750B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25REH-800		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25REH-800B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25REA-50		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25REA-50B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25REA-100		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25REA-100B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25REA-150		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25REA-150B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25REA-200		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25REA-200B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25REA-250		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25REA-250B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25REA-300		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25REA-300B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25REA-350		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25REA-350B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25REA-400		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25REA-400B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25REA-450		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25REA-450B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25REA-500		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25REA-500B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25REA-550		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25REA-550B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25REA-600		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25REA-600B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25REA-650		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25REA-650B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25REA-700		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25REA-700B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25REA-750		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25REA-750B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25REA-800		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25REA-800B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25REB-50		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25REB-50B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25REB-100		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25REB-100B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25REB-150		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25REB-150B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25REB-200		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25REB-200B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25REB-250		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25REB-250B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25REB-300		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25REB-300B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25REB-350		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25REB-350B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25REB-400		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25REB-400B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25REB-450		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25REB-450B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25REB-500		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25REB-500B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25REB-550		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25REB-550B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25REB-600		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25REB-600B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25REB-650		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25REB-650B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25REB-700		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25REB-700B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25REB-750		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25REB-750B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25REB-800		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25REB-800B		Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25LEH-50		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25LEH-50B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25LEH-100		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25LEH-100B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25LEH-150		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25LEH-150B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25LEH-200		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25LEH-200B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25LEH-250		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25LEH-250B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25LEH-300		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25LEH-300B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25LEH-350		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25LEH-350B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25LEH-400		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25LEH-400B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25LEH-450		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25LEH-450B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25LEH-500		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25LEH-500B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25LEH-550		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25LEH-550B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25LEH-600		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25LEH-600B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25LEH-650		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25LEH-650B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25LEH-700		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25LEH-700B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25LEH-750		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25LEH-750B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25LEH-800		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25LEH-800B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25LEA-50		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25LEA-50B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25LEA-100		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25LEA-100B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25LEA-150		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25LEA-150B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25LEA-200		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25LEA-200B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25LEA-250		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25LEA-250B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25LEA-300		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25LEA-300B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25LEA-350		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25LEA-350B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25LEA-400		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25LEA-400B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25LEA-450		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25LEA-450B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25LEA-500		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25LEA-500B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25LEA-550		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25LEA-550B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25LEA-600		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25LEA-600B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25LEA-650		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25LEA-650B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25LEA-700		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25LEA-700B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25LEA-750		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25LEA-750B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25LEA-800		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25LEA-800B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
LEFS25LEB-50		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFS25LEB-50B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEFS25LEB-100		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFS25LEB-100B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEFS25LEB-150		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFS25LEB-150B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEFS25LEB-200		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFS25LEB-200B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEFS25LEB-250		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFS25LEB-250B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEFS25LEB-300		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFS25LEB-300B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEFS25LEB-350		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFS25LEB-350B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEFS25LEB-400		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFS25LEB-400B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEFS25LEB-450		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFS25LEB-450B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
LEFS25LEB-500		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFS25LEB-500B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
LEFS25LEB-550		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFS25LEB-550B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
LEFS25LEB-600		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFS25LEB-600B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
LEFS25LEB-650		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFS25LEB-650B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
LEFS25LEB-700		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFS25LEB-700B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
LEFS25LEB-750		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFS25LEB-750B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
LEFS25LEB-800		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFS25LEB-800B		Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH16EA-50		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH16EA-50B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH16EA-100		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH16EA-100B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH16EA-150		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH16EA-150B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH16EA-200		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH16EA-200B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH16EA-250		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH16EA-250B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH16EA-300		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH16EA-300B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH16EA-350		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH16EA-350B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH16EA-400		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH16EA-400B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH16EA-450		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH16EA-450B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH16EA-500		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH16EA-500B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH16EB-50		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH16EB-50B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH16EB-100		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH16EB-100B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH16EB-150		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH16EB-150B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH16EB-200		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH16EB-200B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH16EB-250		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH16EB-250B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH16EB-300		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH16EB-300B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH16EB-350		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH16EB-350B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH16EB-400		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH16EB-400B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH16EB-450		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH16EB-450B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH16EB-500		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH16EB-500B		Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH16REA-50		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH16REA-50B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH16REA-100		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH16REA-100B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH16REA-150		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH16REA-150B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH16REA-200		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH16REA-200B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH16REA-250		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH16REA-250B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH16REA-300		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH16REA-300B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH16REA-350		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH16REA-350B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH16REA-400		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH16REA-400B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH16REA-450		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH16REA-450B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH16REA-500		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH16REA-500B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH16REB-50		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH16REB-50B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH16REB-100		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH16REB-100B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH16REB-150		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH16REB-150B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH16REB-200		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH16REB-200B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH16REB-250		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH16REB-250B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH16REB-300		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH16REB-300B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH16REB-350		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH16REB-350B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH16REB-400		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH16REB-400B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH16REB-450		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH16REB-450B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH16REB-500		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH16REB-500B		Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH16LEA-50		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH16LEA-50B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH16LEA-100		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH16LEA-100B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH16LEA-150		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH16LEA-150B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH16LEA-200		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH16LEA-200B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH16LEA-250		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH16LEA-250B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH16LEA-300		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH16LEA-300B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH16LEA-350		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH16LEA-350B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH16LEA-400		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH16LEA-400B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH16LEA-450		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH16LEA-450B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH16LEA-500		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH16LEA-500B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH16LEB-50		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH16LEB-50B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH16LEB-100		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH16LEB-100B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH16LEB-150		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH16LEB-150B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH16LEB-200		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH16LEB-200B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH16LEB-250		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH16LEB-250B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH16LEB-300		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH16LEB-300B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH16LEB-350		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH16LEB-350B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH16LEB-400		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH16LEB-400B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH16LEB-450		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH16LEB-450B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH16LEB-500		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH16LEB-500B		Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25EH-50		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25EH-50B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25EH-100		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25EH-100B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25EH-150		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25EH-150B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25EH-200		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25EH-200B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25EH-250		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25EH-250B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25EH-300		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25EH-300B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25EH-350		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25EH-350B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25EH-400		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25EH-400B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25EH-450		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25EH-450B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25EH-500		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25EH-500B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25EH-550		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25EH-550B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25EH-600		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25EH-600B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25EH-650		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25EH-650B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25EH-700		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25EH-700B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25EH-750		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25EH-750B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25EH-800		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25EH-800B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25EA-50		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25EA-50B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25EA-100		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25EA-100B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25EA-150		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25EA-150B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25EA-200		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25EA-200B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25EA-250		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25EA-250B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25EA-300		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25EA-300B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25EA-350		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25EA-350B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25EA-400		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25EA-400B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25EA-450		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25EA-450B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25EA-500		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25EA-500B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25EA-550		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25EA-550B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25EA-600		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25EA-600B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25EA-650		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25EA-650B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25EA-700		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25EA-700B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25EA-750		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25EA-750B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25EA-800		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25EA-800B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25EB-50		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25EB-50B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25EB-100		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25EB-100B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25EB-150		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25EB-150B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25EB-200		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25EB-200B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25EB-250		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25EB-250B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25EB-300		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25EB-300B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25EB-350		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25EB-350B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25EB-400		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25EB-400B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25EB-450		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25EB-450B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25EB-500		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25EB-500B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25EB-550		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25EB-550B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25EB-600		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25EB-600B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25EB-650		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25EB-650B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25EB-700		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25EB-700B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25EB-750		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25EB-750B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25EB-800		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25EB-800B		Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25REH-50		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25REH-50B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25REH-100		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25REH-100B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25REH-150		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25REH-150B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25REH-200		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25REH-200B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25REH-250		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25REH-250B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25REH-300		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25REH-300B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25REH-350		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25REH-350B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25REH-400		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25REH-400B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25REH-450		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25REH-450B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25REH-500		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25REH-500B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25REH-550		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25REH-550B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25REH-600		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25REH-600B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25REH-650		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25REH-650B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25REH-700		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25REH-700B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25REH-750		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25REH-750B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25REH-800		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25REH-800B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25REA-50		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25REA-50B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25REA-100		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25REA-100B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25REA-150		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25REA-150B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25REA-200		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25REA-200B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25REA-250		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25REA-250B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25REA-300		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25REA-300B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25REA-350		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25REA-350B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25REA-400		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25REA-400B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25REA-450		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25REA-450B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25REA-500		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25REA-500B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25REA-550		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25REA-550B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25REA-600		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25REA-600B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25REA-650		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25REA-650B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25REA-700		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25REA-700B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25REA-750		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25REA-750B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25REA-800		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25REA-800B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25REB-50		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25REB-50B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25REB-100		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25REB-100B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25REB-150		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25REB-150B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25REB-200		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25REB-200B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25REB-250		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25REB-250B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25REB-300		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25REB-300B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25REB-350		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25REB-350B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25REB-400		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25REB-400B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25REB-450		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25REB-450B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25REB-500		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25REB-500B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25REB-550		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25REB-550B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25REB-600		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25REB-600B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25REB-650		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25REB-650B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25REB-700		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25REB-700B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25REB-750		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25REB-750B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25REB-800		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25REB-800B		Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25LEH-50		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25LEH-50B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25LEH-100		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25LEH-100B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25LEH-150		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25LEH-150B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25LEH-200		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25LEH-200B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25LEH-250		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25LEH-250B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25LEH-300		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25LEH-300B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25LEH-350		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25LEH-350B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25LEH-400		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25LEH-400B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25LEH-450		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25LEH-450B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25LEH-500		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25LEH-500B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25LEH-550		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25LEH-550B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25LEH-600		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25LEH-600B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25LEH-650		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25LEH-650B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25LEH-700		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25LEH-700B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25LEH-750		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25LEH-750B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25LEH-800		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25LEH-800B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25LEA-50		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25LEA-50B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25LEA-100		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25LEA-100B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25LEA-150		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25LEA-150B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25LEA-200		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25LEA-200B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25LEA-250		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25LEA-250B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25LEA-300		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25LEA-300B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25LEA-350		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25LEA-350B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25LEA-400		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25LEA-400B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25LEA-450		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25LEA-450B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25LEA-500		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25LEA-500B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25LEA-550		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25LEA-550B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25LEA-600		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25LEA-600B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25LEA-650		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25LEA-650B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25LEA-700		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25LEA-700B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25LEA-750		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25LEA-750B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25LEA-800		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25LEA-800B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH25LEB-50		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH25LEB-50B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH25LEB-100		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH25LEB-100B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH25LEB-150		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH25LEB-150B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH25LEB-200		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH25LEB-200B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH25LEB-250		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH25LEB-250B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH25LEB-300		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH25LEB-300B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH25LEB-350		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH25LEB-350B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH25LEB-400		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH25LEB-400B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH25LEB-450		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH25LEB-450B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH25LEB-500		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH25LEB-500B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH25LEB-550		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH25LEB-550B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH25LEB-600		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH25LEB-600B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH25LEB-650		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH25LEB-650B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH25LEB-700		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH25LEB-700B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH25LEB-750		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH25LEB-750B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH25LEB-800		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH25LEB-800B		Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock

Electric ActuatorsSMC

816 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEFS Battery-less Absolute Slider Actuator (Ball Screw, 16/25)

Brand SMC·Electric Actuators

Available part numbers (816)

LEFS16EA-50, LEFS16EA-50B, LEFS16EA-100, LEFS16EA-100B, LEFS16EA-150, LEFS16EA-150B, LEFS16EA-200, LEFS16EA-200B, LEFS16EA-250, LEFS16EA-250B + 806 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEFS16EA-50	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS16EA-50B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS16EA-100	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS16EA-100B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS16EA-150	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS16EA-150B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS16EA-200	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS16EA-200B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS16EA-250	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS16EA-250B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS16EA-300	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS16EA-300B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS16EA-350	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS16EA-350B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS16EA-400	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS16EA-400B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS16EA-450	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS16EA-450B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS16EA-500	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS16EA-500B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS16EB-50	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS16EB-50B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS16EB-100	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS16EB-100B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS16EB-150	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS16EB-150B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS16EB-200	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS16EB-200B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS16EB-250	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS16EB-250B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS16EB-300	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS16EB-300B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS16EB-350	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS16EB-350B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS16EB-400	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS16EB-400B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS16EB-450	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS16EB-450B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS16EB-500	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS16EB-500B	Size: 16 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS16REA-50	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS16REA-50B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS16REA-100	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS16REA-100B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS16REA-150	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS16REA-150B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS16REA-200	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS16REA-200B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS16REA-250	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS16REA-250B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS16REA-300	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS16REA-300B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS16REA-350	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS16REA-350B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS16REA-400	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS16REA-400B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS16REA-450	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS16REA-450B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS16REA-500	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS16REA-500B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS16REB-50	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS16REB-50B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS16REB-100	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS16REB-100B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS16REB-150	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS16REB-150B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS16REB-200	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS16REB-200B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS16REB-250	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS16REB-250B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS16REB-300	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS16REB-300B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS16REB-350	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS16REB-350B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS16REB-400	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS16REB-400B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS16REB-450	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS16REB-450B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS16REB-500	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS16REB-500B	Size: 16 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS16LEA-50	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS16LEA-50B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS16LEA-100	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS16LEA-100B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS16LEA-150	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS16LEA-150B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS16LEA-200	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS16LEA-200B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS16LEA-250	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS16LEA-250B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS16LEA-300	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS16LEA-300B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS16LEA-350	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS16LEA-350B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS16LEA-400	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS16LEA-400B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS16LEA-450	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS16LEA-450B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS16LEA-500	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS16LEA-500B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS16LEB-50	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS16LEB-50B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS16LEB-100	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS16LEB-100B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS16LEB-150	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS16LEB-150B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS16LEB-200	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS16LEB-200B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS16LEB-250	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS16LEB-250B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS16LEB-300	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS16LEB-300B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS16LEB-350	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS16LEB-350B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS16LEB-400	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS16LEB-400B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS16LEB-450	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS16LEB-450B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS16LEB-500	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS16LEB-500B	Size: 16 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25EH-50	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25EH-50B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25EH-100	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25EH-100B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25EH-150	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25EH-150B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25EH-200	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25EH-200B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25EH-250	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25EH-250B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25EH-300	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25EH-300B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25EH-350	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25EH-350B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25EH-400	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25EH-400B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25EH-450	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25EH-450B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25EH-500	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25EH-500B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25EH-550	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25EH-550B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25EH-600	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25EH-600B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25EH-650	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25EH-650B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25EH-700	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25EH-700B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25EH-750	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25EH-750B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25EH-800	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25EH-800B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25EA-50	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25EA-50B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25EA-100	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25EA-100B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25EA-150	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25EA-150B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25EA-200	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25EA-200B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25EA-250	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25EA-250B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25EA-300	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25EA-300B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25EA-350	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25EA-350B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25EA-400	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25EA-400B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25EA-450	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25EA-450B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25EA-500	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25EA-500B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25EA-550	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25EA-550B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25EA-600	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25EA-600B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25EA-650	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25EA-650B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25EA-700	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25EA-700B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25EA-750	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25EA-750B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25EA-800	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25EA-800B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25EB-50	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25EB-50B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25EB-100	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25EB-100B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25EB-150	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25EB-150B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25EB-200	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25EB-200B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25EB-250	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25EB-250B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25EB-300	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25EB-300B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25EB-350	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25EB-350B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25EB-400	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25EB-400B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25EB-450	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25EB-450B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25EB-500	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25EB-500B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25EB-550	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25EB-550B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25EB-600	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25EB-600B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25EB-650	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25EB-650B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25EB-700	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25EB-700B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25EB-750	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25EB-750B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25EB-800	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25EB-800B	Size: 25 \| Precision: Basic \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25REH-50	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25REH-50B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25REH-100	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25REH-100B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25REH-150	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25REH-150B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25REH-200	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25REH-200B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25REH-250	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25REH-250B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25REH-300	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25REH-300B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25REH-350	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25REH-350B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25REH-400	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25REH-400B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25REH-450	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25REH-450B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25REH-500	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25REH-500B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25REH-550	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25REH-550B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25REH-600	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25REH-600B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25REH-650	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25REH-650B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25REH-700	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25REH-700B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25REH-750	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25REH-750B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25REH-800	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25REH-800B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25REA-50	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25REA-50B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25REA-100	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25REA-100B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25REA-150	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25REA-150B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25REA-200	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25REA-200B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25REA-250	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25REA-250B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25REA-300	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25REA-300B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25REA-350	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25REA-350B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25REA-400	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25REA-400B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25REA-450	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25REA-450B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25REA-500	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25REA-500B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25REA-550	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25REA-550B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25REA-600	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25REA-600B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25REA-650	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25REA-650B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25REA-700	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25REA-700B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25REA-750	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25REA-750B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25REA-800	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25REA-800B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25REB-50	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25REB-50B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25REB-100	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25REB-100B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25REB-150	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25REB-150B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25REB-200	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25REB-200B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25REB-250	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25REB-250B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25REB-300	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25REB-300B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25REB-350	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25REB-350B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25REB-400	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25REB-400B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25REB-450	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25REB-450B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25REB-500	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25REB-500B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25REB-550	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25REB-550B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25REB-600	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25REB-600B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25REB-650	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25REB-650B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25REB-700	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25REB-700B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25REB-750	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25REB-750B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25REB-800	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25REB-800B	Size: 25 \| Precision: Basic \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25LEH-50	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25LEH-50B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25LEH-100	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25LEH-100B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25LEH-150	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25LEH-150B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25LEH-200	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25LEH-200B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25LEH-250	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25LEH-250B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25LEH-300	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25LEH-300B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25LEH-350	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25LEH-350B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25LEH-400	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25LEH-400B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25LEH-450	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25LEH-450B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25LEH-500	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25LEH-500B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25LEH-550	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25LEH-550B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25LEH-600	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25LEH-600B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25LEH-650	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25LEH-650B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25LEH-700	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25LEH-700B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25LEH-750	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25LEH-750B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25LEH-800	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25LEH-800B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25LEA-50	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25LEA-50B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25LEA-100	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25LEA-100B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25LEA-150	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25LEA-150B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25LEA-200	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25LEA-200B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25LEA-250	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25LEA-250B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25LEA-300	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25LEA-300B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25LEA-350	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25LEA-350B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25LEA-400	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25LEA-400B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25LEA-450	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25LEA-450B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25LEA-500	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25LEA-500B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25LEA-550	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25LEA-550B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25LEA-600	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25LEA-600B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25LEA-650	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25LEA-650B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25LEA-700	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25LEA-700B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25LEA-750	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25LEA-750B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25LEA-800	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25LEA-800B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFS25LEB-50	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFS25LEB-50B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFS25LEB-100	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFS25LEB-100B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFS25LEB-150	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFS25LEB-150B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFS25LEB-200	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFS25LEB-200B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFS25LEB-250	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFS25LEB-250B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFS25LEB-300	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFS25LEB-300B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFS25LEB-350	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFS25LEB-350B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFS25LEB-400	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFS25LEB-400B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFS25LEB-450	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFS25LEB-450B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFS25LEB-500	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFS25LEB-500B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFS25LEB-550	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFS25LEB-550B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFS25LEB-600	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFS25LEB-600B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFS25LEB-650	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFS25LEB-650B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFS25LEB-700	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFS25LEB-700B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFS25LEB-750	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFS25LEB-750B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFS25LEB-800	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFS25LEB-800B	Size: 25 \| Precision: Basic \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH16EA-50	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH16EA-50B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH16EA-100	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH16EA-100B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH16EA-150	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH16EA-150B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH16EA-200	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH16EA-200B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH16EA-250	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH16EA-250B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH16EA-300	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH16EA-300B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH16EA-350	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH16EA-350B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH16EA-400	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH16EA-400B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH16EA-450	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH16EA-450B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH16EA-500	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH16EA-500B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH16EB-50	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH16EB-50B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH16EB-100	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH16EB-100B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH16EB-150	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH16EB-150B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH16EB-200	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH16EB-200B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH16EB-250	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH16EB-250B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH16EB-300	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH16EB-300B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH16EB-350	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH16EB-350B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH16EB-400	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH16EB-400B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH16EB-450	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH16EB-450B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH16EB-500	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH16EB-500B	Size: 16 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH16REA-50	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH16REA-50B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH16REA-100	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH16REA-100B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH16REA-150	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH16REA-150B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH16REA-200	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH16REA-200B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH16REA-250	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH16REA-250B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH16REA-300	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH16REA-300B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH16REA-350	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH16REA-350B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH16REA-400	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH16REA-400B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH16REA-450	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH16REA-450B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH16REA-500	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH16REA-500B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH16REB-50	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH16REB-50B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH16REB-100	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH16REB-100B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH16REB-150	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH16REB-150B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH16REB-200	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH16REB-200B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH16REB-250	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH16REB-250B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH16REB-300	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH16REB-300B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH16REB-350	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH16REB-350B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH16REB-400	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH16REB-400B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH16REB-450	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH16REB-450B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH16REB-500	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH16REB-500B	Size: 16 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH16LEA-50	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH16LEA-50B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH16LEA-100	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH16LEA-100B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH16LEA-150	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH16LEA-150B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH16LEA-200	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH16LEA-200B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH16LEA-250	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH16LEA-250B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH16LEA-300	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH16LEA-300B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH16LEA-350	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH16LEA-350B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH16LEA-400	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH16LEA-400B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH16LEA-450	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH16LEA-450B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH16LEA-500	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH16LEA-500B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH16LEB-50	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH16LEB-50B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH16LEB-100	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH16LEB-100B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH16LEB-150	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH16LEB-150B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH16LEB-200	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH16LEB-200B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH16LEB-250	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH16LEB-250B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH16LEB-300	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH16LEB-300B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH16LEB-350	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH16LEB-350B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH16LEB-400	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH16LEB-400B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH16LEB-450	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH16LEB-450B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH16LEB-500	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH16LEB-500B	Size: 16 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25EH-50	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25EH-50B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25EH-100	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25EH-100B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25EH-150	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25EH-150B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25EH-200	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25EH-200B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25EH-250	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25EH-250B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25EH-300	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25EH-300B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25EH-350	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25EH-350B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25EH-400	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25EH-400B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25EH-450	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25EH-450B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25EH-500	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25EH-500B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25EH-550	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25EH-550B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25EH-600	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25EH-600B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25EH-650	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25EH-650B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25EH-700	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25EH-700B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25EH-750	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25EH-750B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25EH-800	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25EH-800B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25EA-50	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25EA-50B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25EA-100	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25EA-100B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25EA-150	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25EA-150B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25EA-200	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25EA-200B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25EA-250	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25EA-250B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25EA-300	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25EA-300B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25EA-350	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25EA-350B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25EA-400	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25EA-400B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25EA-450	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25EA-450B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25EA-500	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25EA-500B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25EA-550	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25EA-550B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25EA-600	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25EA-600B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25EA-650	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25EA-650B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25EA-700	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25EA-700B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25EA-750	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25EA-750B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25EA-800	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25EA-800B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25EB-50	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25EB-50B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25EB-100	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25EB-100B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25EB-150	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25EB-150B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25EB-200	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25EB-200B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25EB-250	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25EB-250B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25EB-300	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25EB-300B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25EB-350	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25EB-350B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25EB-400	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25EB-400B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25EB-450	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25EB-450B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25EB-500	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25EB-500B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25EB-550	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25EB-550B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25EB-600	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25EB-600B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25EB-650	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25EB-650B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25EB-700	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25EB-700B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25EB-750	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25EB-750B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25EB-800	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25EB-800B	Size: 25 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25REH-50	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25REH-50B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25REH-100	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25REH-100B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25REH-150	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25REH-150B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25REH-200	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25REH-200B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25REH-250	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25REH-250B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25REH-300	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25REH-300B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25REH-350	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25REH-350B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25REH-400	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25REH-400B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25REH-450	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25REH-450B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25REH-500	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25REH-500B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25REH-550	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25REH-550B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25REH-600	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25REH-600B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25REH-650	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25REH-650B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25REH-700	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25REH-700B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25REH-750	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25REH-750B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25REH-800	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25REH-800B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25REA-50	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25REA-50B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25REA-100	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25REA-100B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25REA-150	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25REA-150B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25REA-200	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25REA-200B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25REA-250	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25REA-250B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25REA-300	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25REA-300B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25REA-350	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25REA-350B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25REA-400	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25REA-400B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25REA-450	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25REA-450B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25REA-500	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25REA-500B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25REA-550	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25REA-550B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25REA-600	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25REA-600B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25REA-650	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25REA-650B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25REA-700	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25REA-700B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25REA-750	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25REA-750B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25REA-800	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25REA-800B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25REB-50	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25REB-50B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25REB-100	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25REB-100B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25REB-150	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25REB-150B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25REB-200	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25REB-200B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25REB-250	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25REB-250B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25REB-300	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25REB-300B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25REB-350	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25REB-350B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25REB-400	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25REB-400B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25REB-450	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25REB-450B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25REB-500	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25REB-500B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25REB-550	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25REB-550B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25REB-600	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25REB-600B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25REB-650	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25REB-650B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25REB-700	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25REB-700B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25REB-750	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25REB-750B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25REB-800	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25REB-800B	Size: 25 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25LEH-50	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25LEH-50B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25LEH-100	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25LEH-100B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25LEH-150	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25LEH-150B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25LEH-200	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25LEH-200B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25LEH-250	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25LEH-250B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25LEH-300	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25LEH-300B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25LEH-350	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25LEH-350B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25LEH-400	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25LEH-400B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25LEH-450	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25LEH-450B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25LEH-500	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25LEH-500B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25LEH-550	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25LEH-550B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25LEH-600	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25LEH-600B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25LEH-650	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25LEH-650B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25LEH-700	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25LEH-700B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25LEH-750	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25LEH-750B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25LEH-800	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25LEH-800B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25LEA-50	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25LEA-50B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25LEA-100	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25LEA-100B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25LEA-150	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25LEA-150B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25LEA-200	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25LEA-200B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25LEA-250	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25LEA-250B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25LEA-300	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25LEA-300B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25LEA-350	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25LEA-350B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25LEA-400	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25LEA-400B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25LEA-450	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25LEA-450B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25LEA-500	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25LEA-500B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25LEA-550	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25LEA-550B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25LEA-600	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25LEA-600B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25LEA-650	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25LEA-650B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25LEA-700	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25LEA-700B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25LEA-750	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25LEA-750B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25LEA-800	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25LEA-800B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 12 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH25LEB-50	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH25LEB-50B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH25LEB-100	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH25LEB-100B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH25LEB-150	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH25LEB-150B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH25LEB-200	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH25LEB-200B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH25LEB-250	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH25LEB-250B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH25LEB-300	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH25LEB-300B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH25LEB-350	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH25LEB-350B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH25LEB-400	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH25LEB-400B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH25LEB-450	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH25LEB-450B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH25LEB-500	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH25LEB-500B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH25LEB-550	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH25LEB-550B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH25LEB-600	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH25LEB-600B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH25LEB-650	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH25LEB-650B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH25LEB-700	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH25LEB-700B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH25LEB-750	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH25LEB-750B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH25LEB-800	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH25LEB-800B	Size: 25 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 6 mm \| Stroke: 800 mm \| Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEFS Battery-less Absolute Slider Actuator (Ball Screw, 16/25)
