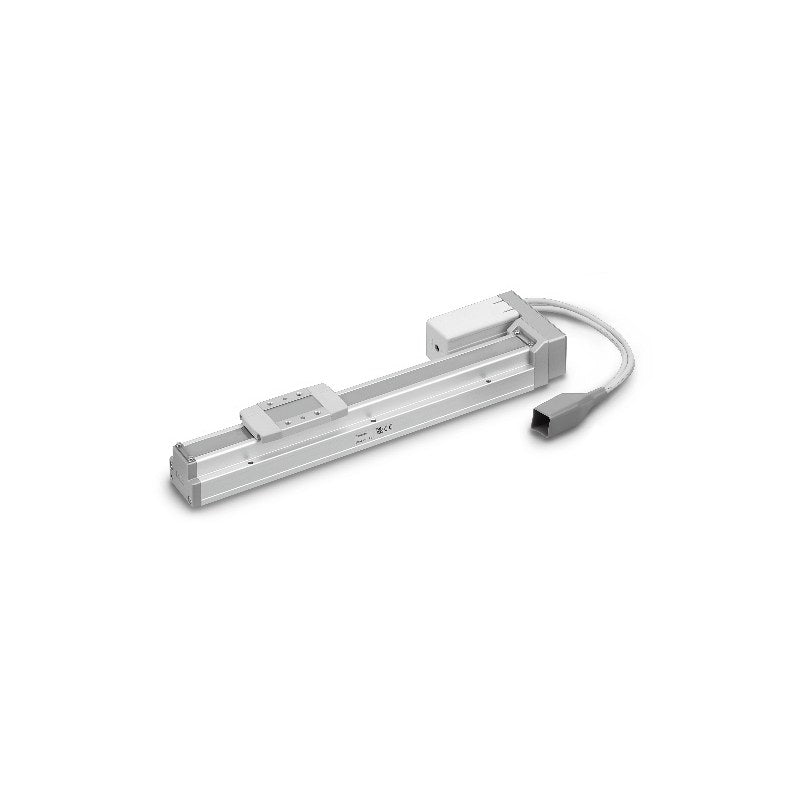

SMC LEFS Battery-less Absolute Slider Actuator (Ball Screw, 32/40) - Part 2

SMC LEFS slider type electric actuator with ball screw drive and battery-less absolute encoder step motor (DC24V), sizes 32 and 40.

Key features

Battery-less absolute encoder: position is retained at power off, so no backup battery maintenance and no return to origin after restart
Basic or high precision (H) types; straight motor or right/left side parallel motor mounting
Ball screw drive with linear guide; motor lock (B) available for vertical use
Auto switch compatibility (C), grease-free seal band (N) and positioning pin holes (K) are ordered as suffix options
Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Drive	Ball screw (straight), ball screw + belt (side parallel)
Guide	Linear guide
Repeatability	±0.02 mm basic, ±0.015 mm high precision
Lost motion	0.1 mm or less basic, 0.05 mm or less high precision
Max. acceleration/deceleration	3,000 mm/s²
Motor size	28 (16), 42 (25), 56.4 (32, 40)
Motor	Battery-less absolute encoder step motor (servo/DC24V)
Encoder	Battery-less absolute (position held at power off)
Power supply voltage	DC24V ±10%
Operating temperature	5 to 40°C
Operating humidity	90% RH or less (no condensation)
Source	SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 21-25 (PDF p. 22-26)

LEFSH32EH-50		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32EH-50B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32EH-100		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32EH-100B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32EH-150		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32EH-150B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32EH-200		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32EH-200B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32EH-250		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32EH-250B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32EH-300		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32EH-300B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32EH-350		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32EH-350B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32EH-400		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32EH-400B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32EH-450		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32EH-450B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32EH-500		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32EH-500B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32EH-550		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32EH-550B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32EH-600		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32EH-600B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32EH-650		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32EH-650B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32EH-700		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32EH-700B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32EH-750		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32EH-750B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32EH-800		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32EH-800B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32EH-850		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32EH-850B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32EH-900		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32EH-900B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32EH-950		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32EH-950B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32EH-1000		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32EH-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32EA-50		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32EA-50B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32EA-100		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32EA-100B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32EA-150		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32EA-150B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32EA-200		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32EA-200B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32EA-250		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32EA-250B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32EA-300		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32EA-300B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32EA-350		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32EA-350B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32EA-400		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32EA-400B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32EA-450		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32EA-450B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32EA-500		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32EA-500B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32EA-550		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32EA-550B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32EA-600		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32EA-600B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32EA-650		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32EA-650B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32EA-700		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32EA-700B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32EA-750		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32EA-750B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32EA-800		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32EA-800B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32EA-850		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32EA-850B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32EA-900		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32EA-900B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32EA-950		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32EA-950B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32EA-1000		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32EA-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32EB-50		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32EB-50B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32EB-100		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32EB-100B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32EB-150		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32EB-150B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32EB-200		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32EB-200B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32EB-250		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32EB-250B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32EB-300		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32EB-300B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32EB-350		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32EB-350B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32EB-400		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32EB-400B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32EB-450		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32EB-450B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32EB-500		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32EB-500B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32EB-550		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32EB-550B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32EB-600		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32EB-600B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32EB-650		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32EB-650B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32EB-700		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32EB-700B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32EB-750		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32EB-750B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32EB-800		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32EB-800B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32EB-850		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32EB-850B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32EB-900		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32EB-900B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32EB-950		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32EB-950B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32EB-1000		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32EB-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32REH-50		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32REH-50B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32REH-100		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32REH-100B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32REH-150		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32REH-150B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32REH-200		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32REH-200B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32REH-250		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32REH-250B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32REH-300		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32REH-300B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32REH-350		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32REH-350B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32REH-400		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32REH-400B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32REH-450		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32REH-450B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32REH-500		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32REH-500B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32REH-550		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32REH-550B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32REH-600		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32REH-600B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32REH-650		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32REH-650B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32REH-700		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32REH-700B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32REH-750		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32REH-750B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32REH-800		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32REH-800B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32REH-850		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32REH-850B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32REH-900		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32REH-900B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32REH-950		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32REH-950B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32REH-1000		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32REH-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32REA-50		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32REA-50B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32REA-100		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32REA-100B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32REA-150		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32REA-150B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32REA-200		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32REA-200B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32REA-250		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32REA-250B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32REA-300		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32REA-300B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32REA-350		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32REA-350B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32REA-400		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32REA-400B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32REA-450		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32REA-450B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32REA-500		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32REA-500B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32REA-550		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32REA-550B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32REA-600		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32REA-600B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32REA-650		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32REA-650B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32REA-700		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32REA-700B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32REA-750		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32REA-750B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32REA-800		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32REA-800B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32REA-850		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32REA-850B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32REA-900		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32REA-900B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32REA-950		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32REA-950B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32REA-1000		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32REA-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32REB-50		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32REB-50B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32REB-100		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32REB-100B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32REB-150		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32REB-150B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32REB-200		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32REB-200B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32REB-250		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32REB-250B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32REB-300		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32REB-300B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32REB-350		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32REB-350B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32REB-400		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32REB-400B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32REB-450		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32REB-450B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32REB-500		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32REB-500B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32REB-550		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32REB-550B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32REB-600		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32REB-600B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32REB-650		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32REB-650B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32REB-700		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32REB-700B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32REB-750		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32REB-750B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32REB-800		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32REB-800B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32REB-850		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32REB-850B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32REB-900		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32REB-900B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32REB-950		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32REB-950B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32REB-1000		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32REB-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32LEH-50		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32LEH-50B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32LEH-100		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32LEH-100B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32LEH-150		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32LEH-150B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32LEH-200		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32LEH-200B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32LEH-250		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32LEH-250B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32LEH-300		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32LEH-300B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32LEH-350		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32LEH-350B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32LEH-400		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32LEH-400B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32LEH-450		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32LEH-450B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32LEH-500		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32LEH-500B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32LEH-550		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32LEH-550B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32LEH-600		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32LEH-600B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32LEH-650		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32LEH-650B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32LEH-700		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32LEH-700B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32LEH-750		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32LEH-750B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32LEH-800		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32LEH-800B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32LEH-850		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32LEH-850B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32LEH-900		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32LEH-900B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32LEH-950		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32LEH-950B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32LEH-1000		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32LEH-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32LEA-50		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32LEA-50B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32LEA-100		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32LEA-100B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32LEA-150		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32LEA-150B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32LEA-200		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32LEA-200B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32LEA-250		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32LEA-250B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32LEA-300		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32LEA-300B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32LEA-350		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32LEA-350B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32LEA-400		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32LEA-400B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32LEA-450		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32LEA-450B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32LEA-500		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32LEA-500B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32LEA-550		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32LEA-550B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32LEA-600		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32LEA-600B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32LEA-650		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32LEA-650B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32LEA-700		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32LEA-700B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32LEA-750		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32LEA-750B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32LEA-800		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32LEA-800B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32LEA-850		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32LEA-850B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32LEA-900		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32LEA-900B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32LEA-950		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32LEA-950B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32LEA-1000		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32LEA-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32LEB-50		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32LEB-50B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32LEB-100		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32LEB-100B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32LEB-150		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32LEB-150B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32LEB-200		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32LEB-200B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32LEB-250		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32LEB-250B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32LEB-300		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32LEB-300B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32LEB-350		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32LEB-350B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32LEB-400		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32LEB-400B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32LEB-450		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32LEB-450B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32LEB-500		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32LEB-500B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32LEB-550		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32LEB-550B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32LEB-600		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32LEB-600B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32LEB-650		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32LEB-650B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32LEB-700		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32LEB-700B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32LEB-750		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32LEB-750B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32LEB-800		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32LEB-800B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32LEB-850		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32LEB-850B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32LEB-900		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32LEB-900B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32LEB-950		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32LEB-950B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32LEB-1000		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32LEB-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40EH-150		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40EH-150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40EH-200		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40EH-200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40EH-250		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40EH-250B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40EH-300		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40EH-300B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40EH-350		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40EH-350B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40EH-400		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40EH-400B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40EH-450		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40EH-450B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40EH-500		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40EH-500B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40EH-550		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40EH-550B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40EH-600		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40EH-600B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40EH-650		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40EH-650B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40EH-700		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40EH-700B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40EH-750		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40EH-750B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40EH-800		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40EH-800B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40EH-850		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40EH-850B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40EH-900		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40EH-900B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40EH-950		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40EH-950B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40EH-1000		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40EH-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40EH-1050		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40EH-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40EH-1100		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40EH-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40EH-1150		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40EH-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40EH-1200		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40EH-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40EA-150		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40EA-150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40EA-200		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40EA-200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40EA-250		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40EA-250B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40EA-300		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40EA-300B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40EA-350		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40EA-350B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40EA-400		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40EA-400B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40EA-450		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40EA-450B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40EA-500		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40EA-500B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40EA-550		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40EA-550B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40EA-600		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40EA-600B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40EA-650		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40EA-650B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40EA-700		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40EA-700B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40EA-750		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40EA-750B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40EA-800		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40EA-800B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40EA-850		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40EA-850B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40EA-900		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40EA-900B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40EA-950		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40EA-950B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40EA-1000		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40EA-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40EA-1050		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40EA-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40EA-1100		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40EA-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40EA-1150		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40EA-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40EA-1200		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40EA-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40EB-150		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40EB-150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40EB-200		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40EB-200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40EB-250		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40EB-250B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40EB-300		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40EB-300B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40EB-350		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40EB-350B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40EB-400		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40EB-400B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40EB-450		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40EB-450B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40EB-500		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40EB-500B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40EB-550		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40EB-550B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40EB-600		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40EB-600B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40EB-650		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40EB-650B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40EB-700		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40EB-700B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40EB-750		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40EB-750B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40EB-800		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40EB-800B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40EB-850		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40EB-850B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40EB-900		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40EB-900B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40EB-950		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40EB-950B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40EB-1000		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40EB-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40EB-1050		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40EB-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40EB-1100		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40EB-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40EB-1150		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40EB-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40EB-1200		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40EB-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40REH-150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40REH-150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40REH-200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40REH-200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40REH-250		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40REH-250B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40REH-300		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40REH-300B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40REH-350		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40REH-350B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40REH-400		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40REH-400B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40REH-450		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40REH-450B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40REH-500		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40REH-500B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40REH-550		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40REH-550B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40REH-600		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40REH-600B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40REH-650		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40REH-650B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40REH-700		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40REH-700B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40REH-750		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40REH-750B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40REH-800		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40REH-800B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40REH-850		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40REH-850B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40REH-900		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40REH-900B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40REH-950		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40REH-950B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40REH-1000		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40REH-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40REH-1050		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40REH-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40REH-1100		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40REH-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40REH-1150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40REH-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40REH-1200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40REH-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40REA-150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40REA-150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40REA-200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40REA-200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40REA-250		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40REA-250B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40REA-300		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40REA-300B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40REA-350		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40REA-350B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40REA-400		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40REA-400B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40REA-450		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40REA-450B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40REA-500		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40REA-500B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40REA-550		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40REA-550B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40REA-600		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40REA-600B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40REA-650		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40REA-650B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40REA-700		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40REA-700B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40REA-750		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40REA-750B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40REA-800		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40REA-800B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40REA-850		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40REA-850B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40REA-900		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40REA-900B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40REA-950		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40REA-950B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40REA-1000		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40REA-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40REA-1050		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40REA-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40REA-1100		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40REA-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40REA-1150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40REA-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40REA-1200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40REA-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40REB-150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40REB-150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40REB-200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40REB-200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40REB-250		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40REB-250B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40REB-300		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40REB-300B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40REB-350		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40REB-350B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40REB-400		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40REB-400B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40REB-450		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40REB-450B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40REB-500		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40REB-500B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40REB-550		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40REB-550B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40REB-600		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40REB-600B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40REB-650		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40REB-650B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40REB-700		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40REB-700B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40REB-750		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40REB-750B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40REB-800		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40REB-800B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40REB-850		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40REB-850B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40REB-900		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40REB-900B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40REB-950		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40REB-950B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40REB-1000		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40REB-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40REB-1050		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40REB-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40REB-1100		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40REB-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40REB-1150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40REB-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40REB-1200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40REB-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40LEH-150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40LEH-150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40LEH-200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40LEH-200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40LEH-250		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40LEH-250B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40LEH-300		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40LEH-300B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40LEH-350		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40LEH-350B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40LEH-400		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40LEH-400B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40LEH-450		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40LEH-450B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40LEH-500		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40LEH-500B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40LEH-550		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40LEH-550B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40LEH-600		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40LEH-600B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40LEH-650		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40LEH-650B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40LEH-700		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40LEH-700B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40LEH-750		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40LEH-750B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40LEH-800		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40LEH-800B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40LEH-850		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40LEH-850B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40LEH-900		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40LEH-900B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40LEH-950		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40LEH-950B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40LEH-1000		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40LEH-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40LEH-1050		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40LEH-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40LEH-1100		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40LEH-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40LEH-1150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40LEH-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40LEH-1200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40LEH-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40LEA-150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40LEA-150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40LEA-200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40LEA-200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40LEA-250		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40LEA-250B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40LEA-300		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40LEA-300B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40LEA-350		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40LEA-350B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40LEA-400		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40LEA-400B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40LEA-450		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40LEA-450B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40LEA-500		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40LEA-500B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40LEA-550		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40LEA-550B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40LEA-600		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40LEA-600B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40LEA-650		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40LEA-650B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40LEA-700		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40LEA-700B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40LEA-750		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40LEA-750B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40LEA-800		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40LEA-800B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40LEA-850		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40LEA-850B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40LEA-900		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40LEA-900B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40LEA-950		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40LEA-950B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40LEA-1000		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40LEA-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40LEA-1050		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40LEA-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40LEA-1100		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40LEA-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40LEA-1150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40LEA-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40LEA-1200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40LEA-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40LEB-150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40LEB-150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40LEB-200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40LEB-200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40LEB-250		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40LEB-250B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40LEB-300		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40LEB-300B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40LEB-350		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40LEB-350B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40LEB-400		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40LEB-400B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40LEB-450		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40LEB-450B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40LEB-500		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40LEB-500B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40LEB-550		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40LEB-550B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40LEB-600		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40LEB-600B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40LEB-650		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40LEB-650B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40LEB-700		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40LEB-700B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40LEB-750		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40LEB-750B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40LEB-800		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40LEB-800B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40LEB-850		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40LEB-850B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40LEB-900		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40LEB-900B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40LEB-950		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40LEB-950B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40LEB-1000		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40LEB-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40LEB-1050		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40LEB-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40LEB-1100		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40LEB-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40LEB-1150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40LEB-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40LEB-1200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40LEB-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock

Electric ActuatorsSMC

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEFS Battery-less Absolute Slider Actuator (Ball Screw, 32/40) - Part 2

Brand SMC·Electric Actuators

Available part numbers (756)

LEFSH32EH-50, LEFSH32EH-50B, LEFSH32EH-100, LEFSH32EH-100B, LEFSH32EH-150, LEFSH32EH-150B, LEFSH32EH-200, LEFSH32EH-200B, LEFSH32EH-250, LEFSH32EH-250B + 746 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEFSH32EH-50	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32EH-50B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32EH-100	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32EH-100B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32EH-150	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32EH-150B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32EH-200	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32EH-200B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32EH-250	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32EH-250B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32EH-300	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32EH-300B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32EH-350	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32EH-350B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32EH-400	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32EH-400B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32EH-450	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32EH-450B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32EH-500	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32EH-500B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32EH-550	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32EH-550B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32EH-600	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32EH-600B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32EH-650	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32EH-650B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32EH-700	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32EH-700B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32EH-750	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32EH-750B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32EH-800	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32EH-800B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32EH-850	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32EH-850B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32EH-900	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32EH-900B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32EH-950	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32EH-950B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32EH-1000	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32EH-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32EA-50	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32EA-50B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32EA-100	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32EA-100B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32EA-150	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32EA-150B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32EA-200	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32EA-200B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32EA-250	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32EA-250B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32EA-300	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32EA-300B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32EA-350	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32EA-350B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32EA-400	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32EA-400B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32EA-450	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32EA-450B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32EA-500	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32EA-500B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32EA-550	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32EA-550B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32EA-600	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32EA-600B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32EA-650	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32EA-650B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32EA-700	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32EA-700B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32EA-750	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32EA-750B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32EA-800	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32EA-800B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32EA-850	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32EA-850B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32EA-900	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32EA-900B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32EA-950	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32EA-950B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32EA-1000	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32EA-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32EB-50	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32EB-50B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32EB-100	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32EB-100B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32EB-150	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32EB-150B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32EB-200	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32EB-200B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32EB-250	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32EB-250B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32EB-300	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32EB-300B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32EB-350	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32EB-350B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32EB-400	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32EB-400B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32EB-450	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32EB-450B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32EB-500	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32EB-500B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32EB-550	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32EB-550B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32EB-600	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32EB-600B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32EB-650	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32EB-650B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32EB-700	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32EB-700B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32EB-750	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32EB-750B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32EB-800	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32EB-800B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32EB-850	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32EB-850B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32EB-900	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32EB-900B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32EB-950	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32EB-950B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32EB-1000	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32EB-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32REH-50	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32REH-50B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32REH-100	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32REH-100B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32REH-150	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32REH-150B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32REH-200	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32REH-200B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32REH-250	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32REH-250B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32REH-300	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32REH-300B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32REH-350	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32REH-350B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32REH-400	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32REH-400B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32REH-450	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32REH-450B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32REH-500	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32REH-500B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32REH-550	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32REH-550B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32REH-600	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32REH-600B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32REH-650	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32REH-650B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32REH-700	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32REH-700B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32REH-750	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32REH-750B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32REH-800	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32REH-800B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32REH-850	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32REH-850B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32REH-900	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32REH-900B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32REH-950	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32REH-950B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32REH-1000	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32REH-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32REA-50	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32REA-50B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32REA-100	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32REA-100B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32REA-150	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32REA-150B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32REA-200	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32REA-200B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32REA-250	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32REA-250B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32REA-300	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32REA-300B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32REA-350	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32REA-350B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32REA-400	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32REA-400B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32REA-450	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32REA-450B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32REA-500	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32REA-500B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32REA-550	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32REA-550B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32REA-600	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32REA-600B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32REA-650	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32REA-650B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32REA-700	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32REA-700B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32REA-750	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32REA-750B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32REA-800	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32REA-800B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32REA-850	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32REA-850B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32REA-900	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32REA-900B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32REA-950	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32REA-950B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32REA-1000	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32REA-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32REB-50	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32REB-50B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32REB-100	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32REB-100B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32REB-150	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32REB-150B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32REB-200	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32REB-200B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32REB-250	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32REB-250B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32REB-300	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32REB-300B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32REB-350	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32REB-350B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32REB-400	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32REB-400B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32REB-450	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32REB-450B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32REB-500	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32REB-500B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32REB-550	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32REB-550B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32REB-600	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32REB-600B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32REB-650	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32REB-650B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32REB-700	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32REB-700B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32REB-750	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32REB-750B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32REB-800	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32REB-800B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32REB-850	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32REB-850B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32REB-900	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32REB-900B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32REB-950	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32REB-950B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32REB-1000	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32REB-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32LEH-50	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32LEH-50B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32LEH-100	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32LEH-100B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32LEH-150	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32LEH-150B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32LEH-200	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32LEH-200B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32LEH-250	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32LEH-250B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32LEH-300	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32LEH-300B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32LEH-350	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32LEH-350B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32LEH-400	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32LEH-400B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32LEH-450	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32LEH-450B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32LEH-500	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32LEH-500B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32LEH-550	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32LEH-550B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32LEH-600	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32LEH-600B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32LEH-650	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32LEH-650B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32LEH-700	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32LEH-700B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32LEH-750	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32LEH-750B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32LEH-800	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32LEH-800B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32LEH-850	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32LEH-850B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32LEH-900	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32LEH-900B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32LEH-950	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32LEH-950B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32LEH-1000	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32LEH-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32LEA-50	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32LEA-50B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32LEA-100	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32LEA-100B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32LEA-150	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32LEA-150B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32LEA-200	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32LEA-200B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32LEA-250	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32LEA-250B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32LEA-300	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32LEA-300B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32LEA-350	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32LEA-350B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32LEA-400	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32LEA-400B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32LEA-450	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32LEA-450B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32LEA-500	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32LEA-500B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32LEA-550	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32LEA-550B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32LEA-600	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32LEA-600B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32LEA-650	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32LEA-650B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32LEA-700	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32LEA-700B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32LEA-750	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32LEA-750B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32LEA-800	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32LEA-800B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32LEA-850	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32LEA-850B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32LEA-900	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32LEA-900B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32LEA-950	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32LEA-950B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32LEA-1000	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32LEA-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32LEB-50	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32LEB-50B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32LEB-100	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32LEB-100B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32LEB-150	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32LEB-150B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32LEB-200	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32LEB-200B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32LEB-250	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32LEB-250B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32LEB-300	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32LEB-300B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32LEB-350	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32LEB-350B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32LEB-400	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32LEB-400B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32LEB-450	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32LEB-450B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32LEB-500	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32LEB-500B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32LEB-550	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32LEB-550B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32LEB-600	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32LEB-600B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32LEB-650	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32LEB-650B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32LEB-700	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32LEB-700B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32LEB-750	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32LEB-750B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32LEB-800	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32LEB-800B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32LEB-850	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32LEB-850B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32LEB-900	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32LEB-900B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32LEB-950	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32LEB-950B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32LEB-1000	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32LEB-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40EH-150	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40EH-150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40EH-200	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40EH-200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40EH-250	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40EH-250B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40EH-300	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40EH-300B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40EH-350	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40EH-350B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40EH-400	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40EH-400B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40EH-450	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40EH-450B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40EH-500	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40EH-500B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40EH-550	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40EH-550B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40EH-600	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40EH-600B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40EH-650	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40EH-650B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40EH-700	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40EH-700B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40EH-750	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40EH-750B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40EH-800	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40EH-800B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40EH-850	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40EH-850B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40EH-900	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40EH-900B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40EH-950	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40EH-950B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40EH-1000	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40EH-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40EH-1050	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40EH-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40EH-1100	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40EH-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40EH-1150	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40EH-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40EH-1200	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40EH-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40EA-150	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40EA-150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40EA-200	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40EA-200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40EA-250	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40EA-250B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40EA-300	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40EA-300B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40EA-350	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40EA-350B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40EA-400	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40EA-400B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40EA-450	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40EA-450B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40EA-500	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40EA-500B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40EA-550	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40EA-550B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40EA-600	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40EA-600B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40EA-650	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40EA-650B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40EA-700	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40EA-700B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40EA-750	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40EA-750B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40EA-800	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40EA-800B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40EA-850	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40EA-850B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40EA-900	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40EA-900B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40EA-950	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40EA-950B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40EA-1000	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40EA-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40EA-1050	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40EA-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40EA-1100	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40EA-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40EA-1150	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40EA-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40EA-1200	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40EA-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40EB-150	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40EB-150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40EB-200	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40EB-200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40EB-250	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40EB-250B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40EB-300	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40EB-300B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40EB-350	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40EB-350B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40EB-400	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40EB-400B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40EB-450	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40EB-450B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40EB-500	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40EB-500B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40EB-550	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40EB-550B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40EB-600	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40EB-600B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40EB-650	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40EB-650B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40EB-700	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40EB-700B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40EB-750	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40EB-750B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40EB-800	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40EB-800B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40EB-850	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40EB-850B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40EB-900	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40EB-900B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40EB-950	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40EB-950B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40EB-1000	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40EB-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40EB-1050	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40EB-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40EB-1100	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40EB-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40EB-1150	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40EB-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40EB-1200	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40EB-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight (in-line) \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40REH-150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40REH-150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40REH-200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40REH-200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40REH-250	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40REH-250B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40REH-300	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40REH-300B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40REH-350	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40REH-350B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40REH-400	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40REH-400B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40REH-450	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40REH-450B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40REH-500	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40REH-500B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40REH-550	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40REH-550B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40REH-600	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40REH-600B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40REH-650	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40REH-650B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40REH-700	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40REH-700B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40REH-750	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40REH-750B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40REH-800	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40REH-800B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40REH-850	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40REH-850B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40REH-900	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40REH-900B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40REH-950	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40REH-950B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40REH-1000	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40REH-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40REH-1050	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40REH-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40REH-1100	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40REH-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40REH-1150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40REH-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40REH-1200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40REH-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40REA-150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40REA-150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40REA-200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40REA-200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40REA-250	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40REA-250B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40REA-300	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40REA-300B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40REA-350	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40REA-350B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40REA-400	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40REA-400B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40REA-450	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40REA-450B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40REA-500	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40REA-500B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40REA-550	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40REA-550B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40REA-600	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40REA-600B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40REA-650	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40REA-650B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40REA-700	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40REA-700B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40REA-750	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40REA-750B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40REA-800	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40REA-800B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40REA-850	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40REA-850B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40REA-900	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40REA-900B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40REA-950	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40REA-950B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40REA-1000	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40REA-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40REA-1050	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40REA-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40REA-1100	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40REA-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40REA-1150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40REA-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40REA-1200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40REA-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40REB-150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40REB-150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40REB-200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40REB-200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40REB-250	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40REB-250B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40REB-300	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40REB-300B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40REB-350	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40REB-350B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40REB-400	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40REB-400B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40REB-450	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40REB-450B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40REB-500	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40REB-500B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40REB-550	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40REB-550B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40REB-600	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40REB-600B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40REB-650	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40REB-650B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40REB-700	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40REB-700B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40REB-750	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40REB-750B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40REB-800	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40REB-800B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40REB-850	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40REB-850B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40REB-900	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40REB-900B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40REB-950	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40REB-950B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40REB-1000	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40REB-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40REB-1050	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40REB-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40REB-1100	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40REB-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40REB-1150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40REB-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40REB-1200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40REB-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40LEH-150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40LEH-150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40LEH-200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40LEH-200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40LEH-250	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40LEH-250B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40LEH-300	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40LEH-300B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40LEH-350	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40LEH-350B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40LEH-400	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40LEH-400B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40LEH-450	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40LEH-450B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40LEH-500	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40LEH-500B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40LEH-550	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40LEH-550B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40LEH-600	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40LEH-600B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40LEH-650	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40LEH-650B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40LEH-700	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40LEH-700B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40LEH-750	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40LEH-750B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40LEH-800	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40LEH-800B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40LEH-850	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40LEH-850B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40LEH-900	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40LEH-900B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40LEH-950	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40LEH-950B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40LEH-1000	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40LEH-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40LEH-1050	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40LEH-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40LEH-1100	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40LEH-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40LEH-1150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40LEH-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40LEH-1200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40LEH-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40LEA-150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40LEA-150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40LEA-200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40LEA-200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40LEA-250	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40LEA-250B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40LEA-300	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40LEA-300B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40LEA-350	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40LEA-350B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40LEA-400	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40LEA-400B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40LEA-450	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40LEA-450B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40LEA-500	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40LEA-500B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40LEA-550	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40LEA-550B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40LEA-600	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40LEA-600B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40LEA-650	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40LEA-650B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40LEA-700	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40LEA-700B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40LEA-750	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40LEA-750B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40LEA-800	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40LEA-800B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40LEA-850	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40LEA-850B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40LEA-900	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40LEA-900B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40LEA-950	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40LEA-950B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40LEA-1000	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40LEA-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40LEA-1050	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40LEA-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40LEA-1100	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40LEA-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40LEA-1150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40LEA-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40LEA-1200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40LEA-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40LEB-150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40LEB-150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40LEB-200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40LEB-200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40LEB-250	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40LEB-250B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40LEB-300	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40LEB-300B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40LEB-350	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40LEB-350B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40LEB-400	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40LEB-400B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40LEB-450	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40LEB-450B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40LEB-500	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40LEB-500B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40LEB-550	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40LEB-550B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40LEB-600	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40LEB-600B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40LEB-650	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40LEB-650B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40LEB-700	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40LEB-700B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40LEB-750	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40LEB-750B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40LEB-800	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40LEB-800B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40LEB-850	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40LEB-850B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40LEB-900	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40LEB-900B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40LEB-950	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40LEB-950B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40LEB-1000	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40LEB-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40LEB-1050	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40LEB-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40LEB-1100	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40LEB-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40LEB-1150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40LEB-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40LEB-1200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40LEB-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEFS Battery-less Absolute Slider Actuator (Ball Screw, 32/40) - Part 2
