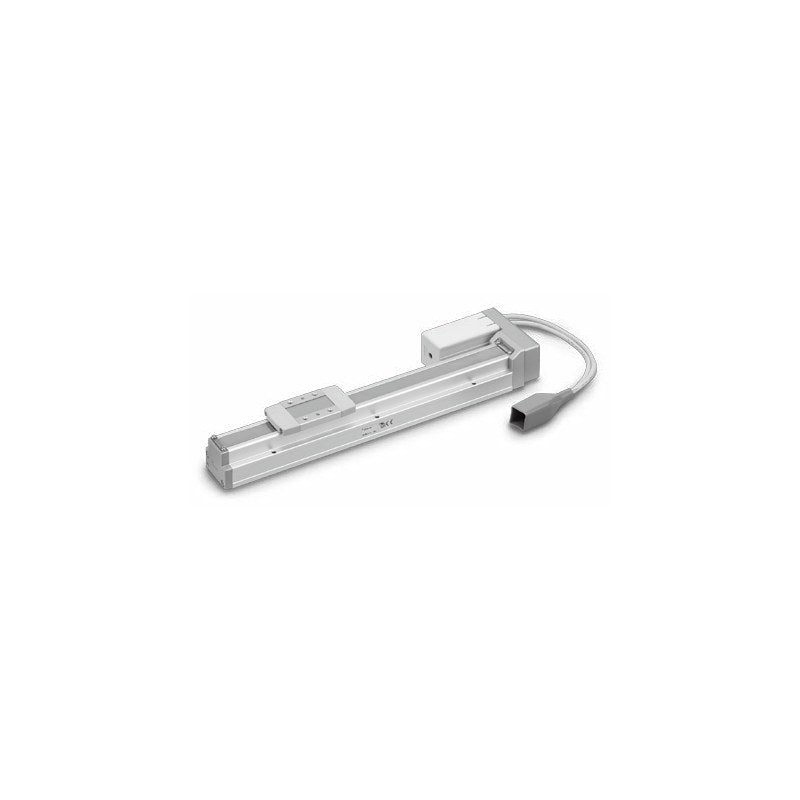

SMC LEFS Slider Electric Actuator (Ball Screw, Step Motor, 32/40) - Part 2

SMC LEFS slider type electric actuator with ball screw drive and incremental step motor (servo/DC24V), sizes 32 and 40.

Key features

Basic or high precision (H) types; straight motor or right/left side parallel motor mounting
Three ball screw leads per size (two on size 16) and standard strokes 50 to 1,200 mm
Motor lock (B) available for vertical use
Auto switch compatibility (C), grease-free seal band (N), positioning pin holes (K), actuator cable type/length (S1-S5 standard, R1-RC robot, 1.5 to 20 m) and controller are suffixes, not listed
Controller (JXC51/61 step data, JXCE1/91/P1/D1/L1/M1 fieldbus, JXCF STO types, LECPA pulse; LECA6 for servo 24V) is ordered as a suffix or separately, not listed

Specifications

Motor	Step motor (servo/DC24V), incremental encoder
Drive	Ball screw (straight), ball screw + belt (R/L parallel)
Guide	Linear guide
Max. acceleration/deceleration	3,000 mm/s²
Repeatability	±0.02 mm basic, ±0.015 mm high precision (H lead ±0.02)
Lost motion	0.1 mm or less basic, 0.05 mm or less high precision
Enclosure	IP30
Motor size	28 (16), 42 (25), 56.4 (32, 40)
Power supply voltage	DC24V ±10%
Operating temperature	5 to 40°C
Operating humidity	90% RH or less (no condensation)
Source	SMC Korea catalog LEF series (SMCKR_LEF.pdf), p. 161-164

LEFSH32H-50		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32H-50B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32H-100		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32H-100B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32H-150		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32H-150B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32H-200		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32H-200B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32H-250		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32H-250B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32H-300		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32H-300B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32H-350		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32H-350B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32H-400		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32H-400B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32H-450		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32H-450B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32H-500		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32H-500B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32H-550		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32H-550B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32H-600		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32H-600B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32H-650		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32H-650B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32H-700		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32H-700B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32H-750		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32H-750B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32H-800		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32H-800B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32H-850		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32H-850B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32H-900		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32H-900B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32H-950		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32H-950B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32H-1000		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32H-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32A-50		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32A-50B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32A-100		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32A-100B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32A-150		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32A-150B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32A-200		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32A-200B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32A-250		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32A-250B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32A-300		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32A-300B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32A-350		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32A-350B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32A-400		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32A-400B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32A-450		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32A-450B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32A-500		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32A-500B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32A-550		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32A-550B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32A-600		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32A-600B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32A-650		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32A-650B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32A-700		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32A-700B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32A-750		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32A-750B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32A-800		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32A-800B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32A-850		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32A-850B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32A-900		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32A-900B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32A-950		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32A-950B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32A-1000		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32A-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32B-50		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32B-50B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32B-100		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32B-100B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32B-150		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32B-150B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32B-200		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32B-200B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32B-250		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32B-250B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32B-300		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32B-300B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32B-350		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32B-350B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32B-400		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32B-400B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32B-450		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32B-450B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32B-500		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32B-500B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32B-550		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32B-550B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32B-600		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32B-600B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32B-650		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32B-650B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32B-700		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32B-700B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32B-750		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32B-750B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32B-800		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32B-800B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32B-850		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32B-850B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32B-900		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32B-900B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32B-950		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32B-950B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32B-1000		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32B-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32RH-50		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32RH-50B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32RH-100		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32RH-100B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32RH-150		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32RH-150B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32RH-200		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32RH-200B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32RH-250		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32RH-250B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32RH-300		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32RH-300B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32RH-350		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32RH-350B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32RH-400		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32RH-400B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32RH-450		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32RH-450B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32RH-500		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32RH-500B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32RH-550		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32RH-550B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32RH-600		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32RH-600B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32RH-650		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32RH-650B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32RH-700		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32RH-700B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32RH-750		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32RH-750B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32RH-800		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32RH-800B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32RH-850		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32RH-850B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32RH-900		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32RH-900B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32RH-950		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32RH-950B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32RH-1000		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32RH-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32RA-50		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32RA-50B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32RA-100		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32RA-100B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32RA-150		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32RA-150B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32RA-200		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32RA-200B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32RA-250		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32RA-250B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32RA-300		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32RA-300B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32RA-350		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32RA-350B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32RA-400		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32RA-400B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32RA-450		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32RA-450B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32RA-500		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32RA-500B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32RA-550		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32RA-550B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32RA-600		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32RA-600B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32RA-650		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32RA-650B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32RA-700		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32RA-700B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32RA-750		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32RA-750B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32RA-800		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32RA-800B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32RA-850		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32RA-850B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32RA-900		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32RA-900B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32RA-950		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32RA-950B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32RA-1000		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32RA-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32RB-50		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32RB-50B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32RB-100		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32RB-100B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32RB-150		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32RB-150B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32RB-200		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32RB-200B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32RB-250		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32RB-250B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32RB-300		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32RB-300B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32RB-350		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32RB-350B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32RB-400		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32RB-400B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32RB-450		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32RB-450B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32RB-500		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32RB-500B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32RB-550		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32RB-550B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32RB-600		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32RB-600B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32RB-650		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32RB-650B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32RB-700		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32RB-700B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32RB-750		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32RB-750B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32RB-800		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32RB-800B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32RB-850		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32RB-850B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32RB-900		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32RB-900B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32RB-950		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32RB-950B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32RB-1000		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32RB-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32LH-50		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32LH-50B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32LH-100		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32LH-100B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32LH-150		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32LH-150B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32LH-200		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32LH-200B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32LH-250		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32LH-250B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32LH-300		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32LH-300B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32LH-350		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32LH-350B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32LH-400		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32LH-400B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32LH-450		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32LH-450B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32LH-500		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32LH-500B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32LH-550		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32LH-550B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32LH-600		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32LH-600B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32LH-650		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32LH-650B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32LH-700		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32LH-700B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32LH-750		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32LH-750B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32LH-800		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32LH-800B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32LH-850		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32LH-850B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32LH-900		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32LH-900B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32LH-950		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32LH-950B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32LH-1000		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32LH-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32LA-50		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32LA-50B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32LA-100		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32LA-100B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32LA-150		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32LA-150B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32LA-200		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32LA-200B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32LA-250		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32LA-250B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32LA-300		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32LA-300B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32LA-350		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32LA-350B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32LA-400		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32LA-400B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32LA-450		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32LA-450B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32LA-500		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32LA-500B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32LA-550		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32LA-550B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32LA-600		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32LA-600B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32LA-650		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32LA-650B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32LA-700		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32LA-700B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32LA-750		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32LA-750B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32LA-800		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32LA-800B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32LA-850		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32LA-850B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32LA-900		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32LA-900B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32LA-950		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32LA-950B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32LA-1000		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32LA-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH32LB-50		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
LEFSH32LB-50B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEFSH32LB-100		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
LEFSH32LB-100B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEFSH32LB-150		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH32LB-150B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH32LB-200		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH32LB-200B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH32LB-250		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH32LB-250B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH32LB-300		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH32LB-300B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH32LB-350		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH32LB-350B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH32LB-400		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH32LB-400B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH32LB-450		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH32LB-450B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH32LB-500		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH32LB-500B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH32LB-550		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH32LB-550B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH32LB-600		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH32LB-600B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH32LB-650		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH32LB-650B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH32LB-700		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH32LB-700B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH32LB-750		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH32LB-750B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH32LB-800		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH32LB-800B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH32LB-850		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH32LB-850B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH32LB-900		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH32LB-900B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH32LB-950		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH32LB-950B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH32LB-1000		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH32LB-1000B		Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40H-150		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40H-150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40H-200		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40H-200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40H-250		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40H-250B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40H-300		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40H-300B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40H-350		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40H-350B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40H-400		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40H-400B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40H-450		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40H-450B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40H-500		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40H-500B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40H-550		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40H-550B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40H-600		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40H-600B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40H-650		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40H-650B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40H-700		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40H-700B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40H-750		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40H-750B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40H-800		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40H-800B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40H-850		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40H-850B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40H-900		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40H-900B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40H-950		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40H-950B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40H-1000		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40H-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40H-1050		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40H-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40H-1100		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40H-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40H-1150		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40H-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40H-1200		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40H-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40A-150		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40A-150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40A-200		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40A-200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40A-250		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40A-250B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40A-300		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40A-300B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40A-350		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40A-350B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40A-400		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40A-400B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40A-450		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40A-450B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40A-500		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40A-500B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40A-550		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40A-550B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40A-600		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40A-600B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40A-650		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40A-650B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40A-700		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40A-700B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40A-750		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40A-750B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40A-800		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40A-800B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40A-850		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40A-850B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40A-900		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40A-900B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40A-950		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40A-950B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40A-1000		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40A-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40A-1050		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40A-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40A-1100		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40A-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40A-1150		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40A-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40A-1200		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40A-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40B-150		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40B-150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40B-200		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40B-200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40B-250		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40B-250B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40B-300		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40B-300B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40B-350		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40B-350B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40B-400		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40B-400B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40B-450		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40B-450B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40B-500		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40B-500B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40B-550		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40B-550B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40B-600		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40B-600B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40B-650		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40B-650B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40B-700		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40B-700B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40B-750		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40B-750B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40B-800		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40B-800B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40B-850		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40B-850B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40B-900		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40B-900B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40B-950		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40B-950B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40B-1000		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40B-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40B-1050		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40B-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40B-1100		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40B-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40B-1150		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40B-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40B-1200		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40B-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40RH-150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40RH-150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40RH-200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40RH-200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40RH-250		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40RH-250B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40RH-300		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40RH-300B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40RH-350		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40RH-350B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40RH-400		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40RH-400B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40RH-450		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40RH-450B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40RH-500		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40RH-500B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40RH-550		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40RH-550B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40RH-600		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40RH-600B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40RH-650		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40RH-650B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40RH-700		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40RH-700B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40RH-750		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40RH-750B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40RH-800		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40RH-800B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40RH-850		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40RH-850B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40RH-900		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40RH-900B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40RH-950		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40RH-950B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40RH-1000		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40RH-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40RH-1050		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40RH-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40RH-1100		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40RH-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40RH-1150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40RH-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40RH-1200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40RH-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40RA-150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40RA-150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40RA-200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40RA-200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40RA-250		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40RA-250B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40RA-300		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40RA-300B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40RA-350		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40RA-350B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40RA-400		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40RA-400B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40RA-450		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40RA-450B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40RA-500		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40RA-500B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40RA-550		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40RA-550B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40RA-600		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40RA-600B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40RA-650		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40RA-650B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40RA-700		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40RA-700B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40RA-750		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40RA-750B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40RA-800		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40RA-800B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40RA-850		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40RA-850B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40RA-900		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40RA-900B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40RA-950		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40RA-950B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40RA-1000		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40RA-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40RA-1050		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40RA-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40RA-1100		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40RA-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40RA-1150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40RA-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40RA-1200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40RA-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40RB-150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40RB-150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40RB-200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40RB-200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40RB-250		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40RB-250B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40RB-300		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40RB-300B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40RB-350		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40RB-350B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40RB-400		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40RB-400B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40RB-450		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40RB-450B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40RB-500		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40RB-500B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40RB-550		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40RB-550B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40RB-600		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40RB-600B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40RB-650		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40RB-650B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40RB-700		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40RB-700B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40RB-750		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40RB-750B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40RB-800		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40RB-800B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40RB-850		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40RB-850B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40RB-900		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40RB-900B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40RB-950		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40RB-950B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40RB-1000		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40RB-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40RB-1050		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40RB-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40RB-1100		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40RB-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40RB-1150		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40RB-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40RB-1200		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40RB-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40LH-150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40LH-150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40LH-200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40LH-200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40LH-250		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40LH-250B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40LH-300		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40LH-300B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40LH-350		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40LH-350B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40LH-400		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40LH-400B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40LH-450		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40LH-450B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40LH-500		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40LH-500B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40LH-550		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40LH-550B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40LH-600		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40LH-600B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40LH-650		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40LH-650B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40LH-700		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40LH-700B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40LH-750		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40LH-750B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40LH-800		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40LH-800B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40LH-850		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40LH-850B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40LH-900		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40LH-900B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40LH-950		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40LH-950B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40LH-1000		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40LH-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40LH-1050		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40LH-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40LH-1100		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40LH-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40LH-1150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40LH-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40LH-1200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40LH-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40LA-150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40LA-150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40LA-200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40LA-200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40LA-250		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40LA-250B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40LA-300		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40LA-300B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40LA-350		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40LA-350B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40LA-400		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40LA-400B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40LA-450		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40LA-450B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40LA-500		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40LA-500B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40LA-550		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40LA-550B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40LA-600		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40LA-600B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40LA-650		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40LA-650B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40LA-700		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40LA-700B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40LA-750		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40LA-750B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40LA-800		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40LA-800B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40LA-850		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40LA-850B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40LA-900		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40LA-900B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40LA-950		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40LA-950B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40LA-1000		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40LA-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40LA-1050		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40LA-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40LA-1100		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40LA-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40LA-1150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40LA-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40LA-1200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40LA-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
LEFSH40LB-150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
LEFSH40LB-150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEFSH40LB-200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
LEFSH40LB-200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEFSH40LB-250		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
LEFSH40LB-250B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEFSH40LB-300		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
LEFSH40LB-300B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEFSH40LB-350		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
LEFSH40LB-350B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEFSH40LB-400		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
LEFSH40LB-400B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEFSH40LB-450		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
LEFSH40LB-450B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEFSH40LB-500		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
LEFSH40LB-500B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEFSH40LB-550		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
LEFSH40LB-550B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
LEFSH40LB-600		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
LEFSH40LB-600B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEFSH40LB-650		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
LEFSH40LB-650B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
LEFSH40LB-700		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
LEFSH40LB-700B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEFSH40LB-750		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
LEFSH40LB-750B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
LEFSH40LB-800		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
LEFSH40LB-800B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEFSH40LB-850		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
LEFSH40LB-850B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
LEFSH40LB-900		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
LEFSH40LB-900B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEFSH40LB-950		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
LEFSH40LB-950B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
LEFSH40LB-1000		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
LEFSH40LB-1000B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEFSH40LB-1050		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
LEFSH40LB-1050B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
LEFSH40LB-1100		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
LEFSH40LB-1100B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
LEFSH40LB-1150		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
LEFSH40LB-1150B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
LEFSH40LB-1200		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
LEFSH40LB-1200B		Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock

Electric ActuatorsSMC

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEFS Slider Electric Actuator (Ball Screw, Step Motor, 32/40) - Part 2

Brand SMC·Electric Actuators

Available part numbers (756)

LEFSH32H-50, LEFSH32H-50B, LEFSH32H-100, LEFSH32H-100B, LEFSH32H-150, LEFSH32H-150B, LEFSH32H-200, LEFSH32H-200B, LEFSH32H-250, LEFSH32H-250B + 746 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEFSH32H-50	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32H-50B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32H-100	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32H-100B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32H-150	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32H-150B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32H-200	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32H-200B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32H-250	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32H-250B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32H-300	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32H-300B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32H-350	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32H-350B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32H-400	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32H-400B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32H-450	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32H-450B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32H-500	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32H-500B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32H-550	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32H-550B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32H-600	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32H-600B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32H-650	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32H-650B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32H-700	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32H-700B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32H-750	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32H-750B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32H-800	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32H-800B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32H-850	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32H-850B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32H-900	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32H-900B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32H-950	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32H-950B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32H-1000	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32H-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32A-50	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32A-50B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32A-100	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32A-100B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32A-150	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32A-150B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32A-200	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32A-200B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32A-250	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32A-250B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32A-300	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32A-300B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32A-350	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32A-350B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32A-400	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32A-400B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32A-450	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32A-450B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32A-500	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32A-500B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32A-550	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32A-550B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32A-600	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32A-600B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32A-650	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32A-650B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32A-700	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32A-700B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32A-750	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32A-750B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32A-800	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32A-800B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32A-850	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32A-850B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32A-900	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32A-900B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32A-950	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32A-950B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32A-1000	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32A-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32B-50	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32B-50B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32B-100	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32B-100B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32B-150	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32B-150B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32B-200	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32B-200B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32B-250	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32B-250B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32B-300	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32B-300B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32B-350	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32B-350B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32B-400	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32B-400B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32B-450	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32B-450B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32B-500	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32B-500B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32B-550	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32B-550B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32B-600	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32B-600B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32B-650	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32B-650B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32B-700	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32B-700B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32B-750	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32B-750B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32B-800	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32B-800B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32B-850	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32B-850B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32B-900	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32B-900B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32B-950	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32B-950B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32B-1000	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32B-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32RH-50	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32RH-50B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32RH-100	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32RH-100B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32RH-150	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32RH-150B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32RH-200	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32RH-200B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32RH-250	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32RH-250B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32RH-300	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32RH-300B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32RH-350	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32RH-350B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32RH-400	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32RH-400B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32RH-450	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32RH-450B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32RH-500	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32RH-500B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32RH-550	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32RH-550B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32RH-600	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32RH-600B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32RH-650	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32RH-650B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32RH-700	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32RH-700B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32RH-750	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32RH-750B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32RH-800	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32RH-800B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32RH-850	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32RH-850B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32RH-900	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32RH-900B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32RH-950	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32RH-950B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32RH-1000	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32RH-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32RA-50	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32RA-50B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32RA-100	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32RA-100B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32RA-150	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32RA-150B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32RA-200	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32RA-200B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32RA-250	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32RA-250B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32RA-300	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32RA-300B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32RA-350	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32RA-350B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32RA-400	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32RA-400B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32RA-450	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32RA-450B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32RA-500	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32RA-500B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32RA-550	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32RA-550B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32RA-600	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32RA-600B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32RA-650	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32RA-650B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32RA-700	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32RA-700B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32RA-750	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32RA-750B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32RA-800	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32RA-800B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32RA-850	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32RA-850B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32RA-900	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32RA-900B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32RA-950	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32RA-950B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32RA-1000	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32RA-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32RB-50	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32RB-50B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32RB-100	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32RB-100B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32RB-150	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32RB-150B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32RB-200	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32RB-200B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32RB-250	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32RB-250B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32RB-300	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32RB-300B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32RB-350	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32RB-350B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32RB-400	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32RB-400B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32RB-450	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32RB-450B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32RB-500	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32RB-500B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32RB-550	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32RB-550B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32RB-600	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32RB-600B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32RB-650	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32RB-650B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32RB-700	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32RB-700B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32RB-750	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32RB-750B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32RB-800	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32RB-800B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32RB-850	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32RB-850B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32RB-900	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32RB-900B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32RB-950	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32RB-950B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32RB-1000	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32RB-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32LH-50	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32LH-50B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32LH-100	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32LH-100B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32LH-150	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32LH-150B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32LH-200	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32LH-200B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32LH-250	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32LH-250B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32LH-300	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32LH-300B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32LH-350	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32LH-350B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32LH-400	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32LH-400B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32LH-450	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32LH-450B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32LH-500	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32LH-500B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32LH-550	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32LH-550B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32LH-600	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32LH-600B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32LH-650	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32LH-650B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32LH-700	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32LH-700B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32LH-750	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32LH-750B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32LH-800	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32LH-800B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32LH-850	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32LH-850B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32LH-900	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32LH-900B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32LH-950	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32LH-950B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32LH-1000	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32LH-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 24 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32LA-50	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32LA-50B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32LA-100	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32LA-100B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32LA-150	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32LA-150B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32LA-200	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32LA-200B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32LA-250	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32LA-250B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32LA-300	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32LA-300B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32LA-350	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32LA-350B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32LA-400	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32LA-400B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32LA-450	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32LA-450B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32LA-500	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32LA-500B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32LA-550	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32LA-550B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32LA-600	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32LA-600B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32LA-650	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32LA-650B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32LA-700	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32LA-700B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32LA-750	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32LA-750B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32LA-800	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32LA-800B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32LA-850	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32LA-850B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32LA-900	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32LA-900B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32LA-950	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32LA-950B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32LA-1000	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32LA-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 16 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH32LB-50	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: Without lock
	LEFSH32LB-50B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEFSH32LB-100	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: Without lock
	LEFSH32LB-100B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEFSH32LB-150	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH32LB-150B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH32LB-200	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH32LB-200B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH32LB-250	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH32LB-250B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH32LB-300	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH32LB-300B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH32LB-350	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH32LB-350B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH32LB-400	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH32LB-400B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH32LB-450	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH32LB-450B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH32LB-500	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH32LB-500B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH32LB-550	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH32LB-550B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH32LB-600	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH32LB-600B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH32LB-650	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH32LB-650B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH32LB-700	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH32LB-700B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH32LB-750	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH32LB-750B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH32LB-800	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH32LB-800B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH32LB-850	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH32LB-850B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH32LB-900	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH32LB-900B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH32LB-950	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH32LB-950B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH32LB-1000	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH32LB-1000B	Size: 32 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 8 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40H-150	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40H-150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40H-200	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40H-200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40H-250	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40H-250B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40H-300	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40H-300B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40H-350	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40H-350B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40H-400	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40H-400B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40H-450	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40H-450B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40H-500	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40H-500B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40H-550	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40H-550B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40H-600	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40H-600B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40H-650	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40H-650B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40H-700	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40H-700B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40H-750	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40H-750B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40H-800	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40H-800B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40H-850	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40H-850B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40H-900	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40H-900B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40H-950	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40H-950B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40H-1000	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40H-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40H-1050	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40H-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40H-1100	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40H-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40H-1150	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40H-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40H-1200	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40H-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40A-150	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40A-150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40A-200	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40A-200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40A-250	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40A-250B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40A-300	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40A-300B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40A-350	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40A-350B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40A-400	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40A-400B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40A-450	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40A-450B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40A-500	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40A-500B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40A-550	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40A-550B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40A-600	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40A-600B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40A-650	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40A-650B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40A-700	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40A-700B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40A-750	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40A-750B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40A-800	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40A-800B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40A-850	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40A-850B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40A-900	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40A-900B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40A-950	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40A-950B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40A-1000	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40A-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40A-1050	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40A-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40A-1100	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40A-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40A-1150	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40A-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40A-1200	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40A-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40B-150	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40B-150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40B-200	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40B-200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40B-250	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40B-250B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40B-300	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40B-300B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40B-350	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40B-350B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40B-400	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40B-400B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40B-450	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40B-450B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40B-500	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40B-500B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40B-550	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40B-550B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40B-600	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40B-600B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40B-650	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40B-650B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40B-700	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40B-700B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40B-750	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40B-750B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40B-800	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40B-800B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40B-850	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40B-850B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40B-900	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40B-900B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40B-950	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40B-950B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40B-1000	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40B-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40B-1050	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40B-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40B-1100	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40B-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40B-1150	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40B-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40B-1200	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40B-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40RH-150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40RH-150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40RH-200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40RH-200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40RH-250	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40RH-250B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40RH-300	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40RH-300B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40RH-350	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40RH-350B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40RH-400	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40RH-400B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40RH-450	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40RH-450B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40RH-500	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40RH-500B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40RH-550	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40RH-550B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40RH-600	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40RH-600B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40RH-650	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40RH-650B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40RH-700	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40RH-700B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40RH-750	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40RH-750B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40RH-800	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40RH-800B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40RH-850	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40RH-850B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40RH-900	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40RH-900B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40RH-950	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40RH-950B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40RH-1000	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40RH-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40RH-1050	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40RH-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40RH-1100	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40RH-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40RH-1150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40RH-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40RH-1200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40RH-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40RA-150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40RA-150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40RA-200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40RA-200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40RA-250	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40RA-250B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40RA-300	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40RA-300B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40RA-350	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40RA-350B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40RA-400	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40RA-400B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40RA-450	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40RA-450B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40RA-500	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40RA-500B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40RA-550	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40RA-550B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40RA-600	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40RA-600B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40RA-650	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40RA-650B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40RA-700	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40RA-700B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40RA-750	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40RA-750B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40RA-800	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40RA-800B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40RA-850	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40RA-850B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40RA-900	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40RA-900B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40RA-950	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40RA-950B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40RA-1000	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40RA-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40RA-1050	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40RA-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40RA-1100	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40RA-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40RA-1150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40RA-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40RA-1200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40RA-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40RB-150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40RB-150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40RB-200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40RB-200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40RB-250	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40RB-250B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40RB-300	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40RB-300B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40RB-350	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40RB-350B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40RB-400	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40RB-400B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40RB-450	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40RB-450B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40RB-500	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40RB-500B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40RB-550	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40RB-550B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40RB-600	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40RB-600B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40RB-650	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40RB-650B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40RB-700	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40RB-700B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40RB-750	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40RB-750B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40RB-800	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40RB-800B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40RB-850	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40RB-850B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40RB-900	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40RB-900B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40RB-950	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40RB-950B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40RB-1000	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40RB-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40RB-1050	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40RB-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40RB-1100	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40RB-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40RB-1150	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40RB-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40RB-1200	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40RB-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Right side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40LH-150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40LH-150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40LH-200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40LH-200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40LH-250	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40LH-250B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40LH-300	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40LH-300B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40LH-350	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40LH-350B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40LH-400	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40LH-400B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40LH-450	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40LH-450B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40LH-500	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40LH-500B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40LH-550	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40LH-550B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40LH-600	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40LH-600B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40LH-650	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40LH-650B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40LH-700	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40LH-700B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40LH-750	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40LH-750B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40LH-800	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40LH-800B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40LH-850	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40LH-850B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40LH-900	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40LH-900B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40LH-950	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40LH-950B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40LH-1000	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40LH-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40LH-1050	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40LH-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40LH-1100	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40LH-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40LH-1150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40LH-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40LH-1200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40LH-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 30 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40LA-150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40LA-150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40LA-200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40LA-200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40LA-250	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40LA-250B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40LA-300	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40LA-300B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40LA-350	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40LA-350B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40LA-400	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40LA-400B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40LA-450	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40LA-450B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40LA-500	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40LA-500B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40LA-550	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40LA-550B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40LA-600	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40LA-600B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40LA-650	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40LA-650B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40LA-700	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40LA-700B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40LA-750	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40LA-750B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40LA-800	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40LA-800B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40LA-850	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40LA-850B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40LA-900	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40LA-900B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40LA-950	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40LA-950B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40LA-1000	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40LA-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40LA-1050	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40LA-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40LA-1100	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40LA-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40LA-1150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40LA-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40LA-1200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40LA-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 20 mm \| Stroke: 1200 mm \| Motor option: With lock
	LEFSH40LB-150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: Without lock
	LEFSH40LB-150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEFSH40LB-200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: Without lock
	LEFSH40LB-200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEFSH40LB-250	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: Without lock
	LEFSH40LB-250B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEFSH40LB-300	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: Without lock
	LEFSH40LB-300B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEFSH40LB-350	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: Without lock
	LEFSH40LB-350B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEFSH40LB-400	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: Without lock
	LEFSH40LB-400B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEFSH40LB-450	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: Without lock
	LEFSH40LB-450B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEFSH40LB-500	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: Without lock
	LEFSH40LB-500B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEFSH40LB-550	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: Without lock
	LEFSH40LB-550B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 550 mm \| Motor option: With lock
	LEFSH40LB-600	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: Without lock
	LEFSH40LB-600B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEFSH40LB-650	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: Without lock
	LEFSH40LB-650B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 650 mm \| Motor option: With lock
	LEFSH40LB-700	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: Without lock
	LEFSH40LB-700B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEFSH40LB-750	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: Without lock
	LEFSH40LB-750B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 750 mm \| Motor option: With lock
	LEFSH40LB-800	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: Without lock
	LEFSH40LB-800B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEFSH40LB-850	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: Without lock
	LEFSH40LB-850B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 850 mm \| Motor option: With lock
	LEFSH40LB-900	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: Without lock
	LEFSH40LB-900B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEFSH40LB-950	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: Without lock
	LEFSH40LB-950B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 950 mm \| Motor option: With lock
	LEFSH40LB-1000	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: Without lock
	LEFSH40LB-1000B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEFSH40LB-1050	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: Without lock
	LEFSH40LB-1050B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1050 mm \| Motor option: With lock
	LEFSH40LB-1100	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: Without lock
	LEFSH40LB-1100B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1100 mm \| Motor option: With lock
	LEFSH40LB-1150	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: Without lock
	LEFSH40LB-1150B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1150 mm \| Motor option: With lock
	LEFSH40LB-1200	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: Without lock
	LEFSH40LB-1200B	Size: 40 \| Precision: High precision \| Motor mounting: Left side parallel \| Lead: 10 mm \| Stroke: 1200 mm \| Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEFS Slider Electric Actuator (Ball Screw, Step Motor, 32/40) - Part 2
