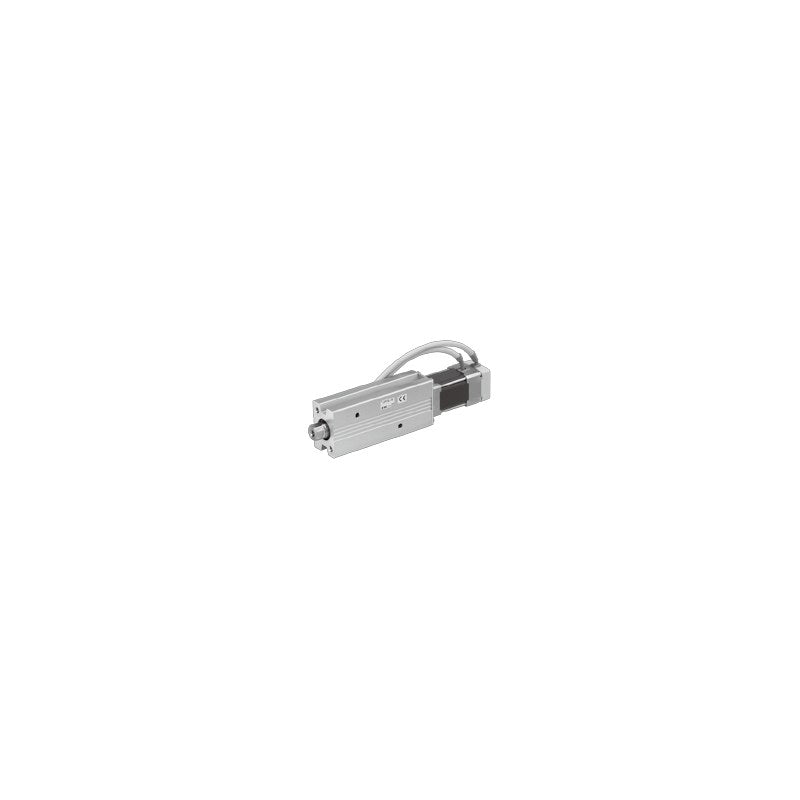

SMC LEPY Miniature Electric Actuator, Rod Type (Step Motor)

SMC LEPY Miniature Electric Actuator, Rod Type (Step Motor)

SMC LEPY series miniature rod type electric actuator with step motor (DC24V), sizes 6 and 10, strokes 25 to 75 mm.

Key features

  • Compact and lightweight: from 240 g (LEPY6, 25 mm stroke)
  • Up to 64 positioning points with position, speed and force settings; pushing force up to 50 N
  • Lead screw (slide screw) drive; repeatability ±0.05 mm
  • Basic motor (sizes 6, 10) or compact motor (L, size 10); motor cable exit top, left (L), bottom (U) or right (R)
  • Actuator cable (standard S1-S5 or robot R1-RC) and controller (JXC51/61, fieldbus JXC1, LECP6, pulse input LECPA) are ordered as suffixes; codes listed are actuator only

Specifications

Guide Slide bushing
Max. work load (horizontal) 1.0 to 6.0 kg
Drive Slide screw
Repeatability ±0.05 mm
Backlash 0.2 mm or less
Acceleration/deceleration 3000 mm/s²
Max. operating frequency 60 c.p.m
Motor Step motor (servo/DC24V), incremental, 20 (6) / 28 (10)
Power supply DC24V ±10%
Enclosure IP40
Operating temperature 5 to 40°C
Source SMC Korea electric actuator catalog (SMCKR_LEPY_LEPS.pdf), p. 745-747 (PDF p. 10-13)
LEPY6K-25 Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Top
LEPY6K-25L Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Left side
LEPY6K-25U Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Bottom
LEPY6K-25R Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Right side
LEPY6K-50 Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Top
LEPY6K-50L Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Left side
LEPY6K-50U Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Bottom
LEPY6K-50R Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Right side
LEPY6K-75 Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 75 mm | Cable exit: Top
LEPY6K-75L Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 75 mm | Cable exit: Left side
LEPY6K-75U Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 75 mm | Cable exit: Bottom
LEPY6K-75R Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 75 mm | Cable exit: Right side
LEPY6J-25 Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Top
LEPY6J-25L Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Left side
LEPY6J-25U Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Bottom
LEPY6J-25R Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Right side
LEPY6J-50 Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Top
LEPY6J-50L Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Left side
LEPY6J-50U Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Bottom
LEPY6J-50R Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Right side
LEPY6J-75 Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 75 mm | Cable exit: Top
LEPY6J-75L Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 75 mm | Cable exit: Left side
LEPY6J-75U Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 75 mm | Cable exit: Bottom
LEPY6J-75R Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 75 mm | Cable exit: Right side
LEPY10K-25 Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Top
LEPY10K-25L Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Left side
LEPY10K-25U Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Bottom
LEPY10K-25R Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Right side
LEPY10K-50 Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Top
LEPY10K-50L Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Left side
LEPY10K-50U Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Bottom
LEPY10K-50R Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Right side
LEPY10K-75 Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 75 mm | Cable exit: Top
LEPY10K-75L Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 75 mm | Cable exit: Left side
LEPY10K-75U Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 75 mm | Cable exit: Bottom
LEPY10K-75R Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 75 mm | Cable exit: Right side
LEPY10J-25 Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Top
LEPY10J-25L Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Left side
LEPY10J-25U Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Bottom
LEPY10J-25R Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Right side
LEPY10J-50 Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Top
LEPY10J-50L Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Left side
LEPY10J-50U Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Bottom
LEPY10J-50R Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Right side
LEPY10J-75 Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 75 mm | Cable exit: Top
LEPY10J-75L Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 75 mm | Cable exit: Left side
LEPY10J-75U Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 75 mm | Cable exit: Bottom
LEPY10J-75R Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 75 mm | Cable exit: Right side
LEPY10LK-25 Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Top
LEPY10LK-25L Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Left side
LEPY10LK-25U Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Bottom
LEPY10LK-25R Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Right side
LEPY10LK-50 Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Top
LEPY10LK-50L Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Left side
LEPY10LK-50U Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Bottom
LEPY10LK-50R Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Right side
LEPY10LK-75 Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 75 mm | Cable exit: Top
LEPY10LK-75L Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 75 mm | Cable exit: Left side
LEPY10LK-75U Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 75 mm | Cable exit: Bottom
LEPY10LK-75R Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 75 mm | Cable exit: Right side
LEPY10LJ-25 Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Top
LEPY10LJ-25L Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Left side
LEPY10LJ-25U Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Bottom
LEPY10LJ-25R Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Right side
LEPY10LJ-50 Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Top
LEPY10LJ-50L Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Left side
LEPY10LJ-50U Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Bottom
LEPY10LJ-50R Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Right side
LEPY10LJ-75 Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 75 mm | Cable exit: Top
LEPY10LJ-75L Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 75 mm | Cable exit: Left side
LEPY10LJ-75U Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 75 mm | Cable exit: Bottom
LEPY10LJ-75R Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 75 mm | Cable exit: Right side
Electric ActuatorsSMC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEPY Miniature Electric Actuator, Rod Type (Step Motor)

Brand SMC·Electric Actuators

Available part numbers (72)

LEPY6K-25, LEPY6K-25L, LEPY6K-25U, LEPY6K-25R, LEPY6K-50, LEPY6K-50L, LEPY6K-50U, LEPY6K-50R, LEPY6K-75, LEPY6K-75L + 62 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
