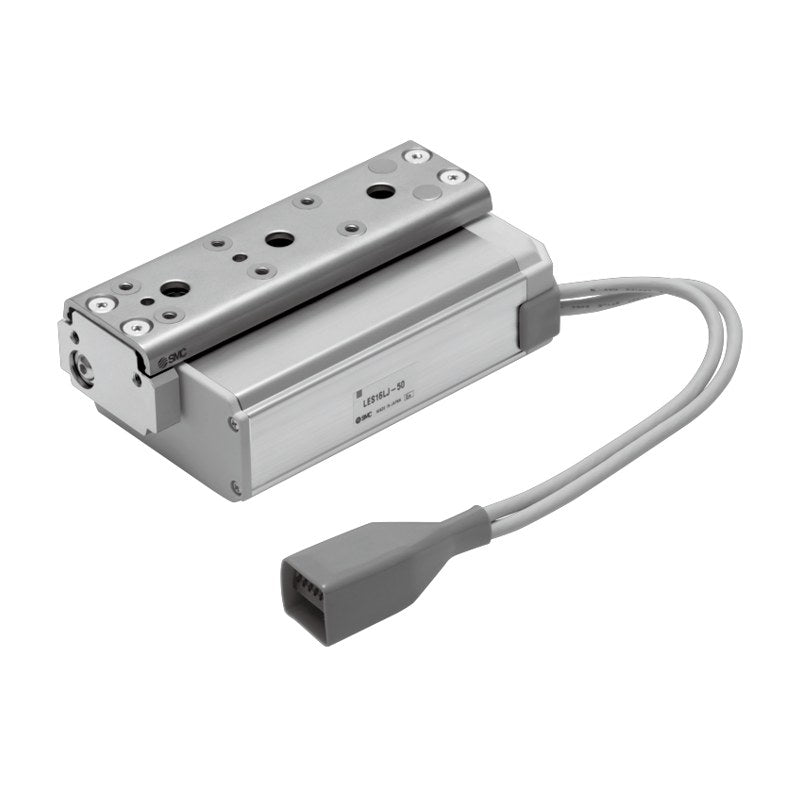

SMC LES Electric Slide Table, Low Profile (Step/Servo 24V)

SMC LES Electric Slide Table, Low Profile (Step/Servo 24V)

SMC LES series low-profile electric slide table, sizes 8, 16 and 25, with incremental step motor (servo/DC24V) or servo motor (DC24V) and integrated recirculating linear guide.

Key features

  • Guide rail integrated with the table; recirculating linear guide for high rigidity in a low-profile body
  • Three motor layouts: basic (R type), symmetrical (L type) and in-line motor (D type)
  • Slide screw drive, repeatability ±0.05 mm, max. acceleration/deceleration 5000 mm/s²
  • Non-excitation lock option (B) to prevent work drop; R/L types accept the lock only from 75 mm stroke (size 8/16) or 50 mm (size 25)
  • Dust-protected body (S, IP5X equivalent) and side holder mounting (H, D type only) are ordered as suffix options
  • Controller/driver (JXC51/61, JXCE1/91/P1/D1/L1/M1, STO types JXCEF/9F/PF/LF, LECPA for step motor; LECA6 for servo motor), actuator cable (standard S1-S5 or robot R1-RC) and I/O cable are suffixes; codes are actuator only

Specifications

Encoder Incremental
Power supply DC24V ±10%
Repeatability ±0.05 mm
Lost motion 0.3 mm or less
Max. acceleration/deceleration 5000 mm/s²
Max. speed 400 mm/s
Pushing force (step motor) 4 to 180 N (by size and lead)
Drive Slide screw + belt (R/L), slide screw (D)
Guide Linear guide (recirculating)
Operating temperature 5 to 40°C
Enclosure IP30
Source SMC Korea electric actuator catalog (SMCKR_LES_LESH.pdf), p. 669-673 (PDF p. 36-40)
LES8RJ-30 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8RJ-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8RJ-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8RJ-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8RK-30 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8RK-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8RK-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8RK-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8RAJ-30 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8RAJ-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8RAJ-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8RAJ-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8RAK-30 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8RAK-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8RAK-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8RAK-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8LJ-30 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8LJ-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8LJ-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8LJ-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8LK-30 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8LK-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8LK-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8LK-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8LAJ-30 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8LAJ-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8LAJ-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8LAJ-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8LAK-30 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8LAK-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8LAK-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8LAK-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8DJ-30 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8DJ-30B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: With lock
LES8DJ-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8DJ-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES8DJ-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8DJ-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8DK-30 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8DK-30B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: With lock
LES8DK-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8DK-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LES8DK-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8DK-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8DAJ-30 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8DAJ-30B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: With lock
LES8DAJ-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8DAJ-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES8DAJ-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8DAJ-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8DAK-30 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8DAK-30B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: With lock
LES8DAK-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8DAK-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LES8DAK-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8DAK-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES16RJ-30 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16RJ-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16RJ-75 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16RJ-75B Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16RJ-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16RJ-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16RK-30 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16RK-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16RK-75 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16RK-75B Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16RK-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16RK-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16RAJ-30 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16RAJ-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16RAJ-75 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16RAJ-75B Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16RAJ-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16RAJ-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16RAK-30 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16RAK-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16RAK-75 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16RAK-75B Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16RAK-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16RAK-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16LJ-30 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16LJ-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16LJ-75 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16LJ-75B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16LJ-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16LJ-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16LK-30 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16LK-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16LK-75 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16LK-75B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16LK-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16LK-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16LAJ-30 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16LAJ-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16LAJ-75 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16LAJ-75B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16LAJ-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16LAJ-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16LAK-30 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16LAK-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16LAK-75 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16LAK-75B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16LAK-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16LAK-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16DJ-30 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16DJ-30B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: With lock
LES16DJ-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16DJ-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LES16DJ-75 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16DJ-75B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16DJ-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16DJ-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16DK-30 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16DK-30B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: With lock
LES16DK-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16DK-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LES16DK-75 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16DK-75B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16DK-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16DK-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16DAJ-30 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16DAJ-30B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: With lock
LES16DAJ-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16DAJ-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LES16DAJ-75 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16DAJ-75B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16DAJ-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16DAJ-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16DAK-30 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16DAK-30B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: With lock
LES16DAK-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16DAK-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LES16DAK-75 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16DAK-75B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16DAK-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16DAK-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES25RJ-30 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25RJ-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25RJ-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25RJ-75 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25RJ-75B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25RJ-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25RJ-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25RJ-125 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25RJ-125B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25RJ-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25RJ-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25RK-30 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25RK-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25RK-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25RK-75 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25RK-75B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25RK-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25RK-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25RK-125 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25RK-125B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25RK-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25RK-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25RAJ-30 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25RAJ-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25RAJ-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25RAJ-75 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25RAJ-75B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25RAJ-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25RAJ-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25RAJ-125 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25RAJ-125B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25RAJ-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25RAJ-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25RAK-30 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25RAK-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25RAK-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25RAK-75 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25RAK-75B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25RAK-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25RAK-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25RAK-125 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25RAK-125B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25RAK-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25RAK-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25LJ-30 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25LJ-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25LJ-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25LJ-75 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25LJ-75B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25LJ-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25LJ-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25LJ-125 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25LJ-125B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25LJ-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25LJ-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25LK-30 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25LK-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25LK-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25LK-75 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25LK-75B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25LK-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25LK-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25LK-125 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25LK-125B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25LK-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25LK-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25LAJ-30 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25LAJ-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25LAJ-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25LAJ-75 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25LAJ-75B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25LAJ-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25LAJ-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25LAJ-125 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25LAJ-125B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25LAJ-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25LAJ-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25LAK-30 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25LAK-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25LAK-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25LAK-75 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25LAK-75B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25LAK-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25LAK-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25LAK-125 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25LAK-125B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25LAK-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25LAK-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25DJ-30 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25DJ-30B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: With lock
LES25DJ-50 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25DJ-50B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25DJ-75 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25DJ-75B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25DJ-100 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25DJ-100B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25DJ-125 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25DJ-125B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25DJ-150 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25DJ-150B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25DK-30 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25DK-30B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: With lock
LES25DK-50 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25DK-50B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25DK-75 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25DK-75B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25DK-100 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25DK-100B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25DK-125 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25DK-125B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25DK-150 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25DK-150B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
Electric ActuatorsSMC
248 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LES Electric Slide Table, Low Profile (Step/Servo 24V)

Brand SMC·Electric Actuators

Available part numbers (248)

LES8RJ-30, LES8RJ-50, LES8RJ-75, LES8RJ-75B, LES8RK-30, LES8RK-50, LES8RK-75, LES8RK-75B, LES8RAJ-30, LES8RAJ-50 + 238 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LES8RJ-30Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8RJ-50Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8RJ-75Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8RJ-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8RK-30Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8RK-50Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8RK-75Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8RK-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8RAJ-30Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8RAJ-50Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8RAJ-75Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8RAJ-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8RAK-30Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8RAK-50Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8RAK-75Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8RAK-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8LJ-30Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8LJ-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8LJ-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8LJ-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8LK-30Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8LK-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8LK-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8LK-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8LAJ-30Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8LAJ-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8LAJ-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8LAJ-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8LAK-30Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8LAK-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8LAK-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8LAK-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8DJ-30Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8DJ-30BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: With lock
LES8DJ-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8DJ-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES8DJ-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8DJ-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8DK-30Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8DK-30BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: With lock
LES8DK-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8DK-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LES8DK-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8DK-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES8DAJ-30Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES8DAJ-30BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: With lock
LES8DAJ-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES8DAJ-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES8DAJ-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES8DAJ-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES8DAK-30Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: None
LES8DAK-30BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 30 mm | Lock: With lock
LES8DAK-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LES8DAK-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LES8DAK-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LES8DAK-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LES16RJ-30Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16RJ-50Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16RJ-75Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16RJ-75BSize: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16RJ-100Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16RJ-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16RK-30Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16RK-50Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16RK-75Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16RK-75BSize: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16RK-100Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16RK-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16RAJ-30Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16RAJ-50Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16RAJ-75Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16RAJ-75BSize: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16RAJ-100Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16RAJ-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16RAK-30Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16RAK-50Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16RAK-75Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16RAK-75BSize: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16RAK-100Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16RAK-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16LJ-30Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16LJ-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16LJ-75Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16LJ-75BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16LJ-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16LJ-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16LK-30Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16LK-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16LK-75Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16LK-75BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16LK-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16LK-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16LAJ-30Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16LAJ-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16LAJ-75Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16LAJ-75BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16LAJ-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16LAJ-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16LAK-30Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16LAK-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16LAK-75Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16LAK-75BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16LAK-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16LAK-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16DJ-30Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16DJ-30BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: With lock
LES16DJ-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16DJ-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LES16DJ-75Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16DJ-75BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16DJ-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16DJ-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16DK-30Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16DK-30BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: With lock
LES16DK-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16DK-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LES16DK-75Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16DK-75BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16DK-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16DK-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES16DAJ-30Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: None
LES16DAJ-30BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 30 mm | Lock: With lock
LES16DAJ-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LES16DAJ-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LES16DAJ-75Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: None
LES16DAJ-75BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 75 mm | Lock: With lock
LES16DAJ-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LES16DAJ-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LES16DAK-30Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: None
LES16DAK-30BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 30 mm | Lock: With lock
LES16DAK-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LES16DAK-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LES16DAK-75Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: None
LES16DAK-75BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 75 mm | Lock: With lock
LES16DAK-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LES16DAK-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LES25RJ-30Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25RJ-50Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25RJ-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25RJ-75Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25RJ-75BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25RJ-100Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25RJ-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25RJ-125Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25RJ-125BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25RJ-150Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25RJ-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25RK-30Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25RK-50Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25RK-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25RK-75Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25RK-75BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25RK-100Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25RK-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25RK-125Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25RK-125BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25RK-150Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25RK-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25RAJ-30Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25RAJ-50Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25RAJ-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25RAJ-75Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25RAJ-75BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25RAJ-100Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25RAJ-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25RAJ-125Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25RAJ-125BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25RAJ-150Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25RAJ-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25RAK-30Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25RAK-50Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25RAK-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25RAK-75Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25RAK-75BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25RAK-100Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25RAK-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25RAK-125Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25RAK-125BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25RAK-150Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25RAK-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25LJ-30Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25LJ-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25LJ-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25LJ-75Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25LJ-75BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25LJ-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25LJ-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25LJ-125Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25LJ-125BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25LJ-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25LJ-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25LK-30Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25LK-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25LK-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25LK-75Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25LK-75BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25LK-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25LK-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25LK-125Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25LK-125BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25LK-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25LK-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25LAJ-30Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25LAJ-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25LAJ-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25LAJ-75Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25LAJ-75BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25LAJ-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25LAJ-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25LAJ-125Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25LAJ-125BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25LAJ-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25LAJ-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25LAK-30Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25LAK-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25LAK-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25LAK-75Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25LAK-75BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25LAK-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25LAK-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25LAK-125Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25LAK-125BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25LAK-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25LAK-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LES25DJ-30Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: None
LES25DJ-30BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 30 mm | Lock: With lock
LES25DJ-50Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LES25DJ-50BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LES25DJ-75Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: None
LES25DJ-75BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 75 mm | Lock: With lock
LES25DJ-100Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LES25DJ-100BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LES25DJ-125Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: None
LES25DJ-125BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 125 mm | Lock: With lock
LES25DJ-150Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LES25DJ-150BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LES25DK-30Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: None
LES25DK-30BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 30 mm | Lock: With lock
LES25DK-50Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LES25DK-50BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LES25DK-75Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LES25DK-75BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LES25DK-100Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LES25DK-100BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LES25DK-125Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: None
LES25DK-125BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 125 mm | Lock: With lock
LES25DK-150Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LES25DK-150BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
