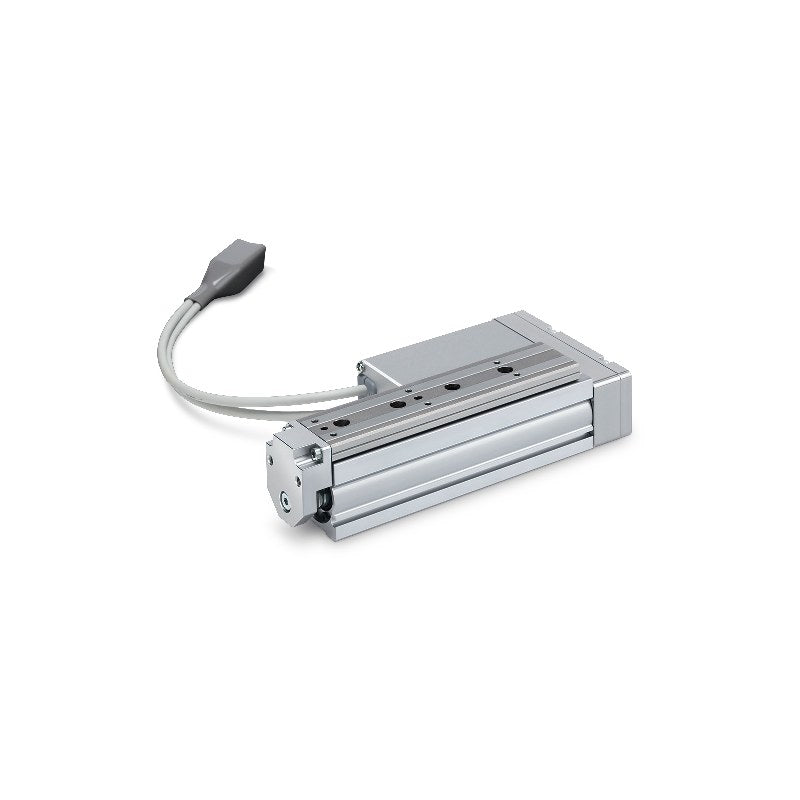

SMC LESYH Battery-less Absolute Slide Table (High Precision, 8-25)

SMC LESYH Battery-less Absolute Slide Table (High Precision, 8-25)

SMC LESYH high precision electric slide table with battery-less absolute encoder step motor (DC24V), sizes 8, 16 and 25.

Key features

  • Battery-less absolute encoder: position retained at power off, no backup battery maintenance
  • High precision linear guide (recirculating), repeatability ±0.01 mm
  • In-line motor or right/left side parallel motor; lock option (W) for vertical use
  • Work load up to 12 kg horizontal / 20 kg vertical (size 25)
  • Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Drive Ball screw (in-line), ball screw + belt (R, L)
Guide Linear guide (circulating)
Repeatability ±0.01 mm
Lost motion 0.1 mm or less
Max. acceleration/deceleration 5,000 mm/s²
Motor size 28 (8), 42 (16), 56 (25)
Motor Battery-less absolute encoder step motor (servo/DC24V)
Encoder Battery-less absolute (position held at power off)
Power supply voltage DC24V ±10%
Source SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 99-101 (PDF p. 100-102)
LESYH8D1EA-50C Size: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1EA-50W Size: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1EA-75C Size: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1EA-75W Size: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1EB-50C Size: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1EB-50W Size: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1EB-75C Size: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1EB-75W Size: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1EC-50C Size: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1EC-50W Size: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1EC-75C Size: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1EC-75W Size: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2EA-50C Size: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2EA-50W Size: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2EA-75C Size: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2EA-75W Size: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2EB-50C Size: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2EB-50W Size: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2EB-75C Size: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2EB-75W Size: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2EC-50C Size: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2EC-50W Size: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2EC-75C Size: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2EC-75W Size: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3EA-50C Size: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3EA-50W Size: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3EA-75C Size: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3EA-75W Size: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3EB-50C Size: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3EB-50W Size: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3EB-75C Size: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3EB-75W Size: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3EC-50C Size: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3EC-50W Size: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3EC-75C Size: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3EC-75W Size: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4EA-50C Size: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4EA-50W Size: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4EA-75C Size: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4EA-75W Size: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4EB-50C Size: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4EB-50W Size: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4EB-75C Size: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4EB-75W Size: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4EC-50C Size: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4EC-50W Size: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4EC-75C Size: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4EC-75W Size: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8REA-50C Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8REA-50W Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8REA-75C Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8REA-75W Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8REB-50C Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8REB-50W Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8REB-75C Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8REB-75W Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8REC-50C Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8REC-50W Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8REC-75C Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8REC-75W Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LEA-50C Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LEA-50W Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LEA-75C Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LEA-75W Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LEB-50C Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LEB-50W Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LEB-75C Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LEB-75W Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LEC-50C Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LEC-50W Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LEC-75C Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LEC-75W Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH16DEA-50C Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DEA-50W Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DEA-100C Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DEA-100W Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16DEB-50C Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DEB-50W Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DEB-100C Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DEB-100W Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16REA-50C Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16REA-50W Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16REA-100C Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16REA-100W Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16REB-50C Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16REB-50W Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16REB-100C Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16REB-100W Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LEA-50C Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LEA-50W Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LEA-100C Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LEA-100W Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LEB-50C Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LEB-50W Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LEB-100C Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LEB-100W Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DEA-50C Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DEA-50W Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DEA-100C Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DEA-100W Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DEA-150C Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DEA-150W Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25DEB-50C Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DEB-50W Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DEB-100C Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DEB-100W Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DEB-150C Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DEB-150W Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25REA-50C Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25REA-50W Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25REA-100C Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25REA-100W Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25REA-150C Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25REA-150W Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25REB-50C Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25REB-50W Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25REB-100C Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25REB-100W Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25REB-150C Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25REB-150W Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LEA-50C Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LEA-50W Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LEA-100C Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LEA-100W Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LEA-150C Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LEA-150W Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LEB-50C Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LEB-50W Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LEB-100C Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LEB-100W Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LEB-150C Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LEB-150W Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
Electric ActuatorsSMC
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LESYH Battery-less Absolute Slide Table (High Precision, 8-25)

Brand SMC·Electric Actuators

Available part numbers (132)

LESYH8D1EA-50C, LESYH8D1EA-50W, LESYH8D1EA-75C, LESYH8D1EA-75W, LESYH8D1EB-50C, LESYH8D1EB-50W, LESYH8D1EB-75C, LESYH8D1EB-75W, LESYH8D1EC-50C, LESYH8D1EC-50W + 122 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LESYH8D1EA-50CSize: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1EA-50WSize: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1EA-75CSize: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1EA-75WSize: 8 | Motor mounting: In-line, cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1EB-50CSize: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1EB-50WSize: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1EB-75CSize: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1EB-75WSize: 8 | Motor mounting: In-line, cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1EC-50CSize: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1EC-50WSize: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1EC-75CSize: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1EC-75WSize: 8 | Motor mounting: In-line, cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2EA-50CSize: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2EA-50WSize: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2EA-75CSize: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2EA-75WSize: 8 | Motor mounting: In-line, cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2EB-50CSize: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2EB-50WSize: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2EB-75CSize: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2EB-75WSize: 8 | Motor mounting: In-line, cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2EC-50CSize: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2EC-50WSize: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2EC-75CSize: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2EC-75WSize: 8 | Motor mounting: In-line, cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3EA-50CSize: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3EA-50WSize: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3EA-75CSize: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3EA-75WSize: 8 | Motor mounting: In-line, cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3EB-50CSize: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3EB-50WSize: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3EB-75CSize: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3EB-75WSize: 8 | Motor mounting: In-line, cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3EC-50CSize: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3EC-50WSize: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3EC-75CSize: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3EC-75WSize: 8 | Motor mounting: In-line, cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4EA-50CSize: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4EA-50WSize: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4EA-75CSize: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4EA-75WSize: 8 | Motor mounting: In-line, cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4EB-50CSize: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4EB-50WSize: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4EB-75CSize: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4EB-75WSize: 8 | Motor mounting: In-line, cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4EC-50CSize: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4EC-50WSize: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4EC-75CSize: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4EC-75WSize: 8 | Motor mounting: In-line, cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8REA-50CSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8REA-50WSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8REA-75CSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8REA-75WSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8REB-50CSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8REB-50WSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8REB-75CSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8REB-75WSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8REC-50CSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8REC-50WSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8REC-75CSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8REC-75WSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LEA-50CSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LEA-50WSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LEA-75CSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LEA-75WSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LEB-50CSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LEB-50WSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LEB-75CSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LEB-75WSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LEC-50CSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LEC-50WSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LEC-75CSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LEC-75WSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH16DEA-50CSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DEA-50WSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DEA-100CSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DEA-100WSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16DEB-50CSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DEB-50WSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DEB-100CSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DEB-100WSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16REA-50CSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16REA-50WSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16REA-100CSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16REA-100WSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16REB-50CSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16REB-50WSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16REB-100CSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16REB-100WSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LEA-50CSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LEA-50WSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LEA-100CSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LEA-100WSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LEB-50CSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LEB-50WSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LEB-100CSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LEB-100WSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DEA-50CSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DEA-50WSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DEA-100CSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DEA-100WSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DEA-150CSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DEA-150WSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25DEB-50CSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DEB-50WSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DEB-100CSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DEB-100WSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DEB-150CSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DEB-150WSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25REA-50CSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25REA-50WSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25REA-100CSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25REA-100WSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25REA-150CSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25REA-150WSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25REB-50CSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25REB-50WSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25REB-100CSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25REB-100WSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25REB-150CSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25REB-150WSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LEA-50CSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LEA-50WSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LEA-100CSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LEA-100WSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LEA-150CSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LEA-150WSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LEB-50CSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LEB-50WSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LEB-100CSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LEB-100WSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LEB-150CSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LEB-150WSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
