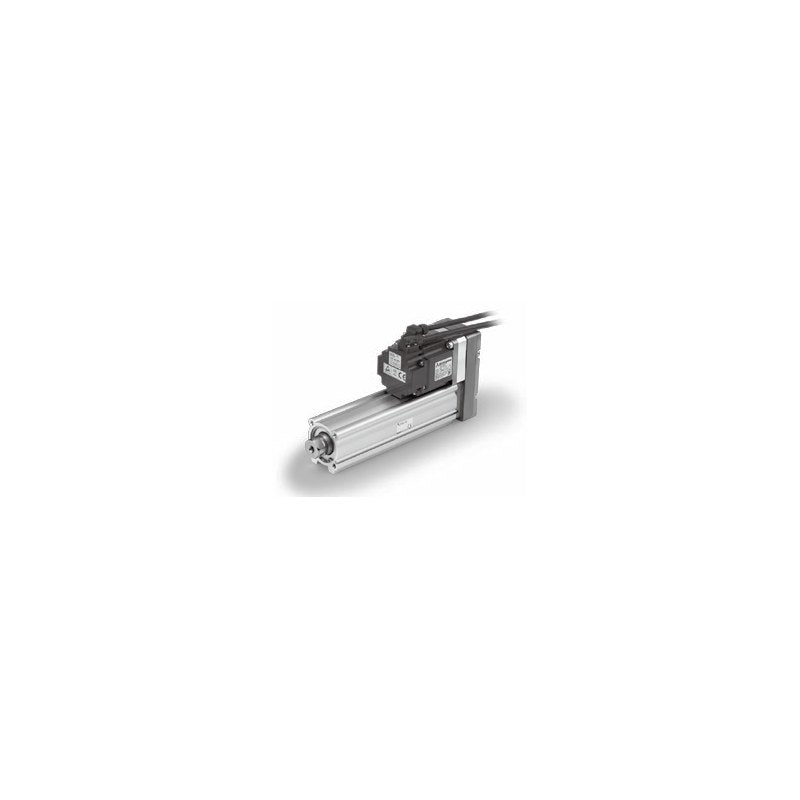

SMC LEY Electric Actuator, Rod Type (AC Servo LECY, Size 25-63)

SMC LEY series rod type electric actuator with absolute-encoder AC servo motor (100/200/400 W) for LECY MECHATROLINK drivers, sizes 25, 32 and 63.

Key features

AC servo motor with 20-bit absolute encoder for MECHATROLINK-II/III networks
Four motor layouts: parallel top, right or left mounting, or in-line; motor option lock (B)
High-precision type (H prefix) and IP65-equivalent dust/drip-proof option (P, size 63) are available on order
Rod end female thread standard; male thread (M, with one rod end nut) is a suffix option
Mounting (end/body bottom tapped standard; foot L, rod flange F, head flange G, double clevis D) is ordered as a suffix and shipped unassembled
AC servo driver (LECYM2 MECHATROLINK-II or LECYU2 MECHATROLINK-III), motor/encoder cable (standard or robot, 3 to 20 m) and I/O cable are ordered as suffixes; codes listed are actuator only

Specifications

Motor type	AC servo motor (AC200V), absolute encoder
Motor output	100 W (25), 200 W (32), 400 W (63)
Repeatability	±0.02 mm (high-precision type ±0.01 mm)
Lost motion	0.1 mm or less
Max. acceleration/deceleration	5000 mm/s²
Drive	Ball screw + belt (parallel), ball screw (in-line)
Guide	Slide bushing (piston rod)
Operating temperature	5 to 40°C
Enclosure	IP40
Source	SMC Korea electric actuator catalog (SMCKR_LEY.pdf), p. 489-491 (PDF p. 80-82)

LEY25V6A-30		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25V6A-30B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25V6A-50		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25V6A-50B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25V6A-100		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25V6A-100B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25V6A-150		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25V6A-150B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25V6A-200		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25V6A-200B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25V6A-250		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25V6A-250B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25V6A-300		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25V6A-300B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25V6A-350		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25V6A-350B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25V6A-400		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25V6A-400B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25V6B-30		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25V6B-30B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25V6B-50		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25V6B-50B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25V6B-100		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25V6B-100B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25V6B-150		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25V6B-150B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25V6B-200		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25V6B-200B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25V6B-250		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25V6B-250B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25V6B-300		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25V6B-300B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25V6B-350		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25V6B-350B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25V6B-400		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25V6B-400B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25V6C-30		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25V6C-30B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25V6C-50		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25V6C-50B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25V6C-100		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25V6C-100B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25V6C-150		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25V6C-150B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25V6C-200		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25V6C-200B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25V6C-250		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25V6C-250B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25V6C-300		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25V6C-300B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25V6C-350		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25V6C-350B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25V6C-400		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25V6C-400B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RV6A-30		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25RV6A-30B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RV6A-50		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25RV6A-50B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RV6A-100		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25RV6A-100B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RV6A-150		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25RV6A-150B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RV6A-200		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25RV6A-200B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RV6A-250		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25RV6A-250B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RV6A-300		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25RV6A-300B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RV6A-350		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25RV6A-350B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RV6A-400		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25RV6A-400B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RV6B-30		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25RV6B-30B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RV6B-50		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25RV6B-50B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RV6B-100		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25RV6B-100B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RV6B-150		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25RV6B-150B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RV6B-200		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25RV6B-200B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RV6B-250		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25RV6B-250B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RV6B-300		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25RV6B-300B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RV6B-350		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25RV6B-350B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RV6B-400		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25RV6B-400B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RV6C-30		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25RV6C-30B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RV6C-50		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25RV6C-50B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RV6C-100		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25RV6C-100B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RV6C-150		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25RV6C-150B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RV6C-200		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25RV6C-200B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RV6C-250		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25RV6C-250B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RV6C-300		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25RV6C-300B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RV6C-350		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25RV6C-350B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RV6C-400		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25RV6C-400B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LV6A-30		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25LV6A-30B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LV6A-50		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25LV6A-50B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LV6A-100		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25LV6A-100B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LV6A-150		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25LV6A-150B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LV6A-200		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25LV6A-200B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LV6A-250		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25LV6A-250B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LV6A-300		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25LV6A-300B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LV6A-350		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25LV6A-350B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LV6A-400		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25LV6A-400B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LV6B-30		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25LV6B-30B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LV6B-50		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25LV6B-50B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LV6B-100		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25LV6B-100B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LV6B-150		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25LV6B-150B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LV6B-200		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25LV6B-200B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LV6B-250		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25LV6B-250B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LV6B-300		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25LV6B-300B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LV6B-350		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25LV6B-350B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LV6B-400		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25LV6B-400B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LV6C-30		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25LV6C-30B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LV6C-50		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25LV6C-50B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LV6C-100		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25LV6C-100B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LV6C-150		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25LV6C-150B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LV6C-200		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25LV6C-200B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LV6C-250		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25LV6C-250B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LV6C-300		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25LV6C-300B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LV6C-350		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25LV6C-350B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LV6C-400		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25LV6C-400B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DV6A-30		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25DV6A-30B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DV6A-50		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25DV6A-50B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DV6A-100		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25DV6A-100B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DV6A-150		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25DV6A-150B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DV6A-200		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25DV6A-200B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DV6A-250		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25DV6A-250B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DV6A-300		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25DV6A-300B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DV6A-350		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25DV6A-350B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DV6A-400		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25DV6A-400B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DV6B-30		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25DV6B-30B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DV6B-50		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25DV6B-50B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DV6B-100		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25DV6B-100B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DV6B-150		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25DV6B-150B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DV6B-200		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25DV6B-200B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DV6B-250		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25DV6B-250B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DV6B-300		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25DV6B-300B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DV6B-350		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25DV6B-350B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DV6B-400		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25DV6B-400B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DV6C-30		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25DV6C-30B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DV6C-50		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25DV6C-50B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DV6C-100		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25DV6C-100B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DV6C-150		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25DV6C-150B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DV6C-200		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25DV6C-200B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DV6C-250		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25DV6C-250B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DV6C-300		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25DV6C-300B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DV6C-350		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25DV6C-350B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DV6C-400		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25DV6C-400B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32V7A-30		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32V7A-30B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32V7A-50		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32V7A-50B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32V7A-100		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32V7A-100B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32V7A-150		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32V7A-150B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32V7A-200		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32V7A-200B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32V7A-250		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32V7A-250B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32V7A-300		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32V7A-300B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32V7A-350		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32V7A-350B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32V7A-400		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32V7A-400B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32V7A-450		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32V7A-450B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32V7A-500		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32V7A-500B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32V7B-30		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32V7B-30B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32V7B-50		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32V7B-50B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32V7B-100		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32V7B-100B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32V7B-150		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32V7B-150B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32V7B-200		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32V7B-200B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32V7B-250		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32V7B-250B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32V7B-300		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32V7B-300B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32V7B-350		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32V7B-350B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32V7B-400		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32V7B-400B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32V7B-450		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32V7B-450B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32V7B-500		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32V7B-500B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32V7C-30		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32V7C-30B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32V7C-50		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32V7C-50B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32V7C-100		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32V7C-100B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32V7C-150		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32V7C-150B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32V7C-200		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32V7C-200B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32V7C-250		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32V7C-250B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32V7C-300		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32V7C-300B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32V7C-350		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32V7C-350B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32V7C-400		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32V7C-400B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32V7C-450		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32V7C-450B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32V7C-500		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32V7C-500B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RV7A-30		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32RV7A-30B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RV7A-50		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32RV7A-50B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RV7A-100		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32RV7A-100B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RV7A-150		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32RV7A-150B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RV7A-200		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32RV7A-200B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RV7A-250		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32RV7A-250B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RV7A-300		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32RV7A-300B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RV7A-350		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32RV7A-350B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RV7A-400		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32RV7A-400B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RV7A-450		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32RV7A-450B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RV7A-500		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32RV7A-500B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RV7B-30		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32RV7B-30B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RV7B-50		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32RV7B-50B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RV7B-100		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32RV7B-100B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RV7B-150		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32RV7B-150B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RV7B-200		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32RV7B-200B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RV7B-250		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32RV7B-250B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RV7B-300		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32RV7B-300B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RV7B-350		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32RV7B-350B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RV7B-400		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32RV7B-400B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RV7B-450		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32RV7B-450B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RV7B-500		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32RV7B-500B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RV7C-30		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32RV7C-30B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RV7C-50		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32RV7C-50B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RV7C-100		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32RV7C-100B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RV7C-150		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32RV7C-150B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RV7C-200		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32RV7C-200B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RV7C-250		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32RV7C-250B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RV7C-300		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32RV7C-300B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RV7C-350		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32RV7C-350B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RV7C-400		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32RV7C-400B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RV7C-450		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32RV7C-450B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RV7C-500		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32RV7C-500B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LV7A-30		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32LV7A-30B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LV7A-50		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32LV7A-50B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LV7A-100		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32LV7A-100B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LV7A-150		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32LV7A-150B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LV7A-200		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32LV7A-200B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LV7A-250		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32LV7A-250B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LV7A-300		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32LV7A-300B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LV7A-350		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32LV7A-350B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LV7A-400		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32LV7A-400B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LV7A-450		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32LV7A-450B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LV7A-500		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32LV7A-500B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LV7B-30		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32LV7B-30B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LV7B-50		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32LV7B-50B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LV7B-100		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32LV7B-100B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LV7B-150		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32LV7B-150B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LV7B-200		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32LV7B-200B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LV7B-250		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32LV7B-250B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LV7B-300		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32LV7B-300B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LV7B-350		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32LV7B-350B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LV7B-400		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32LV7B-400B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LV7B-450		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32LV7B-450B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LV7B-500		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32LV7B-500B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LV7C-30		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32LV7C-30B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LV7C-50		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32LV7C-50B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LV7C-100		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32LV7C-100B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LV7C-150		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32LV7C-150B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LV7C-200		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32LV7C-200B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LV7C-250		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32LV7C-250B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LV7C-300		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32LV7C-300B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LV7C-350		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32LV7C-350B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LV7C-400		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32LV7C-400B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LV7C-450		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32LV7C-450B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LV7C-500		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32LV7C-500B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DV7A-30		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32DV7A-30B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DV7A-50		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32DV7A-50B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DV7A-100		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32DV7A-100B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DV7A-150		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32DV7A-150B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DV7A-200		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32DV7A-200B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DV7A-250		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32DV7A-250B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DV7A-300		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32DV7A-300B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DV7A-350		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32DV7A-350B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DV7A-400		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32DV7A-400B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DV7A-450		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32DV7A-450B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DV7A-500		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32DV7A-500B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DV7B-30		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32DV7B-30B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DV7B-50		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32DV7B-50B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DV7B-100		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32DV7B-100B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DV7B-150		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32DV7B-150B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DV7B-200		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32DV7B-200B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DV7B-250		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32DV7B-250B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DV7B-300		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32DV7B-300B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DV7B-350		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32DV7B-350B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DV7B-400		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32DV7B-400B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DV7B-450		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32DV7B-450B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DV7B-500		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32DV7B-500B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DV7C-30		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32DV7C-30B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DV7C-50		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32DV7C-50B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DV7C-100		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32DV7C-100B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DV7C-150		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32DV7C-150B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DV7C-200		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32DV7C-200B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DV7C-250		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32DV7C-250B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DV7C-300		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32DV7C-300B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DV7C-350		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32DV7C-350B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DV7C-400		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32DV7C-400B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DV7C-450		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32DV7C-450B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DV7C-500		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32DV7C-500B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63V8A-50		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63V8A-50B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63V8A-100		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63V8A-100B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63V8A-150		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63V8A-150B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63V8A-200		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63V8A-200B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63V8A-250		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63V8A-250B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63V8A-300		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63V8A-300B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63V8A-350		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63V8A-350B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63V8A-400		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63V8A-400B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63V8A-450		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63V8A-450B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63V8A-500		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63V8A-500B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63V8A-600		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63V8A-600B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63V8A-700		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63V8A-700B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63V8A-800		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63V8A-800B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63V8B-50		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63V8B-50B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63V8B-100		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63V8B-100B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63V8B-150		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63V8B-150B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63V8B-200		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63V8B-200B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63V8B-250		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63V8B-250B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63V8B-300		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63V8B-300B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63V8B-350		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63V8B-350B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63V8B-400		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63V8B-400B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63V8B-450		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63V8B-450B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63V8B-500		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63V8B-500B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63V8B-600		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63V8B-600B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63V8B-700		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63V8B-700B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63V8B-800		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63V8B-800B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63V8C-50		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63V8C-50B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63V8C-100		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63V8C-100B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63V8C-150		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63V8C-150B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63V8C-200		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63V8C-200B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63V8C-250		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63V8C-250B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63V8C-300		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63V8C-300B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63V8C-350		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63V8C-350B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63V8C-400		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63V8C-400B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63V8C-450		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63V8C-450B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63V8C-500		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63V8C-500B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63V8C-600		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63V8C-600B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63V8C-700		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63V8C-700B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63V8C-800		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63V8C-800B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63V8L-50		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63V8L-50B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63V8L-100		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63V8L-100B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63V8L-150		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63V8L-150B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63V8L-200		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63V8L-200B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63V8L-250		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63V8L-250B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63V8L-300		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63V8L-300B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63V8L-350		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63V8L-350B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63V8L-400		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63V8L-400B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63V8L-450		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63V8L-450B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63V8L-500		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63V8L-500B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63V8L-600		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63V8L-600B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63V8L-700		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63V8L-700B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63V8L-800		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63V8L-800B		Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RV8A-50		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63RV8A-50B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RV8A-100		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63RV8A-100B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RV8A-150		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63RV8A-150B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RV8A-200		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63RV8A-200B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RV8A-250		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63RV8A-250B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RV8A-300		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63RV8A-300B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RV8A-350		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63RV8A-350B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RV8A-400		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63RV8A-400B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RV8A-450		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63RV8A-450B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RV8A-500		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63RV8A-500B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RV8A-600		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63RV8A-600B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RV8A-700		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63RV8A-700B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RV8A-800		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63RV8A-800B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RV8B-50		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63RV8B-50B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RV8B-100		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63RV8B-100B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RV8B-150		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63RV8B-150B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RV8B-200		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63RV8B-200B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RV8B-250		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63RV8B-250B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RV8B-300		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63RV8B-300B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RV8B-350		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63RV8B-350B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RV8B-400		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63RV8B-400B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RV8B-450		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63RV8B-450B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RV8B-500		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63RV8B-500B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RV8B-600		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63RV8B-600B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RV8B-700		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63RV8B-700B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RV8B-800		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63RV8B-800B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RV8C-50		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63RV8C-50B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RV8C-100		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63RV8C-100B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RV8C-150		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63RV8C-150B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RV8C-200		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63RV8C-200B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RV8C-250		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63RV8C-250B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RV8C-300		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63RV8C-300B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RV8C-350		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63RV8C-350B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RV8C-400		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63RV8C-400B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RV8C-450		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63RV8C-450B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RV8C-500		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63RV8C-500B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RV8C-600		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63RV8C-600B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RV8C-700		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63RV8C-700B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RV8C-800		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63RV8C-800B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RV8L-50		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63RV8L-50B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RV8L-100		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63RV8L-100B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RV8L-150		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63RV8L-150B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RV8L-200		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63RV8L-200B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RV8L-250		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63RV8L-250B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RV8L-300		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63RV8L-300B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RV8L-350		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63RV8L-350B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RV8L-400		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63RV8L-400B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RV8L-450		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63RV8L-450B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RV8L-500		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63RV8L-500B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RV8L-600		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63RV8L-600B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RV8L-700		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63RV8L-700B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RV8L-800		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63RV8L-800B		Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LV8A-50		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63LV8A-50B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LV8A-100		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63LV8A-100B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LV8A-150		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63LV8A-150B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LV8A-200		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63LV8A-200B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LV8A-250		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63LV8A-250B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LV8A-300		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63LV8A-300B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LV8A-350		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63LV8A-350B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LV8A-400		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63LV8A-400B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LV8A-450		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63LV8A-450B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LV8A-500		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63LV8A-500B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LV8A-600		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63LV8A-600B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LV8A-700		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63LV8A-700B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LV8A-800		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63LV8A-800B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LV8B-50		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63LV8B-50B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LV8B-100		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63LV8B-100B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LV8B-150		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63LV8B-150B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LV8B-200		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63LV8B-200B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LV8B-250		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63LV8B-250B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LV8B-300		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63LV8B-300B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LV8B-350		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63LV8B-350B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LV8B-400		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63LV8B-400B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LV8B-450		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63LV8B-450B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LV8B-500		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63LV8B-500B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LV8B-600		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63LV8B-600B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LV8B-700		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63LV8B-700B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LV8B-800		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63LV8B-800B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LV8C-50		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63LV8C-50B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LV8C-100		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63LV8C-100B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LV8C-150		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63LV8C-150B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LV8C-200		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63LV8C-200B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LV8C-250		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63LV8C-250B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LV8C-300		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63LV8C-300B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LV8C-350		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63LV8C-350B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LV8C-400		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63LV8C-400B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LV8C-450		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63LV8C-450B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LV8C-500		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63LV8C-500B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LV8C-600		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63LV8C-600B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LV8C-700		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63LV8C-700B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LV8C-800		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63LV8C-800B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LV8L-50		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63LV8L-50B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LV8L-100		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63LV8L-100B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LV8L-150		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63LV8L-150B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LV8L-200		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63LV8L-200B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LV8L-250		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63LV8L-250B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LV8L-300		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63LV8L-300B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LV8L-350		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63LV8L-350B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LV8L-400		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63LV8L-400B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LV8L-450		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63LV8L-450B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LV8L-500		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63LV8L-500B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LV8L-600		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63LV8L-600B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LV8L-700		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63LV8L-700B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LV8L-800		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63LV8L-800B		Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DV8A-50		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63DV8A-50B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DV8A-100		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63DV8A-100B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DV8A-150		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63DV8A-150B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DV8A-200		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63DV8A-200B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DV8A-250		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63DV8A-250B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DV8A-300		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63DV8A-300B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DV8A-350		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63DV8A-350B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DV8A-400		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63DV8A-400B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DV8A-450		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63DV8A-450B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DV8A-500		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63DV8A-500B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DV8A-600		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63DV8A-600B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DV8A-700		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63DV8A-700B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DV8A-800		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63DV8A-800B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DV8B-50		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63DV8B-50B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DV8B-100		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63DV8B-100B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DV8B-150		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63DV8B-150B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DV8B-200		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63DV8B-200B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DV8B-250		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63DV8B-250B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DV8B-300		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63DV8B-300B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DV8B-350		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63DV8B-350B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DV8B-400		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63DV8B-400B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DV8B-450		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63DV8B-450B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DV8B-500		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63DV8B-500B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DV8B-600		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63DV8B-600B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DV8B-700		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63DV8B-700B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DV8B-800		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63DV8B-800B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DV8C-50		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63DV8C-50B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DV8C-100		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63DV8C-100B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DV8C-150		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63DV8C-150B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DV8C-200		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63DV8C-200B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DV8C-250		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63DV8C-250B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DV8C-300		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63DV8C-300B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DV8C-350		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63DV8C-350B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DV8C-400		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63DV8C-400B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DV8C-450		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63DV8C-450B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DV8C-500		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63DV8C-500B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DV8C-600		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63DV8C-600B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DV8C-700		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63DV8C-700B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DV8C-800		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63DV8C-800B		Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock

Electric ActuatorsSMC

870 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY Electric Actuator, Rod Type (AC Servo LECY, Size 25-63)

Brand SMC·Electric Actuators

Available part numbers (870)

LEY25V6A-30, LEY25V6A-30B, LEY25V6A-50, LEY25V6A-50B, LEY25V6A-100, LEY25V6A-100B, LEY25V6A-150, LEY25V6A-150B, LEY25V6A-200, LEY25V6A-200B + 860 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEY25V6A-30	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25V6A-30B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25V6A-50	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25V6A-50B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25V6A-100	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25V6A-100B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25V6A-150	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25V6A-150B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25V6A-200	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25V6A-200B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25V6A-250	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25V6A-250B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25V6A-300	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25V6A-300B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25V6A-350	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25V6A-350B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25V6A-400	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25V6A-400B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25V6B-30	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25V6B-30B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25V6B-50	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25V6B-50B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25V6B-100	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25V6B-100B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25V6B-150	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25V6B-150B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25V6B-200	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25V6B-200B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25V6B-250	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25V6B-250B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25V6B-300	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25V6B-300B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25V6B-350	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25V6B-350B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25V6B-400	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25V6B-400B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25V6C-30	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25V6C-30B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25V6C-50	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25V6C-50B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25V6C-100	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25V6C-100B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25V6C-150	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25V6C-150B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25V6C-200	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25V6C-200B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25V6C-250	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25V6C-250B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25V6C-300	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25V6C-300B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25V6C-350	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25V6C-350B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25V6C-400	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25V6C-400B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RV6A-30	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RV6A-30B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RV6A-50	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RV6A-50B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RV6A-100	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RV6A-100B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RV6A-150	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RV6A-150B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RV6A-200	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RV6A-200B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RV6A-250	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RV6A-250B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RV6A-300	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RV6A-300B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RV6A-350	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RV6A-350B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RV6A-400	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RV6A-400B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RV6B-30	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RV6B-30B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RV6B-50	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RV6B-50B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RV6B-100	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RV6B-100B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RV6B-150	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RV6B-150B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RV6B-200	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RV6B-200B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RV6B-250	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RV6B-250B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RV6B-300	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RV6B-300B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RV6B-350	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RV6B-350B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RV6B-400	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RV6B-400B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RV6C-30	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RV6C-30B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RV6C-50	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RV6C-50B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RV6C-100	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RV6C-100B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RV6C-150	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RV6C-150B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RV6C-200	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RV6C-200B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RV6C-250	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RV6C-250B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RV6C-300	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RV6C-300B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RV6C-350	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RV6C-350B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RV6C-400	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RV6C-400B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LV6A-30	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LV6A-30B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LV6A-50	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LV6A-50B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LV6A-100	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LV6A-100B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LV6A-150	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LV6A-150B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LV6A-200	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LV6A-200B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LV6A-250	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LV6A-250B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LV6A-300	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LV6A-300B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LV6A-350	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LV6A-350B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LV6A-400	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LV6A-400B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LV6B-30	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LV6B-30B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LV6B-50	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LV6B-50B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LV6B-100	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LV6B-100B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LV6B-150	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LV6B-150B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LV6B-200	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LV6B-200B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LV6B-250	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LV6B-250B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LV6B-300	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LV6B-300B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LV6B-350	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LV6B-350B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LV6B-400	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LV6B-400B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LV6C-30	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LV6C-30B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LV6C-50	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LV6C-50B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LV6C-100	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LV6C-100B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LV6C-150	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LV6C-150B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LV6C-200	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LV6C-200B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LV6C-250	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LV6C-250B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LV6C-300	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LV6C-300B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LV6C-350	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LV6C-350B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LV6C-400	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LV6C-400B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DV6A-30	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DV6A-30B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DV6A-50	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DV6A-50B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DV6A-100	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DV6A-100B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DV6A-150	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DV6A-150B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DV6A-200	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DV6A-200B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DV6A-250	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DV6A-250B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DV6A-300	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DV6A-300B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DV6A-350	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DV6A-350B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DV6A-400	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DV6A-400B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DV6B-30	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DV6B-30B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DV6B-50	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DV6B-50B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DV6B-100	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DV6B-100B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DV6B-150	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DV6B-150B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DV6B-200	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DV6B-200B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DV6B-250	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DV6B-250B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DV6B-300	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DV6B-300B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DV6B-350	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DV6B-350B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DV6B-400	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DV6B-400B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DV6C-30	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DV6C-30B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DV6C-50	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DV6C-50B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DV6C-100	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DV6C-100B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DV6C-150	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DV6C-150B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DV6C-200	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DV6C-200B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DV6C-250	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DV6C-250B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DV6C-300	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DV6C-300B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DV6C-350	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DV6C-350B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DV6C-400	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DV6C-400B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32V7A-30	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32V7A-30B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32V7A-50	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32V7A-50B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32V7A-100	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32V7A-100B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32V7A-150	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32V7A-150B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32V7A-200	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32V7A-200B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32V7A-250	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32V7A-250B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32V7A-300	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32V7A-300B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32V7A-350	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32V7A-350B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32V7A-400	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32V7A-400B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32V7A-450	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32V7A-450B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32V7A-500	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32V7A-500B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32V7B-30	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32V7B-30B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32V7B-50	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32V7B-50B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32V7B-100	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32V7B-100B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32V7B-150	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32V7B-150B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32V7B-200	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32V7B-200B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32V7B-250	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32V7B-250B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32V7B-300	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32V7B-300B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32V7B-350	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32V7B-350B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32V7B-400	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32V7B-400B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32V7B-450	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32V7B-450B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32V7B-500	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32V7B-500B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32V7C-30	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32V7C-30B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32V7C-50	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32V7C-50B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32V7C-100	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32V7C-100B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32V7C-150	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32V7C-150B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32V7C-200	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32V7C-200B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32V7C-250	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32V7C-250B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32V7C-300	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32V7C-300B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32V7C-350	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32V7C-350B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32V7C-400	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32V7C-400B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32V7C-450	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32V7C-450B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32V7C-500	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32V7C-500B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RV7A-30	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RV7A-30B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RV7A-50	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RV7A-50B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RV7A-100	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RV7A-100B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RV7A-150	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RV7A-150B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RV7A-200	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RV7A-200B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RV7A-250	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RV7A-250B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RV7A-300	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RV7A-300B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RV7A-350	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RV7A-350B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RV7A-400	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RV7A-400B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RV7A-450	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RV7A-450B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RV7A-500	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RV7A-500B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RV7B-30	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RV7B-30B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RV7B-50	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RV7B-50B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RV7B-100	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RV7B-100B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RV7B-150	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RV7B-150B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RV7B-200	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RV7B-200B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RV7B-250	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RV7B-250B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RV7B-300	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RV7B-300B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RV7B-350	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RV7B-350B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RV7B-400	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RV7B-400B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RV7B-450	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RV7B-450B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RV7B-500	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RV7B-500B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RV7C-30	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RV7C-30B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RV7C-50	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RV7C-50B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RV7C-100	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RV7C-100B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RV7C-150	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RV7C-150B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RV7C-200	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RV7C-200B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RV7C-250	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RV7C-250B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RV7C-300	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RV7C-300B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RV7C-350	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RV7C-350B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RV7C-400	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RV7C-400B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RV7C-450	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RV7C-450B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RV7C-500	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RV7C-500B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LV7A-30	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LV7A-30B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LV7A-50	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LV7A-50B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LV7A-100	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LV7A-100B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LV7A-150	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LV7A-150B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LV7A-200	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LV7A-200B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LV7A-250	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LV7A-250B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LV7A-300	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LV7A-300B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LV7A-350	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LV7A-350B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LV7A-400	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LV7A-400B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LV7A-450	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LV7A-450B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LV7A-500	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LV7A-500B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LV7B-30	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LV7B-30B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LV7B-50	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LV7B-50B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LV7B-100	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LV7B-100B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LV7B-150	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LV7B-150B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LV7B-200	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LV7B-200B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LV7B-250	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LV7B-250B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LV7B-300	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LV7B-300B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LV7B-350	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LV7B-350B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LV7B-400	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LV7B-400B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LV7B-450	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LV7B-450B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LV7B-500	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LV7B-500B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LV7C-30	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LV7C-30B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LV7C-50	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LV7C-50B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LV7C-100	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LV7C-100B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LV7C-150	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LV7C-150B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LV7C-200	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LV7C-200B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LV7C-250	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LV7C-250B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LV7C-300	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LV7C-300B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LV7C-350	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LV7C-350B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LV7C-400	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LV7C-400B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LV7C-450	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LV7C-450B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LV7C-500	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LV7C-500B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DV7A-30	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DV7A-30B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DV7A-50	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DV7A-50B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DV7A-100	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DV7A-100B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DV7A-150	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DV7A-150B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DV7A-200	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DV7A-200B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DV7A-250	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DV7A-250B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DV7A-300	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DV7A-300B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DV7A-350	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DV7A-350B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DV7A-400	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DV7A-400B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DV7A-450	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DV7A-450B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DV7A-500	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DV7A-500B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DV7B-30	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DV7B-30B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DV7B-50	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DV7B-50B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DV7B-100	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DV7B-100B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DV7B-150	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DV7B-150B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DV7B-200	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DV7B-200B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DV7B-250	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DV7B-250B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DV7B-300	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DV7B-300B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DV7B-350	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DV7B-350B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DV7B-400	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DV7B-400B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DV7B-450	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DV7B-450B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DV7B-500	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DV7B-500B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DV7C-30	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DV7C-30B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DV7C-50	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DV7C-50B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DV7C-100	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DV7C-100B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DV7C-150	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DV7C-150B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DV7C-200	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DV7C-200B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DV7C-250	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DV7C-250B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DV7C-300	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DV7C-300B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DV7C-350	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DV7C-350B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DV7C-400	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DV7C-400B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DV7C-450	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DV7C-450B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DV7C-500	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DV7C-500B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63V8A-50	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63V8A-50B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63V8A-100	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63V8A-100B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63V8A-150	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63V8A-150B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63V8A-200	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63V8A-200B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63V8A-250	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63V8A-250B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63V8A-300	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63V8A-300B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63V8A-350	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63V8A-350B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63V8A-400	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63V8A-400B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63V8A-450	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63V8A-450B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63V8A-500	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63V8A-500B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63V8A-600	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63V8A-600B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63V8A-700	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63V8A-700B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63V8A-800	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63V8A-800B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63V8B-50	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63V8B-50B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63V8B-100	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63V8B-100B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63V8B-150	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63V8B-150B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63V8B-200	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63V8B-200B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63V8B-250	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63V8B-250B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63V8B-300	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63V8B-300B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63V8B-350	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63V8B-350B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63V8B-400	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63V8B-400B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63V8B-450	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63V8B-450B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63V8B-500	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63V8B-500B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63V8B-600	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63V8B-600B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63V8B-700	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63V8B-700B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63V8B-800	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63V8B-800B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63V8C-50	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63V8C-50B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63V8C-100	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63V8C-100B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63V8C-150	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63V8C-150B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63V8C-200	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63V8C-200B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63V8C-250	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63V8C-250B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63V8C-300	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63V8C-300B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63V8C-350	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63V8C-350B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63V8C-400	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63V8C-400B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63V8C-450	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63V8C-450B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63V8C-500	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63V8C-500B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63V8C-600	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63V8C-600B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63V8C-700	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63V8C-700B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63V8C-800	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63V8C-800B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63V8L-50	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63V8L-50B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63V8L-100	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63V8L-100B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63V8L-150	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63V8L-150B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63V8L-200	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63V8L-200B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63V8L-250	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63V8L-250B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63V8L-300	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63V8L-300B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63V8L-350	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63V8L-350B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63V8L-400	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63V8L-400B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63V8L-450	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63V8L-450B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63V8L-500	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63V8L-500B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63V8L-600	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63V8L-600B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63V8L-700	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63V8L-700B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63V8L-800	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63V8L-800B	Size: 63 \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RV8A-50	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RV8A-50B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RV8A-100	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RV8A-100B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RV8A-150	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RV8A-150B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RV8A-200	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RV8A-200B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RV8A-250	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RV8A-250B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RV8A-300	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RV8A-300B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RV8A-350	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RV8A-350B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RV8A-400	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RV8A-400B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RV8A-450	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RV8A-450B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RV8A-500	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RV8A-500B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RV8A-600	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RV8A-600B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RV8A-700	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RV8A-700B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RV8A-800	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RV8A-800B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RV8B-50	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RV8B-50B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RV8B-100	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RV8B-100B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RV8B-150	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RV8B-150B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RV8B-200	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RV8B-200B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RV8B-250	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RV8B-250B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RV8B-300	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RV8B-300B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RV8B-350	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RV8B-350B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RV8B-400	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RV8B-400B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RV8B-450	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RV8B-450B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RV8B-500	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RV8B-500B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RV8B-600	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RV8B-600B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RV8B-700	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RV8B-700B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RV8B-800	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RV8B-800B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RV8C-50	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RV8C-50B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RV8C-100	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RV8C-100B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RV8C-150	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RV8C-150B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RV8C-200	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RV8C-200B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RV8C-250	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RV8C-250B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RV8C-300	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RV8C-300B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RV8C-350	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RV8C-350B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RV8C-400	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RV8C-400B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RV8C-450	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RV8C-450B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RV8C-500	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RV8C-500B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RV8C-600	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RV8C-600B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RV8C-700	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RV8C-700B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RV8C-800	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RV8C-800B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RV8L-50	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RV8L-50B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RV8L-100	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RV8L-100B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RV8L-150	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RV8L-150B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RV8L-200	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RV8L-200B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RV8L-250	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RV8L-250B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RV8L-300	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RV8L-300B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RV8L-350	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RV8L-350B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RV8L-400	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RV8L-400B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RV8L-450	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RV8L-450B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RV8L-500	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RV8L-500B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RV8L-600	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RV8L-600B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RV8L-700	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RV8L-700B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RV8L-800	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RV8L-800B	Size: 63 \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LV8A-50	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LV8A-50B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LV8A-100	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LV8A-100B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LV8A-150	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LV8A-150B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LV8A-200	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LV8A-200B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LV8A-250	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LV8A-250B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LV8A-300	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LV8A-300B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LV8A-350	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LV8A-350B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LV8A-400	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LV8A-400B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LV8A-450	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LV8A-450B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LV8A-500	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LV8A-500B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LV8A-600	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LV8A-600B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LV8A-700	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LV8A-700B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LV8A-800	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LV8A-800B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LV8B-50	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LV8B-50B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LV8B-100	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LV8B-100B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LV8B-150	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LV8B-150B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LV8B-200	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LV8B-200B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LV8B-250	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LV8B-250B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LV8B-300	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LV8B-300B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LV8B-350	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LV8B-350B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LV8B-400	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LV8B-400B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LV8B-450	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LV8B-450B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LV8B-500	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LV8B-500B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LV8B-600	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LV8B-600B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LV8B-700	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LV8B-700B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LV8B-800	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LV8B-800B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LV8C-50	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LV8C-50B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LV8C-100	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LV8C-100B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LV8C-150	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LV8C-150B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LV8C-200	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LV8C-200B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LV8C-250	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LV8C-250B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LV8C-300	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LV8C-300B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LV8C-350	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LV8C-350B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LV8C-400	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LV8C-400B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LV8C-450	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LV8C-450B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LV8C-500	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LV8C-500B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LV8C-600	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LV8C-600B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LV8C-700	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LV8C-700B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LV8C-800	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LV8C-800B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LV8L-50	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LV8L-50B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LV8L-100	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LV8L-100B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LV8L-150	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LV8L-150B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LV8L-200	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LV8L-200B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LV8L-250	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LV8L-250B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LV8L-300	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LV8L-300B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LV8L-350	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LV8L-350B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LV8L-400	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LV8L-400B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LV8L-450	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LV8L-450B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LV8L-500	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LV8L-500B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LV8L-600	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LV8L-600B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LV8L-700	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LV8L-700B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LV8L-800	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LV8L-800B	Size: 63 \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DV8A-50	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DV8A-50B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DV8A-100	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DV8A-100B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DV8A-150	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DV8A-150B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DV8A-200	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DV8A-200B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DV8A-250	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DV8A-250B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DV8A-300	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DV8A-300B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DV8A-350	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DV8A-350B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DV8A-400	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DV8A-400B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DV8A-450	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DV8A-450B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DV8A-500	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DV8A-500B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DV8A-600	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DV8A-600B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DV8A-700	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DV8A-700B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DV8A-800	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DV8A-800B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DV8B-50	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DV8B-50B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DV8B-100	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DV8B-100B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DV8B-150	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DV8B-150B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DV8B-200	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DV8B-200B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DV8B-250	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DV8B-250B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DV8B-300	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DV8B-300B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DV8B-350	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DV8B-350B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DV8B-400	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DV8B-400B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DV8B-450	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DV8B-450B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DV8B-500	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DV8B-500B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DV8B-600	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DV8B-600B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DV8B-700	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DV8B-700B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DV8B-800	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DV8B-800B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DV8C-50	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DV8C-50B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DV8C-100	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DV8C-100B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DV8C-150	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DV8C-150B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DV8C-200	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DV8C-200B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DV8C-250	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DV8C-250B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DV8C-300	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DV8C-300B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DV8C-350	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DV8C-350B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DV8C-400	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DV8C-400B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DV8C-450	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DV8C-450B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DV8C-500	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DV8C-500B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DV8C-600	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DV8C-600B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DV8C-700	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DV8C-700B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DV8C-800	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DV8C-800B	Size: 63 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEY Electric Actuator, Rod Type (AC Servo LECY, Size 25-63)
