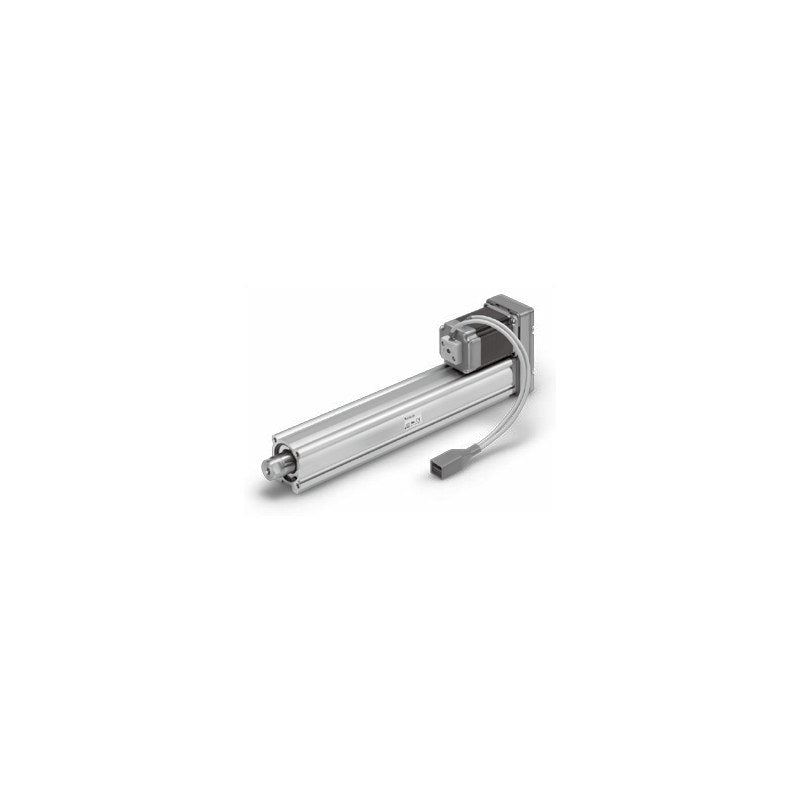

SMC LEY Electric Actuator, Rod Type (Step Motor, Size 16/25)

SMC LEY series rod type electric actuator with incremental step motor (servo/DC24V), sizes 16 and 25, for positioning and pushing.

Key features

Ball screw drive for positioning and pushing control; repeatability ±0.02 mm
Four motor layouts: parallel top, right or left mounting, or in-line
Motor options: none, motor cover (C), lock (B) or lock with motor cover (W)
Rod end female thread standard; male thread (M, with one rod end nut) is a suffix option
Mounting (end/body bottom tapped standard; foot L, rod flange F, head flange G, double clevis D) is ordered as a suffix and shipped unassembled
Controller/driver (JXC51/61, JXCE1/91/P1/D1/L1/M1, LECA6, LECPA), actuator cable (standard S1-S5 or robot R1-RC, 1.5 to 20 m) and I/O cable options are ordered as suffixes; codes listed are actuator only

Specifications

Motor type	Step motor (servo/DC24V), incremental
Encoder	Incremental
Power supply	DC24V ±10%
Repeatability	±0.02 mm
Lost motion	0.1 mm or less
Max. acceleration/deceleration	3000 mm/s²
Max. speed	500 mm/s
Pushing force	14 to 452 N
Drive	Ball screw + belt (parallel), ball screw (in-line)
Guide	Slide bushing (piston rod)
Operating temperature	5 to 40°C
Enclosure	IP40
Source	SMC Korea electric actuator catalog (SMCKR_LEY.pdf), p. 459-464 (PDF p. 48-53)

LEY16A-30		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY16A-30C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16A-30B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16A-30W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16A-50		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY16A-50C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16A-50B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16A-50W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16A-100		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY16A-100C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16A-100B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16A-100W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16A-150		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY16A-150C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16A-150B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16A-150W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16A-200		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY16A-200C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16A-200B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16A-200W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16A-250		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY16A-250C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16A-250B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16A-250W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16A-300		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY16A-300C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16A-300B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16A-300W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16B-30		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY16B-30C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16B-30B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16B-30W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16B-50		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY16B-50C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16B-50B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16B-50W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16B-100		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY16B-100C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16B-100B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16B-100W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16B-150		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY16B-150C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16B-150B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16B-150W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16B-200		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY16B-200C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16B-200B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16B-200W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16B-250		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY16B-250C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16B-250B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16B-250W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16B-300		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY16B-300C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16B-300B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16B-300W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16C-30		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
LEY16C-30C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16C-30B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16C-30W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16C-50		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
LEY16C-50C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16C-50B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16C-50W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16C-100		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
LEY16C-100C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16C-100B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16C-100W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16C-150		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
LEY16C-150C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16C-150B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16C-150W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16C-200		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
LEY16C-200C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16C-200B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16C-200W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16C-250		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
LEY16C-250C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16C-250B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16C-250W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16C-300		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
LEY16C-300C		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16C-300B		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16C-300W		Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16RA-30		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY16RA-30C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16RA-30B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16RA-30W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16RA-50		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY16RA-50C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16RA-50B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16RA-50W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16RA-100		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY16RA-100C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16RA-100B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16RA-100W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16RA-150		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY16RA-150C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16RA-150B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16RA-150W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16RA-200		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY16RA-200C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16RA-200B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16RA-200W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16RA-250		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY16RA-250C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16RA-250B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16RA-250W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16RA-300		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY16RA-300C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16RA-300B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16RA-300W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16RB-30		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY16RB-30C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16RB-30B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16RB-30W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16RB-50		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY16RB-50C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16RB-50B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16RB-50W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16RB-100		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY16RB-100C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16RB-100B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16RB-100W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16RB-150		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY16RB-150C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16RB-150B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16RB-150W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16RB-200		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY16RB-200C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16RB-200B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16RB-200W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16RB-250		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY16RB-250C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16RB-250B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16RB-250W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16RB-300		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY16RB-300C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16RB-300B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16RB-300W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16RC-30		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
LEY16RC-30C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16RC-30B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16RC-30W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16RC-50		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
LEY16RC-50C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16RC-50B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16RC-50W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16RC-100		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
LEY16RC-100C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16RC-100B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16RC-100W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16RC-150		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
LEY16RC-150C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16RC-150B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16RC-150W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16RC-200		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
LEY16RC-200C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16RC-200B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16RC-200W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16RC-250		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
LEY16RC-250C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16RC-250B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16RC-250W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16RC-300		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
LEY16RC-300C		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16RC-300B		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16RC-300W		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16LA-30		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY16LA-30C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16LA-30B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16LA-30W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16LA-50		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY16LA-50C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16LA-50B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16LA-50W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16LA-100		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY16LA-100C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16LA-100B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16LA-100W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16LA-150		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY16LA-150C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16LA-150B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16LA-150W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16LA-200		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY16LA-200C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16LA-200B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16LA-200W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16LA-250		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY16LA-250C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16LA-250B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16LA-250W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16LA-300		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY16LA-300C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16LA-300B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16LA-300W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16LB-30		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY16LB-30C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16LB-30B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16LB-30W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16LB-50		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY16LB-50C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16LB-50B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16LB-50W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16LB-100		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY16LB-100C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16LB-100B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16LB-100W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16LB-150		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY16LB-150C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16LB-150B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16LB-150W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16LB-200		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY16LB-200C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16LB-200B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16LB-200W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16LB-250		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY16LB-250C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16LB-250B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16LB-250W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16LB-300		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY16LB-300C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16LB-300B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16LB-300W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16LC-30		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
LEY16LC-30C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16LC-30B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16LC-30W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16LC-50		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
LEY16LC-50C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16LC-50B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16LC-50W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16LC-100		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
LEY16LC-100C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16LC-100B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16LC-100W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16LC-150		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
LEY16LC-150C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16LC-150B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16LC-150W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16LC-200		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
LEY16LC-200C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16LC-200B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16LC-200W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16LC-250		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
LEY16LC-250C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16LC-250B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16LC-250W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16LC-300		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
LEY16LC-300C		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16LC-300B		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16LC-300W		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16DA-30		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY16DA-30C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16DA-30B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16DA-30W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16DA-50		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY16DA-50C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16DA-50B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16DA-50W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16DA-100		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY16DA-100C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16DA-100B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16DA-100W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16DA-150		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY16DA-150C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16DA-150B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16DA-150W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16DA-200		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY16DA-200C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16DA-200B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16DA-200W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16DA-250		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY16DA-250C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16DA-250B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16DA-250W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16DA-300		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY16DA-300C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16DA-300B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16DA-300W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16DB-30		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY16DB-30C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16DB-30B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16DB-30W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16DB-50		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY16DB-50C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16DB-50B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16DB-50W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16DB-100		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY16DB-100C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16DB-100B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16DB-100W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16DB-150		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY16DB-150C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16DB-150B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16DB-150W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16DB-200		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY16DB-200C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16DB-200B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16DB-200W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16DB-250		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY16DB-250C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16DB-250B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16DB-250W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16DB-300		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY16DB-300C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16DB-300B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16DB-300W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY16DC-30		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
LEY16DC-30C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY16DC-30B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY16DC-30W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY16DC-50		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
LEY16DC-50C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY16DC-50B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY16DC-50W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY16DC-100		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
LEY16DC-100C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY16DC-100B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY16DC-100W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY16DC-150		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
LEY16DC-150C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY16DC-150B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY16DC-150W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY16DC-200		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
LEY16DC-200C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY16DC-200B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY16DC-200W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY16DC-250		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
LEY16DC-250C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY16DC-250B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY16DC-250W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY16DC-300		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
LEY16DC-300C		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY16DC-300B		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY16DC-300W		Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25A-30		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25A-30C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25A-30B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25A-30W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25A-50		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25A-50C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25A-50B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25A-50W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25A-100		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25A-100C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25A-100B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25A-100W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25A-150		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25A-150C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25A-150B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25A-150W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25A-200		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25A-200C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25A-200B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25A-200W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25A-250		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25A-250C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25A-250B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25A-250W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25A-300		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25A-300C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25A-300B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25A-300W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25A-350		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25A-350C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25A-350B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25A-350W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25A-400		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25A-400C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25A-400B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25A-400W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25B-30		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25B-30C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25B-30B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25B-30W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25B-50		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25B-50C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25B-50B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25B-50W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25B-100		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25B-100C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25B-100B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25B-100W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25B-150		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25B-150C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25B-150B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25B-150W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25B-200		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25B-200C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25B-200B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25B-200W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25B-250		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25B-250C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25B-250B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25B-250W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25B-300		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25B-300C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25B-300B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25B-300W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25B-350		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25B-350C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25B-350B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25B-350W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25B-400		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25B-400C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25B-400B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25B-400W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25C-30		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25C-30C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25C-30B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25C-30W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25C-50		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25C-50C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25C-50B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25C-50W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25C-100		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25C-100C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25C-100B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25C-100W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25C-150		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25C-150C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25C-150B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25C-150W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25C-200		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25C-200C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25C-200B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25C-200W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25C-250		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25C-250C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25C-250B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25C-250W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25C-300		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25C-300C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25C-300B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25C-300W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25C-350		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25C-350C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25C-350B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25C-350W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25C-400		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25C-400C		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25C-400B		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25C-400W		Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25RA-30		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25RA-30C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25RA-30B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RA-30W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25RA-50		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25RA-50C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25RA-50B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RA-50W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25RA-100		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25RA-100C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25RA-100B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RA-100W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25RA-150		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25RA-150C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25RA-150B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RA-150W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25RA-200		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25RA-200C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25RA-200B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RA-200W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25RA-250		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25RA-250C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25RA-250B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RA-250W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25RA-300		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25RA-300C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25RA-300B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RA-300W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25RA-350		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25RA-350C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25RA-350B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RA-350W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25RA-400		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25RA-400C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25RA-400B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RA-400W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25RB-30		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25RB-30C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25RB-30B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RB-30W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25RB-50		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25RB-50C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25RB-50B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RB-50W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25RB-100		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25RB-100C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25RB-100B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RB-100W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25RB-150		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25RB-150C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25RB-150B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RB-150W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25RB-200		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25RB-200C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25RB-200B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RB-200W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25RB-250		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25RB-250C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25RB-250B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RB-250W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25RB-300		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25RB-300C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25RB-300B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RB-300W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25RB-350		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25RB-350C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25RB-350B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RB-350W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25RB-400		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25RB-400C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25RB-400B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RB-400W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25RC-30		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25RC-30C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25RC-30B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RC-30W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25RC-50		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25RC-50C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25RC-50B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RC-50W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25RC-100		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25RC-100C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25RC-100B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RC-100W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25RC-150		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25RC-150C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25RC-150B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RC-150W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25RC-200		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25RC-200C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25RC-200B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RC-200W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25RC-250		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25RC-250C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25RC-250B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RC-250W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25RC-300		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25RC-300C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25RC-300B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RC-300W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25RC-350		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25RC-350C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25RC-350B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RC-350W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25RC-400		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25RC-400C		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25RC-400B		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RC-400W		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25LA-30		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25LA-30C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25LA-30B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LA-30W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25LA-50		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25LA-50C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25LA-50B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LA-50W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25LA-100		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25LA-100C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25LA-100B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LA-100W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25LA-150		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25LA-150C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25LA-150B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LA-150W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25LA-200		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25LA-200C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25LA-200B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LA-200W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25LA-250		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25LA-250C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25LA-250B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LA-250W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25LA-300		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25LA-300C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25LA-300B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LA-300W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25LA-350		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25LA-350C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25LA-350B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LA-350W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25LA-400		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25LA-400C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25LA-400B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LA-400W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25LB-30		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25LB-30C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25LB-30B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LB-30W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25LB-50		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25LB-50C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25LB-50B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LB-50W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25LB-100		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25LB-100C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25LB-100B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LB-100W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25LB-150		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25LB-150C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25LB-150B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LB-150W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25LB-200		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25LB-200C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25LB-200B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LB-200W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25LB-250		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25LB-250C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25LB-250B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LB-250W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25LB-300		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25LB-300C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25LB-300B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LB-300W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25LB-350		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25LB-350C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25LB-350B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LB-350W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25LB-400		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25LB-400C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25LB-400B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LB-400W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25LC-30		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25LC-30C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25LC-30B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LC-30W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25LC-50		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25LC-50C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25LC-50B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LC-50W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25LC-100		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25LC-100C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25LC-100B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LC-100W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25LC-150		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25LC-150C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25LC-150B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LC-150W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25LC-200		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25LC-200C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25LC-200B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LC-200W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25LC-250		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25LC-250C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25LC-250B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LC-250W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25LC-300		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25LC-300C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25LC-300B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LC-300W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25LC-350		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25LC-350C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25LC-350B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LC-350W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25LC-400		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25LC-400C		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25LC-400B		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LC-400W		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25DA-30		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25DA-30C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25DA-30B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DA-30W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25DA-50		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25DA-50C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25DA-50B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DA-50W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25DA-100		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25DA-100C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25DA-100B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DA-100W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25DA-150		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25DA-150C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25DA-150B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DA-150W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25DA-200		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25DA-200C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25DA-200B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DA-200W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25DA-250		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25DA-250C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25DA-250B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DA-250W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25DA-300		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25DA-300C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25DA-300B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DA-300W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25DA-350		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25DA-350C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25DA-350B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DA-350W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25DA-400		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25DA-400C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25DA-400B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DA-400W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25DB-30		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25DB-30C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25DB-30B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DB-30W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25DB-50		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25DB-50C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25DB-50B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DB-50W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25DB-100		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25DB-100C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25DB-100B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DB-100W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25DB-150		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25DB-150C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25DB-150B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DB-150W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25DB-200		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25DB-200C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25DB-200B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DB-200W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25DB-250		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25DB-250C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25DB-250B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DB-250W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25DB-300		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25DB-300C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25DB-300B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DB-300W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25DB-350		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25DB-350C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25DB-350B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DB-350W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25DB-400		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25DB-400C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25DB-400B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DB-400W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY25DC-30		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25DC-30C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY25DC-30B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DC-30W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY25DC-50		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25DC-50C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY25DC-50B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DC-50W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY25DC-100		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25DC-100C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY25DC-100B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DC-100W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY25DC-150		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25DC-150C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY25DC-150B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DC-150W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY25DC-200		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25DC-200C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY25DC-200B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DC-200W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY25DC-250		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25DC-250C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY25DC-250B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DC-250W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY25DC-300		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25DC-300C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY25DC-300B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DC-300W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY25DC-350		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25DC-350C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY25DC-350B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DC-350W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY25DC-400		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25DC-400C		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY25DC-400B		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DC-400W		Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover

Electric ActuatorsSMC

768 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY Electric Actuator, Rod Type (Step Motor, Size 16/25)

Brand SMC·Electric Actuators

Available part numbers (768)

LEY16A-30, LEY16A-30C, LEY16A-30B, LEY16A-30W, LEY16A-50, LEY16A-50C, LEY16A-50B, LEY16A-50W, LEY16A-100, LEY16A-100C + 758 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEY16A-30	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY16A-30C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16A-30B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16A-30W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16A-50	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY16A-50C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16A-50B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16A-50W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16A-100	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY16A-100C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16A-100B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16A-100W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16A-150	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY16A-150C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16A-150B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16A-150W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16A-200	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY16A-200C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16A-200B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16A-200W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16A-250	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY16A-250C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16A-250B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16A-250W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16A-300	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY16A-300C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16A-300B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16A-300W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16B-30	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16B-30C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16B-30B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16B-30W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16B-50	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16B-50C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16B-50B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16B-50W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16B-100	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16B-100C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16B-100B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16B-100W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16B-150	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16B-150C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16B-150B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16B-150W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16B-200	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16B-200C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16B-200B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16B-200W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16B-250	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16B-250C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16B-250B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16B-250W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16B-300	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16B-300C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16B-300B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16B-300W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16C-30	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16C-30C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16C-30B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16C-30W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16C-50	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16C-50C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16C-50B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16C-50W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16C-100	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16C-100C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16C-100B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16C-100W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16C-150	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16C-150C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16C-150B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16C-150W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16C-200	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16C-200C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16C-200B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16C-200W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16C-250	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16C-250C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16C-250B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16C-250W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16C-300	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16C-300C	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16C-300B	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16C-300W	Size: 16 \| Motor layout: Parallel, top mounting \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16RA-30	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY16RA-30C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16RA-30B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16RA-30W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16RA-50	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY16RA-50C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16RA-50B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16RA-50W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16RA-100	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY16RA-100C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16RA-100B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16RA-100W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16RA-150	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY16RA-150C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16RA-150B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16RA-150W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16RA-200	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY16RA-200C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16RA-200B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16RA-200W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16RA-250	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY16RA-250C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16RA-250B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16RA-250W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16RA-300	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY16RA-300C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16RA-300B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16RA-300W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16RB-30	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16RB-30C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16RB-30B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16RB-30W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16RB-50	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16RB-50C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16RB-50B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16RB-50W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16RB-100	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16RB-100C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16RB-100B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16RB-100W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16RB-150	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16RB-150C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16RB-150B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16RB-150W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16RB-200	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16RB-200C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16RB-200B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16RB-200W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16RB-250	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16RB-250C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16RB-250B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16RB-250W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16RB-300	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16RB-300C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16RB-300B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16RB-300W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16RC-30	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16RC-30C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16RC-30B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16RC-30W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16RC-50	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16RC-50C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16RC-50B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16RC-50W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16RC-100	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16RC-100C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16RC-100B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16RC-100W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16RC-150	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16RC-150C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16RC-150B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16RC-150W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16RC-200	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16RC-200C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16RC-200B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16RC-200W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16RC-250	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16RC-250C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16RC-250B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16RC-250W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16RC-300	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16RC-300C	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16RC-300B	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16RC-300W	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16LA-30	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY16LA-30C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16LA-30B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16LA-30W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16LA-50	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY16LA-50C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16LA-50B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16LA-50W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16LA-100	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY16LA-100C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16LA-100B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16LA-100W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16LA-150	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY16LA-150C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16LA-150B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16LA-150W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16LA-200	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY16LA-200C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16LA-200B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16LA-200W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16LA-250	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY16LA-250C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16LA-250B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16LA-250W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16LA-300	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY16LA-300C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16LA-300B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16LA-300W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16LB-30	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16LB-30C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16LB-30B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16LB-30W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16LB-50	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16LB-50C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16LB-50B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16LB-50W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16LB-100	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16LB-100C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16LB-100B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16LB-100W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16LB-150	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16LB-150C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16LB-150B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16LB-150W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16LB-200	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16LB-200C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16LB-200B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16LB-200W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16LB-250	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16LB-250C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16LB-250B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16LB-250W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16LB-300	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16LB-300C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16LB-300B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16LB-300W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16LC-30	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16LC-30C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16LC-30B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16LC-30W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16LC-50	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16LC-50C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16LC-50B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16LC-50W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16LC-100	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16LC-100C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16LC-100B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16LC-100W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16LC-150	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16LC-150C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16LC-150B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16LC-150W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16LC-200	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16LC-200C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16LC-200B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16LC-200W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16LC-250	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16LC-250C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16LC-250B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16LC-250W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16LC-300	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16LC-300C	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16LC-300B	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16LC-300W	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16DA-30	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY16DA-30C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16DA-30B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16DA-30W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16DA-50	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY16DA-50C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16DA-50B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16DA-50W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16DA-100	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY16DA-100C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16DA-100B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16DA-100W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16DA-150	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY16DA-150C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16DA-150B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16DA-150W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16DA-200	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY16DA-200C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16DA-200B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16DA-200W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16DA-250	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY16DA-250C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16DA-250B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16DA-250W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16DA-300	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY16DA-300C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16DA-300B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16DA-300W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16DB-30	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16DB-30C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16DB-30B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16DB-30W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16DB-50	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16DB-50C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16DB-50B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16DB-50W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16DB-100	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16DB-100C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16DB-100B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16DB-100W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16DB-150	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16DB-150C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16DB-150B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16DB-150W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16DB-200	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16DB-200C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16DB-200B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16DB-200W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16DB-250	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16DB-250C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16DB-250B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16DB-250W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16DB-300	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16DB-300C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16DB-300B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16DB-300W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY16DC-30	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: None
	LEY16DC-30C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY16DC-30B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY16DC-30W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY16DC-50	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: None
	LEY16DC-50C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY16DC-50B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY16DC-50W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY16DC-100	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: None
	LEY16DC-100C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY16DC-100B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY16DC-100W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY16DC-150	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: None
	LEY16DC-150C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY16DC-150B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY16DC-150W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY16DC-200	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: None
	LEY16DC-200C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY16DC-200B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY16DC-200W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY16DC-250	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: None
	LEY16DC-250C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY16DC-250B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY16DC-250W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY16DC-300	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: None
	LEY16DC-300C	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY16DC-300B	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY16DC-300W	Size: 16 \| Motor layout: In-line (straight) \| Lead: 2.5 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25A-30	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25A-30C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25A-30B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25A-30W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25A-50	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25A-50C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25A-50B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25A-50W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25A-100	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25A-100C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25A-100B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25A-100W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25A-150	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25A-150C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25A-150B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25A-150W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25A-200	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25A-200C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25A-200B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25A-200W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25A-250	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25A-250C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25A-250B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25A-250W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25A-300	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25A-300C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25A-300B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25A-300W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25A-350	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25A-350C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25A-350B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25A-350W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25A-400	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25A-400C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25A-400B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25A-400W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25B-30	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25B-30C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25B-30B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25B-30W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25B-50	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25B-50C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25B-50B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25B-50W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25B-100	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25B-100C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25B-100B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25B-100W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25B-150	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25B-150C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25B-150B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25B-150W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25B-200	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25B-200C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25B-200B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25B-200W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25B-250	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25B-250C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25B-250B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25B-250W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25B-300	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25B-300C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25B-300B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25B-300W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25B-350	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25B-350C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25B-350B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25B-350W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25B-400	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25B-400C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25B-400B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25B-400W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25C-30	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25C-30C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25C-30B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25C-30W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25C-50	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25C-50C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25C-50B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25C-50W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25C-100	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25C-100C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25C-100B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25C-100W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25C-150	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25C-150C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25C-150B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25C-150W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25C-200	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25C-200C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25C-200B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25C-200W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25C-250	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25C-250C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25C-250B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25C-250W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25C-300	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25C-300C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25C-300B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25C-300W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25C-350	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25C-350C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25C-350B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25C-350W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25C-400	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25C-400C	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25C-400B	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25C-400W	Size: 25 \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25RA-30	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RA-30C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25RA-30B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RA-30W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25RA-50	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RA-50C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25RA-50B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RA-50W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25RA-100	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RA-100C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25RA-100B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RA-100W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25RA-150	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RA-150C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25RA-150B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RA-150W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25RA-200	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RA-200C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25RA-200B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RA-200W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25RA-250	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RA-250C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25RA-250B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RA-250W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25RA-300	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RA-300C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25RA-300B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RA-300W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25RA-350	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RA-350C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25RA-350B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RA-350W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25RA-400	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RA-400C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25RA-400B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RA-400W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25RB-30	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RB-30C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25RB-30B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RB-30W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25RB-50	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RB-50C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25RB-50B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RB-50W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25RB-100	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RB-100C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25RB-100B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RB-100W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25RB-150	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RB-150C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25RB-150B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RB-150W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25RB-200	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RB-200C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25RB-200B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RB-200W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25RB-250	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RB-250C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25RB-250B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RB-250W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25RB-300	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RB-300C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25RB-300B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RB-300W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25RB-350	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RB-350C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25RB-350B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RB-350W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25RB-400	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RB-400C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25RB-400B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RB-400W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25RC-30	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RC-30C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25RC-30B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RC-30W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25RC-50	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RC-50C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25RC-50B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RC-50W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25RC-100	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RC-100C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25RC-100B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RC-100W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25RC-150	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RC-150C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25RC-150B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RC-150W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25RC-200	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RC-200C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25RC-200B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RC-200W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25RC-250	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RC-250C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25RC-250B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RC-250W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25RC-300	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RC-300C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25RC-300B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RC-300W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25RC-350	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RC-350C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25RC-350B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RC-350W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25RC-400	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RC-400C	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25RC-400B	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RC-400W	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25LA-30	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LA-30C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25LA-30B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LA-30W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25LA-50	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LA-50C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25LA-50B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LA-50W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25LA-100	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LA-100C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25LA-100B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LA-100W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25LA-150	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LA-150C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25LA-150B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LA-150W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25LA-200	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LA-200C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25LA-200B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LA-200W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25LA-250	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LA-250C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25LA-250B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LA-250W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25LA-300	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LA-300C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25LA-300B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LA-300W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25LA-350	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LA-350C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25LA-350B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LA-350W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25LA-400	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LA-400C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25LA-400B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LA-400W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25LB-30	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LB-30C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25LB-30B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LB-30W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25LB-50	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LB-50C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25LB-50B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LB-50W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25LB-100	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LB-100C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25LB-100B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LB-100W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25LB-150	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LB-150C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25LB-150B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LB-150W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25LB-200	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LB-200C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25LB-200B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LB-200W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25LB-250	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LB-250C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25LB-250B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LB-250W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25LB-300	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LB-300C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25LB-300B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LB-300W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25LB-350	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LB-350C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25LB-350B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LB-350W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25LB-400	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LB-400C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25LB-400B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LB-400W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25LC-30	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LC-30C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25LC-30B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LC-30W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25LC-50	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LC-50C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25LC-50B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LC-50W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25LC-100	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LC-100C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25LC-100B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LC-100W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25LC-150	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LC-150C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25LC-150B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LC-150W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25LC-200	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LC-200C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25LC-200B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LC-200W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25LC-250	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LC-250C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25LC-250B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LC-250W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25LC-300	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LC-300C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25LC-300B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LC-300W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25LC-350	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LC-350C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25LC-350B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LC-350W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25LC-400	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LC-400C	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25LC-400B	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LC-400W	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25DA-30	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DA-30C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25DA-30B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DA-30W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25DA-50	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DA-50C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25DA-50B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DA-50W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25DA-100	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DA-100C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25DA-100B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DA-100W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25DA-150	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DA-150C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25DA-150B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DA-150W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25DA-200	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DA-200C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25DA-200B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DA-200W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25DA-250	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DA-250C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25DA-250B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DA-250W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25DA-300	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DA-300C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25DA-300B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DA-300W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25DA-350	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DA-350C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25DA-350B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DA-350W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25DA-400	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DA-400C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25DA-400B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DA-400W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25DB-30	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DB-30C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25DB-30B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DB-30W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25DB-50	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DB-50C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25DB-50B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DB-50W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25DB-100	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DB-100C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25DB-100B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DB-100W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25DB-150	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DB-150C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25DB-150B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DB-150W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25DB-200	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DB-200C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25DB-200B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DB-200W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25DB-250	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DB-250C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25DB-250B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DB-250W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25DB-300	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DB-300C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25DB-300B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DB-300W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25DB-350	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DB-350C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25DB-350B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DB-350W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25DB-400	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DB-400C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25DB-400B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DB-400W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY25DC-30	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DC-30C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY25DC-30B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DC-30W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY25DC-50	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DC-50C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY25DC-50B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DC-50W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY25DC-100	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DC-100C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY25DC-100B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DC-100W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY25DC-150	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DC-150C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY25DC-150B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DC-150W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY25DC-200	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DC-200C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY25DC-200B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DC-200W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY25DC-250	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DC-250C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY25DC-250B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DC-250W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY25DC-300	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DC-300C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY25DC-300B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DC-300W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY25DC-350	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DC-350C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY25DC-350B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DC-350W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY25DC-400	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DC-400C	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY25DC-400B	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DC-400W	Size: 25 \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEY Electric Actuator, Rod Type (Step Motor, Size 16/25)
