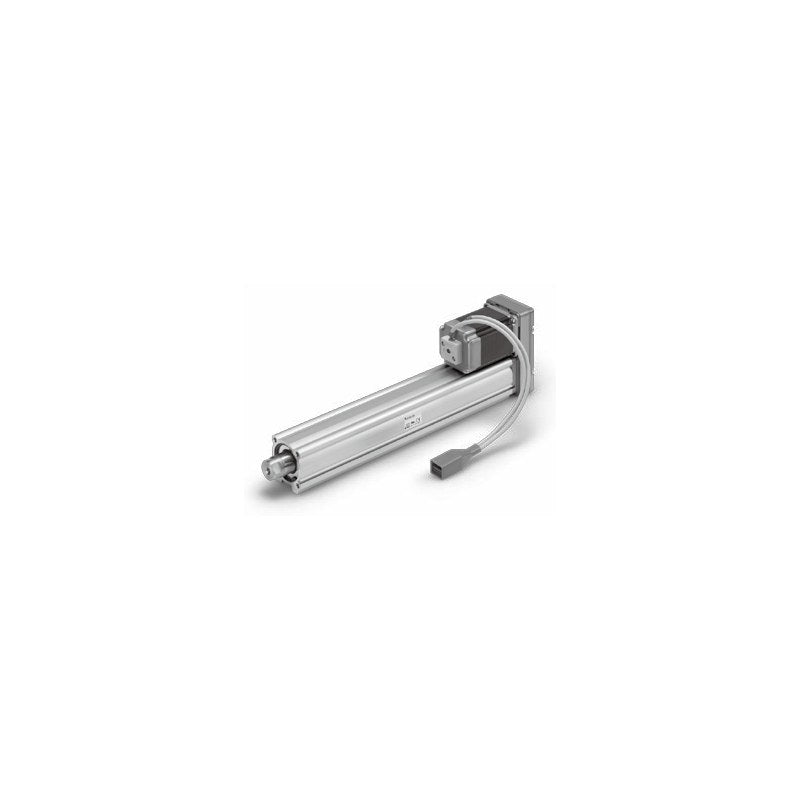

SMC LEY Electric Actuator, Rod Type (Step Motor, Size 32/40)

SMC LEY series rod type electric actuator with incremental step motor (servo/DC24V), sizes 32 and 40, for positioning and pushing.

Key features

Ball screw drive for positioning and pushing control; repeatability ±0.02 mm
Four motor layouts: parallel top, right or left mounting, or in-line
Motor options: none, motor cover (C), lock (B) or lock with motor cover (W)
Rod end female thread standard; male thread (M, with one rod end nut) is a suffix option
Mounting (end/body bottom tapped standard; foot L, rod flange F, head flange G, double clevis D) is ordered as a suffix and shipped unassembled
Controller/driver (JXC51/61, JXCE1/91/P1/D1/L1/M1, LECA6, LECPA), actuator cable (standard S1-S5 or robot R1-RC, 1.5 to 20 m) and I/O cable options are ordered as suffixes; codes listed are actuator only

Specifications

Motor type	Step motor (servo/DC24V), incremental
Encoder	Incremental
Power supply	DC24V ±10%
Repeatability	±0.02 mm
Lost motion	0.1 mm or less
Max. acceleration/deceleration	3000 mm/s²
Max. speed	500 mm/s
Pushing force	80 to 1058 N
Drive	Ball screw + belt (parallel), ball screw (in-line)
Guide	Slide bushing (piston rod)
Operating temperature	5 to 40°C
Enclosure	IP40
Source	SMC Korea electric actuator catalog (SMCKR_LEY.pdf), p. 459-464 (PDF p. 48-53)

LEY32A-30		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32A-30C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32A-30B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32A-30W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32A-50		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32A-50C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32A-50B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32A-50W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32A-100		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32A-100C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32A-100B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32A-100W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32A-150		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32A-150C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32A-150B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32A-150W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32A-200		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32A-200C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32A-200B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32A-200W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32A-250		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32A-250C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32A-250B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32A-250W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32A-300		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32A-300C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32A-300B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32A-300W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32A-350		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32A-350C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32A-350B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32A-350W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32A-400		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32A-400C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32A-400B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32A-400W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32A-450		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32A-450C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32A-450B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32A-450W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32A-500		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32A-500C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32A-500B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32A-500W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32B-30		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32B-30C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32B-30B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32B-30W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32B-50		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32B-50C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32B-50B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32B-50W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32B-100		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32B-100C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32B-100B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32B-100W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32B-150		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32B-150C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32B-150B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32B-150W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32B-200		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32B-200C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32B-200B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32B-200W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32B-250		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32B-250C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32B-250B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32B-250W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32B-300		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32B-300C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32B-300B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32B-300W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32B-350		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32B-350C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32B-350B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32B-350W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32B-400		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32B-400C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32B-400B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32B-400W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32B-450		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32B-450C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32B-450B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32B-450W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32B-500		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32B-500C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32B-500B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32B-500W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32C-30		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32C-30C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32C-30B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32C-30W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32C-50		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32C-50C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32C-50B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32C-50W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32C-100		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32C-100C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32C-100B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32C-100W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32C-150		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32C-150C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32C-150B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32C-150W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32C-200		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32C-200C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32C-200B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32C-200W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32C-250		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32C-250C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32C-250B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32C-250W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32C-300		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32C-300C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32C-300B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32C-300W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32C-350		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32C-350C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32C-350B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32C-350W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32C-400		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32C-400C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32C-400B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32C-400W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32C-450		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32C-450C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32C-450B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32C-450W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32C-500		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32C-500C		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32C-500B		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32C-500W		Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32RA-30		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32RA-30C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32RA-30B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RA-30W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32RA-50		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32RA-50C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32RA-50B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RA-50W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32RA-100		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32RA-100C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32RA-100B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RA-100W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32RA-150		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32RA-150C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32RA-150B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RA-150W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32RA-200		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32RA-200C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32RA-200B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RA-200W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32RA-250		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32RA-250C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32RA-250B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RA-250W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32RA-300		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32RA-300C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32RA-300B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RA-300W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32RA-350		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32RA-350C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32RA-350B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RA-350W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32RA-400		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32RA-400C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32RA-400B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RA-400W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32RA-450		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32RA-450C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32RA-450B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RA-450W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32RA-500		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32RA-500C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32RA-500B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RA-500W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32RB-30		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32RB-30C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32RB-30B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RB-30W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32RB-50		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32RB-50C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32RB-50B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RB-50W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32RB-100		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32RB-100C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32RB-100B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RB-100W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32RB-150		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32RB-150C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32RB-150B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RB-150W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32RB-200		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32RB-200C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32RB-200B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RB-200W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32RB-250		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32RB-250C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32RB-250B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RB-250W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32RB-300		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32RB-300C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32RB-300B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RB-300W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32RB-350		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32RB-350C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32RB-350B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RB-350W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32RB-400		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32RB-400C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32RB-400B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RB-400W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32RB-450		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32RB-450C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32RB-450B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RB-450W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32RB-500		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32RB-500C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32RB-500B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RB-500W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32RC-30		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32RC-30C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32RC-30B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RC-30W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32RC-50		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32RC-50C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32RC-50B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RC-50W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32RC-100		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32RC-100C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32RC-100B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RC-100W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32RC-150		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32RC-150C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32RC-150B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RC-150W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32RC-200		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32RC-200C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32RC-200B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RC-200W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32RC-250		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32RC-250C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32RC-250B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RC-250W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32RC-300		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32RC-300C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32RC-300B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RC-300W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32RC-350		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32RC-350C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32RC-350B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RC-350W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32RC-400		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32RC-400C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32RC-400B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RC-400W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32RC-450		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32RC-450C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32RC-450B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RC-450W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32RC-500		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32RC-500C		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32RC-500B		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RC-500W		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32LA-30		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32LA-30C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32LA-30B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LA-30W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32LA-50		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32LA-50C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32LA-50B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LA-50W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32LA-100		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32LA-100C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32LA-100B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LA-100W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32LA-150		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32LA-150C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32LA-150B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LA-150W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32LA-200		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32LA-200C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32LA-200B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LA-200W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32LA-250		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32LA-250C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32LA-250B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LA-250W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32LA-300		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32LA-300C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32LA-300B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LA-300W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32LA-350		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32LA-350C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32LA-350B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LA-350W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32LA-400		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32LA-400C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32LA-400B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LA-400W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32LA-450		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32LA-450C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32LA-450B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LA-450W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32LA-500		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32LA-500C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32LA-500B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LA-500W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32LB-30		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32LB-30C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32LB-30B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LB-30W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32LB-50		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32LB-50C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32LB-50B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LB-50W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32LB-100		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32LB-100C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32LB-100B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LB-100W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32LB-150		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32LB-150C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32LB-150B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LB-150W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32LB-200		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32LB-200C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32LB-200B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LB-200W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32LB-250		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32LB-250C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32LB-250B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LB-250W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32LB-300		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32LB-300C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32LB-300B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LB-300W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32LB-350		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32LB-350C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32LB-350B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LB-350W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32LB-400		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32LB-400C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32LB-400B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LB-400W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32LB-450		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32LB-450C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32LB-450B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LB-450W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32LB-500		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32LB-500C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32LB-500B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LB-500W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32LC-30		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32LC-30C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32LC-30B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LC-30W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32LC-50		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32LC-50C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32LC-50B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LC-50W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32LC-100		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32LC-100C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32LC-100B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LC-100W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32LC-150		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32LC-150C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32LC-150B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LC-150W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32LC-200		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32LC-200C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32LC-200B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LC-200W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32LC-250		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32LC-250C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32LC-250B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LC-250W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32LC-300		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32LC-300C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32LC-300B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LC-300W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32LC-350		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32LC-350C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32LC-350B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LC-350W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32LC-400		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32LC-400C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32LC-400B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LC-400W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32LC-450		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32LC-450C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32LC-450B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LC-450W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32LC-500		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32LC-500C		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32LC-500B		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LC-500W		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32DA-30		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32DA-30C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32DA-30B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DA-30W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32DA-50		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32DA-50C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32DA-50B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DA-50W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32DA-100		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32DA-100C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32DA-100B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DA-100W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32DA-150		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32DA-150C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32DA-150B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DA-150W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32DA-200		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32DA-200C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32DA-200B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DA-200W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32DA-250		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32DA-250C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32DA-250B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DA-250W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32DA-300		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32DA-300C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32DA-300B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DA-300W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32DA-350		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32DA-350C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32DA-350B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DA-350W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32DA-400		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32DA-400C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32DA-400B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DA-400W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32DA-450		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32DA-450C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32DA-450B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DA-450W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32DA-500		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32DA-500C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32DA-500B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DA-500W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32DB-30		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32DB-30C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32DB-30B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DB-30W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32DB-50		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32DB-50C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32DB-50B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DB-50W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32DB-100		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32DB-100C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32DB-100B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DB-100W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32DB-150		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32DB-150C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32DB-150B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DB-150W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32DB-200		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32DB-200C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32DB-200B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DB-200W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32DB-250		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32DB-250C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32DB-250B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DB-250W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32DB-300		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32DB-300C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32DB-300B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DB-300W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32DB-350		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32DB-350C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32DB-350B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DB-350W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32DB-400		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32DB-400C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32DB-400B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DB-400W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32DB-450		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32DB-450C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32DB-450B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DB-450W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32DB-500		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32DB-500C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32DB-500B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DB-500W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY32DC-30		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32DC-30C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY32DC-30B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DC-30W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY32DC-50		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32DC-50C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY32DC-50B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DC-50W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY32DC-100		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32DC-100C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY32DC-100B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DC-100W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY32DC-150		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32DC-150C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY32DC-150B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DC-150W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY32DC-200		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32DC-200C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY32DC-200B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DC-200W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY32DC-250		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32DC-250C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY32DC-250B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DC-250W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY32DC-300		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32DC-300C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY32DC-300B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DC-300W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY32DC-350		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32DC-350C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY32DC-350B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DC-350W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY32DC-400		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32DC-400C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY32DC-400B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DC-400W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY32DC-450		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32DC-450C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY32DC-450B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DC-450W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY32DC-500		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32DC-500C		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY32DC-500B		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DC-500W		Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40A-30		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY40A-30C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40A-30B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40A-30W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40A-50		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY40A-50C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40A-50B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40A-50W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40A-100		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY40A-100C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40A-100B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40A-100W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40A-150		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY40A-150C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40A-150B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40A-150W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40A-200		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY40A-200C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40A-200B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40A-200W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40A-250		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY40A-250C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40A-250B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40A-250W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40A-300		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY40A-300C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40A-300B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40A-300W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40A-350		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY40A-350C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40A-350B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40A-350W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40A-400		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY40A-400C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40A-400B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40A-400W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40A-450		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY40A-450C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40A-450B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40A-450W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40A-500		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY40A-500C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40A-500B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40A-500W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40B-30		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY40B-30C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40B-30B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40B-30W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40B-50		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY40B-50C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40B-50B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40B-50W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40B-100		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY40B-100C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40B-100B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40B-100W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40B-150		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY40B-150C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40B-150B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40B-150W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40B-200		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY40B-200C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40B-200B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40B-200W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40B-250		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY40B-250C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40B-250B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40B-250W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40B-300		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY40B-300C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40B-300B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40B-300W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40B-350		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY40B-350C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40B-350B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40B-350W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40B-400		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY40B-400C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40B-400B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40B-400W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40B-450		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY40B-450C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40B-450B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40B-450W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40B-500		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY40B-500C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40B-500B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40B-500W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40C-30		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY40C-30C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40C-30B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40C-30W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40C-50		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY40C-50C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40C-50B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40C-50W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40C-100		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY40C-100C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40C-100B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40C-100W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40C-150		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY40C-150C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40C-150B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40C-150W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40C-200		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY40C-200C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40C-200B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40C-200W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40C-250		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY40C-250C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40C-250B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40C-250W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40C-300		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY40C-300C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40C-300B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40C-300W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40C-350		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY40C-350C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40C-350B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40C-350W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40C-400		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY40C-400C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40C-400B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40C-400W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40C-450		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY40C-450C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40C-450B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40C-450W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40C-500		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY40C-500C		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40C-500B		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40C-500W		Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40RA-30		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY40RA-30C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40RA-30B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40RA-30W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40RA-50		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY40RA-50C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40RA-50B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40RA-50W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40RA-100		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY40RA-100C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40RA-100B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40RA-100W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40RA-150		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY40RA-150C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40RA-150B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40RA-150W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40RA-200		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY40RA-200C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40RA-200B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40RA-200W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40RA-250		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY40RA-250C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40RA-250B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40RA-250W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40RA-300		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY40RA-300C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40RA-300B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40RA-300W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40RA-350		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY40RA-350C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40RA-350B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40RA-350W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40RA-400		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY40RA-400C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40RA-400B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40RA-400W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40RA-450		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY40RA-450C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40RA-450B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40RA-450W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40RA-500		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY40RA-500C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40RA-500B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40RA-500W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40RB-30		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY40RB-30C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40RB-30B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40RB-30W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40RB-50		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY40RB-50C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40RB-50B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40RB-50W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40RB-100		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY40RB-100C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40RB-100B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40RB-100W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40RB-150		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY40RB-150C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40RB-150B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40RB-150W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40RB-200		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY40RB-200C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40RB-200B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40RB-200W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40RB-250		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY40RB-250C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40RB-250B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40RB-250W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40RB-300		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY40RB-300C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40RB-300B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40RB-300W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40RB-350		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY40RB-350C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40RB-350B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40RB-350W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40RB-400		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY40RB-400C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40RB-400B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40RB-400W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40RB-450		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY40RB-450C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40RB-450B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40RB-450W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40RB-500		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY40RB-500C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40RB-500B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40RB-500W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40RC-30		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY40RC-30C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40RC-30B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40RC-30W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40RC-50		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY40RC-50C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40RC-50B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40RC-50W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40RC-100		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY40RC-100C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40RC-100B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40RC-100W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40RC-150		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY40RC-150C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40RC-150B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40RC-150W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40RC-200		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY40RC-200C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40RC-200B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40RC-200W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40RC-250		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY40RC-250C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40RC-250B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40RC-250W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40RC-300		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY40RC-300C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40RC-300B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40RC-300W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40RC-350		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY40RC-350C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40RC-350B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40RC-350W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40RC-400		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY40RC-400C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40RC-400B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40RC-400W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40RC-450		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY40RC-450C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40RC-450B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40RC-450W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40RC-500		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY40RC-500C		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40RC-500B		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40RC-500W		Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40LA-30		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY40LA-30C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40LA-30B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40LA-30W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40LA-50		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY40LA-50C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40LA-50B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40LA-50W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40LA-100		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY40LA-100C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40LA-100B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40LA-100W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40LA-150		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY40LA-150C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40LA-150B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40LA-150W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40LA-200		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY40LA-200C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40LA-200B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40LA-200W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40LA-250		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY40LA-250C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40LA-250B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40LA-250W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40LA-300		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY40LA-300C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40LA-300B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40LA-300W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40LA-350		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY40LA-350C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40LA-350B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40LA-350W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40LA-400		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY40LA-400C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40LA-400B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40LA-400W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40LA-450		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY40LA-450C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40LA-450B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40LA-450W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40LA-500		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY40LA-500C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40LA-500B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40LA-500W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40LB-30		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY40LB-30C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40LB-30B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40LB-30W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40LB-50		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY40LB-50C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40LB-50B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40LB-50W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40LB-100		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY40LB-100C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40LB-100B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40LB-100W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40LB-150		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY40LB-150C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40LB-150B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40LB-150W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40LB-200		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY40LB-200C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40LB-200B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40LB-200W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40LB-250		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY40LB-250C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40LB-250B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40LB-250W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40LB-300		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY40LB-300C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40LB-300B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40LB-300W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40LB-350		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY40LB-350C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40LB-350B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40LB-350W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40LB-400		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY40LB-400C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40LB-400B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40LB-400W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40LB-450		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY40LB-450C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40LB-450B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40LB-450W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40LB-500		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY40LB-500C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40LB-500B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40LB-500W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40LC-30		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY40LC-30C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40LC-30B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40LC-30W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40LC-50		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY40LC-50C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40LC-50B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40LC-50W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40LC-100		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY40LC-100C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40LC-100B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40LC-100W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40LC-150		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY40LC-150C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40LC-150B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40LC-150W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40LC-200		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY40LC-200C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40LC-200B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40LC-200W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40LC-250		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY40LC-250C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40LC-250B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40LC-250W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40LC-300		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY40LC-300C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40LC-300B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40LC-300W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40LC-350		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY40LC-350C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40LC-350B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40LC-350W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40LC-400		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY40LC-400C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40LC-400B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40LC-400W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40LC-450		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY40LC-450C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40LC-450B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40LC-450W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40LC-500		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY40LC-500C		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40LC-500B		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40LC-500W		Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40DA-30		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY40DA-30C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40DA-30B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40DA-30W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40DA-50		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY40DA-50C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40DA-50B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40DA-50W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40DA-100		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY40DA-100C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40DA-100B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40DA-100W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40DA-150		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY40DA-150C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40DA-150B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40DA-150W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40DA-200		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY40DA-200C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40DA-200B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40DA-200W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40DA-250		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY40DA-250C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40DA-250B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40DA-250W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40DA-300		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY40DA-300C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40DA-300B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40DA-300W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40DA-350		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY40DA-350C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40DA-350B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40DA-350W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40DA-400		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY40DA-400C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40DA-400B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40DA-400W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40DA-450		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY40DA-450C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40DA-450B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40DA-450W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40DA-500		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY40DA-500C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40DA-500B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40DA-500W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40DB-30		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY40DB-30C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40DB-30B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40DB-30W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40DB-50		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY40DB-50C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40DB-50B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40DB-50W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40DB-100		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY40DB-100C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40DB-100B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40DB-100W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40DB-150		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY40DB-150C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40DB-150B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40DB-150W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40DB-200		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY40DB-200C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40DB-200B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40DB-200W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40DB-250		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY40DB-250C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40DB-250B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40DB-250W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40DB-300		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY40DB-300C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40DB-300B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40DB-300W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40DB-350		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY40DB-350C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40DB-350B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40DB-350W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40DB-400		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY40DB-400C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40DB-400B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40DB-400W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40DB-450		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY40DB-450C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40DB-450B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40DB-450W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40DB-500		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY40DB-500C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40DB-500B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40DB-500W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
LEY40DC-30		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY40DC-30C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEY40DC-30B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY40DC-30W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEY40DC-50		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY40DC-50C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEY40DC-50B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY40DC-50W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEY40DC-100		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY40DC-100C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEY40DC-100B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY40DC-100W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEY40DC-150		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY40DC-150C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEY40DC-150B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY40DC-150W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEY40DC-200		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY40DC-200C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEY40DC-200B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY40DC-200W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEY40DC-250		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY40DC-250C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEY40DC-250B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY40DC-250W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEY40DC-300		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY40DC-300C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEY40DC-300B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY40DC-300W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEY40DC-350		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY40DC-350C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
LEY40DC-350B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY40DC-350W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
LEY40DC-400		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY40DC-400C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
LEY40DC-400B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY40DC-400W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
LEY40DC-450		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY40DC-450C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
LEY40DC-450B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY40DC-450W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
LEY40DC-500		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY40DC-500C		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
LEY40DC-500B		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY40DC-500W		Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover

Electric ActuatorsSMC

1056 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY Electric Actuator, Rod Type (Step Motor, Size 32/40)

Brand SMC·Electric Actuators

Available part numbers (1056)

LEY32A-30, LEY32A-30C, LEY32A-30B, LEY32A-30W, LEY32A-50, LEY32A-50C, LEY32A-50B, LEY32A-50W, LEY32A-100, LEY32A-100C + 1046 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEY32A-30	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32A-30C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32A-30B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32A-30W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32A-50	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32A-50C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32A-50B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32A-50W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32A-100	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32A-100C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32A-100B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32A-100W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32A-150	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32A-150C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32A-150B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32A-150W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32A-200	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32A-200C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32A-200B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32A-200W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32A-250	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32A-250C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32A-250B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32A-250W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32A-300	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32A-300C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32A-300B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32A-300W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32A-350	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32A-350C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32A-350B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32A-350W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32A-400	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32A-400C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32A-400B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32A-400W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32A-450	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32A-450C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32A-450B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32A-450W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32A-500	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32A-500C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32A-500B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32A-500W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32B-30	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32B-30C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32B-30B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32B-30W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32B-50	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32B-50C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32B-50B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32B-50W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32B-100	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32B-100C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32B-100B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32B-100W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32B-150	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32B-150C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32B-150B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32B-150W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32B-200	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32B-200C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32B-200B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32B-200W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32B-250	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32B-250C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32B-250B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32B-250W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32B-300	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32B-300C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32B-300B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32B-300W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32B-350	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32B-350C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32B-350B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32B-350W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32B-400	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32B-400C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32B-400B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32B-400W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32B-450	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32B-450C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32B-450B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32B-450W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32B-500	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32B-500C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32B-500B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32B-500W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32C-30	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32C-30C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32C-30B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32C-30W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32C-50	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32C-50C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32C-50B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32C-50W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32C-100	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32C-100C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32C-100B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32C-100W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32C-150	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32C-150C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32C-150B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32C-150W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32C-200	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32C-200C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32C-200B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32C-200W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32C-250	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32C-250C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32C-250B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32C-250W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32C-300	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32C-300C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32C-300B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32C-300W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32C-350	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32C-350C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32C-350B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32C-350W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32C-400	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32C-400C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32C-400B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32C-400W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32C-450	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32C-450C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32C-450B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32C-450W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32C-500	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32C-500C	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32C-500B	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32C-500W	Size: 32 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32RA-30	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RA-30C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32RA-30B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RA-30W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32RA-50	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RA-50C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32RA-50B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RA-50W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32RA-100	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RA-100C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32RA-100B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RA-100W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32RA-150	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RA-150C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32RA-150B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RA-150W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32RA-200	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RA-200C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32RA-200B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RA-200W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32RA-250	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RA-250C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32RA-250B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RA-250W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32RA-300	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RA-300C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32RA-300B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RA-300W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32RA-350	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RA-350C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32RA-350B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RA-350W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32RA-400	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RA-400C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32RA-400B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RA-400W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32RA-450	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RA-450C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32RA-450B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RA-450W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32RA-500	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RA-500C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32RA-500B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RA-500W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32RB-30	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RB-30C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32RB-30B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RB-30W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32RB-50	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RB-50C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32RB-50B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RB-50W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32RB-100	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RB-100C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32RB-100B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RB-100W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32RB-150	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RB-150C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32RB-150B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RB-150W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32RB-200	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RB-200C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32RB-200B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RB-200W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32RB-250	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RB-250C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32RB-250B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RB-250W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32RB-300	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RB-300C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32RB-300B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RB-300W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32RB-350	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RB-350C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32RB-350B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RB-350W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32RB-400	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RB-400C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32RB-400B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RB-400W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32RB-450	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RB-450C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32RB-450B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RB-450W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32RB-500	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RB-500C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32RB-500B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RB-500W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32RC-30	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RC-30C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32RC-30B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RC-30W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32RC-50	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RC-50C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32RC-50B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RC-50W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32RC-100	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RC-100C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32RC-100B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RC-100W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32RC-150	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RC-150C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32RC-150B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RC-150W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32RC-200	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RC-200C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32RC-200B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RC-200W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32RC-250	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RC-250C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32RC-250B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RC-250W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32RC-300	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RC-300C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32RC-300B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RC-300W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32RC-350	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RC-350C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32RC-350B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RC-350W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32RC-400	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RC-400C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32RC-400B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RC-400W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32RC-450	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RC-450C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32RC-450B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RC-450W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32RC-500	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RC-500C	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32RC-500B	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RC-500W	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32LA-30	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LA-30C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32LA-30B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LA-30W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32LA-50	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LA-50C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32LA-50B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LA-50W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32LA-100	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LA-100C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32LA-100B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LA-100W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32LA-150	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LA-150C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32LA-150B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LA-150W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32LA-200	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LA-200C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32LA-200B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LA-200W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32LA-250	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LA-250C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32LA-250B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LA-250W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32LA-300	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LA-300C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32LA-300B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LA-300W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32LA-350	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LA-350C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32LA-350B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LA-350W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32LA-400	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LA-400C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32LA-400B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LA-400W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32LA-450	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LA-450C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32LA-450B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LA-450W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32LA-500	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LA-500C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32LA-500B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LA-500W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32LB-30	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LB-30C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32LB-30B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LB-30W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32LB-50	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LB-50C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32LB-50B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LB-50W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32LB-100	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LB-100C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32LB-100B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LB-100W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32LB-150	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LB-150C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32LB-150B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LB-150W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32LB-200	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LB-200C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32LB-200B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LB-200W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32LB-250	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LB-250C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32LB-250B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LB-250W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32LB-300	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LB-300C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32LB-300B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LB-300W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32LB-350	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LB-350C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32LB-350B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LB-350W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32LB-400	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LB-400C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32LB-400B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LB-400W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32LB-450	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LB-450C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32LB-450B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LB-450W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32LB-500	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LB-500C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32LB-500B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LB-500W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32LC-30	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LC-30C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32LC-30B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LC-30W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32LC-50	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LC-50C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32LC-50B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LC-50W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32LC-100	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LC-100C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32LC-100B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LC-100W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32LC-150	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LC-150C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32LC-150B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LC-150W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32LC-200	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LC-200C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32LC-200B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LC-200W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32LC-250	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LC-250C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32LC-250B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LC-250W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32LC-300	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LC-300C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32LC-300B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LC-300W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32LC-350	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LC-350C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32LC-350B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LC-350W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32LC-400	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LC-400C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32LC-400B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LC-400W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32LC-450	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LC-450C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32LC-450B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LC-450W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32LC-500	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LC-500C	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32LC-500B	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LC-500W	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32DA-30	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DA-30C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32DA-30B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DA-30W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32DA-50	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DA-50C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32DA-50B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DA-50W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32DA-100	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DA-100C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32DA-100B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DA-100W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32DA-150	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DA-150C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32DA-150B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DA-150W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32DA-200	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DA-200C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32DA-200B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DA-200W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32DA-250	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DA-250C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32DA-250B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DA-250W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32DA-300	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DA-300C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32DA-300B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DA-300W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32DA-350	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DA-350C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32DA-350B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DA-350W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32DA-400	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DA-400C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32DA-400B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DA-400W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32DA-450	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DA-450C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32DA-450B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DA-450W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32DA-500	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DA-500C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32DA-500B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DA-500W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32DB-30	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DB-30C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32DB-30B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DB-30W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32DB-50	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DB-50C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32DB-50B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DB-50W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32DB-100	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DB-100C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32DB-100B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DB-100W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32DB-150	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DB-150C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32DB-150B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DB-150W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32DB-200	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DB-200C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32DB-200B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DB-200W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32DB-250	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DB-250C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32DB-250B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DB-250W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32DB-300	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DB-300C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32DB-300B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DB-300W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32DB-350	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DB-350C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32DB-350B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DB-350W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32DB-400	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DB-400C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32DB-400B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DB-400W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32DB-450	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DB-450C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32DB-450B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DB-450W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32DB-500	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DB-500C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32DB-500B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DB-500W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY32DC-30	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DC-30C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY32DC-30B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DC-30W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY32DC-50	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DC-50C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY32DC-50B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DC-50W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY32DC-100	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DC-100C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY32DC-100B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DC-100W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY32DC-150	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DC-150C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY32DC-150B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DC-150W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY32DC-200	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DC-200C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY32DC-200B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DC-200W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY32DC-250	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DC-250C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY32DC-250B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DC-250W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY32DC-300	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DC-300C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY32DC-300B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DC-300W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY32DC-350	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DC-350C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY32DC-350B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DC-350W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY32DC-400	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DC-400C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY32DC-400B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DC-400W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY32DC-450	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DC-450C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY32DC-450B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DC-450W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY32DC-500	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DC-500C	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY32DC-500B	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DC-500W	Size: 32 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40A-30	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY40A-30C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40A-30B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40A-30W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40A-50	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY40A-50C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40A-50B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40A-50W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40A-100	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY40A-100C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40A-100B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40A-100W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40A-150	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY40A-150C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40A-150B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40A-150W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40A-200	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY40A-200C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40A-200B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40A-200W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40A-250	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY40A-250C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40A-250B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40A-250W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40A-300	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY40A-300C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40A-300B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40A-300W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40A-350	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY40A-350C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40A-350B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40A-350W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40A-400	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY40A-400C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40A-400B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40A-400W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40A-450	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY40A-450C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40A-450B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40A-450W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40A-500	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY40A-500C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40A-500B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40A-500W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40B-30	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY40B-30C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40B-30B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40B-30W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40B-50	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY40B-50C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40B-50B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40B-50W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40B-100	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY40B-100C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40B-100B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40B-100W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40B-150	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY40B-150C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40B-150B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40B-150W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40B-200	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY40B-200C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40B-200B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40B-200W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40B-250	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY40B-250C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40B-250B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40B-250W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40B-300	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY40B-300C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40B-300B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40B-300W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40B-350	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY40B-350C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40B-350B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40B-350W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40B-400	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY40B-400C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40B-400B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40B-400W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40B-450	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY40B-450C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40B-450B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40B-450W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40B-500	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY40B-500C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40B-500B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40B-500W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40C-30	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY40C-30C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40C-30B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40C-30W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40C-50	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY40C-50C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40C-50B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40C-50W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40C-100	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY40C-100C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40C-100B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40C-100W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40C-150	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY40C-150C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40C-150B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40C-150W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40C-200	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY40C-200C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40C-200B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40C-200W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40C-250	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY40C-250C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40C-250B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40C-250W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40C-300	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY40C-300C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40C-300B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40C-300W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40C-350	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY40C-350C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40C-350B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40C-350W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40C-400	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY40C-400C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40C-400B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40C-400W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40C-450	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY40C-450C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40C-450B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40C-450W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40C-500	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY40C-500C	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40C-500B	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40C-500W	Size: 40 \| Motor layout: Parallel, top mounting \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40RA-30	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY40RA-30C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40RA-30B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40RA-30W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40RA-50	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY40RA-50C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40RA-50B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40RA-50W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40RA-100	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY40RA-100C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40RA-100B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40RA-100W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40RA-150	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY40RA-150C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40RA-150B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40RA-150W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40RA-200	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY40RA-200C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40RA-200B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40RA-200W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40RA-250	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY40RA-250C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40RA-250B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40RA-250W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40RA-300	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY40RA-300C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40RA-300B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40RA-300W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40RA-350	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY40RA-350C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40RA-350B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40RA-350W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40RA-400	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY40RA-400C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40RA-400B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40RA-400W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40RA-450	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY40RA-450C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40RA-450B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40RA-450W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40RA-500	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY40RA-500C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40RA-500B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40RA-500W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40RB-30	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY40RB-30C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40RB-30B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40RB-30W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40RB-50	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY40RB-50C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40RB-50B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40RB-50W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40RB-100	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY40RB-100C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40RB-100B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40RB-100W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40RB-150	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY40RB-150C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40RB-150B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40RB-150W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40RB-200	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY40RB-200C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40RB-200B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40RB-200W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40RB-250	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY40RB-250C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40RB-250B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40RB-250W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40RB-300	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY40RB-300C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40RB-300B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40RB-300W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40RB-350	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY40RB-350C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40RB-350B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40RB-350W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40RB-400	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY40RB-400C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40RB-400B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40RB-400W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40RB-450	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY40RB-450C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40RB-450B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40RB-450W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40RB-500	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY40RB-500C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40RB-500B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40RB-500W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40RC-30	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY40RC-30C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40RC-30B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40RC-30W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40RC-50	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY40RC-50C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40RC-50B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40RC-50W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40RC-100	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY40RC-100C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40RC-100B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40RC-100W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40RC-150	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY40RC-150C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40RC-150B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40RC-150W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40RC-200	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY40RC-200C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40RC-200B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40RC-200W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40RC-250	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY40RC-250C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40RC-250B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40RC-250W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40RC-300	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY40RC-300C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40RC-300B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40RC-300W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40RC-350	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY40RC-350C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40RC-350B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40RC-350W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40RC-400	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY40RC-400C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40RC-400B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40RC-400W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40RC-450	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY40RC-450C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40RC-450B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40RC-450W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40RC-500	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY40RC-500C	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40RC-500B	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40RC-500W	Size: 40 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40LA-30	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY40LA-30C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40LA-30B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40LA-30W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40LA-50	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY40LA-50C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40LA-50B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40LA-50W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40LA-100	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY40LA-100C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40LA-100B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40LA-100W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40LA-150	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY40LA-150C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40LA-150B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40LA-150W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40LA-200	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY40LA-200C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40LA-200B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40LA-200W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40LA-250	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY40LA-250C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40LA-250B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40LA-250W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40LA-300	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY40LA-300C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40LA-300B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40LA-300W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40LA-350	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY40LA-350C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40LA-350B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40LA-350W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40LA-400	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY40LA-400C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40LA-400B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40LA-400W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40LA-450	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY40LA-450C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40LA-450B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40LA-450W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40LA-500	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY40LA-500C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40LA-500B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40LA-500W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40LB-30	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY40LB-30C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40LB-30B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40LB-30W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40LB-50	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY40LB-50C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40LB-50B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40LB-50W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40LB-100	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY40LB-100C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40LB-100B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40LB-100W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40LB-150	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY40LB-150C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40LB-150B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40LB-150W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40LB-200	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY40LB-200C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40LB-200B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40LB-200W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40LB-250	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY40LB-250C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40LB-250B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40LB-250W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40LB-300	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY40LB-300C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40LB-300B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40LB-300W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40LB-350	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY40LB-350C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40LB-350B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40LB-350W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40LB-400	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY40LB-400C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40LB-400B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40LB-400W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40LB-450	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY40LB-450C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40LB-450B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40LB-450W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40LB-500	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY40LB-500C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40LB-500B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40LB-500W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40LC-30	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY40LC-30C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40LC-30B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40LC-30W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40LC-50	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY40LC-50C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40LC-50B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40LC-50W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40LC-100	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY40LC-100C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40LC-100B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40LC-100W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40LC-150	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY40LC-150C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40LC-150B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40LC-150W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40LC-200	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY40LC-200C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40LC-200B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40LC-200W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40LC-250	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY40LC-250C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40LC-250B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40LC-250W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40LC-300	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY40LC-300C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40LC-300B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40LC-300W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40LC-350	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY40LC-350C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40LC-350B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40LC-350W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40LC-400	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY40LC-400C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40LC-400B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40LC-400W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40LC-450	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY40LC-450C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40LC-450B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40LC-450W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40LC-500	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY40LC-500C	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40LC-500B	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40LC-500W	Size: 40 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40DA-30	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY40DA-30C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40DA-30B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40DA-30W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40DA-50	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY40DA-50C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40DA-50B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40DA-50W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40DA-100	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY40DA-100C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40DA-100B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40DA-100W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40DA-150	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY40DA-150C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40DA-150B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40DA-150W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40DA-200	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY40DA-200C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40DA-200B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40DA-200W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40DA-250	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY40DA-250C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40DA-250B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40DA-250W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40DA-300	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY40DA-300C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40DA-300B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40DA-300W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40DA-350	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY40DA-350C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40DA-350B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40DA-350W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40DA-400	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY40DA-400C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40DA-400B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40DA-400W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40DA-450	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY40DA-450C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40DA-450B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40DA-450W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40DA-500	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY40DA-500C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40DA-500B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40DA-500W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40DB-30	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY40DB-30C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40DB-30B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40DB-30W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40DB-50	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY40DB-50C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40DB-50B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40DB-50W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40DB-100	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY40DB-100C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40DB-100B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40DB-100W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40DB-150	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY40DB-150C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40DB-150B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40DB-150W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40DB-200	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY40DB-200C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40DB-200B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40DB-200W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40DB-250	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY40DB-250C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40DB-250B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40DB-250W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40DB-300	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY40DB-300C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40DB-300B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40DB-300W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40DB-350	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY40DB-350C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40DB-350B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40DB-350W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40DB-400	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY40DB-400C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40DB-400B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40DB-400W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40DB-450	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY40DB-450C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40DB-450B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40DB-450W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40DB-500	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY40DB-500C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40DB-500B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40DB-500W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover
	LEY40DC-30	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY40DC-30C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEY40DC-30B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY40DC-30W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEY40DC-50	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY40DC-50C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEY40DC-50B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY40DC-50W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEY40DC-100	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY40DC-100C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEY40DC-100B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY40DC-100W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEY40DC-150	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY40DC-150C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEY40DC-150B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY40DC-150W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEY40DC-200	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY40DC-200C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEY40DC-200B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY40DC-200W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEY40DC-250	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY40DC-250C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEY40DC-250B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY40DC-250W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEY40DC-300	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY40DC-300C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEY40DC-300B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY40DC-300W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEY40DC-350	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY40DC-350C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With motor cover
	LEY40DC-350B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY40DC-350W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock and motor cover
	LEY40DC-400	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY40DC-400C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With motor cover
	LEY40DC-400B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY40DC-400W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock and motor cover
	LEY40DC-450	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY40DC-450C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With motor cover
	LEY40DC-450B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY40DC-450W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock and motor cover
	LEY40DC-500	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY40DC-500C	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With motor cover
	LEY40DC-500B	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY40DC-500W	Size: 40 \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock and motor cover

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEY Electric Actuator, Rod Type (Step Motor, Size 32/40)
