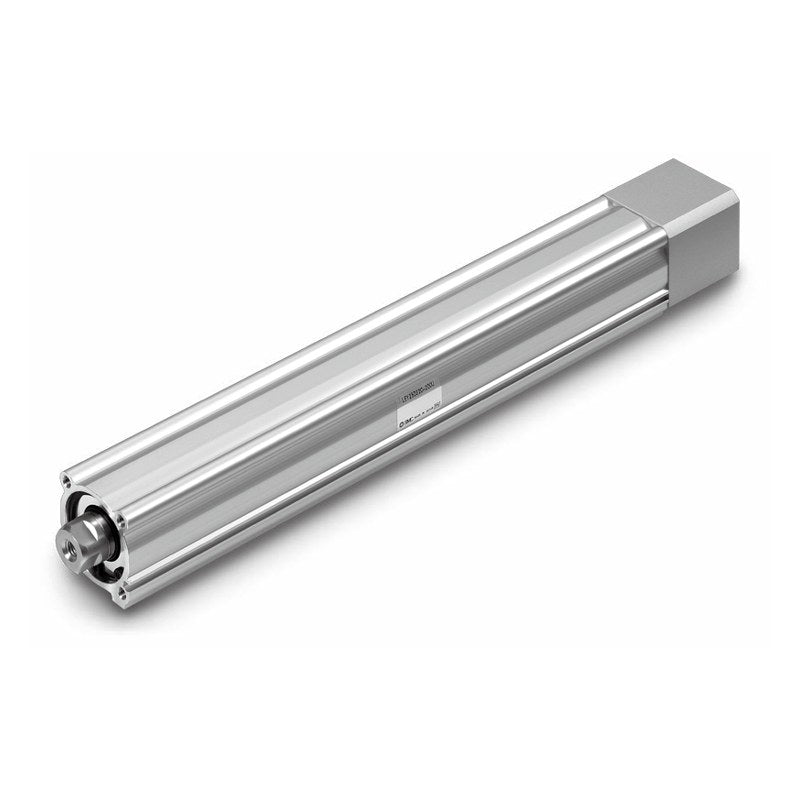

SMC LEY25 Electric Actuator, Rod Type, Motorless

SMC LEY25 rod type electric actuator supplied without motor, for mounting the customer's own 100 W class servo or stepping motor in parallel or straight layout.

Key features

Motorless specification: choose the motor mounting type that matches your servo/stepping motor and driver
Rod type with slide bushing; basic type repeatability ±0.02 mm, high precision type (prefix H, e.g. LEYH25...) ±0.01 mm
Motor layout: top/right/left side parallel (ball screw + belt) or straight in-line (D)
Mounting symbols NZ to NM3 fit the customer's own servo or stepping motor; the motor makers shown are representative examples from the catalog compatibility table (19 makers incl. Mitsubishi, Yaskawa, Sanyo, Omron, Panasonic, FANUC, Nidec, Keyence, Fuji, Minebea Mitsumi, Shinano Kenshi, Oriental Motor, FASTECH, Rockwell, Beckhoff, Siemens, Delta, ANCA, Muscle) - check motor flange dimensions before selecting
Suffix options not expanded: dust/drip proof IP65 (P, LEY63), rod end male thread (M), mounting (foot L, rod flange F, head flange G, double clevis D)

Specifications

Size	25
Drive	Ball screw + belt (parallel), ball screw (straight)
Guide	Slide bushing (piston rod)
Repeatability	±0.02 mm (high precision H: ±0.01 mm)
Lost motion	0.1 mm or less (H: 0.05 mm or less)
Max. acceleration/deceleration	5000 mm/s²
Impact/vibration resistance	50/20 m/s²
Operating temperature	5 to 40°C
Operating humidity	90% RH or less (no condensation)
Reference motor	AC servo motor 100 W class
Source	SMC Korea catalog CAT.KS100-111E (SMCKR_motorless.pdf), p. 153-159 (PDF p. 158-164)

LEY25NZA-30		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25NZA-50		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25NZA-100		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25NZA-150		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25NZA-200		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25NZA-250		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25NZA-300		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25NZA-350		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25NZA-400		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25NZB-30		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25NZB-50		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25NZB-100		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25NZB-150		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25NZB-200		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25NZB-250		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25NZB-300		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25NZB-350		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25NZB-400		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25NZC-30		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25NZC-50		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25NZC-100		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25NZC-150		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25NZC-200		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25NZC-250		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25NZC-300		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25NZC-350		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25NZC-400		Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25NYA-30		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25NYA-50		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25NYA-100		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25NYA-150		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25NYA-200		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25NYA-250		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25NYA-300		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25NYA-350		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25NYA-400		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25NYB-30		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25NYB-50		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25NYB-100		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25NYB-150		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25NYB-200		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25NYB-250		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25NYB-300		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25NYB-350		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25NYB-400		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25NYC-30		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25NYC-50		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25NYC-100		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25NYC-150		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25NYC-200		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25NYC-250		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25NYC-300		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25NYC-350		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25NYC-400		Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25NXA-30		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25NXA-50		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25NXA-100		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25NXA-150		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25NXA-200		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25NXA-250		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25NXA-300		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25NXA-350		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25NXA-400		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25NXB-30		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25NXB-50		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25NXB-100		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25NXB-150		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25NXB-200		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25NXB-250		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25NXB-300		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25NXB-350		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25NXB-400		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25NXC-30		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25NXC-50		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25NXC-100		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25NXC-150		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25NXC-200		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25NXC-250		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25NXC-300		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25NXC-350		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25NXC-400		Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25NM1A-30		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25NM1A-50		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25NM1A-100		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25NM1A-150		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25NM1A-200		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25NM1A-250		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25NM1A-300		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25NM1A-350		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25NM1A-400		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25NM1B-30		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25NM1B-50		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25NM1B-100		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25NM1B-150		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25NM1B-200		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25NM1B-250		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25NM1B-300		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25NM1B-350		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25NM1B-400		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25NM1C-30		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25NM1C-50		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25NM1C-100		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25NM1C-150		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25NM1C-200		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25NM1C-250		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25NM1C-300		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25NM1C-350		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25NM1C-400		Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25NM2A-30		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25NM2A-50		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25NM2A-100		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25NM2A-150		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25NM2A-200		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25NM2A-250		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25NM2A-300		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25NM2A-350		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25NM2A-400		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25NM2B-30		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25NM2B-50		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25NM2B-100		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25NM2B-150		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25NM2B-200		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25NM2B-250		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25NM2B-300		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25NM2B-350		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25NM2B-400		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25NM2C-30		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25NM2C-50		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25NM2C-100		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25NM2C-150		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25NM2C-200		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25NM2C-250		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25NM2C-300		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25NM2C-350		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25NM2C-400		Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25NM3A-30		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25NM3A-50		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25NM3A-100		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25NM3A-150		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25NM3A-200		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25NM3A-250		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25NM3A-300		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25NM3A-350		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25NM3A-400		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25NM3B-30		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25NM3B-50		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25NM3B-100		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25NM3B-150		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25NM3B-200		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25NM3B-250		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25NM3B-300		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25NM3B-350		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25NM3B-400		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25NM3C-30		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25NM3C-50		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25NM3C-100		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25NM3C-150		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25NM3C-200		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25NM3C-250		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25NM3C-300		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25NM3C-350		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25NM3C-400		Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25RNZA-30		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25RNZA-50		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25RNZA-100		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25RNZA-150		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25RNZA-200		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25RNZA-250		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25RNZA-300		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25RNZA-350		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25RNZA-400		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25RNZB-30		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25RNZB-50		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25RNZB-100		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25RNZB-150		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25RNZB-200		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25RNZB-250		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25RNZB-300		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25RNZB-350		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25RNZB-400		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25RNZC-30		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25RNZC-50		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25RNZC-100		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25RNZC-150		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25RNZC-200		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25RNZC-250		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25RNZC-300		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25RNZC-350		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25RNZC-400		Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25RNYA-30		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25RNYA-50		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25RNYA-100		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25RNYA-150		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25RNYA-200		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25RNYA-250		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25RNYA-300		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25RNYA-350		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25RNYA-400		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25RNYB-30		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25RNYB-50		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25RNYB-100		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25RNYB-150		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25RNYB-200		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25RNYB-250		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25RNYB-300		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25RNYB-350		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25RNYB-400		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25RNYC-30		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25RNYC-50		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25RNYC-100		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25RNYC-150		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25RNYC-200		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25RNYC-250		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25RNYC-300		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25RNYC-350		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25RNYC-400		Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25RNXA-30		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25RNXA-50		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25RNXA-100		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25RNXA-150		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25RNXA-200		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25RNXA-250		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25RNXA-300		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25RNXA-350		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25RNXA-400		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25RNXB-30		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25RNXB-50		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25RNXB-100		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25RNXB-150		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25RNXB-200		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25RNXB-250		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25RNXB-300		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25RNXB-350		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25RNXB-400		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25RNXC-30		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25RNXC-50		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25RNXC-100		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25RNXC-150		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25RNXC-200		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25RNXC-250		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25RNXC-300		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25RNXC-350		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25RNXC-400		Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25RNM1A-30		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25RNM1A-50		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25RNM1A-100		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25RNM1A-150		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25RNM1A-200		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25RNM1A-250		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25RNM1A-300		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25RNM1A-350		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25RNM1A-400		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25RNM1B-30		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25RNM1B-50		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25RNM1B-100		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25RNM1B-150		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25RNM1B-200		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25RNM1B-250		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25RNM1B-300		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25RNM1B-350		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25RNM1B-400		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25RNM1C-30		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25RNM1C-50		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25RNM1C-100		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25RNM1C-150		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25RNM1C-200		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25RNM1C-250		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25RNM1C-300		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25RNM1C-350		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25RNM1C-400		Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25RNM2A-30		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25RNM2A-50		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25RNM2A-100		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25RNM2A-150		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25RNM2A-200		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25RNM2A-250		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25RNM2A-300		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25RNM2A-350		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25RNM2A-400		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25RNM2B-30		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25RNM2B-50		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25RNM2B-100		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25RNM2B-150		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25RNM2B-200		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25RNM2B-250		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25RNM2B-300		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25RNM2B-350		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25RNM2B-400		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25RNM2C-30		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25RNM2C-50		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25RNM2C-100		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25RNM2C-150		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25RNM2C-200		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25RNM2C-250		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25RNM2C-300		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25RNM2C-350		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25RNM2C-400		Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25RNM3A-30		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25RNM3A-50		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25RNM3A-100		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25RNM3A-150		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25RNM3A-200		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25RNM3A-250		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25RNM3A-300		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25RNM3A-350		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25RNM3A-400		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25RNM3B-30		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25RNM3B-50		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25RNM3B-100		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25RNM3B-150		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25RNM3B-200		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25RNM3B-250		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25RNM3B-300		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25RNM3B-350		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25RNM3B-400		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25RNM3C-30		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25RNM3C-50		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25RNM3C-100		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25RNM3C-150		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25RNM3C-200		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25RNM3C-250		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25RNM3C-300		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25RNM3C-350		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25RNM3C-400		Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25LNZA-30		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25LNZA-50		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25LNZA-100		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25LNZA-150		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25LNZA-200		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25LNZA-250		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25LNZA-300		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25LNZA-350		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25LNZA-400		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25LNZB-30		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25LNZB-50		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25LNZB-100		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25LNZB-150		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25LNZB-200		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25LNZB-250		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25LNZB-300		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25LNZB-350		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25LNZB-400		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25LNZC-30		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25LNZC-50		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25LNZC-100		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25LNZC-150		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25LNZC-200		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25LNZC-250		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25LNZC-300		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25LNZC-350		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25LNZC-400		Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25LNYA-30		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25LNYA-50		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25LNYA-100		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25LNYA-150		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25LNYA-200		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25LNYA-250		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25LNYA-300		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25LNYA-350		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25LNYA-400		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25LNYB-30		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25LNYB-50		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25LNYB-100		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25LNYB-150		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25LNYB-200		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25LNYB-250		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25LNYB-300		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25LNYB-350		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25LNYB-400		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25LNYC-30		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25LNYC-50		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25LNYC-100		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25LNYC-150		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25LNYC-200		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25LNYC-250		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25LNYC-300		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25LNYC-350		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25LNYC-400		Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25LNXA-30		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25LNXA-50		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25LNXA-100		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25LNXA-150		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25LNXA-200		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25LNXA-250		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25LNXA-300		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25LNXA-350		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25LNXA-400		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25LNXB-30		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25LNXB-50		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25LNXB-100		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25LNXB-150		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25LNXB-200		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25LNXB-250		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25LNXB-300		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25LNXB-350		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25LNXB-400		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25LNXC-30		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25LNXC-50		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25LNXC-100		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25LNXC-150		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25LNXC-200		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25LNXC-250		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25LNXC-300		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25LNXC-350		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25LNXC-400		Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25LNM1A-30		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25LNM1A-50		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25LNM1A-100		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25LNM1A-150		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25LNM1A-200		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25LNM1A-250		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25LNM1A-300		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25LNM1A-350		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25LNM1A-400		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25LNM1B-30		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25LNM1B-50		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25LNM1B-100		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25LNM1B-150		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25LNM1B-200		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25LNM1B-250		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25LNM1B-300		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25LNM1B-350		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25LNM1B-400		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25LNM1C-30		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25LNM1C-50		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25LNM1C-100		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25LNM1C-150		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25LNM1C-200		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25LNM1C-250		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25LNM1C-300		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25LNM1C-350		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25LNM1C-400		Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25LNM2A-30		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25LNM2A-50		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25LNM2A-100		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25LNM2A-150		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25LNM2A-200		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25LNM2A-250		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25LNM2A-300		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25LNM2A-350		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25LNM2A-400		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25LNM2B-30		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25LNM2B-50		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25LNM2B-100		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25LNM2B-150		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25LNM2B-200		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25LNM2B-250		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25LNM2B-300		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25LNM2B-350		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25LNM2B-400		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25LNM2C-30		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25LNM2C-50		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25LNM2C-100		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25LNM2C-150		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25LNM2C-200		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25LNM2C-250		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25LNM2C-300		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25LNM2C-350		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25LNM2C-400		Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25LNM3A-30		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25LNM3A-50		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25LNM3A-100		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25LNM3A-150		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25LNM3A-200		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25LNM3A-250		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25LNM3A-300		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25LNM3A-350		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25LNM3A-400		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25LNM3B-30		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25LNM3B-50		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25LNM3B-100		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25LNM3B-150		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25LNM3B-200		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25LNM3B-250		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25LNM3B-300		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25LNM3B-350		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25LNM3B-400		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25LNM3C-30		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25LNM3C-50		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25LNM3C-100		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25LNM3C-150		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25LNM3C-200		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25LNM3C-250		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25LNM3C-300		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25LNM3C-350		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25LNM3C-400		Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25DNZA-30		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25DNZA-50		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25DNZA-100		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25DNZA-150		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25DNZA-200		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25DNZA-250		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25DNZA-300		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25DNZA-350		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25DNZA-400		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25DNZB-30		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25DNZB-50		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25DNZB-100		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25DNZB-150		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25DNZB-200		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25DNZB-250		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25DNZB-300		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25DNZB-350		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25DNZB-400		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25DNZC-30		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25DNZC-50		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25DNZC-100		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25DNZC-150		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25DNZC-200		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25DNZC-250		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25DNZC-300		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25DNZC-350		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25DNZC-400		Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25DNYA-30		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25DNYA-50		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25DNYA-100		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25DNYA-150		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25DNYA-200		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25DNYA-250		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25DNYA-300		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25DNYA-350		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25DNYA-400		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25DNYB-30		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25DNYB-50		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25DNYB-100		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25DNYB-150		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25DNYB-200		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25DNYB-250		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25DNYB-300		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25DNYB-350		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25DNYB-400		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25DNYC-30		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25DNYC-50		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25DNYC-100		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25DNYC-150		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25DNYC-200		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25DNYC-250		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25DNYC-300		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25DNYC-350		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25DNYC-400		Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25DNXA-30		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25DNXA-50		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25DNXA-100		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25DNXA-150		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25DNXA-200		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25DNXA-250		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25DNXA-300		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25DNXA-350		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25DNXA-400		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25DNXB-30		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25DNXB-50		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25DNXB-100		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25DNXB-150		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25DNXB-200		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25DNXB-250		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25DNXB-300		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25DNXB-350		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25DNXB-400		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25DNXC-30		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25DNXC-50		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25DNXC-100		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25DNXC-150		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25DNXC-200		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25DNXC-250		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25DNXC-300		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25DNXC-350		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25DNXC-400		Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25DNM1A-30		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25DNM1A-50		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25DNM1A-100		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25DNM1A-150		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25DNM1A-200		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25DNM1A-250		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25DNM1A-300		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25DNM1A-350		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25DNM1A-400		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25DNM1B-30		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25DNM1B-50		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25DNM1B-100		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25DNM1B-150		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25DNM1B-200		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25DNM1B-250		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25DNM1B-300		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25DNM1B-350		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25DNM1B-400		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25DNM1C-30		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25DNM1C-50		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25DNM1C-100		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25DNM1C-150		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25DNM1C-200		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25DNM1C-250		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25DNM1C-300		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25DNM1C-350		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25DNM1C-400		Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
LEY25DNM2A-30		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
LEY25DNM2A-50		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
LEY25DNM2A-100		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
LEY25DNM2A-150		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
LEY25DNM2A-200		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
LEY25DNM2A-250		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
LEY25DNM2A-300		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
LEY25DNM2A-350		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
LEY25DNM2A-400		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
LEY25DNM2B-30		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
LEY25DNM2B-50		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
LEY25DNM2B-100		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
LEY25DNM2B-150		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
LEY25DNM2B-200		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
LEY25DNM2B-250		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
LEY25DNM2B-300		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
LEY25DNM2B-350		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
LEY25DNM2B-400		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
LEY25DNM2C-30		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
LEY25DNM2C-50		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
LEY25DNM2C-100		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
LEY25DNM2C-150		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
LEY25DNM2C-200		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
LEY25DNM2C-250		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
LEY25DNM2C-300		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
LEY25DNM2C-350		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
LEY25DNM2C-400		Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm

Electric ActuatorsSMC

621 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY25 Electric Actuator, Rod Type, Motorless

Brand SMC·Electric Actuators

Available part numbers (621)

LEY25NZA-30, LEY25NZA-50, LEY25NZA-100, LEY25NZA-150, LEY25NZA-200, LEY25NZA-250, LEY25NZA-300, LEY25NZA-350, LEY25NZA-400, LEY25NZB-30 + 611 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEY25NZA-30	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25NZA-50	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25NZA-100	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25NZA-150	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25NZA-200	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25NZA-250	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25NZA-300	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25NZA-350	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25NZA-400	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25NZB-30	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25NZB-50	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25NZB-100	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25NZB-150	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25NZB-200	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25NZB-250	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25NZB-300	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25NZB-350	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25NZB-400	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25NZC-30	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25NZC-50	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25NZC-100	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25NZC-150	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25NZC-200	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25NZC-250	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25NZC-300	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25NZC-350	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25NZC-400	Motor layout: Top side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25NYA-30	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25NYA-50	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25NYA-100	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25NYA-150	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25NYA-200	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25NYA-250	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25NYA-300	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25NYA-350	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25NYA-400	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25NYB-30	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25NYB-50	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25NYB-100	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25NYB-150	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25NYB-200	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25NYB-250	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25NYB-300	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25NYB-350	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25NYB-400	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25NYC-30	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25NYC-50	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25NYC-100	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25NYC-150	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25NYC-200	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25NYC-250	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25NYC-300	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25NYC-350	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25NYC-400	Motor layout: Top side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25NXA-30	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25NXA-50	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25NXA-100	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25NXA-150	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25NXA-200	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25NXA-250	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25NXA-300	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25NXA-350	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25NXA-400	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25NXB-30	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25NXB-50	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25NXB-100	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25NXB-150	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25NXB-200	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25NXB-250	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25NXB-300	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25NXB-350	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25NXB-400	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25NXC-30	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25NXC-50	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25NXC-100	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25NXC-150	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25NXC-200	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25NXC-250	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25NXC-300	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25NXC-350	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25NXC-400	Motor layout: Top side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25NM1A-30	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25NM1A-50	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25NM1A-100	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25NM1A-150	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25NM1A-200	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25NM1A-250	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25NM1A-300	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25NM1A-350	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25NM1A-400	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25NM1B-30	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25NM1B-50	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25NM1B-100	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25NM1B-150	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25NM1B-200	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25NM1B-250	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25NM1B-300	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25NM1B-350	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25NM1B-400	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25NM1C-30	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25NM1C-50	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25NM1C-100	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25NM1C-150	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25NM1C-200	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25NM1C-250	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25NM1C-300	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25NM1C-350	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25NM1C-400	Motor layout: Top side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25NM2A-30	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25NM2A-50	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25NM2A-100	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25NM2A-150	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25NM2A-200	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25NM2A-250	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25NM2A-300	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25NM2A-350	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25NM2A-400	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25NM2B-30	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25NM2B-50	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25NM2B-100	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25NM2B-150	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25NM2B-200	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25NM2B-250	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25NM2B-300	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25NM2B-350	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25NM2B-400	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25NM2C-30	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25NM2C-50	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25NM2C-100	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25NM2C-150	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25NM2C-200	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25NM2C-250	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25NM2C-300	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25NM2C-350	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25NM2C-400	Motor layout: Top side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25NM3A-30	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25NM3A-50	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25NM3A-100	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25NM3A-150	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25NM3A-200	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25NM3A-250	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25NM3A-300	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25NM3A-350	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25NM3A-400	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25NM3B-30	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25NM3B-50	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25NM3B-100	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25NM3B-150	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25NM3B-200	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25NM3B-250	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25NM3B-300	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25NM3B-350	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25NM3B-400	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25NM3C-30	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25NM3C-50	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25NM3C-100	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25NM3C-150	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25NM3C-200	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25NM3C-250	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25NM3C-300	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25NM3C-350	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25NM3C-400	Motor layout: Top side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25RNZA-30	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25RNZA-50	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25RNZA-100	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25RNZA-150	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25RNZA-200	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25RNZA-250	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25RNZA-300	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25RNZA-350	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25RNZA-400	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25RNZB-30	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25RNZB-50	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25RNZB-100	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25RNZB-150	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25RNZB-200	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25RNZB-250	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25RNZB-300	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25RNZB-350	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25RNZB-400	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25RNZC-30	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25RNZC-50	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25RNZC-100	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25RNZC-150	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25RNZC-200	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25RNZC-250	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25RNZC-300	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25RNZC-350	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25RNZC-400	Motor layout: Right side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25RNYA-30	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25RNYA-50	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25RNYA-100	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25RNYA-150	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25RNYA-200	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25RNYA-250	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25RNYA-300	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25RNYA-350	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25RNYA-400	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25RNYB-30	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25RNYB-50	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25RNYB-100	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25RNYB-150	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25RNYB-200	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25RNYB-250	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25RNYB-300	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25RNYB-350	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25RNYB-400	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25RNYC-30	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25RNYC-50	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25RNYC-100	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25RNYC-150	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25RNYC-200	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25RNYC-250	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25RNYC-300	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25RNYC-350	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25RNYC-400	Motor layout: Right side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25RNXA-30	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25RNXA-50	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25RNXA-100	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25RNXA-150	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25RNXA-200	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25RNXA-250	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25RNXA-300	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25RNXA-350	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25RNXA-400	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25RNXB-30	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25RNXB-50	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25RNXB-100	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25RNXB-150	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25RNXB-200	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25RNXB-250	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25RNXB-300	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25RNXB-350	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25RNXB-400	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25RNXC-30	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25RNXC-50	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25RNXC-100	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25RNXC-150	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25RNXC-200	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25RNXC-250	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25RNXC-300	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25RNXC-350	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25RNXC-400	Motor layout: Right side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25RNM1A-30	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25RNM1A-50	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25RNM1A-100	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25RNM1A-150	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25RNM1A-200	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25RNM1A-250	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25RNM1A-300	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25RNM1A-350	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25RNM1A-400	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25RNM1B-30	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25RNM1B-50	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25RNM1B-100	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25RNM1B-150	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25RNM1B-200	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25RNM1B-250	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25RNM1B-300	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25RNM1B-350	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25RNM1B-400	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25RNM1C-30	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25RNM1C-50	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25RNM1C-100	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25RNM1C-150	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25RNM1C-200	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25RNM1C-250	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25RNM1C-300	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25RNM1C-350	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25RNM1C-400	Motor layout: Right side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25RNM2A-30	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25RNM2A-50	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25RNM2A-100	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25RNM2A-150	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25RNM2A-200	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25RNM2A-250	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25RNM2A-300	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25RNM2A-350	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25RNM2A-400	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25RNM2B-30	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25RNM2B-50	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25RNM2B-100	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25RNM2B-150	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25RNM2B-200	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25RNM2B-250	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25RNM2B-300	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25RNM2B-350	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25RNM2B-400	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25RNM2C-30	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25RNM2C-50	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25RNM2C-100	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25RNM2C-150	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25RNM2C-200	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25RNM2C-250	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25RNM2C-300	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25RNM2C-350	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25RNM2C-400	Motor layout: Right side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25RNM3A-30	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25RNM3A-50	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25RNM3A-100	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25RNM3A-150	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25RNM3A-200	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25RNM3A-250	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25RNM3A-300	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25RNM3A-350	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25RNM3A-400	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25RNM3B-30	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25RNM3B-50	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25RNM3B-100	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25RNM3B-150	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25RNM3B-200	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25RNM3B-250	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25RNM3B-300	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25RNM3B-350	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25RNM3B-400	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25RNM3C-30	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25RNM3C-50	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25RNM3C-100	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25RNM3C-150	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25RNM3C-200	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25RNM3C-250	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25RNM3C-300	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25RNM3C-350	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25RNM3C-400	Motor layout: Right side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25LNZA-30	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25LNZA-50	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25LNZA-100	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25LNZA-150	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25LNZA-200	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25LNZA-250	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25LNZA-300	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25LNZA-350	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25LNZA-400	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25LNZB-30	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25LNZB-50	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25LNZB-100	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25LNZB-150	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25LNZB-200	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25LNZB-250	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25LNZB-300	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25LNZB-350	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25LNZB-400	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25LNZC-30	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25LNZC-50	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25LNZC-100	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25LNZC-150	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25LNZC-200	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25LNZC-250	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25LNZC-300	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25LNZC-350	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25LNZC-400	Motor layout: Left side parallel \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25LNYA-30	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25LNYA-50	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25LNYA-100	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25LNYA-150	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25LNYA-200	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25LNYA-250	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25LNYA-300	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25LNYA-350	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25LNYA-400	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25LNYB-30	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25LNYB-50	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25LNYB-100	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25LNYB-150	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25LNYB-200	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25LNYB-250	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25LNYB-300	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25LNYB-350	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25LNYB-400	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25LNYC-30	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25LNYC-50	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25LNYC-100	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25LNYC-150	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25LNYC-200	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25LNYC-250	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25LNYC-300	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25LNYC-350	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25LNYC-400	Motor layout: Left side parallel \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25LNXA-30	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25LNXA-50	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25LNXA-100	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25LNXA-150	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25LNXA-200	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25LNXA-250	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25LNXA-300	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25LNXA-350	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25LNXA-400	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25LNXB-30	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25LNXB-50	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25LNXB-100	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25LNXB-150	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25LNXB-200	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25LNXB-250	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25LNXB-300	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25LNXB-350	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25LNXB-400	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25LNXC-30	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25LNXC-50	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25LNXC-100	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25LNXC-150	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25LNXC-200	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25LNXC-250	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25LNXC-300	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25LNXC-350	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25LNXC-400	Motor layout: Left side parallel \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25LNM1A-30	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25LNM1A-50	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25LNM1A-100	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25LNM1A-150	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25LNM1A-200	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25LNM1A-250	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25LNM1A-300	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25LNM1A-350	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25LNM1A-400	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25LNM1B-30	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25LNM1B-50	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25LNM1B-100	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25LNM1B-150	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25LNM1B-200	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25LNM1B-250	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25LNM1B-300	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25LNM1B-350	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25LNM1B-400	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25LNM1C-30	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25LNM1C-50	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25LNM1C-100	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25LNM1C-150	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25LNM1C-200	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25LNM1C-250	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25LNM1C-300	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25LNM1C-350	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25LNM1C-400	Motor layout: Left side parallel \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25LNM2A-30	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25LNM2A-50	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25LNM2A-100	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25LNM2A-150	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25LNM2A-200	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25LNM2A-250	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25LNM2A-300	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25LNM2A-350	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25LNM2A-400	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25LNM2B-30	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25LNM2B-50	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25LNM2B-100	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25LNM2B-150	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25LNM2B-200	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25LNM2B-250	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25LNM2B-300	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25LNM2B-350	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25LNM2B-400	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25LNM2C-30	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25LNM2C-50	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25LNM2C-100	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25LNM2C-150	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25LNM2C-200	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25LNM2C-250	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25LNM2C-300	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25LNM2C-350	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25LNM2C-400	Motor layout: Left side parallel \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25LNM3A-30	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25LNM3A-50	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25LNM3A-100	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25LNM3A-150	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25LNM3A-200	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25LNM3A-250	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25LNM3A-300	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25LNM3A-350	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25LNM3A-400	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25LNM3B-30	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25LNM3B-50	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25LNM3B-100	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25LNM3B-150	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25LNM3B-200	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25LNM3B-250	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25LNM3B-300	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25LNM3B-350	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25LNM3B-400	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25LNM3C-30	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25LNM3C-50	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25LNM3C-100	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25LNM3C-150	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25LNM3C-200	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25LNM3C-250	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25LNM3C-300	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25LNM3C-350	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25LNM3C-400	Motor layout: Left side parallel \| Motor mounting: NM3 (stepping: Minebea/Shinano) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25DNZA-30	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25DNZA-50	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25DNZA-100	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25DNZA-150	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25DNZA-200	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25DNZA-250	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25DNZA-300	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25DNZA-350	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25DNZA-400	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25DNZB-30	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25DNZB-50	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25DNZB-100	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25DNZB-150	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25DNZB-200	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25DNZB-250	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25DNZB-300	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25DNZB-350	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25DNZB-400	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25DNZC-30	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25DNZC-50	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25DNZC-100	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25DNZC-150	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25DNZC-200	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25DNZC-250	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25DNZC-300	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25DNZC-350	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25DNZC-400	Motor layout: Straight (in-line) \| Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25DNYA-30	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25DNYA-50	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25DNYA-100	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25DNYA-150	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25DNYA-200	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25DNYA-250	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25DNYA-300	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25DNYA-350	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25DNYA-400	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25DNYB-30	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25DNYB-50	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25DNYB-100	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25DNYB-150	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25DNYB-200	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25DNYB-250	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25DNYB-300	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25DNYB-350	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25DNYB-400	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25DNYC-30	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25DNYC-50	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25DNYC-100	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25DNYC-150	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25DNYC-200	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25DNYC-250	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25DNYC-300	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25DNYC-350	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25DNYC-400	Motor layout: Straight (in-line) \| Motor mounting: NY (Omron/Panasonic) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25DNXA-30	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25DNXA-50	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25DNXA-100	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25DNXA-150	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25DNXA-200	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25DNXA-250	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25DNXA-300	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25DNXA-350	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25DNXA-400	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25DNXB-30	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25DNXB-50	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25DNXB-100	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25DNXB-150	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25DNXB-200	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25DNXB-250	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25DNXB-300	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25DNXB-350	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25DNXB-400	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25DNXC-30	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25DNXC-50	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25DNXC-100	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25DNXC-150	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25DNXC-200	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25DNXC-250	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25DNXC-300	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25DNXC-350	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25DNXC-400	Motor layout: Straight (in-line) \| Motor mounting: NX (Siemens/Rockwell/Beckhoff) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25DNM1A-30	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25DNM1A-50	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25DNM1A-100	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25DNM1A-150	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25DNM1A-200	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25DNM1A-250	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25DNM1A-300	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25DNM1A-350	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25DNM1A-400	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25DNM1B-30	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25DNM1B-50	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25DNM1B-100	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25DNM1B-150	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25DNM1B-200	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25DNM1B-250	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25DNM1B-300	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25DNM1B-350	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25DNM1B-400	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25DNM1C-30	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25DNM1C-50	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25DNM1C-100	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25DNM1C-150	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25DNM1C-200	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25DNM1C-250	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25DNM1C-300	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25DNM1C-350	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25DNM1C-400	Motor layout: Straight (in-line) \| Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) \| Lead: 3 mm (C) \| Stroke: 400 mm
	LEY25DNM2A-30	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 30 mm
	LEY25DNM2A-50	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 50 mm
	LEY25DNM2A-100	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 100 mm
	LEY25DNM2A-150	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 150 mm
	LEY25DNM2A-200	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 200 mm
	LEY25DNM2A-250	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 250 mm
	LEY25DNM2A-300	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 300 mm
	LEY25DNM2A-350	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 350 mm
	LEY25DNM2A-400	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 12 mm (A) \| Stroke: 400 mm
	LEY25DNM2B-30	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 30 mm
	LEY25DNM2B-50	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 50 mm
	LEY25DNM2B-100	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 100 mm
	LEY25DNM2B-150	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 150 mm
	LEY25DNM2B-200	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 200 mm
	LEY25DNM2B-250	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 250 mm
	LEY25DNM2B-300	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 300 mm
	LEY25DNM2B-350	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 350 mm
	LEY25DNM2B-400	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 6 mm (B) \| Stroke: 400 mm
	LEY25DNM2C-30	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 30 mm
	LEY25DNM2C-50	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 50 mm
	LEY25DNM2C-100	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 100 mm
	LEY25DNM2C-150	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 150 mm
	LEY25DNM2C-200	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 200 mm
	LEY25DNM2C-250	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 250 mm
	LEY25DNM2C-300	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 300 mm
	LEY25DNM2C-350	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 350 mm
	LEY25DNM2C-400	Motor layout: Straight (in-line) \| Motor mounting: NM2 (Oriental Motor alphaSTEP) \| Lead: 3 mm (C) \| Stroke: 400 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEY25 Electric Actuator, Rod Type, Motorless
