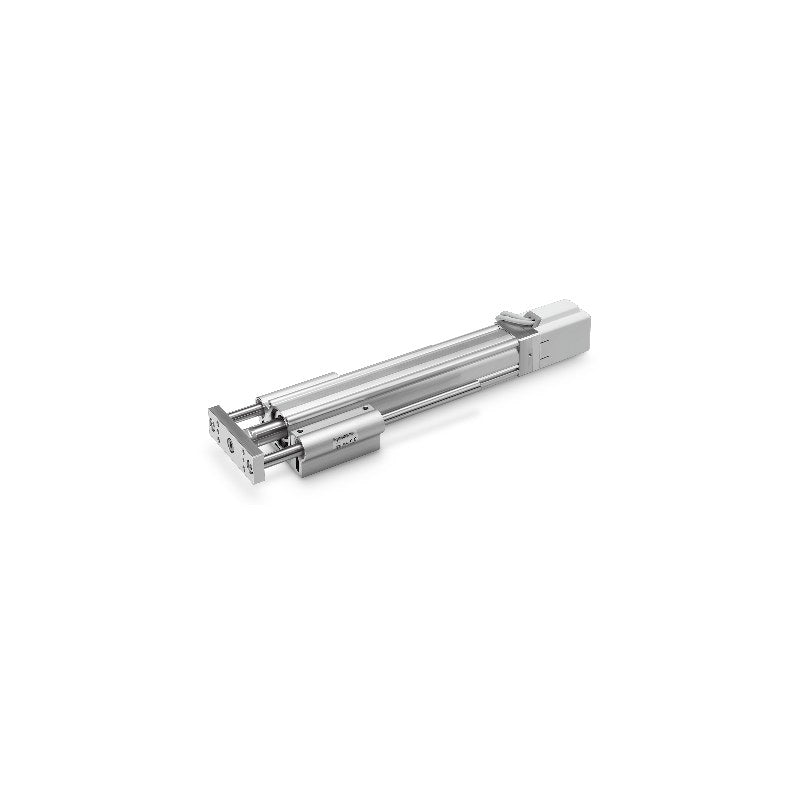

SMC LEYG Battery-less Absolute Guide Rod Electric Actuator (16-40)

SMC LEYG guide rod type electric actuator with battery-less absolute encoder step motor (DC24V), sizes 16 to 40, with sliding or ball bushing guide bearings.

Key features

Battery-less absolute encoder: position retained at power off, no backup battery maintenance
Integrated guide rods and plate for lateral load resistance; sliding (M) or ball bushing (L) bearings
Top-mounted parallel or in-line motor; motor cover (C) or lock with cover (W)
Grease retaining guide option (F, sliding bearing on 25/32/40) and auto switches are ordered separately
Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Drive	Ball screw + belt (parallel), ball screw (in-line)
Pushing force	14 to 1,058 N depending on size and lead
Repeatability	±0.02 mm
Lost motion	0.1 mm or less
Max. acceleration/deceleration	3,000 mm/s²
Motor size	28 (16), 42 (25), 56.4 (32, 40)
Motor	Battery-less absolute encoder step motor (servo/DC24V)
Encoder	Battery-less absolute (position held at power off)
Power supply voltage	DC24V ±10%
Source	SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 79-81 (PDF p. 80-82)

LEYG16MEA-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MEA-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MEA-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MEA-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MEA-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MEA-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MEA-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MEA-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MEA-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MEA-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MEB-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MEB-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MEB-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MEB-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MEB-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MEB-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MEB-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MEB-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MEB-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MEB-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MEC-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MEC-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MEC-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MEC-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MEC-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MEC-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MEC-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MEC-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MEC-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MEC-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD1EA-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD1EA-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD1EA-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD1EA-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD1EA-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD1EA-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD1EA-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD1EA-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD1EA-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD1EA-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD1EB-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD1EB-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD1EB-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD1EB-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD1EB-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD1EB-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD1EB-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD1EB-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD1EB-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD1EB-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD1EC-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD1EC-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD1EC-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD1EC-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD1EC-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD1EC-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD1EC-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD1EC-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD1EC-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD1EC-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD2EA-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD2EA-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD2EA-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD2EA-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD2EA-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD2EA-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD2EA-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD2EA-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD2EA-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD2EA-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD2EB-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD2EB-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD2EB-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD2EB-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD2EB-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD2EB-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD2EB-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD2EB-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD2EB-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD2EB-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD2EC-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD2EC-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD2EC-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD2EC-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD2EC-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD2EC-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD2EC-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD2EC-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD2EC-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD2EC-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD3EA-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD3EA-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD3EA-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD3EA-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD3EA-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD3EA-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD3EA-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD3EA-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD3EA-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD3EA-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD3EB-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD3EB-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD3EB-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD3EB-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD3EB-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD3EB-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD3EB-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD3EB-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD3EB-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD3EB-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD3EC-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD3EC-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD3EC-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD3EC-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD3EC-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD3EC-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD3EC-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD3EC-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD3EC-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD3EC-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD4EA-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD4EA-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD4EA-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD4EA-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD4EA-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD4EA-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD4EA-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD4EA-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD4EA-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD4EA-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD4EB-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD4EB-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD4EB-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD4EB-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD4EB-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD4EB-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD4EB-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD4EB-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD4EB-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD4EB-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16MD4EC-30C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16MD4EC-30W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16MD4EC-50C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16MD4EC-50W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16MD4EC-100C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16MD4EC-100W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16MD4EC-150C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16MD4EC-150W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16MD4EC-200C		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16MD4EC-200W		Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LEA-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LEA-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LEA-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LEA-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LEA-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LEA-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LEA-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LEA-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LEA-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LEA-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LEB-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LEB-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LEB-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LEB-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LEB-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LEB-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LEB-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LEB-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LEB-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LEB-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LEC-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LEC-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LEC-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LEC-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LEC-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LEC-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LEC-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LEC-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LEC-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LEC-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD1EA-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD1EA-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD1EA-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD1EA-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD1EA-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD1EA-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD1EA-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD1EA-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD1EA-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD1EA-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD1EB-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD1EB-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD1EB-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD1EB-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD1EB-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD1EB-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD1EB-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD1EB-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD1EB-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD1EB-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD1EC-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD1EC-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD1EC-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD1EC-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD1EC-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD1EC-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD1EC-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD1EC-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD1EC-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD1EC-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD2EA-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD2EA-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD2EA-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD2EA-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD2EA-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD2EA-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD2EA-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD2EA-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD2EA-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD2EA-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD2EB-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD2EB-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD2EB-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD2EB-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD2EB-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD2EB-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD2EB-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD2EB-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD2EB-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD2EB-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD2EC-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD2EC-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD2EC-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD2EC-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD2EC-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD2EC-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD2EC-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD2EC-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD2EC-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD2EC-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD3EA-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD3EA-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD3EA-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD3EA-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD3EA-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD3EA-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD3EA-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD3EA-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD3EA-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD3EA-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD3EB-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD3EB-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD3EB-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD3EB-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD3EB-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD3EB-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD3EB-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD3EB-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD3EB-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD3EB-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD3EC-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD3EC-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD3EC-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD3EC-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD3EC-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD3EC-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD3EC-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD3EC-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD3EC-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD3EC-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD4EA-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD4EA-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD4EA-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD4EA-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD4EA-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD4EA-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD4EA-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD4EA-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD4EA-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD4EA-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD4EB-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD4EB-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD4EB-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD4EB-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD4EB-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD4EB-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD4EB-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD4EB-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD4EB-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD4EB-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG16LD4EC-30C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG16LD4EC-30W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG16LD4EC-50C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG16LD4EC-50W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG16LD4EC-100C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG16LD4EC-100W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG16LD4EC-150C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG16LD4EC-150W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG16LD4EC-200C		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG16LD4EC-200W		Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MEA-30C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25MEA-30W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25MEA-50C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25MEA-50W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25MEA-100C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25MEA-100W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25MEA-150C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25MEA-150W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25MEA-200C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25MEA-200W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MEA-250C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25MEA-250W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25MEA-300C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25MEA-300W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25MEB-30C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25MEB-30W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25MEB-50C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25MEB-50W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25MEB-100C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25MEB-100W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25MEB-150C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25MEB-150W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25MEB-200C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25MEB-200W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MEB-250C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25MEB-250W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25MEB-300C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25MEB-300W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25MEC-30C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25MEC-30W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25MEC-50C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25MEC-50W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25MEC-100C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25MEC-100W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25MEC-150C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25MEC-150W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25MEC-200C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25MEC-200W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MEC-250C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25MEC-250W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25MEC-300C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25MEC-300W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25MDEA-30C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25MDEA-30W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25MDEA-50C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25MDEA-50W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25MDEA-100C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25MDEA-100W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25MDEA-150C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25MDEA-150W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25MDEA-200C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25MDEA-200W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MDEA-250C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25MDEA-250W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25MDEA-300C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25MDEA-300W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25MDEB-30C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25MDEB-30W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25MDEB-50C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25MDEB-50W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25MDEB-100C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25MDEB-100W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25MDEB-150C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25MDEB-150W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25MDEB-200C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25MDEB-200W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MDEB-250C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25MDEB-250W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25MDEB-300C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25MDEB-300W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25MDEC-30C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25MDEC-30W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25MDEC-50C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25MDEC-50W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25MDEC-100C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25MDEC-100W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25MDEC-150C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25MDEC-150W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25MDEC-200C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25MDEC-200W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25MDEC-250C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25MDEC-250W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25MDEC-300C		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25MDEC-300W		Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25LEA-30C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25LEA-30W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25LEA-50C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25LEA-50W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25LEA-100C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25LEA-100W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25LEA-150C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25LEA-150W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25LEA-200C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25LEA-200W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25LEA-250C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25LEA-250W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25LEA-300C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25LEA-300W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25LEB-30C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25LEB-30W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25LEB-50C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25LEB-50W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25LEB-100C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25LEB-100W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25LEB-150C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25LEB-150W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25LEB-200C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25LEB-200W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25LEB-250C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25LEB-250W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25LEB-300C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25LEB-300W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25LEC-30C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25LEC-30W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25LEC-50C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25LEC-50W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25LEC-100C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25LEC-100W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25LEC-150C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25LEC-150W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25LEC-200C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25LEC-200W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25LEC-250C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25LEC-250W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25LEC-300C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25LEC-300W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25LDEA-30C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25LDEA-30W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25LDEA-50C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25LDEA-50W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25LDEA-100C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25LDEA-100W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25LDEA-150C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25LDEA-150W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25LDEA-200C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25LDEA-200W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25LDEA-250C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25LDEA-250W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25LDEA-300C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25LDEA-300W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25LDEB-30C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25LDEB-30W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25LDEB-50C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25LDEB-50W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25LDEB-100C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25LDEB-100W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25LDEB-150C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25LDEB-150W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25LDEB-200C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25LDEB-200W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25LDEB-250C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25LDEB-250W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25LDEB-300C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25LDEB-300W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG25LDEC-30C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG25LDEC-30W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG25LDEC-50C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG25LDEC-50W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG25LDEC-100C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG25LDEC-100W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG25LDEC-150C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG25LDEC-150W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG25LDEC-200C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG25LDEC-200W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG25LDEC-250C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG25LDEC-250W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG25LDEC-300C		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG25LDEC-300W		Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32MEA-30C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32MEA-30W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32MEA-50C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32MEA-50W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32MEA-100C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32MEA-100W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32MEA-150C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32MEA-150W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32MEA-200C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32MEA-200W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32MEA-250C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32MEA-250W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32MEA-300C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32MEA-300W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32MEB-30C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32MEB-30W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32MEB-50C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32MEB-50W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32MEB-100C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32MEB-100W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32MEB-150C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32MEB-150W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32MEB-200C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32MEB-200W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32MEB-250C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32MEB-250W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32MEB-300C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32MEB-300W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32MEC-30C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32MEC-30W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32MEC-50C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32MEC-50W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32MEC-100C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32MEC-100W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32MEC-150C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32MEC-150W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32MEC-200C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32MEC-200W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32MEC-250C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32MEC-250W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32MEC-300C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32MEC-300W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32MDEA-30C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32MDEA-30W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32MDEA-50C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32MDEA-50W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32MDEA-100C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32MDEA-100W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32MDEA-150C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32MDEA-150W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32MDEA-200C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32MDEA-200W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32MDEA-250C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32MDEA-250W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32MDEA-300C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32MDEA-300W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32MDEB-30C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32MDEB-30W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32MDEB-50C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32MDEB-50W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32MDEB-100C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32MDEB-100W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32MDEB-150C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32MDEB-150W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32MDEB-200C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32MDEB-200W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32MDEB-250C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32MDEB-250W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32MDEB-300C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32MDEB-300W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32MDEC-30C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32MDEC-30W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32MDEC-50C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32MDEC-50W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32MDEC-100C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32MDEC-100W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32MDEC-150C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32MDEC-150W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32MDEC-200C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32MDEC-200W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32MDEC-250C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32MDEC-250W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32MDEC-300C		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32MDEC-300W		Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32LEA-30C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32LEA-30W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32LEA-50C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32LEA-50W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32LEA-100C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32LEA-100W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32LEA-150C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32LEA-150W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32LEA-200C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32LEA-200W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32LEA-250C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32LEA-250W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32LEA-300C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32LEA-300W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32LEB-30C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32LEB-30W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32LEB-50C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32LEB-50W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32LEB-100C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32LEB-100W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32LEB-150C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32LEB-150W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32LEB-200C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32LEB-200W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32LEB-250C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32LEB-250W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32LEB-300C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32LEB-300W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32LEC-30C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32LEC-30W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32LEC-50C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32LEC-50W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32LEC-100C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32LEC-100W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32LEC-150C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32LEC-150W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32LEC-200C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32LEC-200W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32LEC-250C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32LEC-250W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32LEC-300C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32LEC-300W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32LDEA-30C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32LDEA-30W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32LDEA-50C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32LDEA-50W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32LDEA-100C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32LDEA-100W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32LDEA-150C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32LDEA-150W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32LDEA-200C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32LDEA-200W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32LDEA-250C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32LDEA-250W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32LDEA-300C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32LDEA-300W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32LDEB-30C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32LDEB-30W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32LDEB-50C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32LDEB-50W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32LDEB-100C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32LDEB-100W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32LDEB-150C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32LDEB-150W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32LDEB-200C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32LDEB-200W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32LDEB-250C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32LDEB-250W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32LDEB-300C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32LDEB-300W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG32LDEC-30C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG32LDEC-30W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG32LDEC-50C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG32LDEC-50W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG32LDEC-100C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG32LDEC-100W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG32LDEC-150C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG32LDEC-150W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG32LDEC-200C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG32LDEC-200W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG32LDEC-250C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG32LDEC-250W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG32LDEC-300C		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG32LDEC-300W		Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40MEA-30C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40MEA-30W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40MEA-50C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40MEA-50W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40MEA-100C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40MEA-100W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40MEA-150C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40MEA-150W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40MEA-200C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40MEA-200W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40MEA-250C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40MEA-250W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40MEA-300C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40MEA-300W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40MEB-30C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40MEB-30W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40MEB-50C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40MEB-50W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40MEB-100C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40MEB-100W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40MEB-150C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40MEB-150W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40MEB-200C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40MEB-200W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40MEB-250C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40MEB-250W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40MEB-300C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40MEB-300W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40MEC-30C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40MEC-30W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40MEC-50C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40MEC-50W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40MEC-100C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40MEC-100W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40MEC-150C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40MEC-150W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40MEC-200C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40MEC-200W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40MEC-250C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40MEC-250W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40MEC-300C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40MEC-300W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40MDEA-30C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40MDEA-30W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40MDEA-50C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40MDEA-50W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40MDEA-100C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40MDEA-100W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40MDEA-150C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40MDEA-150W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40MDEA-200C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40MDEA-200W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40MDEA-250C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40MDEA-250W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40MDEA-300C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40MDEA-300W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40MDEB-30C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40MDEB-30W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40MDEB-50C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40MDEB-50W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40MDEB-100C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40MDEB-100W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40MDEB-150C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40MDEB-150W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40MDEB-200C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40MDEB-200W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40MDEB-250C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40MDEB-250W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40MDEB-300C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40MDEB-300W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40MDEC-30C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40MDEC-30W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40MDEC-50C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40MDEC-50W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40MDEC-100C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40MDEC-100W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40MDEC-150C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40MDEC-150W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40MDEC-200C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40MDEC-200W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40MDEC-250C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40MDEC-250W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40MDEC-300C		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40MDEC-300W		Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40LEA-30C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40LEA-30W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40LEA-50C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40LEA-50W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40LEA-100C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40LEA-100W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40LEA-150C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40LEA-150W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40LEA-200C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40LEA-200W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40LEA-250C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40LEA-250W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40LEA-300C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40LEA-300W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40LEB-30C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40LEB-30W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40LEB-50C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40LEB-50W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40LEB-100C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40LEB-100W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40LEB-150C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40LEB-150W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40LEB-200C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40LEB-200W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40LEB-250C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40LEB-250W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40LEB-300C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40LEB-300W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40LEC-30C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40LEC-30W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40LEC-50C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40LEC-50W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40LEC-100C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40LEC-100W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40LEC-150C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40LEC-150W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40LEC-200C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40LEC-200W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40LEC-250C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40LEC-250W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40LEC-300C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40LEC-300W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40LDEA-30C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40LDEA-30W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40LDEA-50C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40LDEA-50W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40LDEA-100C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40LDEA-100W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40LDEA-150C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40LDEA-150W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40LDEA-200C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40LDEA-200W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40LDEA-250C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40LDEA-250W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40LDEA-300C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40LDEA-300W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40LDEB-30C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40LDEB-30W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40LDEB-50C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40LDEB-50W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40LDEB-100C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40LDEB-100W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40LDEB-150C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40LDEB-150W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40LDEB-200C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40LDEB-200W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40LDEB-250C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40LDEB-250W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40LDEB-300C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40LDEB-300W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
LEYG40LDEC-30C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
LEYG40LDEC-30W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
LEYG40LDEC-50C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
LEYG40LDEC-50W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
LEYG40LDEC-100C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
LEYG40LDEC-100W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
LEYG40LDEC-150C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
LEYG40LDEC-150W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
LEYG40LDEC-200C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
LEYG40LDEC-200W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
LEYG40LDEC-250C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
LEYG40LDEC-250W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
LEYG40LDEC-300C		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
LEYG40LDEC-300W		Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover

Electric ActuatorsSMC

804 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEYG Battery-less Absolute Guide Rod Electric Actuator (16-40)

Brand SMC·Electric Actuators

Available part numbers (804)

LEYG16MEA-30C, LEYG16MEA-30W, LEYG16MEA-50C, LEYG16MEA-50W, LEYG16MEA-100C, LEYG16MEA-100W, LEYG16MEA-150C, LEYG16MEA-150W, LEYG16MEA-200C, LEYG16MEA-200W + 794 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEYG16MEA-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MEA-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MEA-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MEA-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MEA-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MEA-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MEA-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MEA-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MEA-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MEA-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MEB-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MEB-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MEB-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MEB-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MEB-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MEB-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MEB-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MEB-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MEB-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MEB-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MEC-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MEC-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MEC-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MEC-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MEC-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MEC-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MEC-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MEC-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MEC-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MEC-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD1EA-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD1EA-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD1EA-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD1EA-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD1EA-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD1EA-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD1EA-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD1EA-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD1EA-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD1EA-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD1EB-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD1EB-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD1EB-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD1EB-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD1EB-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD1EB-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD1EB-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD1EB-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD1EB-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD1EB-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD1EC-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD1EC-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD1EC-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD1EC-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD1EC-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD1EC-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD1EC-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD1EC-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD1EC-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD1EC-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD2EA-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD2EA-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD2EA-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD2EA-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD2EA-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD2EA-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD2EA-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD2EA-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD2EA-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD2EA-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD2EB-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD2EB-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD2EB-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD2EB-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD2EB-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD2EB-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD2EB-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD2EB-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD2EB-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD2EB-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD2EC-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD2EC-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD2EC-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD2EC-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD2EC-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD2EC-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD2EC-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD2EC-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD2EC-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD2EC-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD3EA-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD3EA-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD3EA-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD3EA-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD3EA-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD3EA-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD3EA-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD3EA-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD3EA-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD3EA-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD3EB-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD3EB-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD3EB-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD3EB-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD3EB-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD3EB-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD3EB-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD3EB-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD3EB-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD3EB-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD3EC-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD3EC-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD3EC-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD3EC-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD3EC-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD3EC-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD3EC-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD3EC-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD3EC-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD3EC-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD4EA-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD4EA-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD4EA-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD4EA-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD4EA-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD4EA-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD4EA-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD4EA-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD4EA-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD4EA-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD4EB-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD4EB-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD4EB-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD4EB-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD4EB-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD4EB-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD4EB-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD4EB-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD4EB-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD4EB-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16MD4EC-30C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16MD4EC-30W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16MD4EC-50C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16MD4EC-50W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16MD4EC-100C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16MD4EC-100W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16MD4EC-150C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16MD4EC-150W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16MD4EC-200C	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16MD4EC-200W	Size: 16 \| Bearing: Sliding bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LEA-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LEA-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LEA-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LEA-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LEA-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LEA-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LEA-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LEA-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LEA-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LEA-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LEB-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LEB-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LEB-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LEB-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LEB-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LEB-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LEB-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LEB-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LEB-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LEB-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LEC-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LEC-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LEC-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LEC-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LEC-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LEC-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LEC-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LEC-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LEC-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LEC-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD1EA-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD1EA-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD1EA-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD1EA-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD1EA-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD1EA-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD1EA-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD1EA-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD1EA-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD1EA-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD1EB-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD1EB-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD1EB-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD1EB-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD1EB-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD1EB-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD1EB-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD1EB-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD1EB-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD1EB-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD1EC-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD1EC-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD1EC-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD1EC-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD1EC-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD1EC-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD1EC-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD1EC-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD1EC-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD1EC-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD2EA-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD2EA-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD2EA-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD2EA-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD2EA-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD2EA-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD2EA-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD2EA-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD2EA-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD2EA-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD2EB-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD2EB-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD2EB-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD2EB-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD2EB-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD2EB-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD2EB-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD2EB-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD2EB-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD2EB-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD2EC-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD2EC-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD2EC-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD2EC-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD2EC-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD2EC-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD2EC-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD2EC-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD2EC-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD2EC-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD3EA-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD3EA-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD3EA-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD3EA-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD3EA-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD3EA-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD3EA-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD3EA-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD3EA-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD3EA-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD3EB-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD3EB-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD3EB-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD3EB-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD3EB-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD3EB-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD3EB-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD3EB-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD3EB-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD3EB-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD3EC-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD3EC-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD3EC-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD3EC-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD3EC-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD3EC-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD3EC-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD3EC-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD3EC-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD3EC-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD4EA-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD4EA-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD4EA-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD4EA-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD4EA-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD4EA-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD4EA-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD4EA-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD4EA-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD4EA-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD4EB-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD4EB-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD4EB-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD4EB-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD4EB-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD4EB-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD4EB-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD4EB-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD4EB-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD4EB-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG16LD4EC-30C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG16LD4EC-30W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG16LD4EC-50C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG16LD4EC-50W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG16LD4EC-100C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG16LD4EC-100W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG16LD4EC-150C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG16LD4EC-150W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG16LD4EC-200C	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG16LD4EC-200W	Size: 16 \| Bearing: Ball bushing bearing \| Motor mounting: In-line, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MEA-30C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25MEA-30W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25MEA-50C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25MEA-50W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25MEA-100C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25MEA-100W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25MEA-150C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25MEA-150W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25MEA-200C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25MEA-200W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MEA-250C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25MEA-250W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25MEA-300C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25MEA-300W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25MEB-30C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25MEB-30W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25MEB-50C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25MEB-50W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25MEB-100C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25MEB-100W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25MEB-150C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25MEB-150W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25MEB-200C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25MEB-200W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MEB-250C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25MEB-250W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25MEB-300C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25MEB-300W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25MEC-30C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25MEC-30W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25MEC-50C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25MEC-50W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25MEC-100C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25MEC-100W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25MEC-150C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25MEC-150W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25MEC-200C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25MEC-200W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MEC-250C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25MEC-250W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25MEC-300C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25MEC-300W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-30C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25MDEA-30W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-50C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25MDEA-50W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-100C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25MDEA-100W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-150C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25MDEA-150W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-200C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25MDEA-200W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-250C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25MDEA-250W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25MDEA-300C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25MDEA-300W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-30C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25MDEB-30W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-50C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25MDEB-50W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-100C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25MDEB-100W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-150C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25MDEB-150W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-200C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25MDEB-200W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-250C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25MDEB-250W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25MDEB-300C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25MDEB-300W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-30C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25MDEC-30W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-50C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25MDEC-50W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-100C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25MDEC-100W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-150C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25MDEC-150W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-200C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25MDEC-200W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-250C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25MDEC-250W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25MDEC-300C	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25MDEC-300W	Size: 25 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25LEA-30C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25LEA-30W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25LEA-50C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25LEA-50W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25LEA-100C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25LEA-100W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25LEA-150C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25LEA-150W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25LEA-200C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25LEA-200W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25LEA-250C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25LEA-250W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25LEA-300C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25LEA-300W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25LEB-30C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25LEB-30W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25LEB-50C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25LEB-50W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25LEB-100C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25LEB-100W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25LEB-150C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25LEB-150W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25LEB-200C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25LEB-200W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25LEB-250C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25LEB-250W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25LEB-300C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25LEB-300W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25LEC-30C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25LEC-30W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25LEC-50C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25LEC-50W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25LEC-100C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25LEC-100W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25LEC-150C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25LEC-150W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25LEC-200C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25LEC-200W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25LEC-250C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25LEC-250W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25LEC-300C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25LEC-300W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-30C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25LDEA-30W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-50C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25LDEA-50W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-100C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25LDEA-100W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-150C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25LDEA-150W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-200C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25LDEA-200W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-250C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25LDEA-250W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25LDEA-300C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25LDEA-300W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-30C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25LDEB-30W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-50C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25LDEB-50W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-100C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25LDEB-100W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-150C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25LDEB-150W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-200C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25LDEB-200W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-250C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25LDEB-250W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25LDEB-300C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25LDEB-300W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-30C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG25LDEC-30W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-50C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG25LDEC-50W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-100C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG25LDEC-100W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-150C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG25LDEC-150W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-200C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG25LDEC-200W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-250C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG25LDEC-250W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG25LDEC-300C	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG25LDEC-300W	Size: 25 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32MEA-30C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32MEA-30W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32MEA-50C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32MEA-50W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32MEA-100C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32MEA-100W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32MEA-150C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32MEA-150W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32MEA-200C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32MEA-200W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32MEA-250C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32MEA-250W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32MEA-300C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32MEA-300W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32MEB-30C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32MEB-30W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32MEB-50C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32MEB-50W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32MEB-100C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32MEB-100W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32MEB-150C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32MEB-150W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32MEB-200C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32MEB-200W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32MEB-250C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32MEB-250W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32MEB-300C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32MEB-300W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32MEC-30C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32MEC-30W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32MEC-50C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32MEC-50W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32MEC-100C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32MEC-100W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32MEC-150C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32MEC-150W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32MEC-200C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32MEC-200W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32MEC-250C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32MEC-250W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32MEC-300C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32MEC-300W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-30C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32MDEA-30W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-50C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32MDEA-50W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-100C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32MDEA-100W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-150C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32MDEA-150W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-200C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32MDEA-200W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-250C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32MDEA-250W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32MDEA-300C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32MDEA-300W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-30C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32MDEB-30W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-50C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32MDEB-50W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-100C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32MDEB-100W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-150C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32MDEB-150W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-200C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32MDEB-200W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-250C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32MDEB-250W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32MDEB-300C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32MDEB-300W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-30C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32MDEC-30W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-50C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32MDEC-50W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-100C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32MDEC-100W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-150C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32MDEC-150W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-200C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32MDEC-200W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-250C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32MDEC-250W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32MDEC-300C	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32MDEC-300W	Size: 32 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32LEA-30C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32LEA-30W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32LEA-50C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32LEA-50W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32LEA-100C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32LEA-100W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32LEA-150C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32LEA-150W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32LEA-200C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32LEA-200W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32LEA-250C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32LEA-250W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32LEA-300C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32LEA-300W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32LEB-30C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32LEB-30W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32LEB-50C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32LEB-50W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32LEB-100C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32LEB-100W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32LEB-150C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32LEB-150W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32LEB-200C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32LEB-200W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32LEB-250C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32LEB-250W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32LEB-300C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32LEB-300W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32LEC-30C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32LEC-30W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32LEC-50C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32LEC-50W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32LEC-100C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32LEC-100W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32LEC-150C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32LEC-150W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32LEC-200C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32LEC-200W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32LEC-250C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32LEC-250W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32LEC-300C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32LEC-300W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-30C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32LDEA-30W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-50C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32LDEA-50W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-100C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32LDEA-100W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-150C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32LDEA-150W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-200C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32LDEA-200W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-250C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32LDEA-250W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32LDEA-300C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32LDEA-300W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-30C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32LDEB-30W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-50C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32LDEB-50W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-100C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32LDEB-100W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-150C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32LDEB-150W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-200C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32LDEB-200W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-250C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32LDEB-250W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32LDEB-300C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32LDEB-300W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-30C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG32LDEC-30W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-50C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG32LDEC-50W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-100C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG32LDEC-100W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-150C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG32LDEC-150W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-200C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG32LDEC-200W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-250C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG32LDEC-250W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG32LDEC-300C	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG32LDEC-300W	Size: 32 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40MEA-30C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40MEA-30W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40MEA-50C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40MEA-50W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40MEA-100C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40MEA-100W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40MEA-150C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40MEA-150W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40MEA-200C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40MEA-200W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40MEA-250C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40MEA-250W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40MEA-300C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40MEA-300W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40MEB-30C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40MEB-30W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40MEB-50C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40MEB-50W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40MEB-100C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40MEB-100W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40MEB-150C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40MEB-150W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40MEB-200C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40MEB-200W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40MEB-250C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40MEB-250W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40MEB-300C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40MEB-300W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40MEC-30C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40MEC-30W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40MEC-50C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40MEC-50W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40MEC-100C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40MEC-100W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40MEC-150C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40MEC-150W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40MEC-200C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40MEC-200W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40MEC-250C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40MEC-250W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40MEC-300C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40MEC-300W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-30C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40MDEA-30W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-50C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40MDEA-50W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-100C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40MDEA-100W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-150C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40MDEA-150W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-200C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40MDEA-200W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-250C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40MDEA-250W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40MDEA-300C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40MDEA-300W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-30C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40MDEB-30W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-50C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40MDEB-50W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-100C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40MDEB-100W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-150C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40MDEB-150W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-200C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40MDEB-200W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-250C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40MDEB-250W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40MDEB-300C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40MDEB-300W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-30C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40MDEC-30W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-50C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40MDEC-50W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-100C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40MDEC-100W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-150C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40MDEC-150W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-200C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40MDEC-200W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-250C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40MDEC-250W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40MDEC-300C	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40MDEC-300W	Size: 40 \| Bearing: Sliding bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40LEA-30C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40LEA-30W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40LEA-50C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40LEA-50W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40LEA-100C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40LEA-100W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40LEA-150C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40LEA-150W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40LEA-200C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40LEA-200W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40LEA-250C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40LEA-250W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40LEA-300C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40LEA-300W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40LEB-30C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40LEB-30W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40LEB-50C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40LEB-50W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40LEB-100C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40LEB-100W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40LEB-150C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40LEB-150W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40LEB-200C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40LEB-200W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40LEB-250C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40LEB-250W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40LEB-300C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40LEB-300W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40LEC-30C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40LEC-30W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40LEC-50C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40LEC-50W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40LEC-100C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40LEC-100W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40LEC-150C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40LEC-150W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40LEC-200C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40LEC-200W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40LEC-250C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40LEC-250W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40LEC-300C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40LEC-300W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: Top side parallel \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-30C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40LDEA-30W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-50C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40LDEA-50W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-100C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40LDEA-100W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-150C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40LDEA-150W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-200C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40LDEA-200W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-250C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40LDEA-250W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40LDEA-300C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40LDEA-300W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-30C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40LDEB-30W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-50C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40LDEB-50W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-100C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40LDEB-100W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-150C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40LDEB-150W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-200C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40LDEB-200W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-250C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40LDEB-250W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40LDEB-300C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40LDEB-300W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-30C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With motor cover
	LEYG40LDEC-30W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-50C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With motor cover
	LEYG40LDEC-50W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-100C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With motor cover
	LEYG40LDEC-100W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-150C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With motor cover
	LEYG40LDEC-150W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-200C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With motor cover
	LEYG40LDEC-200W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-250C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With motor cover
	LEYG40LDEC-250W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock and motor cover
	LEYG40LDEC-300C	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With motor cover
	LEYG40LDEC-300W	Size: 40 \| Bearing: Ball bushing bearing \| Motor mounting: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock and motor cover

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEYG Battery-less Absolute Guide Rod Electric Actuator (16-40)
