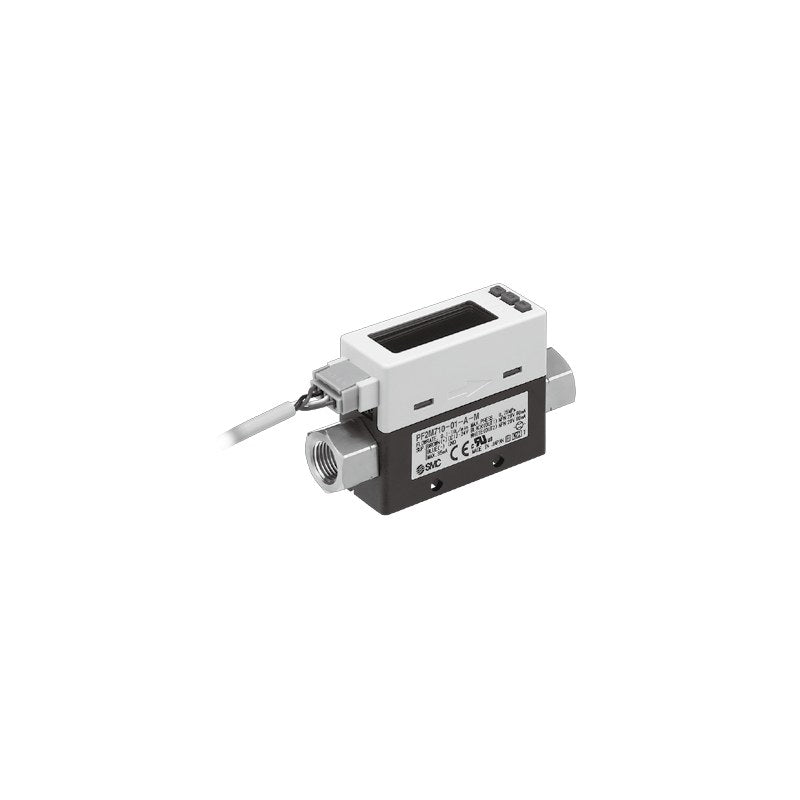

SMC PF2M7 / PF2M7-L 2-Color Digital Flow Switch (0.01 to 200 L/min)

SMC PF2M7 / PF2M7-L 2-Color Digital Flow Switch (0.01 to 200 L/min)

SMC PF2M7 series integrated-display 2-color digital flow switch for dry air, N2, Ar and CO2, covering 0.01 to 200 L/min in eight ranges, with optional flow adjustment valve and IO-Link version (PF2M7-L).

Key features

  • Thermal MEMS sensing, range ability 100:1; bypass structure resists moisture and foreign matter (5 L/min types and up)
  • Eight rated flow ranges from 0.01-1 L/min to 2-200 L/min; flow adjustment valve (S/W) on 5 L/min types and up
  • Straight or bottom piping entry; Rc female thread or one-touch fittings (ø6 up to 50 L/min, ø8 for 100/200 L/min)
  • Outputs: dual NPN/PNP switch or switch + analog 1-5V/0-10V or 4-20mA; PF2M7-L adds IO-Link with diagnostic data
  • Options ordered as suffixes: lead wire with connector 2 m (standard), with rubber cover (W), none (N), M12 conversion cable (Q, -L only); bracket (R/S), panel mount adapter (T/V); DIN rail kit ZS-33-R; calibration certificate (A)
  • NPT/G threads, ø4 and ø1/4" fittings and Ar/CO2 mixed gas version (-X731) available on order; compatible with PFGM302 remote monitor

Specifications

Applicable fluid Dry air, N2, Ar, CO2 (ISO8573-1 1.1.2 to 1.6.2)
Detection method Thermal type
Fluid / operating temperature 0 to 50°C
Operating pressure range -0.1 to 0.75 MPa (proof 1.0 MPa)
Power supply DC12 to 24V ±10% (IO-Link: DC18 to 30V)
Current consumption 35 mA or less
Accuracy Display ±3% F.S. ±1 digit, repeatability ±1% F.S. ±1 digit
Switch output NPN/PNP open collector, max. 80 mA, response 50 ms or less
Display 2-color (red/green) LCD, 4 digits
Enclosure IP40
Standards CE/UKCA, UL (CSA)
Unit SI unit fixed (M): L/min, L
Source SMC Korea catalog CAT.KS100-127D (SMCKR_PF2M7-L.pdf), p. 11-13 (PDF p. 12-14)
PF2M701-01-A-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M701-01-B-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M701-01-C-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M701-01-D-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M701-01-E-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M701-01-F-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M701-C6-A-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M701-C6-B-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M701-C6-C-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M701-C6-D-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M701-C6-E-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M701-C6-F-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M701L-01-A-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M701L-01-B-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M701L-01-C-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M701L-01-D-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M701L-01-E-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M701L-01-F-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M701L-C6-A-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M701L-C6-B-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M701L-C6-C-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M701L-C6-D-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M701L-C6-E-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M701L-C6-F-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M702-01-A-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M702-01-B-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M702-01-C-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M702-01-D-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M702-01-E-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M702-01-F-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M702-C6-A-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M702-C6-B-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M702-C6-C-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M702-C6-D-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M702-C6-E-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M702-C6-F-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M702L-01-A-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M702L-01-B-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M702L-01-C-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M702L-01-D-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M702L-01-E-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M702L-01-F-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M702L-C6-A-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M702L-C6-B-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M702L-C6-C-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M702L-C6-D-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M702L-C6-E-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M702L-C6-F-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705-01-A-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M705-01-B-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M705-01-C-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705-01-D-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705-01-E-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705-01-F-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705-C6-A-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M705-C6-B-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M705-C6-C-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705-C6-D-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705-C6-E-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705-C6-F-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705S-01-A-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M705S-01-B-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M705S-01-C-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705S-01-D-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705S-01-E-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705S-01-F-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705S-C6-A-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M705S-C6-B-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M705S-C6-C-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705S-C6-D-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705S-C6-E-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705S-C6-F-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705L-01-A-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M705L-01-B-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M705L-01-C-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705L-01-D-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705L-01-E-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705L-01-F-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705L-C6-A-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M705L-C6-B-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M705L-C6-C-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705L-C6-D-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705L-C6-E-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705L-C6-F-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705W-01-A-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M705W-01-B-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M705W-01-C-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705W-01-D-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705W-01-E-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705W-01-F-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705W-C6-A-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M705W-C6-B-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M705W-C6-C-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705W-C6-D-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705W-C6-E-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705W-C6-F-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710-01-A-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M710-01-B-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M710-01-C-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710-01-D-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710-01-E-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710-01-F-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710-C6-A-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M710-C6-B-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M710-C6-C-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710-C6-D-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710-C6-E-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710-C6-F-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710S-01-A-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M710S-01-B-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M710S-01-C-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710S-01-D-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710S-01-E-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710S-01-F-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710S-C6-A-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M710S-C6-B-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M710S-C6-C-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710S-C6-D-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710S-C6-E-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710S-C6-F-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710L-01-A-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M710L-01-B-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M710L-01-C-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710L-01-D-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710L-01-E-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710L-01-F-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710L-C6-A-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M710L-C6-B-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M710L-C6-C-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710L-C6-D-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710L-C6-E-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710L-C6-F-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710W-01-A-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M710W-01-B-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M710W-01-C-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710W-01-D-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710W-01-E-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710W-01-F-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710W-C6-A-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M710W-C6-B-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M710W-C6-C-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710W-C6-D-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710W-C6-E-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710W-C6-F-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725-01-A-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M725-01-B-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M725-01-C-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725-01-D-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725-01-E-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725-01-F-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725-C6-A-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M725-C6-B-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M725-C6-C-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725-C6-D-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725-C6-E-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725-C6-F-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725S-01-A-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M725S-01-B-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M725S-01-C-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725S-01-D-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725S-01-E-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725S-01-F-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725S-C6-A-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M725S-C6-B-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M725S-C6-C-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725S-C6-D-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725S-C6-E-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725S-C6-F-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725L-01-A-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M725L-01-B-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M725L-01-C-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725L-01-D-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725L-01-E-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725L-01-F-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725L-C6-A-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M725L-C6-B-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M725L-C6-C-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725L-C6-D-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725L-C6-E-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725L-C6-F-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725W-01-A-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M725W-01-B-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M725W-01-C-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725W-01-D-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725W-01-E-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725W-01-F-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725W-C6-A-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M725W-C6-B-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M725W-C6-C-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725W-C6-D-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725W-C6-E-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725W-C6-F-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750-01-A-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M750-01-B-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M750-01-C-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750-01-D-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750-01-E-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750-01-F-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750-C6-A-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M750-C6-B-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M750-C6-C-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750-C6-D-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750-C6-E-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750-C6-F-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750S-01-A-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M750S-01-B-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M750S-01-C-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750S-01-D-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750S-01-E-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750S-01-F-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750S-C6-A-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M750S-C6-B-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M750S-C6-C-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750S-C6-D-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750S-C6-E-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750S-C6-F-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750L-01-A-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M750L-01-B-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M750L-01-C-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750L-01-D-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750L-01-E-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750L-01-F-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750L-C6-A-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M750L-C6-B-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M750L-C6-C-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750L-C6-D-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750L-C6-E-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750L-C6-F-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750W-01-A-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M750W-01-B-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M750W-01-C-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750W-01-D-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750W-01-E-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750W-01-F-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750W-C6-A-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M750W-C6-B-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M750W-C6-C-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750W-C6-D-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750W-C6-E-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750W-C6-F-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M711-02-A-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M711-02-B-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M711-02-C-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711-02-D-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711-02-E-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711-02-F-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711-C8-A-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M711-C8-B-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M711-C8-C-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711-C8-D-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711-C8-E-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711-C8-F-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M711S-02-A-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M711S-02-B-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M711S-02-C-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711S-02-D-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711S-02-E-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711S-02-F-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711S-C8-A-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M711S-C8-B-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M711S-C8-C-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711S-C8-D-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711S-C8-E-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711S-C8-F-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M711L-02-A-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M711L-02-B-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M711L-02-C-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711L-02-D-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711L-02-E-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711L-02-F-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711L-C8-A-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M711L-C8-B-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M711L-C8-C-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711L-C8-D-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711L-C8-E-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711L-C8-F-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M711W-02-A-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M711W-02-B-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M711W-02-C-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711W-02-D-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711W-02-E-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711W-02-F-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711W-C8-A-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M711W-C8-B-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M711W-C8-C-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711W-C8-D-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711W-C8-E-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711W-C8-F-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721-02-A-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M721-02-B-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M721-02-C-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721-02-D-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721-02-E-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721-02-F-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721-C8-A-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M721-C8-B-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M721-C8-C-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721-C8-D-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721-C8-E-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721-C8-F-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721S-02-A-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M721S-02-B-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M721S-02-C-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721S-02-D-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721S-02-E-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721S-02-F-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721S-C8-A-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M721S-C8-B-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M721S-C8-C-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721S-C8-D-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721S-C8-E-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721S-C8-F-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721L-02-A-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M721L-02-B-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M721L-02-C-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721L-02-D-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721L-02-E-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721L-02-F-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721L-C8-A-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M721L-C8-B-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M721L-C8-C-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721L-C8-D-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721L-C8-E-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721L-C8-F-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721W-02-A-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M721W-02-B-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M721W-02-C-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721W-02-D-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721W-02-E-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721W-02-F-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721W-C8-A-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M721W-C8-B-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M721W-C8-C-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721W-C8-D-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721W-C8-E-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721W-C8-F-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M701-01-L-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M701-01-L2-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M701-01-L3-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701-01-L4-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M701-C6-L-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M701-C6-L2-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M701-C6-L3-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701-C6-L4-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M701L-01-L-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M701L-01-L2-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M701L-01-L3-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701L-01-L4-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M701L-C6-L-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M701L-C6-L2-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M701L-C6-L3-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701L-C6-L4-M Flow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M702-01-L-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M702-01-L2-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M702-01-L3-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702-01-L4-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M702-C6-L-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M702-C6-L2-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M702-C6-L3-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702-C6-L4-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M702L-01-L-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M702L-01-L2-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M702L-01-L3-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702L-01-L4-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M702L-C6-L-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M702L-C6-L2-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M702L-C6-L3-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702L-C6-L4-M Flow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705-01-L-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705-01-L2-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705-01-L3-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705-01-L4-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705-C6-L-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705-C6-L2-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705-C6-L3-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705-C6-L4-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705S-01-L-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705S-01-L2-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705S-01-L3-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705S-01-L4-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705S-C6-L-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705S-C6-L2-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705S-C6-L3-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705S-C6-L4-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705L-01-L-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705L-01-L2-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705L-01-L3-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705L-01-L4-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705L-C6-L-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705L-C6-L2-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705L-C6-L3-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705L-C6-L4-M Flow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705W-01-L-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705W-01-L2-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705W-01-L3-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705W-01-L4-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705W-C6-L-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705W-C6-L2-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705W-C6-L3-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705W-C6-L4-M Flow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710-01-L-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710-01-L2-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710-01-L3-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710-01-L4-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710-C6-L-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710-C6-L2-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710-C6-L3-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710-C6-L4-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710S-01-L-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710S-01-L2-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710S-01-L3-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710S-01-L4-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710S-C6-L-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710S-C6-L2-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710S-C6-L3-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710S-C6-L4-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710L-01-L-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710L-01-L2-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710L-01-L3-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710L-01-L4-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710L-C6-L-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710L-C6-L2-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710L-C6-L3-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710L-C6-L4-M Flow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710W-01-L-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710W-01-L2-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710W-01-L3-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710W-01-L4-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710W-C6-L-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710W-C6-L2-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710W-C6-L3-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710W-C6-L4-M Flow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725-01-L-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725-01-L2-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725-01-L3-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725-01-L4-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725-C6-L-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725-C6-L2-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725-C6-L3-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725-C6-L4-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725S-01-L-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725S-01-L2-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725S-01-L3-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725S-01-L4-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725S-C6-L-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725S-C6-L2-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725S-C6-L3-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725S-C6-L4-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725L-01-L-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725L-01-L2-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725L-01-L3-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725L-01-L4-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725L-C6-L-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725L-C6-L2-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725L-C6-L3-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725L-C6-L4-M Flow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725W-01-L-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725W-01-L2-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725W-01-L3-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725W-01-L4-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725W-C6-L-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725W-C6-L2-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725W-C6-L3-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725W-C6-L4-M Flow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750-01-L-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750-01-L2-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750-01-L3-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750-01-L4-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750-C6-L-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750-C6-L2-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750-C6-L3-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750-C6-L4-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750S-01-L-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750S-01-L2-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750S-01-L3-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750S-01-L4-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750S-C6-L-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750S-C6-L2-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750S-C6-L3-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750S-C6-L4-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750L-01-L-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750L-01-L2-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750L-01-L3-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750L-01-L4-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750L-C6-L-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750L-C6-L2-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750L-C6-L3-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750L-C6-L4-M Flow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750W-01-L-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750W-01-L2-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750W-01-L3-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750W-01-L4-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750W-C6-L-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750W-C6-L2-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750W-C6-L3-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750W-C6-L4-M Flow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M711-02-L-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711-02-L2-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711-02-L3-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711-02-L4-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711-C8-L-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711-C8-L2-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711-C8-L3-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711-C8-L4-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M711S-02-L-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711S-02-L2-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711S-02-L3-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711S-02-L4-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711S-C8-L-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711S-C8-L2-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711S-C8-L3-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711S-C8-L4-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M711L-02-L-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711L-02-L2-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711L-02-L3-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711L-02-L4-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711L-C8-L-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711L-C8-L2-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711L-C8-L3-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711L-C8-L4-M Flow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M711W-02-L-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711W-02-L2-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711W-02-L3-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711W-02-L4-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711W-C8-L-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711W-C8-L2-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711W-C8-L3-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711W-C8-L4-M Flow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721-02-L-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721-02-L2-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721-02-L3-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721-02-L4-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721-C8-L-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721-C8-L2-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721-C8-L3-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721-C8-L4-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721S-02-L-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721S-02-L2-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721S-02-L3-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721S-02-L4-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721S-C8-L-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721S-C8-L2-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721S-C8-L3-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721S-C8-L4-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721L-02-L-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721L-02-L2-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721L-02-L3-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721L-02-L4-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721L-C8-L-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721L-C8-L2-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721L-C8-L3-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721L-C8-L4-M Flow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721W-02-L-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721W-02-L2-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721W-02-L3-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721W-02-L4-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721W-C8-L-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721W-C8-L2-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721W-C8-L3-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721W-C8-L4-M Flow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
Flow SwitchesSMC
560 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PF2M7 / PF2M7-L 2-Color Digital Flow Switch (0.01 to 200 L/min)

Brand SMC·Flow Switches

Available part numbers (560)

PF2M701-01-A-M, PF2M701-01-B-M, PF2M701-01-C-M, PF2M701-01-D-M, PF2M701-01-E-M, PF2M701-01-F-M, PF2M701-C6-A-M, PF2M701-C6-B-M, PF2M701-C6-C-M, PF2M701-C6-D-M + 550 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PF2M701-01-A-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M701-01-B-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M701-01-C-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M701-01-D-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M701-01-E-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M701-01-F-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M701-C6-A-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M701-C6-B-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M701-C6-C-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M701-C6-D-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M701-C6-E-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M701-C6-F-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M701L-01-A-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M701L-01-B-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M701L-01-C-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M701L-01-D-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M701L-01-E-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M701L-01-F-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M701L-C6-A-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M701L-C6-B-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M701L-C6-C-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M701L-C6-D-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M701L-C6-E-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M701L-C6-F-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M702-01-A-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M702-01-B-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M702-01-C-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M702-01-D-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M702-01-E-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M702-01-F-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M702-C6-A-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M702-C6-B-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M702-C6-C-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M702-C6-D-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M702-C6-E-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M702-C6-F-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M702L-01-A-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M702L-01-B-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M702L-01-C-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M702L-01-D-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M702L-01-E-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M702L-01-F-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M702L-C6-A-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M702L-C6-B-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M702L-C6-C-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M702L-C6-D-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M702L-C6-E-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M702L-C6-F-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705-01-A-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M705-01-B-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M705-01-C-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705-01-D-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705-01-E-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705-01-F-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705-C6-A-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M705-C6-B-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M705-C6-C-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705-C6-D-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705-C6-E-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705-C6-F-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705S-01-A-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M705S-01-B-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M705S-01-C-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705S-01-D-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705S-01-E-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705S-01-F-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705S-C6-A-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M705S-C6-B-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M705S-C6-C-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705S-C6-D-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705S-C6-E-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705S-C6-F-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705L-01-A-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M705L-01-B-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M705L-01-C-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705L-01-D-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705L-01-E-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705L-01-F-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705L-C6-A-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M705L-C6-B-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M705L-C6-C-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705L-C6-D-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705L-C6-E-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705L-C6-F-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M705W-01-A-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M705W-01-B-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M705W-01-C-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M705W-01-D-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M705W-01-E-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M705W-01-F-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M705W-C6-A-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M705W-C6-B-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M705W-C6-C-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M705W-C6-D-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M705W-C6-E-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M705W-C6-F-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710-01-A-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M710-01-B-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M710-01-C-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710-01-D-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710-01-E-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710-01-F-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710-C6-A-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M710-C6-B-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M710-C6-C-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710-C6-D-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710-C6-E-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710-C6-F-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710S-01-A-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M710S-01-B-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M710S-01-C-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710S-01-D-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710S-01-E-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710S-01-F-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710S-C6-A-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M710S-C6-B-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M710S-C6-C-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710S-C6-D-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710S-C6-E-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710S-C6-F-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710L-01-A-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M710L-01-B-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M710L-01-C-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710L-01-D-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710L-01-E-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710L-01-F-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710L-C6-A-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M710L-C6-B-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M710L-C6-C-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710L-C6-D-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710L-C6-E-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710L-C6-F-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M710W-01-A-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M710W-01-B-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M710W-01-C-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M710W-01-D-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M710W-01-E-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M710W-01-F-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M710W-C6-A-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M710W-C6-B-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M710W-C6-C-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M710W-C6-D-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M710W-C6-E-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M710W-C6-F-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725-01-A-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M725-01-B-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M725-01-C-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725-01-D-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725-01-E-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725-01-F-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725-C6-A-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M725-C6-B-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M725-C6-C-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725-C6-D-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725-C6-E-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725-C6-F-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725S-01-A-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M725S-01-B-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M725S-01-C-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725S-01-D-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725S-01-E-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725S-01-F-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725S-C6-A-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M725S-C6-B-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M725S-C6-C-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725S-C6-D-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725S-C6-E-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725S-C6-F-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725L-01-A-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M725L-01-B-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M725L-01-C-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725L-01-D-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725L-01-E-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725L-01-F-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725L-C6-A-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M725L-C6-B-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M725L-C6-C-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725L-C6-D-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725L-C6-E-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725L-C6-F-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M725W-01-A-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M725W-01-B-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M725W-01-C-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M725W-01-D-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M725W-01-E-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M725W-01-F-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M725W-C6-A-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M725W-C6-B-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M725W-C6-C-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M725W-C6-D-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M725W-C6-E-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M725W-C6-F-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750-01-A-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M750-01-B-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M750-01-C-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750-01-D-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750-01-E-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750-01-F-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750-C6-A-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M750-C6-B-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M750-C6-C-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750-C6-D-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750-C6-E-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750-C6-F-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750S-01-A-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + NPN
PF2M750S-01-B-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + PNP
PF2M750S-01-C-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750S-01-D-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750S-01-E-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750S-01-F-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750S-C6-A-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + NPN
PF2M750S-C6-B-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + PNP
PF2M750S-C6-C-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750S-C6-D-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750S-C6-E-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750S-C6-F-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750L-01-A-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M750L-01-B-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M750L-01-C-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750L-01-D-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750L-01-E-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750L-01-F-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750L-C6-A-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M750L-C6-B-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M750L-C6-C-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750L-C6-D-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750L-C6-E-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750L-C6-F-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M750W-01-A-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + NPN
PF2M750W-01-B-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + PNP
PF2M750W-01-C-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 1-5V/0-10V
PF2M750W-01-D-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: NPN + analog 4-20mA
PF2M750W-01-E-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 1-5V/0-10V
PF2M750W-01-F-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: PNP + analog 4-20mA
PF2M750W-C6-A-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + NPN
PF2M750W-C6-B-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + PNP
PF2M750W-C6-C-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 1-5V/0-10V
PF2M750W-C6-D-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: NPN + analog 4-20mA
PF2M750W-C6-E-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 1-5V/0-10V
PF2M750W-C6-F-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: PNP + analog 4-20mA
PF2M711-02-A-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M711-02-B-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M711-02-C-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711-02-D-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711-02-E-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711-02-F-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711-C8-A-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M711-C8-B-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M711-C8-C-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711-C8-D-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711-C8-E-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711-C8-F-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M711S-02-A-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M711S-02-B-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M711S-02-C-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711S-02-D-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711S-02-E-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711S-02-F-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711S-C8-A-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M711S-C8-B-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M711S-C8-C-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711S-C8-D-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711S-C8-E-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711S-C8-F-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M711L-02-A-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M711L-02-B-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M711L-02-C-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711L-02-D-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711L-02-E-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711L-02-F-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711L-C8-A-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M711L-C8-B-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M711L-C8-C-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711L-C8-D-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711L-C8-E-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711L-C8-F-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M711W-02-A-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M711W-02-B-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M711W-02-C-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M711W-02-D-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M711W-02-E-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M711W-02-F-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M711W-C8-A-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M711W-C8-B-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M711W-C8-C-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M711W-C8-D-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M711W-C8-E-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M711W-C8-F-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721-02-A-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M721-02-B-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M721-02-C-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721-02-D-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721-02-E-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721-02-F-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721-C8-A-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M721-C8-B-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M721-C8-C-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721-C8-D-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721-C8-E-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721-C8-F-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721S-02-A-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + NPN
PF2M721S-02-B-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + PNP
PF2M721S-02-C-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721S-02-D-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721S-02-E-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721S-02-F-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721S-C8-A-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + NPN
PF2M721S-C8-B-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + PNP
PF2M721S-C8-C-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721S-C8-D-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721S-C8-E-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721S-C8-F-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721L-02-A-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M721L-02-B-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M721L-02-C-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721L-02-D-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721L-02-E-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721L-02-F-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721L-C8-A-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M721L-C8-B-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M721L-C8-C-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721L-C8-D-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721L-C8-E-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721L-C8-F-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M721W-02-A-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + NPN
PF2M721W-02-B-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + PNP
PF2M721W-02-C-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 1-5V/0-10V
PF2M721W-02-D-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: NPN + analog 4-20mA
PF2M721W-02-E-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 1-5V/0-10V
PF2M721W-02-F-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: PNP + analog 4-20mA
PF2M721W-C8-A-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + NPN
PF2M721W-C8-B-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + PNP
PF2M721W-C8-C-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 1-5V/0-10V
PF2M721W-C8-D-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: NPN + analog 4-20mA
PF2M721W-C8-E-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 1-5V/0-10V
PF2M721W-C8-F-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: PNP + analog 4-20mA
PF2M701-01-L-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M701-01-L2-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M701-01-L3-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701-01-L4-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M701-C6-L-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M701-C6-L2-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M701-C6-L3-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701-C6-L4-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M701L-01-L-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M701L-01-L2-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M701L-01-L3-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701L-01-L4-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M701L-C6-L-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M701L-C6-L2-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M701L-C6-L3-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M701L-C6-L4-MFlow range: 0.01 to 1 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M702-01-L-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M702-01-L2-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M702-01-L3-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702-01-L4-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M702-C6-L-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M702-C6-L2-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M702-C6-L3-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702-C6-L4-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M702L-01-L-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M702L-01-L2-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M702L-01-L3-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702L-01-L4-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M702L-C6-L-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M702L-C6-L2-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M702L-C6-L3-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M702L-C6-L4-MFlow range: 0.02 to 2 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705-01-L-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705-01-L2-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705-01-L3-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705-01-L4-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705-C6-L-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705-C6-L2-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705-C6-L3-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705-C6-L4-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705S-01-L-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705S-01-L2-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705S-01-L3-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705S-01-L4-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705S-C6-L-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705S-C6-L2-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705S-C6-L3-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705S-C6-L4-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705L-01-L-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705L-01-L2-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705L-01-L3-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705L-01-L4-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705L-C6-L-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705L-C6-L2-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705L-C6-L3-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705L-C6-L4-MFlow range: 0.05 to 5 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M705W-01-L-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M705W-01-L2-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M705W-01-L3-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705W-01-L4-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M705W-C6-L-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M705W-C6-L2-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M705W-C6-L3-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M705W-C6-L4-MFlow range: 0.05 to 5 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710-01-L-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710-01-L2-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710-01-L3-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710-01-L4-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710-C6-L-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710-C6-L2-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710-C6-L3-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710-C6-L4-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710S-01-L-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710S-01-L2-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710S-01-L3-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710S-01-L4-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710S-C6-L-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710S-C6-L2-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710S-C6-L3-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710S-C6-L4-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710L-01-L-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710L-01-L2-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710L-01-L3-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710L-01-L4-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710L-C6-L-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710L-C6-L2-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710L-C6-L3-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710L-C6-L4-MFlow range: 0.1 to 10 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M710W-01-L-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M710W-01-L2-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M710W-01-L3-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710W-01-L4-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M710W-C6-L-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M710W-C6-L2-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M710W-C6-L3-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M710W-C6-L4-MFlow range: 0.1 to 10 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725-01-L-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725-01-L2-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725-01-L3-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725-01-L4-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725-C6-L-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725-C6-L2-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725-C6-L3-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725-C6-L4-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725S-01-L-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725S-01-L2-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725S-01-L3-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725S-01-L4-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725S-C6-L-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725S-C6-L2-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725S-C6-L3-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725S-C6-L4-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725L-01-L-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725L-01-L2-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725L-01-L3-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725L-01-L4-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725L-C6-L-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725L-C6-L2-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725L-C6-L3-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725L-C6-L4-MFlow range: 0.3 to 25 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M725W-01-L-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M725W-01-L2-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M725W-01-L3-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725W-01-L4-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M725W-C6-L-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M725W-C6-L2-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M725W-C6-L3-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M725W-C6-L4-MFlow range: 0.3 to 25 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750-01-L-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750-01-L2-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750-01-L3-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750-01-L4-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750-C6-L-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750-C6-L2-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750-C6-L3-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750-C6-L4-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750S-01-L-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750S-01-L2-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750S-01-L3-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750S-01-L4-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750S-C6-L-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750S-C6-L2-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750S-C6-L3-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750S-C6-L4-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750L-01-L-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750L-01-L2-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750L-01-L3-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750L-01-L4-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750L-C6-L-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750L-C6-L2-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750L-C6-L3-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750L-C6-L4-MFlow range: 0.5 to 50 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M750W-01-L-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + none
PF2M750W-01-L2-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + SW/ext. input
PF2M750W-01-L3-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750W-01-L4-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/8 | Output: IO-Link/SW + analog 4-20mA
PF2M750W-C6-L-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + none
PF2M750W-C6-L2-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + SW/ext. input
PF2M750W-C6-L3-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M750W-C6-L4-MFlow range: 0.5 to 50 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø6 | Output: IO-Link/SW + analog 4-20mA
PF2M711-02-L-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711-02-L2-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711-02-L3-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711-02-L4-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711-C8-L-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711-C8-L2-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711-C8-L3-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711-C8-L4-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M711S-02-L-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711S-02-L2-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711S-02-L3-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711S-02-L4-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711S-C8-L-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711S-C8-L2-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711S-C8-L3-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711S-C8-L4-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M711L-02-L-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711L-02-L2-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711L-02-L3-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711L-02-L4-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711L-C8-L-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711L-C8-L2-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711L-C8-L3-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711L-C8-L4-MFlow range: 1 to 100 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M711W-02-L-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M711W-02-L2-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M711W-02-L3-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711W-02-L4-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M711W-C8-L-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M711W-C8-L2-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M711W-C8-L3-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M711W-C8-L4-MFlow range: 1 to 100 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721-02-L-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721-02-L2-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721-02-L3-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721-02-L4-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721-C8-L-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721-C8-L2-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721-C8-L3-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721-C8-L4-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721S-02-L-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721S-02-L2-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721S-02-L3-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721S-02-L4-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721S-C8-L-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721S-C8-L2-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721S-C8-L3-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721S-C8-L4-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Straight | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721L-02-L-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721L-02-L2-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721L-02-L3-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721L-02-L4-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721L-C8-L-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721L-C8-L2-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721L-C8-L3-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721L-C8-L4-MFlow range: 2 to 200 L/min | Flow valve: None | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA
PF2M721W-02-L-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + none
PF2M721W-02-L2-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + SW/ext. input
PF2M721W-02-L3-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721W-02-L4-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: Rc1/4 | Output: IO-Link/SW + analog 4-20mA
PF2M721W-C8-L-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + none
PF2M721W-C8-L2-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + SW/ext. input
PF2M721W-C8-L3-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 1-5V/0-10V
PF2M721W-C8-L4-MFlow range: 2 to 200 L/min | Flow valve: With valve | Piping entry: Bottom | Port: One-touch ø8 | Output: IO-Link/SW + analog 4-20mA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
