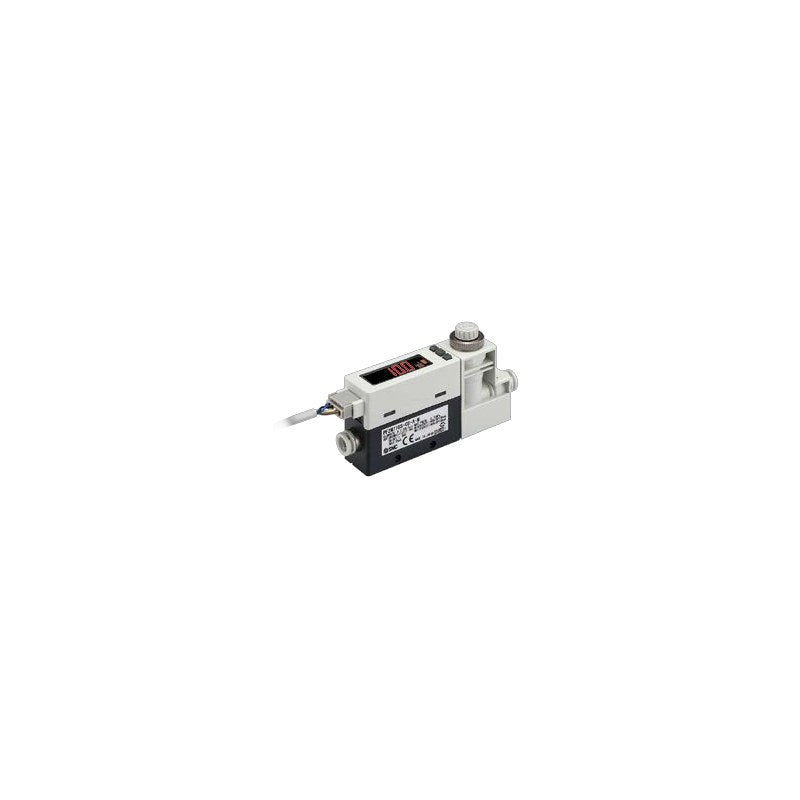

SMC PF2MC7 / PF2MC7-L 3-Color 3-Screen Digital Flow Switch

SMC PF2MC7 / PF2MC7-L 3-Color 3-Screen Digital Flow Switch

SMC PF2MC7 series 3-color, 3-screen digital flow switch for dry air and N2 in 500, 1000 and 2000 L/min ranges, IP65, with an IO-Link version (PF2MC7-L).

Key features

  • 3-color main display with 3-screen layout showing flow, line name and set value or accumulated flow
  • Range ability 100:1, minimum setting unit 1 L/min; ranges 5-500, 10-1000 and 20-2000 L/min
  • Outputs: NPN or PNP switch with external input, NPN switch + analog voltage (PFG300) or current (PFG310); PF2MC7-L adds IO-Link
  • IP65 enclosure, M8 connector; lead wire 3 m standard, none (N) or M12-M8 conversion cable (Q, -L only)
  • Suffix options: bracket (R), calibration certificate (A); NPT/G threads and PNP + analog outputs (E/F) on order

Specifications

Applicable fluid Dry air, N2 (ISO8573-1 1.1.2 to 1.6.2)
Detection method Thermal type
Fluid temperature 0 to 50°C
Rated pressure range 0 to 0.8 MPa (proof 1.2 MPa)
Power supply DC12 to 24V ±10% (IO-Link: DC18 to 30V)
Current consumption 55 mA or less
Enclosure IP65
Display 3-screen LCD, main red/green, sub white
Body material (wetted) SUS304, PPS, aluminum alloy, HNBR
Standards CE, UL (CSA)
Unit SI unit fixed (M)
Source SMC Korea catalog CAT.KS100-146A (SMCKR_PF2MC7.pdf), p. 9-11 (PDF p. 10-12)
PF2MC7501-04-A-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: NPN + NPN/ext. input
PF2MC7102-04-A-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: NPN + NPN/ext. input
PF2MC7202-06-A-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: NPN + NPN/ext. input
PF2MC7501-04-B-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: PNP + PNP/ext. input
PF2MC7102-04-B-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: PNP + PNP/ext. input
PF2MC7202-06-B-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: PNP + PNP/ext. input
PF2MC7501-04-C-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: NPN + analog voltage
PF2MC7102-04-C-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: NPN + analog voltage
PF2MC7202-06-C-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: NPN + analog voltage
PF2MC7501-04-D-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: NPN + analog current
PF2MC7102-04-D-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: NPN + analog current
PF2MC7202-06-D-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: NPN + analog current
PF2MC7501-04-L-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: IO-Link/SW + none
PF2MC7102-04-L-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: IO-Link/SW + none
PF2MC7202-06-L-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: IO-Link/SW + none
PF2MC7501-04-L2-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: IO-Link/SW + SW/ext. input
PF2MC7102-04-L2-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: IO-Link/SW + SW/ext. input
PF2MC7202-06-L2-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: IO-Link/SW + SW/ext. input
PF2MC7501-04-L3-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: IO-Link/SW + analog voltage
PF2MC7102-04-L3-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: IO-Link/SW + analog voltage
PF2MC7202-06-L3-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: IO-Link/SW + analog voltage
PF2MC7501-04-L4-M Flow range: 5 to 500 L/min | Port: Rc1/2 | Output: IO-Link/SW + analog current
PF2MC7102-04-L4-M Flow range: 10 to 1000 L/min | Port: Rc1/2 | Output: IO-Link/SW + analog current
PF2MC7202-06-L4-M Flow range: 20 to 2000 L/min | Port: Rc3/4 | Output: IO-Link/SW + analog current
