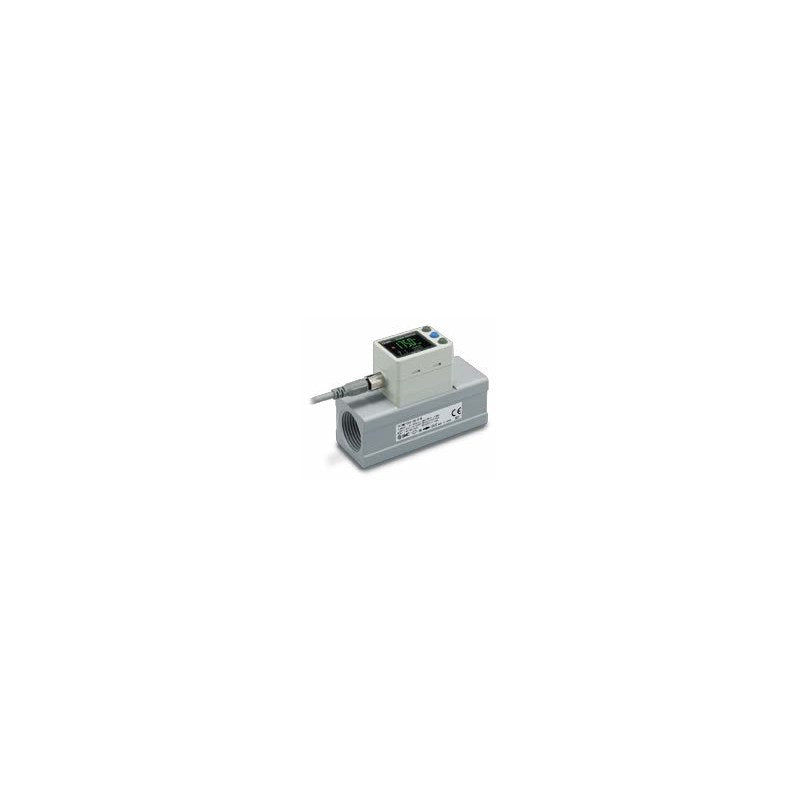

SMC PF3A7H Digital Flow Switch (Large Flow, 3-Color Display)

SMC PF3A7H Digital Flow Switch (Large Flow, 3-Color Display)

SMC PF3A7H series large-flow 3-color display digital flow switch for air and gases, in direct piping (up to 12000 L/min) and AC-D modular (up to 8000 L/min) types, with switch/analog or IO-Link output.

Key features

  • Direct piping type 30-3000, 60-6000 and 120-12000 L/min; modular type 5-500 to 80-8000 L/min for AC20-D to AC60-D
  • Range ability 100:1; 2-screen 3-color display of instantaneous and accumulated flow
  • Switch output NPN/PNP with analog voltage or current output or external input (CS/DS/ES/FS)
  • IO-Link versions (-L): L switch only, L3 with analog voltage, L4 with analog current
  • Used for air, nitrogen, argon and CO2; accumulated pulse output for remote monitoring
  • Thread Rc standard (NPT, G on order); lead wire options (N, Q), SI unit fixed (M) and flow direction (R) as suffixes

Specifications

Applicable fluid Air, nitrogen, Ar, CO2
Fluid temperature 0 to 50°C
Detection method Thermal type
Rated pressure range 0 to 1.0 MPa
Proof pressure 1.5 MPa
Power supply voltage DC24V ±10%
Current consumption 150 mA or less
Display accuracy ±3.0% F.S.
Repeatability ±1.0% F.S.
Enclosure IP65
Source SMC Korea catalog CAT.KS100-117E (SMCKR_PF3A7_H.pdf), p. 13-20 (PDF p. 14-21)
PF3A703H-10-CS Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: NPN + analog voltage/ext. input
PF3A703H-10-DS Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: NPN + analog current/ext. input
PF3A703H-10-ES Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: PNP + analog voltage/ext. input
PF3A703H-10-FS Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: PNP + analog current/ext. input
PF3A703H-10-L Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: IO-Link/switch (N/P)
PF3A703H-10-L3 Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: IO-Link/switch + analog voltage
PF3A703H-10-L4 Piping: Direct piping | Rated flow: 30-3000 L/min | Port: Rc1 | Output: IO-Link/switch + analog current
PF3A706H-14-CS Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: NPN + analog voltage/ext. input
PF3A706H-14-DS Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: NPN + analog current/ext. input
PF3A706H-14-ES Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: PNP + analog voltage/ext. input
PF3A706H-14-FS Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: PNP + analog current/ext. input
PF3A706H-14-L Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: IO-Link/switch (N/P)
PF3A706H-14-L3 Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: IO-Link/switch + analog voltage
PF3A706H-14-L4 Piping: Direct piping | Rated flow: 60-6000 L/min | Port: Rc1-1/2 | Output: IO-Link/switch + analog current
PF3A712H-20-CS Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: NPN + analog voltage/ext. input
PF3A712H-20-DS Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: NPN + analog current/ext. input
PF3A712H-20-ES Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: PNP + analog voltage/ext. input
PF3A712H-20-FS Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: PNP + analog current/ext. input
PF3A712H-20-L Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: IO-Link/switch (N/P)
PF3A712H-20-L3 Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: IO-Link/switch + analog voltage
PF3A712H-20-L4 Piping: Direct piping | Rated flow: 120-12000 L/min | Port: Rc2 | Output: IO-Link/switch + analog current
PF3A7R5H-CS Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: NPN + analog voltage/ext. input
PF3A7R5H-DS Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: NPN + analog current/ext. input
PF3A7R5H-ES Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: PNP + analog voltage/ext. input
PF3A7R5H-FS Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: PNP + analog current/ext. input
PF3A7R5H-L Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: IO-Link/switch (N/P)
PF3A7R5H-L3 Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: IO-Link/switch + analog voltage
PF3A7R5H-L4 Piping: Modular (AC20-D) | Rated flow: 5-500 L/min | Port: None (modular) | Output: IO-Link/switch + analog current
PF3A701H-CS Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: NPN + analog voltage/ext. input
PF3A701H-DS Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: NPN + analog current/ext. input
PF3A701H-ES Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: PNP + analog voltage/ext. input
PF3A701H-FS Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: PNP + analog current/ext. input
PF3A701H-L Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: IO-Link/switch (N/P)
PF3A701H-L3 Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: IO-Link/switch + analog voltage
PF3A701H-L4 Piping: Modular (AC30-D) | Rated flow: 10-1000 L/min | Port: None (modular) | Output: IO-Link/switch + analog current
PF3A702H-CS Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: NPN + analog voltage/ext. input
PF3A702H-DS Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: NPN + analog current/ext. input
PF3A702H-ES Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: PNP + analog voltage/ext. input
PF3A702H-FS Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: PNP + analog current/ext. input
PF3A702H-L Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: IO-Link/switch (N/P)
PF3A702H-L3 Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: IO-Link/switch + analog voltage
PF3A702H-L4 Piping: Modular (AC40-D) | Rated flow: 20-2000 L/min | Port: None (modular) | Output: IO-Link/switch + analog current
PF3A704H-CS Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: NPN + analog voltage/ext. input
PF3A704H-DS Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: NPN + analog current/ext. input
PF3A704H-ES Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: PNP + analog voltage/ext. input
PF3A704H-FS Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: PNP + analog current/ext. input
PF3A704H-L Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: IO-Link/switch (N/P)
PF3A704H-L3 Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: IO-Link/switch + analog voltage
PF3A704H-L4 Piping: Modular (AC50-D/AC60-D) | Rated flow: 40-4000 L/min | Port: None (modular) | Output: IO-Link/switch + analog current
PF3A708H-CS Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: NPN + analog voltage/ext. input
PF3A708H-DS Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: NPN + analog current/ext. input
PF3A708H-ES Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: PNP + analog voltage/ext. input
PF3A708H-FS Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: PNP + analog current/ext. input
PF3A708H-L Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: IO-Link/switch (N/P)
PF3A708H-L3 Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: IO-Link/switch + analog voltage
PF3A708H-L4 Piping: Modular (AC50-D/AC60-D) | Rated flow: 80-8000 L/min | Port: None (modular) | Output: IO-Link/switch + analog current
