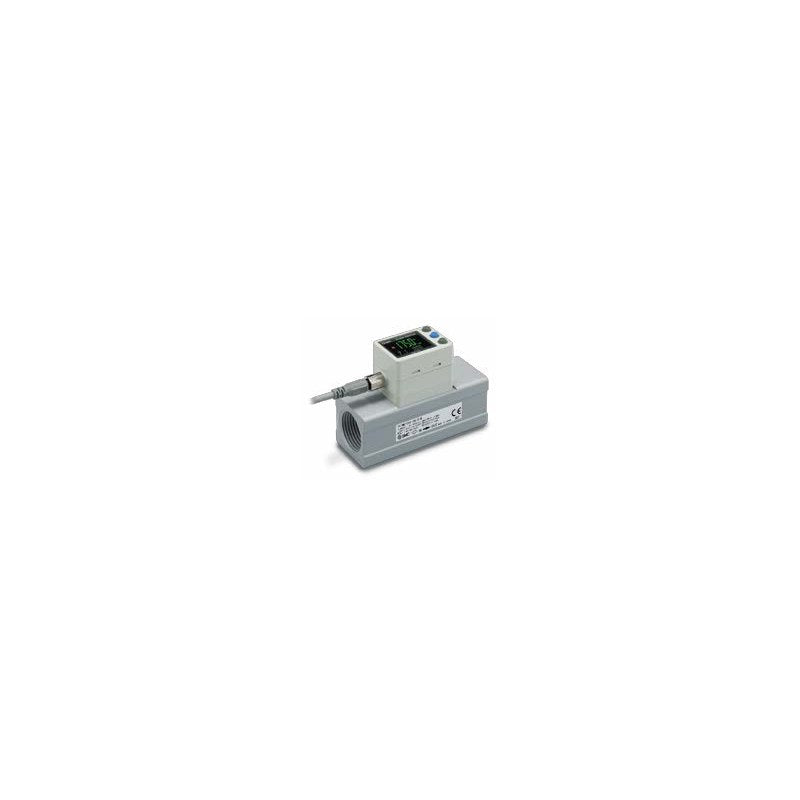

SMC PF3A8H-L Digital Flow Switch with Pressure/Temp. Sensor

SMC PF3A8H-L Digital Flow Switch with Pressure/Temp. Sensor

SMC PF3A8H-L series modular IO-Link digital flow switch with built-in pressure and temperature sensors and 4-screen display, connecting to AC20-D to AC60-D combinations.

Key features

  • Measures flow, pressure (0 to 1.0 MPa) and temperature (0 to 50°C) in one modular unit
  • 4-screen display; IO-Link/switch output (OUT1) plus switch output (OUT2), NPN/PNP selectable
  • Rated flow ranges 5-500 to 80-8000 L/min for AC20-D to AC60-D modular F.R.L. combinations
  • Used for air, nitrogen, argon and CO2
  • Lead wire options (N, Q), SI unit fixed (M) and flow direction (R) as suffixes; spacers and piping adapters ordered separately

Specifications

Applicable fluid Air, nitrogen, Ar, CO2
Fluid temperature 0 to 50°C
Detection method Thermal type
Rated pressure range 0 to 1.0 MPa
Proof pressure 1.5 MPa
Power supply voltage DC21.6 to 30V
Current consumption 150 mA or less
Output OUT1 IO-Link/switch, OUT2 switch (NPN/PNP)
Accuracy Flow and pressure ±3.0% F.S.; temperature ±2.5°C
Response time 5 ms or less
Source SMC Korea catalog CAT.KS100-117E (SMCKR_PF3A7_H.pdf), p. 21-23 (PDF p. 22-24)
PF3A8R5H-L2 Rated flow: 5-500 L/min | Combination: AC20-D | Model: PF3A8R5H
PF3A801H-L2 Rated flow: 10-1000 L/min | Combination: AC30-D | Model: PF3A801H
PF3A802H-L2 Rated flow: 20-2000 L/min | Combination: AC40-D | Model: PF3A802H
PF3A804H-L2 Rated flow: 40-4000 L/min | Combination: AC50-D/AC60-D | Model: PF3A804H
PF3A808H-L2 Rated flow: 80-8000 L/min | Combination: AC50-D/AC60-D | Model: PF3A808H
Flow SwitchesSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PF3A8H-L Digital Flow Switch with Pressure/Temp. Sensor

Brand SMC·Flow Switches

Available part numbers (5)

PF3A8R5H-L2, PF3A801H-L2, PF3A802H-L2, PF3A804H-L2, PF3A808H-L2

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PF3A8R5H-L2Rated flow: 5-500 L/min | Combination: AC20-D | Model: PF3A8R5H
PF3A801H-L2Rated flow: 10-1000 L/min | Combination: AC30-D | Model: PF3A801H
PF3A802H-L2Rated flow: 20-2000 L/min | Combination: AC40-D | Model: PF3A802H
PF3A804H-L2Rated flow: 40-4000 L/min | Combination: AC50-D/AC60-D | Model: PF3A804H
PF3A808H-L2Rated flow: 80-8000 L/min | Combination: AC50-D/AC60-D | Model: PF3A808H
