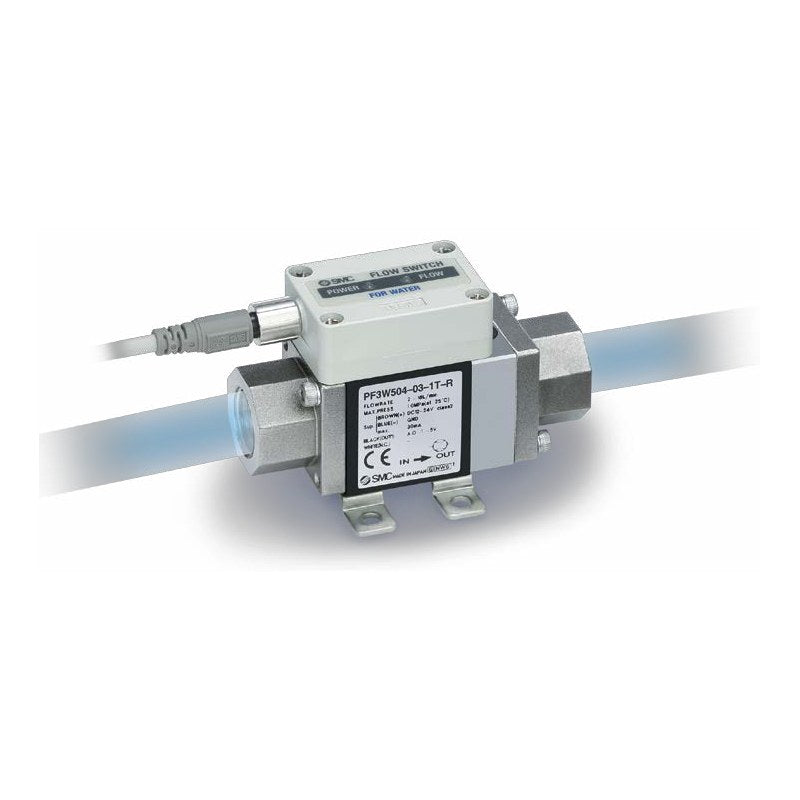

SMC PF3W Digital Flow Switch for Water (3-Color Display)

SMC PF3W Digital Flow Switch for Water (3-Color Display)

SMC PF3W series Karman-vortex digital flow switch for water and ethylene glycol, with 3-color 2-screen display or remote sensor unit, rated 0.5 to 250 L/min, including PVC piping models.

Key features

  • Karman vortex detection for water and ethylene glycol solution (viscosity 3 mPa.s or less), fluid 0 to 90 C
  • Five rated flow ranges from 0.5-4 L/min to 50-250 L/min; flow adjust valve (S) on 4, 16 and 40 L/min types
  • Integrated display: NPN/PNP switch outputs with analog, external input or temperature sensor (T) options
  • Remote sensor unit (PF3W5) with analog output for PFG200 / PF3W3 monitors
  • PVC piping models (U25 / U30) for 100 and 250 L/min; IP65, CE/UKCA, UL (CSA)
  • Suffix options not expanded: NPT/G thread, lead wire omitted (N), bracket (R), calibration certificate (A), -X109/-X128/-X143/-X445

Specifications

Fluid Water, ethylene glycol solution
Detection method Karman vortex
Operating pressure 0 to 1 MPa
Proof pressure 1.5 MPa
Fluid temperature 0 to 90 C
Accuracy Display +/-3% F.S., analog +/-3% F.S.
Repeatability +/-2% F.S.
Power supply DC12 to 24 V +/-10%
Current consumption 50 mA or less
Enclosure IP65
Wetted materials PPS, SUS304, FKM, SCS13
Source SMC Korea catalog (SMCKR_PF3W.pdf), p. 11-13, 24-26 (PDF p. 12-14, 25-27)
PF3W704-03-A-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W704-03-B-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W704-03-C-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704-03-D-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704-03-E-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704-03-F-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704-03-G-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W704-03-H-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W704-03-AT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704-03-BT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704-03-CT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704-03-DT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704-03-ET-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704-03-FT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704-03-JT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704-03-KT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W704S-03-A-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W704S-03-B-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W704S-03-C-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704S-03-D-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704S-03-E-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704S-03-F-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704S-03-G-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W704S-03-H-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W704S-03-AT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704S-03-BT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704S-03-CT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704S-03-DT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704S-03-ET-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704S-03-FT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704S-03-JT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704S-03-KT-M Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-03-A-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W720-03-B-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W720-03-C-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720-03-D-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720-03-E-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720-03-F-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720-03-G-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W720-03-H-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W720-03-AT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720-03-BT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720-03-CT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-03-DT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-03-ET-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-03-FT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-03-JT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-03-KT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-04-A-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W720-04-B-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W720-04-C-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720-04-D-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720-04-E-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720-04-F-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720-04-G-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W720-04-H-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W720-04-AT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720-04-BT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720-04-CT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-04-DT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-04-ET-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-04-FT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-04-JT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-04-KT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-03-A-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W720S-03-B-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W720S-03-C-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720S-03-D-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720S-03-E-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720S-03-F-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720S-03-G-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W720S-03-H-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W720S-03-AT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720S-03-BT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720S-03-CT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-03-DT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-03-ET-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-03-FT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-03-JT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-03-KT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-04-A-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W720S-04-B-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W720S-04-C-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720S-04-D-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720S-04-E-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720S-04-F-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720S-04-G-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W720S-04-H-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W720S-04-AT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720S-04-BT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720S-04-CT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-04-DT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-04-ET-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-04-FT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-04-JT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-04-KT-M Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-04-A-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W740-04-B-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W740-04-C-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740-04-D-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740-04-E-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740-04-F-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740-04-G-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W740-04-H-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W740-04-AT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740-04-BT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740-04-CT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-04-DT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-04-ET-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-04-FT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-04-JT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-04-KT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-06-A-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W740-06-B-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W740-06-C-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740-06-D-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740-06-E-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740-06-F-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740-06-G-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W740-06-H-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W740-06-AT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740-06-BT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740-06-CT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-06-DT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-06-ET-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-06-FT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-06-JT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-06-KT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-04-A-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W740S-04-B-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W740S-04-C-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740S-04-D-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740S-04-E-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740S-04-F-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740S-04-G-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W740S-04-H-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W740S-04-AT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740S-04-BT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740S-04-CT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-04-DT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-04-ET-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-04-FT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-04-JT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-04-KT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-06-A-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN
PF3W740S-06-B-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP
PF3W740S-06-C-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740S-06-D-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740S-06-E-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740S-06-F-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740S-06-G-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + external input
PF3W740S-06-H-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + external input
PF3W740S-06-AT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740S-06-BT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740S-06-CT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-06-DT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-06-ET-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-06-FT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-06-JT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-06-KT-M Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-06-A-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W711-06-B-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W711-06-C-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W711-06-D-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W711-06-E-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W711-06-F-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W711-06-G-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W711-06-H-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W711-06-AT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W711-06-BT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W711-06-CT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-06-DT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-06-ET-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-06-FT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-06-JT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-06-KT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-10-A-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN
PF3W711-10-B-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP
PF3W711-10-C-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V
PF3W711-10-D-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA
PF3W711-10-E-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V
PF3W711-10-F-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA
PF3W711-10-G-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + external input
PF3W711-10-H-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + external input
PF3W711-10-AT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN, temp sensor
PF3W711-10-BT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP, temp sensor
PF3W711-10-CT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-10-DT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-10-ET-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-10-FT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-10-JT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-10-KT-M Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W721-12-A-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + NPN
PF3W721-12-B-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + PNP
PF3W721-12-C-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 1-5 V
PF3W721-12-D-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 4-20 mA
PF3W721-12-E-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 1-5 V
PF3W721-12-F-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 4-20 mA
PF3W721-12-G-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + external input
PF3W721-12-H-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + external input
PF3W721-12-AT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + NPN, temp sensor
PF3W721-12-BT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + PNP, temp sensor
PF3W721-12-CT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W721-12-DT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W721-12-ET-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W721-12-FT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W721-12-JT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W721-12-KT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W721-14-A-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + NPN
PF3W721-14-B-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + PNP
PF3W721-14-C-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 1-5 V
PF3W721-14-D-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 4-20 mA
PF3W721-14-E-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 1-5 V
PF3W721-14-F-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 4-20 mA
PF3W721-14-G-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + external input
PF3W721-14-H-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + external input
PF3W721-14-AT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + NPN, temp sensor
PF3W721-14-BT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + PNP, temp sensor
PF3W721-14-CT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W721-14-DT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W721-14-ET-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W721-14-FT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W721-14-JT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W721-14-KT-M Type: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W504-03-1 Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504-03-2 Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504-03-1T Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W504S-03-1 Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504S-03-2 Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504S-03-1T Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-03-1 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520-03-2 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520-03-1T Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-04-1 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520-04-2 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520-04-1T Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-03-1 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520S-03-2 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520S-03-1T Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-04-1 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520S-04-2 Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520S-04-1T Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-04-1 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540-04-2 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540-04-1T Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-06-1 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540-06-2 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540-06-1T Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-04-1 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540S-04-2 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540S-04-1T Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-06-1 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540S-06-2 Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540S-06-1T Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-06-1 Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W511-06-2 Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W511-06-1T Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-10-1 Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V
PF3W511-10-2 Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA
PF3W511-10-1T Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V + 1-5 V temp
PF3W521-12-1 Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 1-5 V
PF3W521-12-2 Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 4-20 mA
PF3W521-12-1T Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W521-14-1 Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 1-5 V
PF3W521-14-2 Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 4-20 mA
PF3W521-14-1T Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W711-U25-A-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + NPN
PF3W711-U25-B-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + PNP
PF3W711-U25-C-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + analog 1-5 V
PF3W711-U25-D-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + analog 4-20 mA
PF3W711-U25-E-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + analog 1-5 V
PF3W711-U25-F-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + analog 4-20 mA
PF3W711-U25-G-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + external input
PF3W711-U25-H-M Type: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + external input
PF3W511-U25-1 Type: Remote sensor, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: Analog 1-5 V
PF3W511-U25-2 Type: Remote sensor, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: Analog 4-20 mA
PF3W721-U30-A-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + NPN
PF3W721-U30-B-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + PNP
PF3W721-U30-C-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + analog 1-5 V
PF3W721-U30-D-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + analog 4-20 mA
PF3W721-U30-E-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + analog 1-5 V
PF3W721-U30-F-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + analog 4-20 mA
PF3W721-U30-G-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + external input
PF3W721-U30-H-M Type: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + external input
PF3W521-U30-1 Type: Remote sensor, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: Analog 1-5 V
PF3W521-U30-2 Type: Remote sensor, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: Analog 4-20 mA
Flow SwitchesSMC
286 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PF3W Digital Flow Switch for Water (3-Color Display)

Brand SMC·Flow Switches

Available part numbers (286)

PF3W704-03-A-M, PF3W704-03-B-M, PF3W704-03-C-M, PF3W704-03-D-M, PF3W704-03-E-M, PF3W704-03-F-M, PF3W704-03-G-M, PF3W704-03-H-M, PF3W704-03-AT-M, PF3W704-03-BT-M + 276 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PF3W704-03-A-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W704-03-B-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W704-03-C-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704-03-D-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704-03-E-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704-03-F-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704-03-G-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W704-03-H-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W704-03-AT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704-03-BT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704-03-CT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704-03-DT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704-03-ET-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704-03-FT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704-03-JT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704-03-KT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W704S-03-A-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W704S-03-B-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W704S-03-C-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704S-03-D-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704S-03-E-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704S-03-F-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704S-03-G-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W704S-03-H-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W704S-03-AT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704S-03-BT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704S-03-CT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704S-03-DT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704S-03-ET-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704S-03-FT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704S-03-JT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704S-03-KT-MType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-03-A-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W720-03-B-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W720-03-C-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720-03-D-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720-03-E-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720-03-F-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720-03-G-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W720-03-H-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W720-03-AT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720-03-BT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720-03-CT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-03-DT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-03-ET-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-03-FT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-03-JT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-03-KT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-04-A-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W720-04-B-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W720-04-C-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720-04-D-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720-04-E-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720-04-F-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720-04-G-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W720-04-H-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W720-04-AT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720-04-BT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720-04-CT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-04-DT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-04-ET-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-04-FT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-04-JT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-04-KT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-03-A-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W720S-03-B-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W720S-03-C-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720S-03-D-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720S-03-E-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720S-03-F-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720S-03-G-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W720S-03-H-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W720S-03-AT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720S-03-BT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720S-03-CT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-03-DT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-03-ET-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-03-FT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-03-JT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-03-KT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-04-A-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W720S-04-B-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W720S-04-C-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720S-04-D-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720S-04-E-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720S-04-F-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720S-04-G-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W720S-04-H-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W720S-04-AT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720S-04-BT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720S-04-CT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-04-DT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-04-ET-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-04-FT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-04-JT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-04-KT-MType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-04-A-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W740-04-B-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W740-04-C-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740-04-D-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740-04-E-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740-04-F-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740-04-G-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W740-04-H-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W740-04-AT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740-04-BT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740-04-CT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-04-DT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-04-ET-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-04-FT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-04-JT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-04-KT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-06-A-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W740-06-B-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W740-06-C-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740-06-D-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740-06-E-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740-06-F-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740-06-G-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W740-06-H-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W740-06-AT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740-06-BT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740-06-CT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-06-DT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-06-ET-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-06-FT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-06-JT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-06-KT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-04-A-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W740S-04-B-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W740S-04-C-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740S-04-D-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740S-04-E-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740S-04-F-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740S-04-G-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W740S-04-H-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W740S-04-AT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740S-04-BT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740S-04-CT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-04-DT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-04-ET-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-04-FT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-04-JT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-04-KT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-06-A-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN
PF3W740S-06-B-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP
PF3W740S-06-C-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740S-06-D-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740S-06-E-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740S-06-F-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740S-06-G-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + external input
PF3W740S-06-H-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + external input
PF3W740S-06-AT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740S-06-BT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740S-06-CT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-06-DT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-06-ET-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-06-FT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-06-JT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-06-KT-MType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-06-A-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W711-06-B-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W711-06-C-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W711-06-D-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W711-06-E-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W711-06-F-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W711-06-G-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W711-06-H-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W711-06-AT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W711-06-BT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W711-06-CT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-06-DT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-06-ET-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-06-FT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-06-JT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-06-KT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-10-A-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN
PF3W711-10-B-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP
PF3W711-10-C-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V
PF3W711-10-D-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA
PF3W711-10-E-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V
PF3W711-10-F-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA
PF3W711-10-G-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + external input
PF3W711-10-H-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + external input
PF3W711-10-AT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN, temp sensor
PF3W711-10-BT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP, temp sensor
PF3W711-10-CT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-10-DT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-10-ET-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-10-FT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-10-JT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-10-KT-MType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W721-12-A-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + NPN
PF3W721-12-B-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + PNP
PF3W721-12-C-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 1-5 V
PF3W721-12-D-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 4-20 mA
PF3W721-12-E-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 1-5 V
PF3W721-12-F-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 4-20 mA
PF3W721-12-G-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + external input
PF3W721-12-H-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + external input
PF3W721-12-AT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + NPN, temp sensor
PF3W721-12-BT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + PNP, temp sensor
PF3W721-12-CT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W721-12-DT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W721-12-ET-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W721-12-FT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W721-12-JT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W721-12-KT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W721-14-A-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + NPN
PF3W721-14-B-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + PNP
PF3W721-14-C-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 1-5 V
PF3W721-14-D-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 4-20 mA
PF3W721-14-E-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 1-5 V
PF3W721-14-F-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 4-20 mA
PF3W721-14-G-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + external input
PF3W721-14-H-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + external input
PF3W721-14-AT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + NPN, temp sensor
PF3W721-14-BT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + PNP, temp sensor
PF3W721-14-CT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W721-14-DT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W721-14-ET-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W721-14-FT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W721-14-JT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W721-14-KT-MType: Integrated display | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W504-03-1Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504-03-2Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504-03-1TType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W504S-03-1Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504S-03-2Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504S-03-1TType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-03-1Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520-03-2Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520-03-1TType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-04-1Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520-04-2Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520-04-1TType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-03-1Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520S-03-2Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520S-03-1TType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-04-1Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520S-04-2Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520S-04-1TType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-04-1Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540-04-2Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540-04-1TType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-06-1Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540-06-2Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540-06-1TType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-04-1Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540S-04-2Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540S-04-1TType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-06-1Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540S-06-2Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540S-06-1TType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-06-1Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W511-06-2Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W511-06-1TType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-10-1Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V
PF3W511-10-2Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA
PF3W511-10-1TType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V + 1-5 V temp
PF3W521-12-1Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 1-5 V
PF3W521-12-2Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 4-20 mA
PF3W521-12-1TType: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W521-14-1Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 1-5 V
PF3W521-14-2Type: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 4-20 mA
PF3W521-14-1TType: Remote sensor unit | Rated flow: 50-250 L/min | Flow adjust valve: None | Port: Rc1 1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W711-U25-A-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + NPN
PF3W711-U25-B-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + PNP
PF3W711-U25-C-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + analog 1-5 V
PF3W711-U25-D-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + analog 4-20 mA
PF3W711-U25-E-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + analog 1-5 V
PF3W711-U25-F-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + analog 4-20 mA
PF3W711-U25-G-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: NPN + external input
PF3W711-U25-H-MType: Integrated, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: PNP + external input
PF3W511-U25-1Type: Remote sensor, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: Analog 1-5 V
PF3W511-U25-2Type: Remote sensor, PVC piping | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: PVC tube 25A (OD 32 mm) | Output: Analog 4-20 mA
PF3W721-U30-A-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + NPN
PF3W721-U30-B-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + PNP
PF3W721-U30-C-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + analog 1-5 V
PF3W721-U30-D-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + analog 4-20 mA
PF3W721-U30-E-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + analog 1-5 V
PF3W721-U30-F-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + analog 4-20 mA
PF3W721-U30-G-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: NPN + external input
PF3W721-U30-H-MType: Integrated, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: PNP + external input
PF3W521-U30-1Type: Remote sensor, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: Analog 1-5 V
PF3W521-U30-2Type: Remote sensor, PVC piping | Rated flow: 30-250 L/min | Flow adjust valve: None | Port: PVC tube 30A (OD 38 mm) | Output: Analog 4-20 mA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
