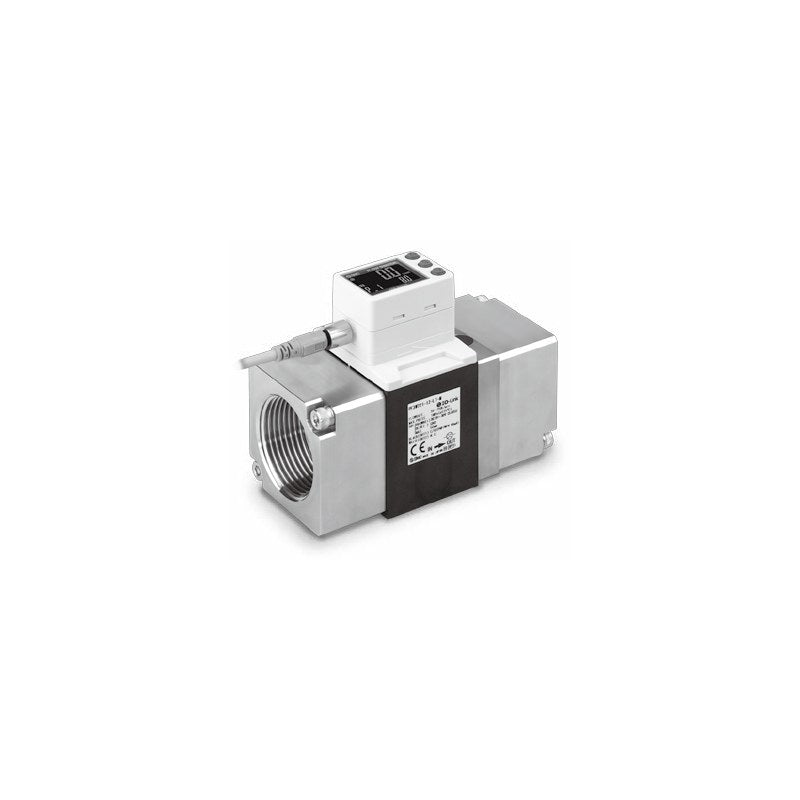

SMC PF3W-Z Digital Flow Switch for Water (Lightweight, 0.5-100 L/min)

SMC PF3W-Z Digital Flow Switch for Water (Lightweight, 0.5-100 L/min)

SMC PF3W-Z series lightweight digital flow switch for water, integrated 3-color display (PF3W7-Z) or remote sensor (PF3W5-Z), rated 0.5 to 100 L/min.

Key features

  • Up to 53% lighter than the conventional PF3W; brackets and M8 lead wire interchangeable with PF3W
  • Karman vortex detection for water and ethylene glycol solution, fluid 0 to 90 C
  • Four rated ranges 0.5-4, 2-16, 5-40, 10-100 L/min; flow adjust valve (S) on 4/16/40 L/min types
  • Integrated type with 16 output options incl. temperature sensor models; remote sensor with analog output
  • Suffix options not expanded: NPT/G thread, lead wire omitted (N), bracket (R), calibration certificate (A)

Specifications

Fluid Water, ethylene glycol solution
Detection method Karman vortex
Operating pressure 0 to 1 MPa
Proof pressure 1.5 MPa
Fluid temperature 0 to 90 C
Accuracy Display +/-3% F.S., analog +/-3% F.S.
Repeatability +/-2% F.S.
Power supply DC12 to 24 V +/-10%
Enclosure IP65
Wetted materials PPS, SUS304, FKM, SCS13
Weight (integrated) 153 g (PF3W704) to 720 g (PF3W711)
Source SMC Korea catalog CAT.KS100-133B (SMCKR_PF3W-Z_PF3W-L.pdf), p. 11-14 (PDF p. 12-15)
PF3W704-03-A-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W704-03-B-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W704-03-C-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704-03-D-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704-03-E-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704-03-F-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704-03-G-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W704-03-H-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W704-03-AT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704-03-BT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704-03-CT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704-03-DT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704-03-ET-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704-03-FT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704-03-JT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704-03-KT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W704S-03-A-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W704S-03-B-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W704S-03-C-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704S-03-D-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704S-03-E-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704S-03-F-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704S-03-G-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W704S-03-H-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W704S-03-AT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704S-03-BT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704S-03-CT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704S-03-DT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704S-03-ET-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704S-03-FT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704S-03-JT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704S-03-KT-MZ Type: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-03-A-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W720-03-B-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W720-03-C-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720-03-D-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720-03-E-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720-03-F-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720-03-G-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W720-03-H-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W720-03-AT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720-03-BT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720-03-CT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-03-DT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-03-ET-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-03-FT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-03-JT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-03-KT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-04-A-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W720-04-B-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W720-04-C-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720-04-D-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720-04-E-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720-04-F-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720-04-G-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W720-04-H-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W720-04-AT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720-04-BT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720-04-CT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-04-DT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-04-ET-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-04-FT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-04-JT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-04-KT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-03-A-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W720S-03-B-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W720S-03-C-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720S-03-D-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720S-03-E-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720S-03-F-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720S-03-G-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W720S-03-H-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W720S-03-AT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720S-03-BT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720S-03-CT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-03-DT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-03-ET-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-03-FT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-03-JT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-03-KT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-04-A-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W720S-04-B-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W720S-04-C-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720S-04-D-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720S-04-E-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720S-04-F-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720S-04-G-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W720S-04-H-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W720S-04-AT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720S-04-BT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720S-04-CT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-04-DT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-04-ET-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-04-FT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-04-JT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-04-KT-MZ Type: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-04-A-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W740-04-B-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W740-04-C-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740-04-D-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740-04-E-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740-04-F-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740-04-G-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W740-04-H-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W740-04-AT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740-04-BT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740-04-CT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-04-DT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-04-ET-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-04-FT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-04-JT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-04-KT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-06-A-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W740-06-B-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W740-06-C-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740-06-D-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740-06-E-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740-06-F-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740-06-G-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W740-06-H-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W740-06-AT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740-06-BT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740-06-CT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-06-DT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-06-ET-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-06-FT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-06-JT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-06-KT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-04-A-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W740S-04-B-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W740S-04-C-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740S-04-D-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740S-04-E-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740S-04-F-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740S-04-G-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W740S-04-H-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W740S-04-AT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740S-04-BT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740S-04-CT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-04-DT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-04-ET-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-04-FT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-04-JT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-04-KT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-06-A-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN
PF3W740S-06-B-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP
PF3W740S-06-C-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740S-06-D-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740S-06-E-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740S-06-F-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740S-06-G-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + external input
PF3W740S-06-H-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + external input
PF3W740S-06-AT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740S-06-BT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740S-06-CT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-06-DT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-06-ET-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-06-FT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-06-JT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-06-KT-MZ Type: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-06-A-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W711-06-B-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W711-06-C-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W711-06-D-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W711-06-E-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W711-06-F-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W711-06-G-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W711-06-H-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W711-06-AT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W711-06-BT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W711-06-CT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-06-DT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-06-ET-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-06-FT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-06-JT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-06-KT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-10-A-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN
PF3W711-10-B-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP
PF3W711-10-C-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V
PF3W711-10-D-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA
PF3W711-10-E-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V
PF3W711-10-F-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA
PF3W711-10-G-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + external input
PF3W711-10-H-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + external input
PF3W711-10-AT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN, temp sensor
PF3W711-10-BT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP, temp sensor
PF3W711-10-CT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-10-DT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-10-ET-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-10-FT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-10-JT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-10-KT-MZ Type: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W504-03-1-Z Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504-03-2-Z Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504-03-1T-Z Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W504S-03-1-Z Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504S-03-2-Z Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504S-03-1T-Z Type: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-03-1-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520-03-2-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520-03-1T-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-04-1-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520-04-2-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520-04-1T-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-03-1-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520S-03-2-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520S-03-1T-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-04-1-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520S-04-2-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520S-04-1T-Z Type: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-04-1-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540-04-2-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540-04-1T-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-06-1-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540-06-2-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540-06-1T-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-04-1-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540S-04-2-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540S-04-1T-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-06-1-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540S-06-2-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540S-06-1T-Z Type: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-06-1-Z Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W511-06-2-Z Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W511-06-1T-Z Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-10-1-Z Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V
PF3W511-10-2-Z Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA
PF3W511-10-1T-Z Type: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V + 1-5 V temp
Flow SwitchesSMC
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PF3W-Z Digital Flow Switch for Water (Lightweight, 0.5-100 L/min)

Brand SMC·Flow Switches

Available part numbers (228)

PF3W704-03-A-MZ, PF3W704-03-B-MZ, PF3W704-03-C-MZ, PF3W704-03-D-MZ, PF3W704-03-E-MZ, PF3W704-03-F-MZ, PF3W704-03-G-MZ, PF3W704-03-H-MZ, PF3W704-03-AT-MZ, PF3W704-03-BT-MZ + 218 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PF3W704-03-A-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W704-03-B-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W704-03-C-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704-03-D-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704-03-E-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704-03-F-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704-03-G-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W704-03-H-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W704-03-AT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704-03-BT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704-03-CT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704-03-DT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704-03-ET-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704-03-FT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704-03-JT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704-03-KT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W704S-03-A-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W704S-03-B-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W704S-03-C-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W704S-03-D-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W704S-03-E-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W704S-03-F-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W704S-03-G-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W704S-03-H-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W704S-03-AT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W704S-03-BT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W704S-03-CT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W704S-03-DT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W704S-03-ET-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W704S-03-FT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W704S-03-JT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W704S-03-KT-MZType: Integrated display | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-03-A-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN
PF3W720-03-B-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP
PF3W720-03-C-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720-03-D-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720-03-E-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720-03-F-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720-03-G-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + external input
PF3W720-03-H-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + external input
PF3W720-03-AT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720-03-BT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720-03-CT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-03-DT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-03-ET-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-03-FT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-03-JT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-03-KT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720-04-A-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W720-04-B-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W720-04-C-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720-04-D-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720-04-E-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720-04-F-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720-04-G-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W720-04-H-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W720-04-AT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720-04-BT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720-04-CT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720-04-DT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720-04-ET-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720-04-FT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720-04-JT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720-04-KT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-03-A-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN
PF3W720S-03-B-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP
PF3W720S-03-C-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V
PF3W720S-03-D-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA
PF3W720S-03-E-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V
PF3W720S-03-F-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA
PF3W720S-03-G-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + external input
PF3W720S-03-H-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + external input
PF3W720S-03-AT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + NPN, temp sensor
PF3W720S-03-BT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + PNP, temp sensor
PF3W720S-03-CT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-03-DT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-03-ET-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-03-FT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-03-JT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-03-KT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W720S-04-A-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W720S-04-B-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W720S-04-C-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W720S-04-D-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W720S-04-E-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W720S-04-F-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W720S-04-G-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W720S-04-H-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W720S-04-AT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W720S-04-BT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W720S-04-CT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W720S-04-DT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W720S-04-ET-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W720S-04-FT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W720S-04-JT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W720S-04-KT-MZType: Integrated display | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-04-A-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN
PF3W740-04-B-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP
PF3W740-04-C-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740-04-D-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740-04-E-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740-04-F-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740-04-G-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + external input
PF3W740-04-H-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + external input
PF3W740-04-AT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740-04-BT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740-04-CT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-04-DT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-04-ET-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-04-FT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-04-JT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-04-KT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740-06-A-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W740-06-B-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W740-06-C-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740-06-D-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740-06-E-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740-06-F-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740-06-G-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W740-06-H-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W740-06-AT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740-06-BT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740-06-CT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740-06-DT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740-06-ET-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740-06-FT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740-06-JT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740-06-KT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-04-A-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN
PF3W740S-04-B-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP
PF3W740S-04-C-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V
PF3W740S-04-D-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA
PF3W740S-04-E-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V
PF3W740S-04-F-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA
PF3W740S-04-G-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + external input
PF3W740S-04-H-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + external input
PF3W740S-04-AT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + NPN, temp sensor
PF3W740S-04-BT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + PNP, temp sensor
PF3W740S-04-CT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-04-DT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-04-ET-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-04-FT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-04-JT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-04-KT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W740S-06-A-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN
PF3W740S-06-B-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP
PF3W740S-06-C-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W740S-06-D-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W740S-06-E-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W740S-06-F-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W740S-06-G-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + external input
PF3W740S-06-H-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + external input
PF3W740S-06-AT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W740S-06-BT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W740S-06-CT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W740S-06-DT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W740S-06-ET-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W740S-06-FT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W740S-06-JT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W740S-06-KT-MZType: Integrated display | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-06-A-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN
PF3W711-06-B-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP
PF3W711-06-C-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V
PF3W711-06-D-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA
PF3W711-06-E-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V
PF3W711-06-F-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA
PF3W711-06-G-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + external input
PF3W711-06-H-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + external input
PF3W711-06-AT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + NPN, temp sensor
PF3W711-06-BT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + PNP, temp sensor
PF3W711-06-CT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-06-DT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-06-ET-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-06-FT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-06-JT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-06-KT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W711-10-A-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN
PF3W711-10-B-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP
PF3W711-10-C-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V
PF3W711-10-D-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA
PF3W711-10-E-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V
PF3W711-10-F-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA
PF3W711-10-G-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + external input
PF3W711-10-H-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + external input
PF3W711-10-AT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + NPN, temp sensor
PF3W711-10-BT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + PNP, temp sensor
PF3W711-10-CT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 1-5 V, temp sensor
PF3W711-10-DT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: NPN + analog 4-20 mA, temp sensor
PF3W711-10-ET-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 1-5 V, temp sensor
PF3W711-10-FT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: PNP + analog 4-20 mA, temp sensor
PF3W711-10-JT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V flow + 1-5 V temp
PF3W711-10-KT-MZType: Integrated display | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA flow + 4-20 mA temp
PF3W504-03-1-ZType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504-03-2-ZType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504-03-1T-ZType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W504S-03-1-ZType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W504S-03-2-ZType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W504S-03-1T-ZType: Remote sensor unit | Rated flow: 0.5-4 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-03-1-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520-03-2-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520-03-1T-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520-04-1-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520-04-2-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520-04-1T-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-03-1-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V
PF3W520S-03-2-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 4-20 mA
PF3W520S-03-1T-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/8 | Output: Analog 1-5 V + 1-5 V temp
PF3W520S-04-1-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W520S-04-2-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W520S-04-1T-ZType: Remote sensor unit | Rated flow: 2-16 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-04-1-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540-04-2-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540-04-1T-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540-06-1-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540-06-2-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540-06-1T-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-04-1-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V
PF3W540S-04-2-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 4-20 mA
PF3W540S-04-1T-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc1/2 | Output: Analog 1-5 V + 1-5 V temp
PF3W540S-06-1-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V
PF3W540S-06-2-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W540S-06-1T-ZType: Remote sensor unit | Rated flow: 5-40 L/min | Flow adjust valve: With flow adjust valve | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-06-1-ZType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V
PF3W511-06-2-ZType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 4-20 mA
PF3W511-06-1T-ZType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc3/4 | Output: Analog 1-5 V + 1-5 V temp
PF3W511-10-1-ZType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V
PF3W511-10-2-ZType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 4-20 mA
PF3W511-10-1T-ZType: Remote sensor unit | Rated flow: 10-100 L/min | Flow adjust valve: None | Port: Rc1 | Output: Analog 1-5 V + 1-5 V temp

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
