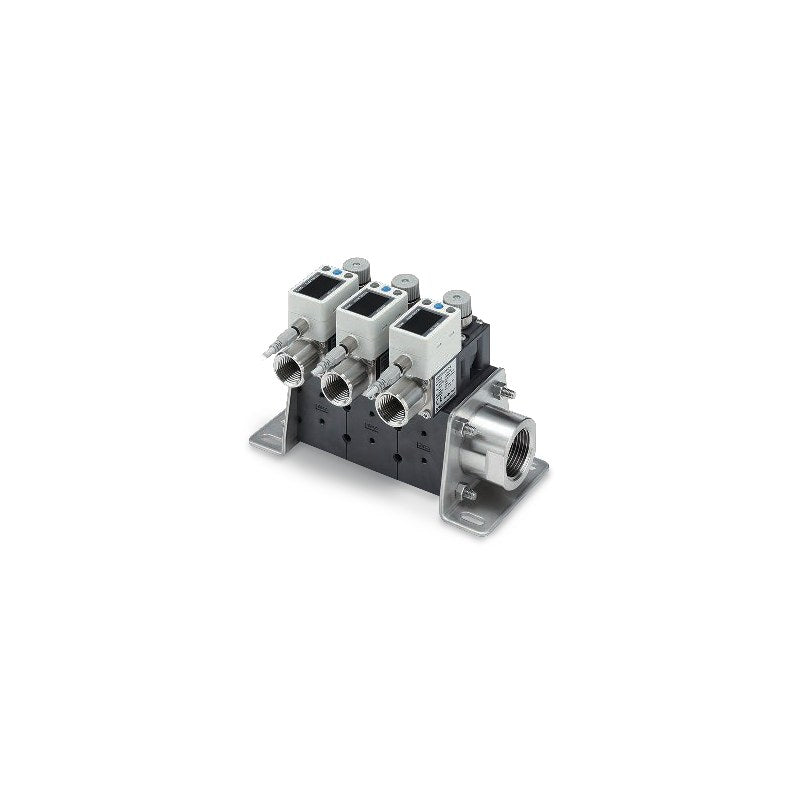

SMC PF3WC Digital Flow Switch Manifold for Water (Straight Type)

SMC PF3WC series straight-type integrated supply/return manifold with PF3W flow switches on the return side, 1 to 5 stations.

Key features

Straight layout with supply and return units on opposite sides, 1 to 5 stations
Return units carry PF3W7 integrated display or PF3W5 remote sensor flow switches, 0.5-4 / 2-16 / 5-40 L/min
Unit layout D or U; main piping Rc1 open (closed type not available)
Supply / return unit with flow adjust valve (S), stop valve (P) or both (W) by symbol; codes listed with plain units
Not expanded: NPT/G thread, switch lead wire omitted (N) / M12-M8 lead (Q); made-to-order outputs

Specifications

Fluid	Water, ethylene glycol solution
Operating pressure	0 to 1 MPa
Proof pressure	1.5 MPa
Fluid temperature	0 to 90 C
Enclosure	IP65
Main piping	Rc1
Wetted materials	PPS, SUS304, FKM
Standards	CE, RoHS
Source	SMC Korea catalog CAT.KS100-130A (SMCKR_PF3W_manifold.pdf), p. 8, 11 (PDF p. 9, 12)

PF3WC01D-704-03-A-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC01D-704-03-B-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC01D-704-03-C-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC01D-704-03-D-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC01D-704-03-E-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC01D-704-03-F-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC01D-704-03-AT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC01D-704-03-BT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC01D-704-03-CT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC01D-704-03-DT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC01D-704-03-ET-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC01D-704-03-FT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC01D-704-03-LT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC01D-504-03-1		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC01D-504-03-2		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC01D-504-03-1T		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC01U-704-03-A-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC01U-704-03-B-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC01U-704-03-C-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC01U-704-03-D-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC01U-704-03-E-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC01U-704-03-F-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC01U-704-03-AT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC01U-704-03-BT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC01U-704-03-CT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC01U-704-03-DT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC01U-704-03-ET-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC01U-704-03-FT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC01U-704-03-LT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC01U-504-03-1		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC01U-504-03-2		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC01U-504-03-1T		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC02D-704-03-A-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC02D-704-03-B-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC02D-704-03-C-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC02D-704-03-D-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC02D-704-03-E-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC02D-704-03-F-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC02D-704-03-AT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC02D-704-03-BT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC02D-704-03-CT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC02D-704-03-DT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC02D-704-03-ET-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC02D-704-03-FT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC02D-704-03-LT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC02D-504-03-1		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC02D-504-03-2		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC02D-504-03-1T		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC02U-704-03-A-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC02U-704-03-B-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC02U-704-03-C-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC02U-704-03-D-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC02U-704-03-E-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC02U-704-03-F-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC02U-704-03-AT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC02U-704-03-BT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC02U-704-03-CT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC02U-704-03-DT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC02U-704-03-ET-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC02U-704-03-FT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC02U-704-03-LT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC02U-504-03-1		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC02U-504-03-2		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC02U-504-03-1T		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC03D-704-03-A-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC03D-704-03-B-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC03D-704-03-C-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC03D-704-03-D-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC03D-704-03-E-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC03D-704-03-F-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC03D-704-03-AT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC03D-704-03-BT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC03D-704-03-CT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC03D-704-03-DT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC03D-704-03-ET-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC03D-704-03-FT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC03D-704-03-LT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC03D-504-03-1		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC03D-504-03-2		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC03D-504-03-1T		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC03U-704-03-A-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC03U-704-03-B-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC03U-704-03-C-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC03U-704-03-D-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC03U-704-03-E-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC03U-704-03-F-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC03U-704-03-AT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC03U-704-03-BT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC03U-704-03-CT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC03U-704-03-DT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC03U-704-03-ET-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC03U-704-03-FT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC03U-704-03-LT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC03U-504-03-1		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC03U-504-03-2		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC03U-504-03-1T		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC04D-704-03-A-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC04D-704-03-B-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC04D-704-03-C-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC04D-704-03-D-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC04D-704-03-E-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC04D-704-03-F-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC04D-704-03-AT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC04D-704-03-BT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC04D-704-03-CT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC04D-704-03-DT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC04D-704-03-ET-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC04D-704-03-FT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC04D-704-03-LT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC04D-504-03-1		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC04D-504-03-2		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC04D-504-03-1T		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC04U-704-03-A-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC04U-704-03-B-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC04U-704-03-C-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC04U-704-03-D-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC04U-704-03-E-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC04U-704-03-F-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC04U-704-03-AT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC04U-704-03-BT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC04U-704-03-CT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC04U-704-03-DT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC04U-704-03-ET-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC04U-704-03-FT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC04U-704-03-LT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC04U-504-03-1		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC04U-504-03-2		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC04U-504-03-1T		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC05D-704-03-A-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC05D-704-03-B-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC05D-704-03-C-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC05D-704-03-D-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC05D-704-03-E-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC05D-704-03-F-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC05D-704-03-AT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC05D-704-03-BT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC05D-704-03-CT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC05D-704-03-DT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC05D-704-03-ET-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC05D-704-03-FT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC05D-704-03-LT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC05D-504-03-1		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC05D-504-03-2		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC05D-504-03-1T		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC05U-704-03-A-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC05U-704-03-B-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC05U-704-03-C-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC05U-704-03-D-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC05U-704-03-E-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC05U-704-03-F-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC05U-704-03-AT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC05U-704-03-BT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC05U-704-03-CT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC05U-704-03-DT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC05U-704-03-ET-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC05U-704-03-FT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC05U-704-03-LT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC05U-504-03-1		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC05U-504-03-2		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC05U-504-03-1T		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC01D-720-04-A-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC01D-720-04-B-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC01D-720-04-C-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC01D-720-04-D-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC01D-720-04-E-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC01D-720-04-F-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC01D-720-04-AT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC01D-720-04-BT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC01D-720-04-CT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC01D-720-04-DT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC01D-720-04-ET-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC01D-720-04-FT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC01D-720-04-LT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC01D-520-04-1		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC01D-520-04-2		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC01D-520-04-1T		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC01U-720-04-A-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC01U-720-04-B-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC01U-720-04-C-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC01U-720-04-D-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC01U-720-04-E-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC01U-720-04-F-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC01U-720-04-AT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC01U-720-04-BT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC01U-720-04-CT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC01U-720-04-DT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC01U-720-04-ET-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC01U-720-04-FT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC01U-720-04-LT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC01U-520-04-1		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC01U-520-04-2		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC01U-520-04-1T		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC02D-720-04-A-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC02D-720-04-B-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC02D-720-04-C-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC02D-720-04-D-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC02D-720-04-E-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC02D-720-04-F-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC02D-720-04-AT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC02D-720-04-BT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC02D-720-04-CT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC02D-720-04-DT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC02D-720-04-ET-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC02D-720-04-FT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC02D-720-04-LT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC02D-520-04-1		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC02D-520-04-2		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC02D-520-04-1T		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC02U-720-04-A-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC02U-720-04-B-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC02U-720-04-C-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC02U-720-04-D-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC02U-720-04-E-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC02U-720-04-F-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC02U-720-04-AT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC02U-720-04-BT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC02U-720-04-CT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC02U-720-04-DT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC02U-720-04-ET-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC02U-720-04-FT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC02U-720-04-LT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC02U-520-04-1		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC02U-520-04-2		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC02U-520-04-1T		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC03D-720-04-A-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC03D-720-04-B-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC03D-720-04-C-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC03D-720-04-D-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC03D-720-04-E-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC03D-720-04-F-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC03D-720-04-AT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC03D-720-04-BT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC03D-720-04-CT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC03D-720-04-DT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC03D-720-04-ET-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC03D-720-04-FT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC03D-720-04-LT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC03D-520-04-1		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC03D-520-04-2		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC03D-520-04-1T		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC03U-720-04-A-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC03U-720-04-B-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC03U-720-04-C-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC03U-720-04-D-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC03U-720-04-E-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC03U-720-04-F-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC03U-720-04-AT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC03U-720-04-BT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC03U-720-04-CT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC03U-720-04-DT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC03U-720-04-ET-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC03U-720-04-FT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC03U-720-04-LT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC03U-520-04-1		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC03U-520-04-2		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC03U-520-04-1T		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC04D-720-04-A-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC04D-720-04-B-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC04D-720-04-C-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC04D-720-04-D-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC04D-720-04-E-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC04D-720-04-F-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC04D-720-04-AT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC04D-720-04-BT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC04D-720-04-CT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC04D-720-04-DT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC04D-720-04-ET-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC04D-720-04-FT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC04D-720-04-LT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC04D-520-04-1		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC04D-520-04-2		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC04D-520-04-1T		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC04U-720-04-A-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC04U-720-04-B-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC04U-720-04-C-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC04U-720-04-D-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC04U-720-04-E-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC04U-720-04-F-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC04U-720-04-AT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC04U-720-04-BT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC04U-720-04-CT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC04U-720-04-DT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC04U-720-04-ET-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC04U-720-04-FT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC04U-720-04-LT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC04U-520-04-1		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC04U-520-04-2		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC04U-520-04-1T		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC05D-720-04-A-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC05D-720-04-B-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC05D-720-04-C-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC05D-720-04-D-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC05D-720-04-E-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC05D-720-04-F-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC05D-720-04-AT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC05D-720-04-BT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC05D-720-04-CT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC05D-720-04-DT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC05D-720-04-ET-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC05D-720-04-FT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC05D-720-04-LT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC05D-520-04-1		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC05D-520-04-2		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC05D-520-04-1T		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC05U-720-04-A-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC05U-720-04-B-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC05U-720-04-C-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC05U-720-04-D-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC05U-720-04-E-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC05U-720-04-F-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC05U-720-04-AT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC05U-720-04-BT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC05U-720-04-CT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC05U-720-04-DT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC05U-720-04-ET-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC05U-720-04-FT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC05U-720-04-LT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC05U-520-04-1		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC05U-520-04-2		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC05U-520-04-1T		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC01D-740-06-A-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC01D-740-06-B-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC01D-740-06-C-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC01D-740-06-D-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC01D-740-06-E-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC01D-740-06-F-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC01D-740-06-AT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC01D-740-06-BT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC01D-740-06-CT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC01D-740-06-DT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC01D-740-06-ET-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC01D-740-06-FT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC01D-740-06-LT-M		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC01D-540-06-1		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC01D-540-06-2		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC01D-540-06-1T		Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC01U-740-06-A-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC01U-740-06-B-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC01U-740-06-C-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC01U-740-06-D-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC01U-740-06-E-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC01U-740-06-F-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC01U-740-06-AT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC01U-740-06-BT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC01U-740-06-CT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC01U-740-06-DT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC01U-740-06-ET-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC01U-740-06-FT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC01U-740-06-LT-M		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC01U-540-06-1		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC01U-540-06-2		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC01U-540-06-1T		Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC02D-740-06-A-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC02D-740-06-B-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC02D-740-06-C-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC02D-740-06-D-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC02D-740-06-E-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC02D-740-06-F-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC02D-740-06-AT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC02D-740-06-BT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC02D-740-06-CT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC02D-740-06-DT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC02D-740-06-ET-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC02D-740-06-FT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC02D-740-06-LT-M		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC02D-540-06-1		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC02D-540-06-2		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC02D-540-06-1T		Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC02U-740-06-A-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC02U-740-06-B-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC02U-740-06-C-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC02U-740-06-D-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC02U-740-06-E-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC02U-740-06-F-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC02U-740-06-AT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC02U-740-06-BT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC02U-740-06-CT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC02U-740-06-DT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC02U-740-06-ET-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC02U-740-06-FT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC02U-740-06-LT-M		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC02U-540-06-1		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC02U-540-06-2		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC02U-540-06-1T		Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC03D-740-06-A-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC03D-740-06-B-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC03D-740-06-C-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC03D-740-06-D-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC03D-740-06-E-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC03D-740-06-F-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC03D-740-06-AT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC03D-740-06-BT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC03D-740-06-CT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC03D-740-06-DT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC03D-740-06-ET-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC03D-740-06-FT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC03D-740-06-LT-M		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC03D-540-06-1		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC03D-540-06-2		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC03D-540-06-1T		Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC03U-740-06-A-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC03U-740-06-B-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC03U-740-06-C-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC03U-740-06-D-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC03U-740-06-E-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC03U-740-06-F-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC03U-740-06-AT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC03U-740-06-BT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC03U-740-06-CT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC03U-740-06-DT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC03U-740-06-ET-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC03U-740-06-FT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC03U-740-06-LT-M		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC03U-540-06-1		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC03U-540-06-2		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC03U-540-06-1T		Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC04D-740-06-A-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC04D-740-06-B-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC04D-740-06-C-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC04D-740-06-D-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC04D-740-06-E-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC04D-740-06-F-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC04D-740-06-AT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC04D-740-06-BT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC04D-740-06-CT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC04D-740-06-DT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC04D-740-06-ET-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC04D-740-06-FT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC04D-740-06-LT-M		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC04D-540-06-1		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC04D-540-06-2		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC04D-540-06-1T		Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC04U-740-06-A-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC04U-740-06-B-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC04U-740-06-C-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC04U-740-06-D-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC04U-740-06-E-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC04U-740-06-F-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC04U-740-06-AT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC04U-740-06-BT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC04U-740-06-CT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC04U-740-06-DT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC04U-740-06-ET-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC04U-740-06-FT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC04U-740-06-LT-M		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC04U-540-06-1		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC04U-540-06-2		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC04U-540-06-1T		Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC05D-740-06-A-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC05D-740-06-B-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC05D-740-06-C-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC05D-740-06-D-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC05D-740-06-E-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC05D-740-06-F-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC05D-740-06-AT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC05D-740-06-BT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC05D-740-06-CT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC05D-740-06-DT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC05D-740-06-ET-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC05D-740-06-FT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC05D-740-06-LT-M		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC05D-540-06-1		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC05D-540-06-2		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC05D-540-06-1T		Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
PF3WC05U-740-06-A-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
PF3WC05U-740-06-B-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
PF3WC05U-740-06-C-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
PF3WC05U-740-06-D-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
PF3WC05U-740-06-E-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
PF3WC05U-740-06-F-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
PF3WC05U-740-06-AT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
PF3WC05U-740-06-BT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
PF3WC05U-740-06-CT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
PF3WC05U-740-06-DT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
PF3WC05U-740-06-ET-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
PF3WC05U-740-06-FT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
PF3WC05U-740-06-LT-M		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
PF3WC05U-540-06-1		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
PF3WC05U-540-06-2		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
PF3WC05U-540-06-1T		Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp

Flow SwitchesSMC

480 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PF3WC Digital Flow Switch Manifold for Water (Straight Type)

Brand SMC·Flow Switches

Available part numbers (480)

PF3WC01D-704-03-A-M, PF3WC01D-704-03-B-M, PF3WC01D-704-03-C-M, PF3WC01D-704-03-D-M, PF3WC01D-704-03-E-M, PF3WC01D-704-03-F-M, PF3WC01D-704-03-AT-M, PF3WC01D-704-03-BT-M, PF3WC01D-704-03-CT-M, PF3WC01D-704-03-DT-M + 470 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	PF3WC01D-704-03-A-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC01D-704-03-B-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC01D-704-03-C-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC01D-704-03-D-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC01D-704-03-E-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC01D-704-03-F-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC01D-704-03-AT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC01D-704-03-BT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC01D-704-03-CT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC01D-704-03-DT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC01D-704-03-ET-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC01D-704-03-FT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC01D-704-03-LT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC01D-504-03-1	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC01D-504-03-2	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC01D-504-03-1T	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC01U-704-03-A-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC01U-704-03-B-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC01U-704-03-C-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC01U-704-03-D-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC01U-704-03-E-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC01U-704-03-F-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC01U-704-03-AT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC01U-704-03-BT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC01U-704-03-CT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC01U-704-03-DT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC01U-704-03-ET-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC01U-704-03-FT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC01U-704-03-LT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC01U-504-03-1	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC01U-504-03-2	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC01U-504-03-1T	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC02D-704-03-A-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC02D-704-03-B-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC02D-704-03-C-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC02D-704-03-D-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC02D-704-03-E-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC02D-704-03-F-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC02D-704-03-AT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC02D-704-03-BT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC02D-704-03-CT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC02D-704-03-DT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC02D-704-03-ET-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC02D-704-03-FT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC02D-704-03-LT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC02D-504-03-1	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC02D-504-03-2	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC02D-504-03-1T	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC02U-704-03-A-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC02U-704-03-B-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC02U-704-03-C-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC02U-704-03-D-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC02U-704-03-E-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC02U-704-03-F-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC02U-704-03-AT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC02U-704-03-BT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC02U-704-03-CT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC02U-704-03-DT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC02U-704-03-ET-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC02U-704-03-FT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC02U-704-03-LT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC02U-504-03-1	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC02U-504-03-2	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC02U-504-03-1T	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC03D-704-03-A-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC03D-704-03-B-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC03D-704-03-C-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC03D-704-03-D-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC03D-704-03-E-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC03D-704-03-F-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC03D-704-03-AT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC03D-704-03-BT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC03D-704-03-CT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC03D-704-03-DT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC03D-704-03-ET-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC03D-704-03-FT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC03D-704-03-LT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC03D-504-03-1	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC03D-504-03-2	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC03D-504-03-1T	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC03U-704-03-A-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC03U-704-03-B-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC03U-704-03-C-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC03U-704-03-D-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC03U-704-03-E-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC03U-704-03-F-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC03U-704-03-AT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC03U-704-03-BT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC03U-704-03-CT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC03U-704-03-DT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC03U-704-03-ET-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC03U-704-03-FT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC03U-704-03-LT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC03U-504-03-1	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC03U-504-03-2	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC03U-504-03-1T	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC04D-704-03-A-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC04D-704-03-B-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC04D-704-03-C-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC04D-704-03-D-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC04D-704-03-E-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC04D-704-03-F-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC04D-704-03-AT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC04D-704-03-BT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC04D-704-03-CT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC04D-704-03-DT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC04D-704-03-ET-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC04D-704-03-FT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC04D-704-03-LT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC04D-504-03-1	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC04D-504-03-2	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC04D-504-03-1T	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC04U-704-03-A-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC04U-704-03-B-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC04U-704-03-C-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC04U-704-03-D-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC04U-704-03-E-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC04U-704-03-F-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC04U-704-03-AT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC04U-704-03-BT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC04U-704-03-CT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC04U-704-03-DT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC04U-704-03-ET-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC04U-704-03-FT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC04U-704-03-LT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC04U-504-03-1	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC04U-504-03-2	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC04U-504-03-1T	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC05D-704-03-A-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC05D-704-03-B-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC05D-704-03-C-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC05D-704-03-D-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC05D-704-03-E-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC05D-704-03-F-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC05D-704-03-AT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC05D-704-03-BT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC05D-704-03-CT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC05D-704-03-DT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC05D-704-03-ET-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC05D-704-03-FT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC05D-704-03-LT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC05D-504-03-1	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC05D-504-03-2	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC05D-504-03-1T	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC05U-704-03-A-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC05U-704-03-B-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC05U-704-03-C-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC05U-704-03-D-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC05U-704-03-E-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC05U-704-03-F-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC05U-704-03-AT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC05U-704-03-BT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC05U-704-03-CT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC05U-704-03-DT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC05U-704-03-ET-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC05U-704-03-FT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC05U-704-03-LT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC05U-504-03-1	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC05U-504-03-2	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC05U-504-03-1T	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 0.5-4 L/min, Rc3/8 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC01D-720-04-A-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC01D-720-04-B-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC01D-720-04-C-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC01D-720-04-D-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC01D-720-04-E-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC01D-720-04-F-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC01D-720-04-AT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC01D-720-04-BT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC01D-720-04-CT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC01D-720-04-DT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC01D-720-04-ET-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC01D-720-04-FT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC01D-720-04-LT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC01D-520-04-1	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC01D-520-04-2	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC01D-520-04-1T	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC01U-720-04-A-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC01U-720-04-B-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC01U-720-04-C-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC01U-720-04-D-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC01U-720-04-E-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC01U-720-04-F-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC01U-720-04-AT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC01U-720-04-BT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC01U-720-04-CT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC01U-720-04-DT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC01U-720-04-ET-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC01U-720-04-FT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC01U-720-04-LT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC01U-520-04-1	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC01U-520-04-2	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC01U-520-04-1T	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC02D-720-04-A-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC02D-720-04-B-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC02D-720-04-C-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC02D-720-04-D-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC02D-720-04-E-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC02D-720-04-F-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC02D-720-04-AT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC02D-720-04-BT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC02D-720-04-CT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC02D-720-04-DT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC02D-720-04-ET-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC02D-720-04-FT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC02D-720-04-LT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC02D-520-04-1	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC02D-520-04-2	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC02D-520-04-1T	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC02U-720-04-A-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC02U-720-04-B-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC02U-720-04-C-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC02U-720-04-D-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC02U-720-04-E-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC02U-720-04-F-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC02U-720-04-AT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC02U-720-04-BT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC02U-720-04-CT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC02U-720-04-DT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC02U-720-04-ET-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC02U-720-04-FT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC02U-720-04-LT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC02U-520-04-1	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC02U-520-04-2	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC02U-520-04-1T	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC03D-720-04-A-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC03D-720-04-B-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC03D-720-04-C-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC03D-720-04-D-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC03D-720-04-E-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC03D-720-04-F-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC03D-720-04-AT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC03D-720-04-BT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC03D-720-04-CT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC03D-720-04-DT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC03D-720-04-ET-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC03D-720-04-FT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC03D-720-04-LT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC03D-520-04-1	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC03D-520-04-2	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC03D-520-04-1T	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC03U-720-04-A-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC03U-720-04-B-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC03U-720-04-C-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC03U-720-04-D-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC03U-720-04-E-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC03U-720-04-F-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC03U-720-04-AT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC03U-720-04-BT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC03U-720-04-CT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC03U-720-04-DT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC03U-720-04-ET-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC03U-720-04-FT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC03U-720-04-LT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC03U-520-04-1	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC03U-520-04-2	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC03U-520-04-1T	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC04D-720-04-A-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC04D-720-04-B-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC04D-720-04-C-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC04D-720-04-D-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC04D-720-04-E-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC04D-720-04-F-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC04D-720-04-AT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC04D-720-04-BT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC04D-720-04-CT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC04D-720-04-DT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC04D-720-04-ET-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC04D-720-04-FT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC04D-720-04-LT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC04D-520-04-1	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC04D-520-04-2	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC04D-520-04-1T	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC04U-720-04-A-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC04U-720-04-B-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC04U-720-04-C-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC04U-720-04-D-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC04U-720-04-E-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC04U-720-04-F-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC04U-720-04-AT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC04U-720-04-BT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC04U-720-04-CT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC04U-720-04-DT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC04U-720-04-ET-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC04U-720-04-FT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC04U-720-04-LT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC04U-520-04-1	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC04U-520-04-2	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC04U-520-04-1T	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC05D-720-04-A-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC05D-720-04-B-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC05D-720-04-C-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC05D-720-04-D-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC05D-720-04-E-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC05D-720-04-F-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC05D-720-04-AT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC05D-720-04-BT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC05D-720-04-CT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC05D-720-04-DT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC05D-720-04-ET-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC05D-720-04-FT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC05D-720-04-LT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC05D-520-04-1	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC05D-520-04-2	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC05D-520-04-1T	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC05U-720-04-A-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC05U-720-04-B-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC05U-720-04-C-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC05U-720-04-D-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC05U-720-04-E-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC05U-720-04-F-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC05U-720-04-AT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC05U-720-04-BT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC05U-720-04-CT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC05U-720-04-DT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC05U-720-04-ET-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC05U-720-04-FT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC05U-720-04-LT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC05U-520-04-1	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC05U-520-04-2	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC05U-520-04-1T	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 2-16 L/min, Rc1/2 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC01D-740-06-A-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC01D-740-06-B-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC01D-740-06-C-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC01D-740-06-D-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC01D-740-06-E-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC01D-740-06-F-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC01D-740-06-AT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC01D-740-06-BT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC01D-740-06-CT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC01D-740-06-DT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC01D-740-06-ET-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC01D-740-06-FT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC01D-740-06-LT-M	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC01D-540-06-1	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC01D-540-06-2	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC01D-540-06-1T	Stations: 1 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC01U-740-06-A-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC01U-740-06-B-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC01U-740-06-C-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC01U-740-06-D-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC01U-740-06-E-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC01U-740-06-F-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC01U-740-06-AT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC01U-740-06-BT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC01U-740-06-CT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC01U-740-06-DT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC01U-740-06-ET-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC01U-740-06-FT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC01U-740-06-LT-M	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC01U-540-06-1	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC01U-540-06-2	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC01U-540-06-1T	Stations: 1 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC02D-740-06-A-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC02D-740-06-B-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC02D-740-06-C-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC02D-740-06-D-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC02D-740-06-E-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC02D-740-06-F-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC02D-740-06-AT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC02D-740-06-BT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC02D-740-06-CT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC02D-740-06-DT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC02D-740-06-ET-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC02D-740-06-FT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC02D-740-06-LT-M	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC02D-540-06-1	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC02D-540-06-2	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC02D-540-06-1T	Stations: 2 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC02U-740-06-A-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC02U-740-06-B-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC02U-740-06-C-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC02U-740-06-D-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC02U-740-06-E-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC02U-740-06-F-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC02U-740-06-AT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC02U-740-06-BT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC02U-740-06-CT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC02U-740-06-DT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC02U-740-06-ET-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC02U-740-06-FT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC02U-740-06-LT-M	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC02U-540-06-1	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC02U-540-06-2	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC02U-540-06-1T	Stations: 2 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC03D-740-06-A-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC03D-740-06-B-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC03D-740-06-C-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC03D-740-06-D-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC03D-740-06-E-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC03D-740-06-F-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC03D-740-06-AT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC03D-740-06-BT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC03D-740-06-CT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC03D-740-06-DT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC03D-740-06-ET-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC03D-740-06-FT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC03D-740-06-LT-M	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC03D-540-06-1	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC03D-540-06-2	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC03D-540-06-1T	Stations: 3 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC03U-740-06-A-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC03U-740-06-B-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC03U-740-06-C-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC03U-740-06-D-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC03U-740-06-E-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC03U-740-06-F-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC03U-740-06-AT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC03U-740-06-BT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC03U-740-06-CT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC03U-740-06-DT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC03U-740-06-ET-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC03U-740-06-FT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC03U-740-06-LT-M	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC03U-540-06-1	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC03U-540-06-2	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC03U-540-06-1T	Stations: 3 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC04D-740-06-A-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC04D-740-06-B-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC04D-740-06-C-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC04D-740-06-D-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC04D-740-06-E-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC04D-740-06-F-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC04D-740-06-AT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC04D-740-06-BT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC04D-740-06-CT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC04D-740-06-DT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC04D-740-06-ET-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC04D-740-06-FT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC04D-740-06-LT-M	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC04D-540-06-1	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC04D-540-06-2	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC04D-540-06-1T	Stations: 4 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC04U-740-06-A-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC04U-740-06-B-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC04U-740-06-C-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC04U-740-06-D-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC04U-740-06-E-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC04U-740-06-F-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC04U-740-06-AT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC04U-740-06-BT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC04U-740-06-CT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC04U-740-06-DT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC04U-740-06-ET-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC04U-740-06-FT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC04U-740-06-LT-M	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC04U-540-06-1	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC04U-540-06-2	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC04U-540-06-1T	Stations: 4 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC05D-740-06-A-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC05D-740-06-B-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC05D-740-06-C-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC05D-740-06-D-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC05D-740-06-E-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC05D-740-06-F-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC05D-740-06-AT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC05D-740-06-BT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC05D-740-06-CT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC05D-740-06-DT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC05D-740-06-ET-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC05D-740-06-FT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC05D-740-06-LT-M	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC05D-540-06-1	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC05D-540-06-2	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC05D-540-06-1T	Stations: 5 \| Main piping: Supply U side / return D side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp
	PF3WC05U-740-06-A-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN
	PF3WC05U-740-06-B-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP
	PF3WC05U-740-06-C-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V
	PF3WC05U-740-06-D-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA
	PF3WC05U-740-06-E-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V
	PF3WC05U-740-06-F-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA
	PF3WC05U-740-06-AT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + NPN, temp sensor
	PF3WC05U-740-06-BT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + PNP, temp sensor
	PF3WC05U-740-06-CT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 1-5 V, temp sensor
	PF3WC05U-740-06-DT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: NPN + analog 4-20 mA, temp sensor
	PF3WC05U-740-06-ET-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 1-5 V, temp sensor
	PF3WC05U-740-06-FT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: PNP + analog 4-20 mA, temp sensor
	PF3WC05U-740-06-LT-M	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Integrated display \| Output: IO-Link/switch, temp sensor
	PF3WC05U-540-06-1	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V
	PF3WC05U-540-06-2	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 4-20 mA
	PF3WC05U-540-06-1T	Stations: 5 \| Main piping: Supply D side / return U side \| Rated flow: 5-40 L/min, Rc3/4 \| Switch: Remote sensor \| Output: Analog 1-5 V + 1-5 V temp

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →

Item added to your cart

SMC PF3WC Digital Flow Switch Manifold for Water (Straight Type)
