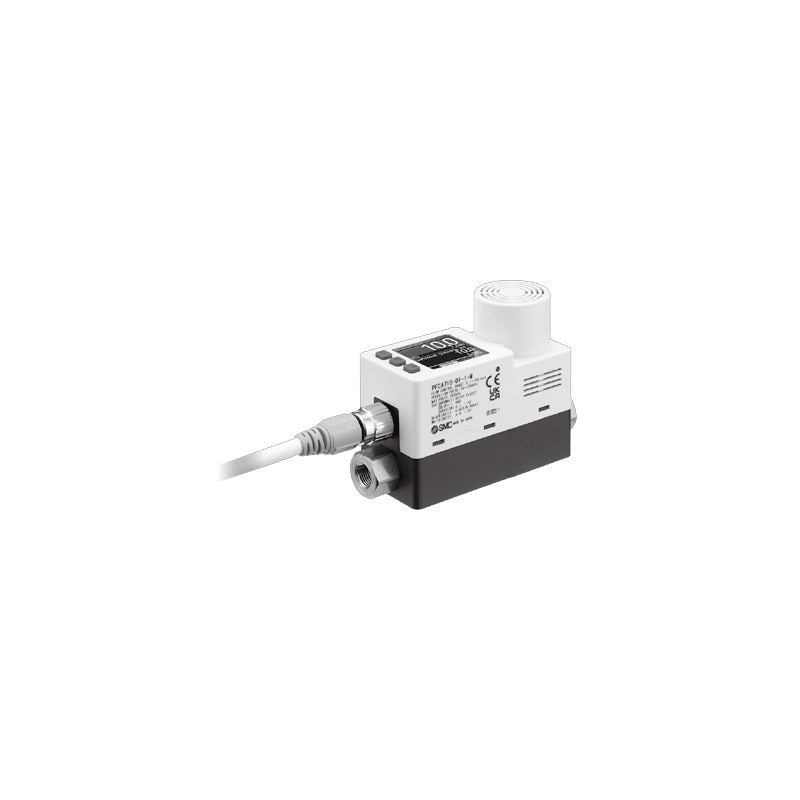

SMC PFCA7 Air Flow Controller (IO-Link, 0.1 to 100 L/min)

SMC PFCA7 Air Flow Controller (IO-Link, 0.1 to 100 L/min)

SMC PFCA7 series IO-Link compatible thermal flow controller that automatically regulates dry air, N2, Ar or CO2 flow with a 100:1 rangeability.

Key features

  • Rated control flow 0.1-10, 0.2-25, 0.5-50 and 1-100 L/min; control accuracy ±3% F.S.
  • OUT1 IO-Link/NPN/PNP plus analog output; analog command 1-5 V or 4-20 mA
  • 1.44-inch color display shows instantaneous flow, command value and accumulated flow
  • Rc thread or one-touch fitting ports (ø4, ø6, ø8, ø1/4"); NPT and G threads available
  • Options: lead wire none (N) or M12-M12 (Q), brackets R (ZS-40-L) / S (ZS-53-G), manual/certificate Y, K, T

Specifications

Fluid Dry air, N2, Ar, CO2
Fluid temperature 0 to 50°C
Detection Thermal
Repeatability ±1% F.S.
Proof pressure 1 MPa
Power supply 24 VDC ±10%, 200 mA or less
Enclosure IP40
Power-off state Fully closed (normally closed)
Mass 255 g (one-touch), 305 g (threaded)
Standards CE/UKCA
Source SMC Korea catalog CAT.KS100-162A (SMCKR_PFCA.pdf), PDF p. 8-9
PFCA710-01-1 Flow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA710-01-1-M Flow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA710-01-2 Flow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA710-01-2-M Flow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA710-C4-1 Flow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA710-C4-1-M Flow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA710-C4-2 Flow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA710-C4-2-M Flow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA710-C6-1 Flow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA710-C6-1-M Flow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA710-C6-2 Flow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA710-C6-2-M Flow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-01-1 Flow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-01-1-M Flow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-01-2 Flow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-01-2-M Flow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-C6-1 Flow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-C6-1-M Flow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-C6-2 Flow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-C6-2-M Flow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-C8-1 Flow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-C8-1-M Flow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-C8-2 Flow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-C8-2-M Flow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-N7-1 Flow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-N7-1-M Flow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-N7-2 Flow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-N7-2-M Flow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-01-1 Flow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-01-1-M Flow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-01-2 Flow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-01-2-M Flow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-C6-1 Flow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-C6-1-M Flow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-C6-2 Flow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-C6-2-M Flow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-C8-1 Flow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-C8-1-M Flow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-C8-2 Flow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-C8-2-M Flow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-N7-1 Flow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-N7-1-M Flow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-N7-2 Flow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-N7-2-M Flow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-02-1 Flow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-02-1-M Flow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-02-2 Flow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-02-2-M Flow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-C6-1 Flow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-C6-1-M Flow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-C6-2 Flow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-C6-2-M Flow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-C8-1 Flow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-C8-1-M Flow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-C8-2 Flow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-C8-2-M Flow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-N7-1 Flow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-N7-1-M Flow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-N7-2 Flow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-N7-2-M Flow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
Flow SwitchesSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PFCA7 Air Flow Controller (IO-Link, 0.1 to 100 L/min)

Brand SMC·Flow Switches

Available part numbers (60)

PFCA710-01-1, PFCA710-01-1-M, PFCA710-01-2, PFCA710-01-2-M, PFCA710-C4-1, PFCA710-C4-1-M, PFCA710-C4-2, PFCA710-C4-2-M, PFCA710-C6-1, PFCA710-C6-1-M + 50 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PFCA710-01-1Flow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA710-01-1-MFlow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA710-01-2Flow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA710-01-2-MFlow range: 0.1 to 10 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA710-C4-1Flow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA710-C4-1-MFlow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA710-C4-2Flow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA710-C4-2-MFlow range: 0.1 to 10 L/min | Port: One-touch ø4 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA710-C6-1Flow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA710-C6-1-MFlow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA710-C6-2Flow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA710-C6-2-MFlow range: 0.1 to 10 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-01-1Flow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-01-1-MFlow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-01-2Flow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-01-2-MFlow range: 0.2 to 25 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-C6-1Flow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-C6-1-MFlow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-C6-2Flow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-C6-2-MFlow range: 0.2 to 25 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-C8-1Flow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-C8-1-MFlow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-C8-2Flow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-C8-2-MFlow range: 0.2 to 25 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA725-N7-1Flow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA725-N7-1-MFlow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA725-N7-2Flow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA725-N7-2-MFlow range: 0.2 to 25 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-01-1Flow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-01-1-MFlow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-01-2Flow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-01-2-MFlow range: 0.5 to 50 L/min | Port: Rc1/8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-C6-1Flow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-C6-1-MFlow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-C6-2Flow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-C6-2-MFlow range: 0.5 to 50 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-C8-1Flow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-C8-1-MFlow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-C8-2Flow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-C8-2-MFlow range: 0.5 to 50 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA750-N7-1Flow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA750-N7-1-MFlow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA750-N7-2Flow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA750-N7-2-MFlow range: 0.5 to 50 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-02-1Flow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-02-1-MFlow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-02-2Flow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-02-2-MFlow range: 1 to 100 L/min | Port: Rc1/4 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-C6-1Flow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-C6-1-MFlow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-C6-2Flow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-C6-2-MFlow range: 1 to 100 L/min | Port: One-touch ø6 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-C8-1Flow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-C8-1-MFlow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-C8-2Flow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-C8-2-MFlow range: 1 to 100 L/min | Port: One-touch ø8 | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only
PFCA711-N7-1Flow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: Unit selection function
PFCA711-N7-1-MFlow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 1-5V in, analog V out | Units: SI units only
PFCA711-N7-2Flow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: Unit selection function
PFCA711-N7-2-MFlow range: 1 to 100 L/min | Port: One-touch ø1/4" | I/O: Analog 4-20mA in, 4-20mA out | Units: SI units only

Need a different model, or a part not listed here? Send us your parts list →
