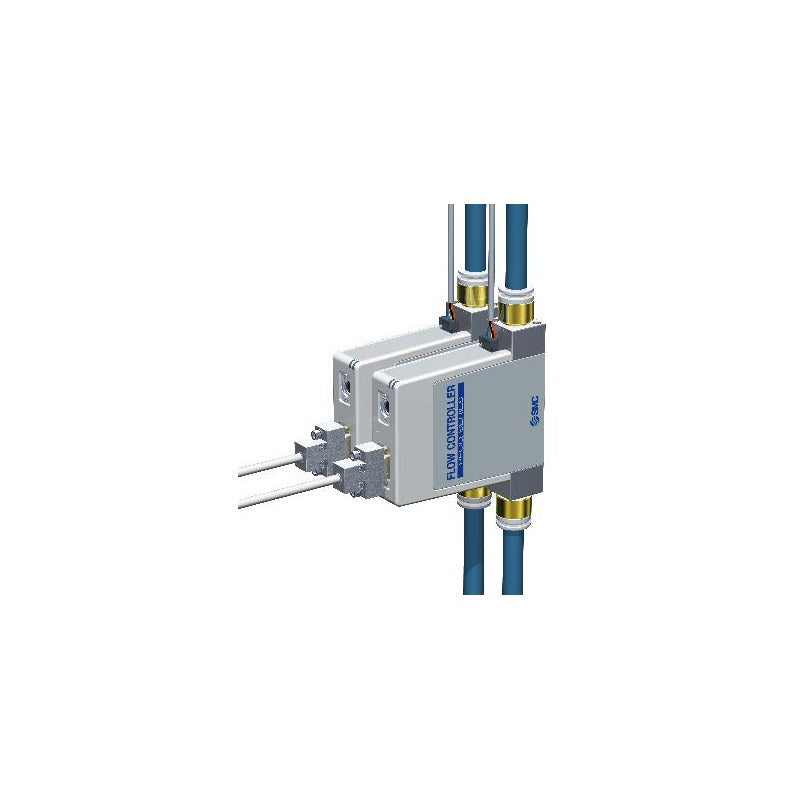

SMC PFCQ Air Flow Controller (9 to 300 L/min, Rc1/2)

SMC PFCQ Air Flow Controller (9 to 300 L/min, Rc1/2)

SMC PFCQ series linear-motor-driven flow controller for dry air and N2 that automatically regulates flow from 9 to 300 L/min in proportion to a command signal.

Key features

  • Linear motor valve drive; reaches set flow in 0.5 s or less (0.3 MPa differential, 300 L/min)
  • Control accuracy ±3% F.S., repeatability ±1% F.S.; grease-free wetted path
  • Analog I/O (1-5 V or 4-20 mA, NPN or PNP) or preset input with RS-485 serial communication
  • Lightweight 850 g body with Rc1/2 ports; normally closed at power off
  • Options: power cable 3 m (C), bracket (S), PFG310 digital flow monitor (M); spares PFCQ531-H1-3, -H2-3, PFCQ531-B1

Specifications

Fluid Dry air, N2
Rated flow range 9 to 300 L/min
Set flow range 3 to 300 L/min
Operating differential pressure 50 to 500 kPa
Operating pressure range 50 to 800 kPa
Proof pressure 1.0 MPa
Port size Rc1/2
Power supply 24 VDC ±10%
Enclosure IP40
Standards CE, UKCA, RoHS
Source SMC Korea catalog CAT.KS100-153A (SMCKR_PFCQ.pdf), PDF p. 6-7
PFCQ531-04-A1 I/O spec: Analog 1-5V in/out, NPN | Control mode: Analog command
PFCQ531-04-A2 I/O spec: Analog 4-20mA in/out, NPN | Control mode: Analog command
PFCQ531-04-A3 I/O spec: Analog 1-5V in/out, PNP | Control mode: Analog command
PFCQ531-04-A4 I/O spec: Analog 4-20mA in/out, PNP | Control mode: Analog command
PFCQ531-04-P1 I/O spec: Preset/RS-485, analog out 1-5V | Control mode: Preset input / serial
PFCQ531-04-P2 I/O spec: Preset/RS-485, analog out 4-20mA | Control mode: Preset input / serial
Flow SwitchesSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PFCQ Air Flow Controller (9 to 300 L/min, Rc1/2)

Brand SMC·Flow Switches

Available part numbers (6)

PFCQ531-04-A1, PFCQ531-04-A2, PFCQ531-04-A3, PFCQ531-04-A4, PFCQ531-04-P1, PFCQ531-04-P2

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PFCQ531-04-A1I/O spec: Analog 1-5V in/out, NPN | Control mode: Analog command
PFCQ531-04-A2I/O spec: Analog 4-20mA in/out, NPN | Control mode: Analog command
PFCQ531-04-A3I/O spec: Analog 1-5V in/out, PNP | Control mode: Analog command
PFCQ531-04-A4I/O spec: Analog 4-20mA in/out, PNP | Control mode: Analog command
PFCQ531-04-P1I/O spec: Preset/RS-485, analog out 1-5V | Control mode: Preset input / serial
PFCQ531-04-P2I/O spec: Preset/RS-485, analog out 4-20mA | Control mode: Preset input / serial
