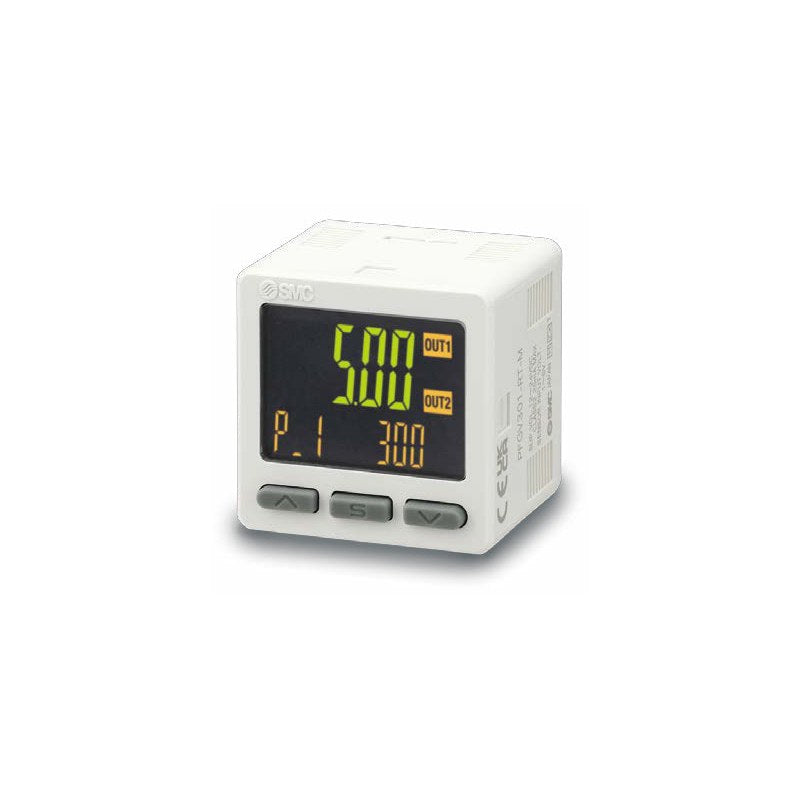

SMC PFGV301 3-Screen Digital Flow Monitor (for PFMV5)

SMC PFGV301 3-Screen Digital Flow Monitor (for PFMV5)

SMC PFGV301 series remote-type 3-screen digital flow monitor that displays and switches on the 1 to 5 V signal of PFMV5 flow sensors.

Key features

  • 3-screen LCD showing instantaneous flow, set value and sub-display at once
  • Two NPN/PNP selectable switch outputs plus analog voltage (1-5 V / 0-10 V), analog current (4-20 mA) or copy function
  • Hysteresis, window comparator, error output and output OFF modes; response time 3 ms or less
  • Sensor connector ZS-28-C (option C) and 2 m power/output lead ZS-46-5L (option L)
  • Brackets (A1/A2), panel mount adapter (B) and panel adapter + front cover (D); manual/calibration certificate options Y, K, T
  • Conversion cable ZS-28-A-X538 for replacing older PFMV30 monitors

Specifications

Input Voltage 1 to 5 VDC (PFMV5 series), e-CON connector
Power supply 12 to 24 VDC ±10%, 25 mA or less
Display accuracy ±0.5% F.S. ±1 digit
Repeatability ±0.1% F.S. ±1 digit
Switch output NPN or PNP open collector, max. 80 mA, 30 V
Display units L/min, cfh
Temperature characteristic ±0.5% F.S. (0 to 50°C)
Standards CE/UKCA, RoHS
Source SMC Korea catalog CAT.KS100-67D (SMCKR_PFMV.pdf), PDF p. 14-15
PFGV301-RT Output: 2 switch outputs + analog voltage | Units: Unit selection function
PFGV301-RT-M Output: 2 switch outputs + analog voltage | Units: SI units only
PFGV301-SV Output: 2 switch outputs + analog current | Units: Unit selection function
PFGV301-SV-M Output: 2 switch outputs + analog current | Units: SI units only
PFGV301-XY Output: 2 switch outputs + copy function | Units: Unit selection function
PFGV301-XY-M Output: 2 switch outputs + copy function | Units: SI units only
Flow SwitchesSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PFGV301 3-Screen Digital Flow Monitor (for PFMV5)

Brand SMC·Flow Switches

Available part numbers (6)

PFGV301-RT, PFGV301-RT-M, PFGV301-SV, PFGV301-SV-M, PFGV301-XY, PFGV301-XY-M

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PFGV301-RTOutput: 2 switch outputs + analog voltage | Units: Unit selection function
PFGV301-RT-MOutput: 2 switch outputs + analog voltage | Units: SI units only
PFGV301-SVOutput: 2 switch outputs + analog current | Units: Unit selection function
PFGV301-SV-MOutput: 2 switch outputs + analog current | Units: SI units only
PFGV301-XYOutput: 2 switch outputs + copy function | Units: Unit selection function
PFGV301-XY-MOutput: 2 switch outputs + copy function | Units: SI units only
