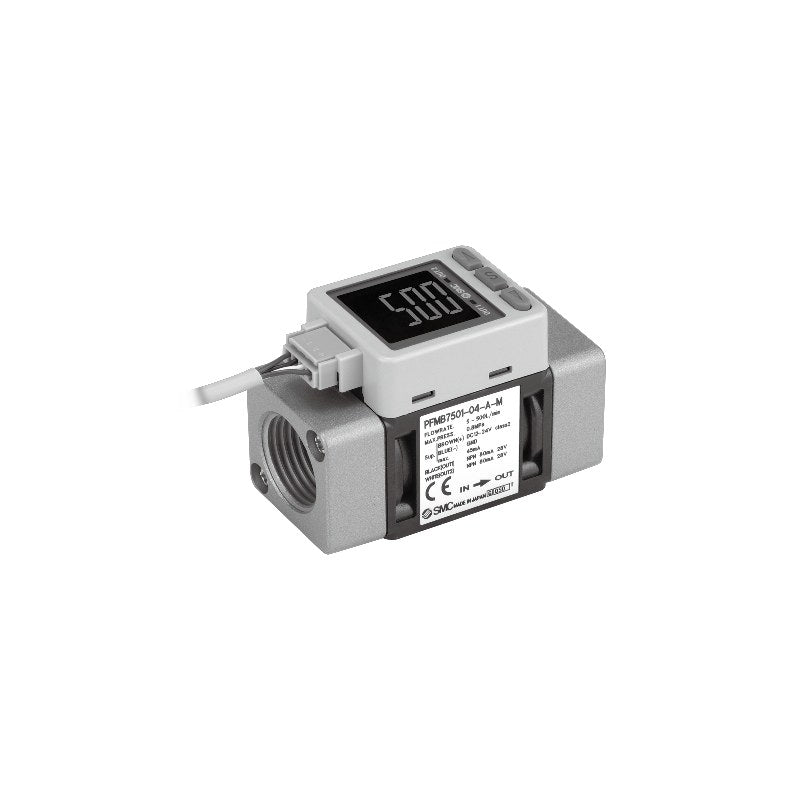

SMC PFMB7 2-Color Digital Flow Switch (500 to 2000 L/min)

SMC PFMB7 series compact 2-color digital flow switch for dry air and N2 in large-flow ranges of 500, 1000 and 2000 L/min, with Rc1/2 or Rc3/4 body ports.

Key features

Range ability 100:1, minimum setting unit 1 L/min; about 66% lighter than the conventional PF2A
Rated flow ranges 5-500, 10-1000 and 20-2000 L/min
Outputs: dual NPN or PNP switch, or NPN switch + analog 1-5 V (for PFG300) or 4-20 mA (for PFG310)
Suffix options: lead wire with connector 2 m (standard), with rubber cover (W) or none (N); bracket (R); calibration certificate (A)
NPT/G threads and PNP + analog / external input outputs (E to H) available on order
Small-flow PFMB7201 is discontinued (replaced by PF2M721)

Specifications

Applicable fluid	Dry air, N2 (ISO8573-1 1.1.2 to 1.6.2)
Detection method	Thermal type
Fluid temperature	0 to 50°C
Rated pressure range	0 to 0.8 MPa (proof 1.2 MPa)
Power supply	DC12 to 24V ±10%
Current consumption	55 mA or less
Accuracy	Display ±3% F.S., repeatability ±1% F.S.
Response time	0.05/0.1/0.5/1/2 s selectable
Switch output	NPN/PNP open collector, max. 80 mA
Unit	SI unit fixed (M)
Source	SMC Korea catalog CAT.KS100-95C (SMCKR_PFMB.pdf), p. 10-11 (PDF p. 11-12)

PFMB7501-04-A-M		Flow range: 5 to 500 L/min \| Port: Rc1/2 \| Output: NPN + NPN
PFMB7501-04-B-M		Flow range: 5 to 500 L/min \| Port: Rc1/2 \| Output: PNP + PNP
PFMB7501-04-C-M		Flow range: 5 to 500 L/min \| Port: Rc1/2 \| Output: NPN + analog 1-5V
PFMB7501-04-D-M		Flow range: 5 to 500 L/min \| Port: Rc1/2 \| Output: NPN + analog 4-20mA
PFMB7102-04-A-M		Flow range: 10 to 1000 L/min \| Port: Rc1/2 \| Output: NPN + NPN
PFMB7102-04-B-M		Flow range: 10 to 1000 L/min \| Port: Rc1/2 \| Output: PNP + PNP
PFMB7102-04-C-M		Flow range: 10 to 1000 L/min \| Port: Rc1/2 \| Output: NPN + analog 1-5V
PFMB7102-04-D-M		Flow range: 10 to 1000 L/min \| Port: Rc1/2 \| Output: NPN + analog 4-20mA
PFMB7202-06-A-M		Flow range: 20 to 2000 L/min \| Port: Rc3/4 \| Output: NPN + NPN
PFMB7202-06-B-M		Flow range: 20 to 2000 L/min \| Port: Rc3/4 \| Output: PNP + PNP
PFMB7202-06-C-M		Flow range: 20 to 2000 L/min \| Port: Rc3/4 \| Output: NPN + analog 1-5V
PFMB7202-06-D-M		Flow range: 20 to 2000 L/min \| Port: Rc3/4 \| Output: NPN + analog 4-20mA
