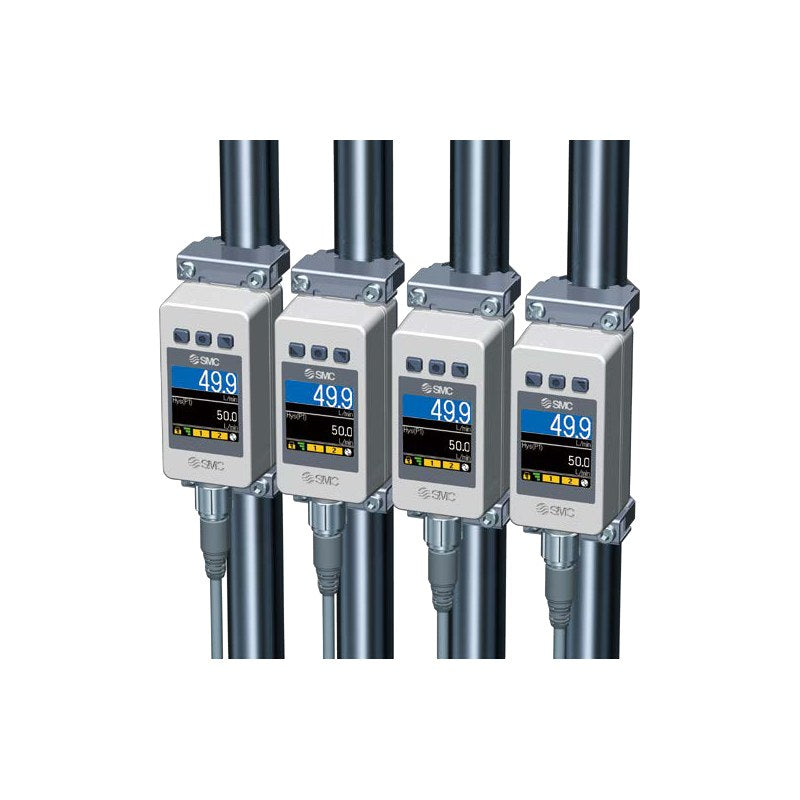

SMC PFUW Clamp-On Flow Sensor (Liquid, IO-Link, 60 to 200 L/min)

SMC PFUW Clamp-On Flow Sensor (Liquid, IO-Link, 60 to 200 L/min)

SMC PFUW series ultrasonic clamp-on flow sensor for liquids that mounts on the outside of the pipe with no piping work, leakage, pressure loss or fluid contact.

Key features

  • Ultrasonic transit-time detection; clamps onto 15A, 20A and 25A metal or rigid resin pipes
  • Rated flow ranges 0 to 60, 0 to 100 and 0 to 200 L/min; accumulated flow and zero cut
  • OUT1 IO-Link/NPN/PNP plus OUT2 switch/external input, analog voltage or 4-20 mA
  • IP65/IP67 enclosure; 3-screen color LCD rotatable 90/180/270°
  • M12 lead wire 3 m standard (N: none, Q: M12-M12 lead); calibration certificate option A
  • Spare clamp assemblies ZS-57-60LR/11LR/21LR and rubber sheet ZS-57-A

Specifications

Fluid Liquids (water, oil, chemicals)
Fluid temperature 0 to 90°C (no condensation or freezing)
Detection Ultrasonic (transit-time)
Display accuracy ±3.0% F.S.
Repeatability ±2.0% F.S.
Power supply 18 to 30 VDC, 85 mA or less
Enclosure IP65/IP67
Operating temperature 0 to 50°C
Mass Body 165 g
Standards CE/UKCA
Source SMC Korea catalog CAT.KS100-167A (SMCKR_PFUW.pdf), PDF p. 8-9
PFUW760-L1 Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP | Units: Unit selection function
PFUW760-L1-M Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP | Units: SI units only
PFUW760-L2 Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: Unit selection function
PFUW760-L2-M Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: SI units only
PFUW760-L3 Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog voltage | Units: Unit selection function
PFUW760-L3-M Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog voltage | Units: SI units only
PFUW760-L4 Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: Unit selection function
PFUW760-L4-M Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: SI units only
PFUW711-L1 Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP | Units: Unit selection function
PFUW711-L1-M Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP | Units: SI units only
PFUW711-L2 Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: Unit selection function
PFUW711-L2-M Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: SI units only
PFUW711-L3 Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog voltage | Units: Unit selection function
PFUW711-L3-M Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog voltage | Units: SI units only
PFUW711-L4 Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: Unit selection function
PFUW711-L4-M Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: SI units only
PFUW721-L1 Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP | Units: Unit selection function
PFUW721-L1-M Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP | Units: SI units only
PFUW721-L2 Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: Unit selection function
PFUW721-L2-M Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: SI units only
PFUW721-L3 Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog voltage | Units: Unit selection function
PFUW721-L3-M Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog voltage | Units: SI units only
PFUW721-L4 Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: Unit selection function
PFUW721-L4-M Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: SI units only
Flow SwitchesSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PFUW Clamp-On Flow Sensor (Liquid, IO-Link, 60 to 200 L/min)

Brand SMC·Flow Switches

Available part numbers (24)

PFUW760-L1, PFUW760-L1-M, PFUW760-L2, PFUW760-L2-M, PFUW760-L3, PFUW760-L3-M, PFUW760-L4, PFUW760-L4-M, PFUW711-L1, PFUW711-L1-M + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PFUW760-L1Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP | Units: Unit selection function
PFUW760-L1-MFlow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP | Units: SI units only
PFUW760-L2Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: Unit selection function
PFUW760-L2-MFlow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: SI units only
PFUW760-L3Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog voltage | Units: Unit selection function
PFUW760-L3-MFlow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog voltage | Units: SI units only
PFUW760-L4Flow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: Unit selection function
PFUW760-L4-MFlow range: 0 to 60 L/min | Pipe size: 15A (1/2B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: SI units only
PFUW711-L1Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP | Units: Unit selection function
PFUW711-L1-MFlow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP | Units: SI units only
PFUW711-L2Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: Unit selection function
PFUW711-L2-MFlow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: SI units only
PFUW711-L3Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog voltage | Units: Unit selection function
PFUW711-L3-MFlow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog voltage | Units: SI units only
PFUW711-L4Flow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: Unit selection function
PFUW711-L4-MFlow range: 0 to 100 L/min | Pipe size: 20A (3/4B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: SI units only
PFUW721-L1Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP | Units: Unit selection function
PFUW721-L1-MFlow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP | Units: SI units only
PFUW721-L2Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: Unit selection function
PFUW721-L2-MFlow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + NPN/PNP/ext. input | Units: SI units only
PFUW721-L3Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog voltage | Units: Unit selection function
PFUW721-L3-MFlow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog voltage | Units: SI units only
PFUW721-L4Flow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: Unit selection function
PFUW721-L4-MFlow range: 0 to 200 L/min | Pipe size: 25A (1B) | Output: IO-Link/NPN/PNP + analog 4-20 mA | Units: SI units only
