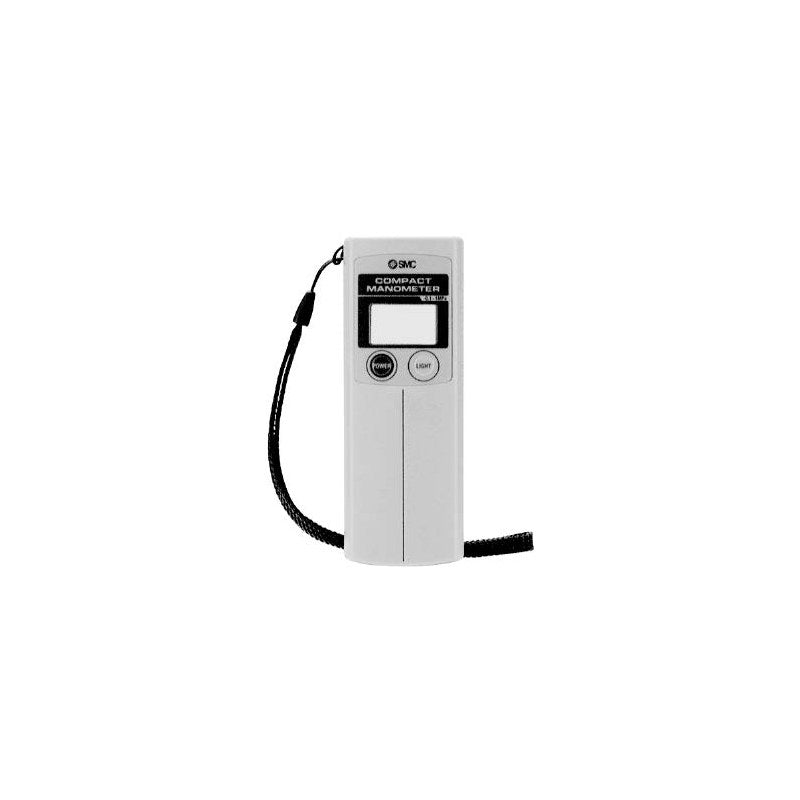

SMC PPA Compact Manometer (PPA100/101/102, Battery Powered)

SMC PPA Compact Manometer (PPA100/101/102, Battery Powered)

SMC PPA series handheld digital compact manometer for checking air line and regulator set pressures, powered by two AA batteries.

Key features

  • Palm-size portable unit of about 100 g (body 50 g, batteries 50 g)
  • Three ranges: PPA100 high pressure, PPA101 vacuum, PPA102 low pressure
  • Upper/lower peak display, backlight, auto power OFF, zero clear and unit display switching
  • Optional one-touch fitting for ø4 or ø6 tube (KQ2H04/06-M5N) and PPA-B case holder
  • About 12 months continuous operation on two AA batteries (batteries not included)

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Display Backlit 3-digit LCD
Proof pressure PPA100 1.5 MPa; PPA101/102 200 kPa
Power supply 3 VDC, AA battery x2
Response time 250 ms
Display accuracy ±2% F.S. or less (25°C)
Repeatability ±1% F.S. or less (25°C)
Port size M5x0.8
Operating temperature 0 to 50°C (no freezing)
Enclosure IP40
Standards CE/UKCA marking
Source SMC Korea catalog PPA Series (SMCKR_PPA.pdf), p. 1309 (PDF p. 1-3)
PPA100 Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: None (M5 female port) | Case holder: None | Unit: Unit switching
PPA100-M Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: None (M5 female port) | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA100-B Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: None (M5 female port) | Case holder: PPA-B case holder | Unit: Unit switching
PPA100-B-M Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: None (M5 female port) | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA100-04 Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: None | Unit: Unit switching
PPA100-04-M Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA100-04-B Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: PPA-B case holder | Unit: Unit switching
PPA100-04-B-M Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA100-06 Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: None | Unit: Unit switching
PPA100-06-M Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA100-06-B Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: PPA-B case holder | Unit: Unit switching
PPA100-06-B-M Model: PPA100 high pressure -0.1 to 1 MPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA101 Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: None (M5 female port) | Case holder: None | Unit: Unit switching
PPA101-M Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: None (M5 female port) | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA101-B Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: None (M5 female port) | Case holder: PPA-B case holder | Unit: Unit switching
PPA101-B-M Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: None (M5 female port) | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA101-04 Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: None | Unit: Unit switching
PPA101-04-M Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA101-04-B Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: PPA-B case holder | Unit: Unit switching
PPA101-04-B-M Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA101-06 Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: None | Unit: Unit switching
PPA101-06-M Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA101-06-B Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: PPA-B case holder | Unit: Unit switching
PPA101-06-B-M Model: PPA101 vacuum -101 to 10 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA102 Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: None (M5 female port) | Case holder: None | Unit: Unit switching
PPA102-M Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: None (M5 female port) | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA102-B Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: None (M5 female port) | Case holder: PPA-B case holder | Unit: Unit switching
PPA102-B-M Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: None (M5 female port) | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA102-04 Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: None | Unit: Unit switching
PPA102-04-M Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA102-04-B Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: PPA-B case holder | Unit: Unit switching
PPA102-04-B-M Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H04-M5N for ø4 tube | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
PPA102-06 Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: None | Unit: Unit switching
PPA102-06-M Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: None | Unit: SI units fixed (kPa/MPa)
PPA102-06-B Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: PPA-B case holder | Unit: Unit switching
PPA102-06-B-M Model: PPA102 low pressure -10 to 100 kPa | One-touch fitting: KQ2H06-M5N for ø6 tube | Case holder: PPA-B case holder | Unit: SI units fixed (kPa/MPa)
Pressure SwitchesSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PPA Compact Manometer (PPA100/101/102, Battery Powered)

Brand SMC·Pressure Switches

Available part numbers (36)

PPA100, PPA100-M, PPA100-B, PPA100-B-M, PPA100-04, PPA100-04-M, PPA100-04-B, PPA100-04-B-M, PPA100-06, PPA100-06-M + 26 more — see full table ↓
