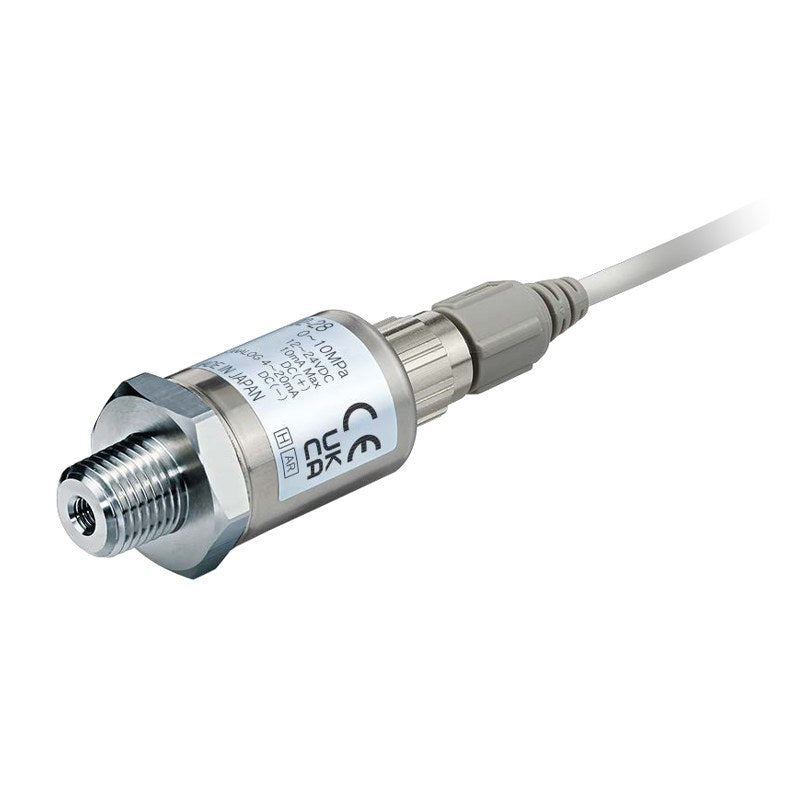

SMC PSE530 Pressure Sensor (Compact, for General Air, 1-5V)

SMC PSE530 Pressure Sensor (Compact, for General Air, 1-5V)

SMC PSE530 series compact remote-type pressure sensor for air and non-corrosive gases, with 1-5 V analog output for use with PSE200A/PSE300A controllers.

Key features

  • Four pressure ranges: positive 0 to 1 MPa, vacuum 0 to -101 kPa, low pressure 0 to 101 kPa, compound -101 to 101 kPa
  • Analog voltage output 1-5 V over the rated range, 0.6-1 V in the extended analog range
  • Port options: M5x0.8 male thread (SUS304 body) or ø6 / 1/4 inch reducer (PBT body)
  • Sensor cable is an option: suffix -L adds 3 m cable, -C2L adds 3 m cable plus controller connector (ZS-26-J); without suffix no cable
  • Spare parts: controller connector ZS-28-C, 3 m sensor cable ZS-26-F

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Output Analog 1-5 V, output impedance approx. 1 kOhm
Power supply DC12-24V ±10%, ripple 10% or less (reverse-connection protected)
Current consumption 15 mA or less
Accuracy ±2% F.S. (rated range), ±5% F.S. (extended range)
Linearity / repeatability ±1% F.S. / ±1% F.S.
Proof pressure 1.5 MPa (PSE530), 500 kPa (PSE531/532/533)
Enclosure IP40
Operating temperature 0 to 50°C (storage -10 to 70°C)
Wetted parts Sensing element silicon, O-ring NBR
Standards CE/UKCA
Source SMC Korea catalog CAT.KS100-56D PSE Series (SMCKR_PSE.pdf), p. 5-7 (PDF p. 8-10)
PSE530-M5 Model: PSE530 | Rated pressure range: 0 to 1 MPa (positive) | Port: M5x0.8 male thread
PSE530-R06 Model: PSE530 | Rated pressure range: 0 to 1 MPa (positive) | Port: ø6 reducer
PSE530-R07 Model: PSE530 | Rated pressure range: 0 to 1 MPa (positive) | Port: 1/4 inch reducer
PSE531-M5 Model: PSE531 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: M5x0.8 male thread
PSE531-R06 Model: PSE531 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: ø6 reducer
PSE531-R07 Model: PSE531 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: 1/4 inch reducer
PSE532-M5 Model: PSE532 | Rated pressure range: 0 to 101 kPa (low pressure) | Port: M5x0.8 male thread
PSE532-R06 Model: PSE532 | Rated pressure range: 0 to 101 kPa (low pressure) | Port: ø6 reducer
PSE532-R07 Model: PSE532 | Rated pressure range: 0 to 101 kPa (low pressure) | Port: 1/4 inch reducer
PSE533-M5 Model: PSE533 | Rated pressure range: -101 to 101 kPa (compound) | Port: M5x0.8 male thread
PSE533-R06 Model: PSE533 | Rated pressure range: -101 to 101 kPa (compound) | Port: ø6 reducer
PSE533-R07 Model: PSE533 | Rated pressure range: -101 to 101 kPa (compound) | Port: 1/4 inch reducer
Pressure SwitchesSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PSE530 Pressure Sensor (Compact, for General Air, 1-5V)

Brand SMC·Pressure Switches

Available part numbers (12)

PSE530-M5, PSE530-R06, PSE530-R07, PSE531-M5, PSE531-R06, PSE531-R07, PSE532-M5, PSE532-R06, PSE532-R07, PSE533-M5 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSE530-M5Model: PSE530 | Rated pressure range: 0 to 1 MPa (positive) | Port: M5x0.8 male thread
PSE530-R06Model: PSE530 | Rated pressure range: 0 to 1 MPa (positive) | Port: ø6 reducer
PSE530-R07Model: PSE530 | Rated pressure range: 0 to 1 MPa (positive) | Port: 1/4 inch reducer
PSE531-M5Model: PSE531 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: M5x0.8 male thread
PSE531-R06Model: PSE531 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: ø6 reducer
PSE531-R07Model: PSE531 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: 1/4 inch reducer
PSE532-M5Model: PSE532 | Rated pressure range: 0 to 101 kPa (low pressure) | Port: M5x0.8 male thread
PSE532-R06Model: PSE532 | Rated pressure range: 0 to 101 kPa (low pressure) | Port: ø6 reducer
PSE532-R07Model: PSE532 | Rated pressure range: 0 to 101 kPa (low pressure) | Port: 1/4 inch reducer
PSE533-M5Model: PSE533 | Rated pressure range: -101 to 101 kPa (compound) | Port: M5x0.8 male thread
PSE533-R06Model: PSE533 | Rated pressure range: -101 to 101 kPa (compound) | Port: ø6 reducer
PSE533-R07Model: PSE533 | Rated pressure range: -101 to 101 kPa (compound) | Port: 1/4 inch reducer
