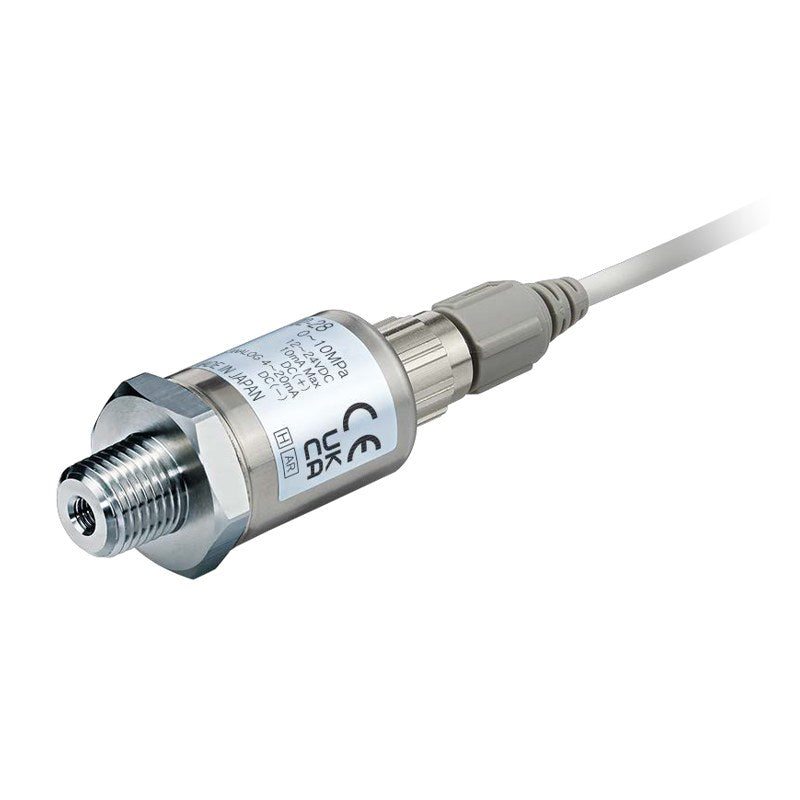

SMC PSE560 series pressure sensor for general fluids with SUS316L wetted parts, IP65 enclosure and 1-5 V or 4-20 mA analog output.

Key features

  • Ranges: 0 to 1 MPa, 0 to -101 kPa, -100 to 100 kPa, 0 to 500 kPa
  • Wetted parts SUS316L, grease-free, single diaphragm structure; for liquids and gases that do not corrode SUS316L
  • Ports: R1/8, R1/4 (with M5 female), Rc1/8, URJ1/4 face seal and TSJ1/4 compression fittings for semiconductor use (NPT on order)
  • Option C2: controller connector ZS-28-C; 4-20 mA type cannot connect to PSE200A
  • Accessories: Rc1/4, Rc1/8 replacement adapters (ZS-31-X175, -X188), M5 orifice ZS-48-A

Specifications

Fluid Liquids and gases that do not corrode SUS316L
Power supply DC12-24V ±10%, ripple 10% or less
Proof pressure 1.5 MPa (PSE560), 500 kPa (PSE561/563), 750 kPa (PSE564)
Accuracy ±1% F.S. (rated), ±3% F.S. (extended)
Linearity / repeatability ±0.5% F.S. / ±0.2% F.S.
Enclosure IP65
Operating temperature 0 to 50°C (storage -20 to 70°C)
Material Case C3604 nickel plated; port and sensing part SUS316L
Sensor cable Vinyl cabtyre with vent tube, ø5.1, 3 m
Standards CE/UKCA, UL/CSA (E216656)
Source SMC Korea catalog CAT.KS100-56D PSE Series (SMCKR_PSE.pdf), p. 20-22 (PDF p. 23-25)
PSE560-01 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: R1/8 (with M5 female) | Output: Analog 1-5 V
PSE560-01-28 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: R1/8 (with M5 female) | Output: Analog 4-20 mA
PSE560-02 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: R1/4 (with M5 female) | Output: Analog 1-5 V
PSE560-02-28 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: R1/4 (with M5 female) | Output: Analog 4-20 mA
PSE560-C01 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: Rc1/8 | Output: Analog 1-5 V
PSE560-C01-28 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: Rc1/8 | Output: Analog 4-20 mA
PSE560-A2 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: URJ1/4 (face seal) | Output: Analog 1-5 V
PSE560-A2-28 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: URJ1/4 (face seal) | Output: Analog 4-20 mA
PSE560-B2 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: TSJ1/4 (compression) | Output: Analog 1-5 V
PSE560-B2-28 Model: PSE560 | Rated pressure range: 0 to 1 MPa (positive) | Port: TSJ1/4 (compression) | Output: Analog 4-20 mA
PSE561-01 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: R1/8 (with M5 female) | Output: Analog 1-5 V
PSE561-01-28 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: R1/8 (with M5 female) | Output: Analog 4-20 mA
PSE561-02 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: R1/4 (with M5 female) | Output: Analog 1-5 V
PSE561-02-28 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: R1/4 (with M5 female) | Output: Analog 4-20 mA
PSE561-C01 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: Rc1/8 | Output: Analog 1-5 V
PSE561-C01-28 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: Rc1/8 | Output: Analog 4-20 mA
PSE561-A2 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: URJ1/4 (face seal) | Output: Analog 1-5 V
PSE561-A2-28 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: URJ1/4 (face seal) | Output: Analog 4-20 mA
PSE561-B2 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: TSJ1/4 (compression) | Output: Analog 1-5 V
PSE561-B2-28 Model: PSE561 | Rated pressure range: 0 to -101 kPa (vacuum) | Port: TSJ1/4 (compression) | Output: Analog 4-20 mA
PSE563-01 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: R1/8 (with M5 female) | Output: Analog 1-5 V
PSE563-01-28 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: R1/8 (with M5 female) | Output: Analog 4-20 mA
PSE563-02 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: R1/4 (with M5 female) | Output: Analog 1-5 V
PSE563-02-28 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: R1/4 (with M5 female) | Output: Analog 4-20 mA
PSE563-C01 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: Rc1/8 | Output: Analog 1-5 V
PSE563-C01-28 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: Rc1/8 | Output: Analog 4-20 mA
PSE563-A2 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: URJ1/4 (face seal) | Output: Analog 1-5 V
PSE563-A2-28 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: URJ1/4 (face seal) | Output: Analog 4-20 mA
PSE563-B2 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: TSJ1/4 (compression) | Output: Analog 1-5 V
PSE563-B2-28 Model: PSE563 | Rated pressure range: -100 to 100 kPa (compound) | Port: TSJ1/4 (compression) | Output: Analog 4-20 mA
PSE564-01 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: R1/8 (with M5 female) | Output: Analog 1-5 V
PSE564-01-28 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: R1/8 (with M5 female) | Output: Analog 4-20 mA
PSE564-02 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: R1/4 (with M5 female) | Output: Analog 1-5 V
PSE564-02-28 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: R1/4 (with M5 female) | Output: Analog 4-20 mA
PSE564-C01 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: Rc1/8 | Output: Analog 1-5 V
PSE564-C01-28 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: Rc1/8 | Output: Analog 4-20 mA
PSE564-A2 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: URJ1/4 (face seal) | Output: Analog 1-5 V
PSE564-A2-28 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: URJ1/4 (face seal) | Output: Analog 4-20 mA
PSE564-B2 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: TSJ1/4 (compression) | Output: Analog 1-5 V
PSE564-B2-28 Model: PSE564 | Rated pressure range: 0 to 500 kPa (positive) | Port: TSJ1/4 (compression) | Output: Analog 4-20 mA
