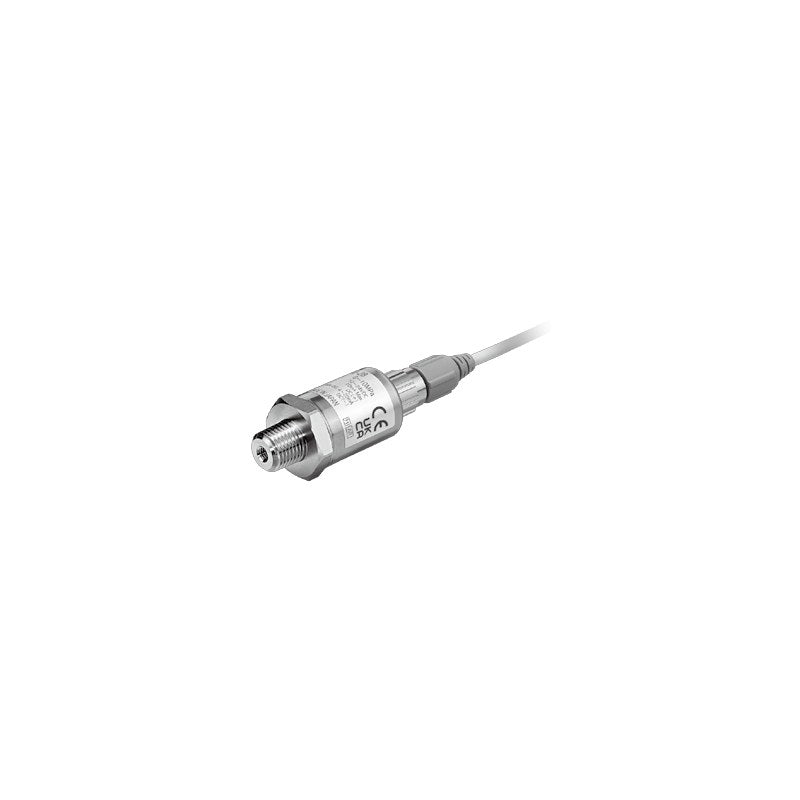

SMC PSE570 Pressure Sensor/Switch for General Fluids (to 10 MPa)

SMC PSE570 series pressure sensor/switch for general fluids up to 10 MPa, with M12 connector, IP65, and analog (1-5 V / 4-20 mA) or IO-Link/2-output versions.

Key features

Six ranges from -100 to 100 kPa up to 0 to 10 MPa; R1/8 port for PSE570/573/574, R1/4 for all
Wetted parts: C3604 nickel plated port, Al2O3 (96%) sensing element, FKM seal
Lead wire option: none = M12 lead wire 3 m straight, L = M12 lead wire 3 m right angle, N = without lead wire
IO-Link (-L2) type: IO-Link / switch output 1 + switch output 2, PNP/NPN selectable; NPN (-A) / PNP (-B) 2-output versions require a set-value suffix (e.g. PSE576-02-BL-P0051OF)
Withstand voltage AC500V; accessories: ZS-37-A/B lead wires, PCA-1557743 field-wireable connector, ZS-31 adapters

Specifications

Fluid	Gases and liquids that do not corrode wetted parts
Power supply	DC12-24V ±10%, ripple 10% or less
Current consumption	10 mA or less (analog type)
Proof pressure	3 MPa / 600 kPa / 1.5 MPa / 5 MPa / 12.5 MPa / 30 MPa (PSE570/573/574/575/576/577)
Accuracy	±1.0% F.S. (PSE570/573/574), ±2.5% F.S. (PSE575/576/577)
Linearity	±0.5% F.S.
Enclosure	IP65
Operating temperature	-10 to 60°C (storage -20 to 70°C)
Connection	M12 4-pin connector
Standards	CE/UKCA, UL/CSA (E216656, except IO-Link type)
Source	SMC Korea catalog CAT.KS100-56D PSE Series (SMCKR_PSE.pdf), p. 23-26 (PDF p. 26-29)

PSE570-01		Output: Analog 1-5 V \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/8 (with M5 female)
PSE570-02		Output: Analog 1-5 V \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/4 (with M5 female)
PSE573-01		Output: Analog 1-5 V \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/8 (with M5 female)
PSE573-02		Output: Analog 1-5 V \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/4 (with M5 female)
PSE574-01		Output: Analog 1-5 V \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/8 (with M5 female)
PSE574-02		Output: Analog 1-5 V \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/4 (with M5 female)
PSE575-02		Output: Analog 1-5 V \| Model: PSE575 \| Rated pressure range: 0 to 2 MPa \| Port: R1/4 (with M5 female)
PSE576-02		Output: Analog 1-5 V \| Model: PSE576 \| Rated pressure range: 0 to 5 MPa \| Port: R1/4 (with M5 female)
PSE577-02		Output: Analog 1-5 V \| Model: PSE577 \| Rated pressure range: 0 to 10 MPa \| Port: R1/4 (with M5 female)
PSE570-01-28		Output: Analog 4-20 mA \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/8 (with M5 female)
PSE570-02-28		Output: Analog 4-20 mA \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/4 (with M5 female)
PSE573-01-28		Output: Analog 4-20 mA \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/8 (with M5 female)
PSE573-02-28		Output: Analog 4-20 mA \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/4 (with M5 female)
PSE574-01-28		Output: Analog 4-20 mA \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/8 (with M5 female)
PSE574-02-28		Output: Analog 4-20 mA \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/4 (with M5 female)
PSE575-02-28		Output: Analog 4-20 mA \| Model: PSE575 \| Rated pressure range: 0 to 2 MPa \| Port: R1/4 (with M5 female)
PSE576-02-28		Output: Analog 4-20 mA \| Model: PSE576 \| Rated pressure range: 0 to 5 MPa \| Port: R1/4 (with M5 female)
PSE577-02-28		Output: Analog 4-20 mA \| Model: PSE577 \| Rated pressure range: 0 to 10 MPa \| Port: R1/4 (with M5 female)
PSE570-01-L2		Output: IO-Link / 2 switch outputs \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/8 (with M5 female)
PSE570-02-L2		Output: IO-Link / 2 switch outputs \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/4 (with M5 female)
PSE573-01-L2		Output: IO-Link / 2 switch outputs \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/8 (with M5 female)
PSE573-02-L2		Output: IO-Link / 2 switch outputs \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/4 (with M5 female)
PSE574-01-L2		Output: IO-Link / 2 switch outputs \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/8 (with M5 female)
PSE574-02-L2		Output: IO-Link / 2 switch outputs \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/4 (with M5 female)
PSE575-02-L2		Output: IO-Link / 2 switch outputs \| Model: PSE575 \| Rated pressure range: 0 to 2 MPa \| Port: R1/4 (with M5 female)
PSE576-02-L2		Output: IO-Link / 2 switch outputs \| Model: PSE576 \| Rated pressure range: 0 to 5 MPa \| Port: R1/4 (with M5 female)
PSE577-02-L2		Output: IO-Link / 2 switch outputs \| Model: PSE577 \| Rated pressure range: 0 to 10 MPa \| Port: R1/4 (with M5 female)

Pressure SwitchesSMC

27 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PSE570 Pressure Sensor/Switch for General Fluids (to 10 MPa)

Brand SMC·Pressure Switches

Available part numbers (27)

PSE570-01, PSE570-02, PSE573-01, PSE573-02, PSE574-01, PSE574-02, PSE575-02, PSE576-02, PSE577-02, PSE570-01-28 + 17 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	PSE570-01	Output: Analog 1-5 V \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/8 (with M5 female)
	PSE570-02	Output: Analog 1-5 V \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/4 (with M5 female)
	PSE573-01	Output: Analog 1-5 V \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/8 (with M5 female)
	PSE573-02	Output: Analog 1-5 V \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/4 (with M5 female)
	PSE574-01	Output: Analog 1-5 V \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/8 (with M5 female)
	PSE574-02	Output: Analog 1-5 V \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/4 (with M5 female)
	PSE575-02	Output: Analog 1-5 V \| Model: PSE575 \| Rated pressure range: 0 to 2 MPa \| Port: R1/4 (with M5 female)
	PSE576-02	Output: Analog 1-5 V \| Model: PSE576 \| Rated pressure range: 0 to 5 MPa \| Port: R1/4 (with M5 female)
	PSE577-02	Output: Analog 1-5 V \| Model: PSE577 \| Rated pressure range: 0 to 10 MPa \| Port: R1/4 (with M5 female)
	PSE570-01-28	Output: Analog 4-20 mA \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/8 (with M5 female)
	PSE570-02-28	Output: Analog 4-20 mA \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/4 (with M5 female)
	PSE573-01-28	Output: Analog 4-20 mA \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/8 (with M5 female)
	PSE573-02-28	Output: Analog 4-20 mA \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/4 (with M5 female)
	PSE574-01-28	Output: Analog 4-20 mA \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/8 (with M5 female)
	PSE574-02-28	Output: Analog 4-20 mA \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/4 (with M5 female)
	PSE575-02-28	Output: Analog 4-20 mA \| Model: PSE575 \| Rated pressure range: 0 to 2 MPa \| Port: R1/4 (with M5 female)
	PSE576-02-28	Output: Analog 4-20 mA \| Model: PSE576 \| Rated pressure range: 0 to 5 MPa \| Port: R1/4 (with M5 female)
	PSE577-02-28	Output: Analog 4-20 mA \| Model: PSE577 \| Rated pressure range: 0 to 10 MPa \| Port: R1/4 (with M5 female)
	PSE570-01-L2	Output: IO-Link / 2 switch outputs \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/8 (with M5 female)
	PSE570-02-L2	Output: IO-Link / 2 switch outputs \| Model: PSE570 \| Rated pressure range: 0 to 1 MPa \| Port: R1/4 (with M5 female)
	PSE573-01-L2	Output: IO-Link / 2 switch outputs \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/8 (with M5 female)
	PSE573-02-L2	Output: IO-Link / 2 switch outputs \| Model: PSE573 \| Rated pressure range: -100 to 100 kPa (compound) \| Port: R1/4 (with M5 female)
	PSE574-01-L2	Output: IO-Link / 2 switch outputs \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/8 (with M5 female)
	PSE574-02-L2	Output: IO-Link / 2 switch outputs \| Model: PSE574 \| Rated pressure range: 0 to 500 kPa \| Port: R1/4 (with M5 female)
	PSE575-02-L2	Output: IO-Link / 2 switch outputs \| Model: PSE575 \| Rated pressure range: 0 to 2 MPa \| Port: R1/4 (with M5 female)
	PSE576-02-L2	Output: IO-Link / 2 switch outputs \| Model: PSE576 \| Rated pressure range: 0 to 5 MPa \| Port: R1/4 (with M5 female)
	PSE577-02-L2	Output: IO-Link / 2 switch outputs \| Model: PSE577 \| Rated pressure range: 0 to 10 MPa \| Port: R1/4 (with M5 female)
