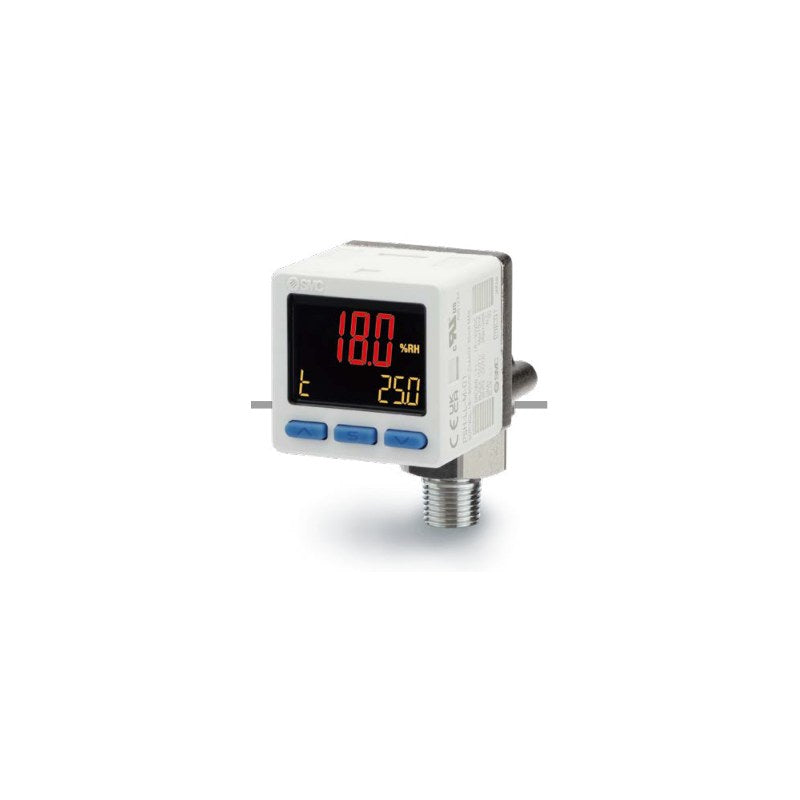

SMC PSH Condensation Checker (Digital Temperature/Humidity Switch)

SMC PSH Condensation Checker (Digital Temperature/Humidity Switch)

SMC PSH series 3-screen digital temperature/humidity switch that monitors relative humidity and temperature of compressed air in real time to prevent condensation trouble.

Key features

  • Displays relative humidity (atmospheric or under pressure) and temperature on a 3-screen display
  • Two switch outputs (NPN/PNP selectable) with IO-Link or 1-5 V analog output
  • Detects dryer failure or loss of dehumidifying capacity before water reaches valves and actuators
  • R1/8 piping; consumes approx. 5 L/min at 1 MPa
  • Options: connector lead wires W/V/R (ZS-46-5F series), bracket A (ZS-55-A), panel mount B/D (ZS-55-B/D); sintered element EBD-3.8-3-2

Specifications

Fluid Air, non-corrosive gas
Rated temperature range 0 to 50°C
Humidity display range 0 to 100% R.H. (no condensation)
Rated pressure range 0.3 to 1 MPa
Operating pressure range 0.1 to 1 MPa
Accuracy ±3°C ±1 digit; ±5% R.H. ±1 digit
Power supply 18 to 30 VDC, 35 mA or less
Port R1/8
Enclosure IP65
Standards CE/UKCA, RoHS, UL/CSA
Source SMC Korea catalog CAT.KS100-161B (SMCKR_PSH.pdf), PDF p. 9-10
PSH-L2-01 Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): OFF | Units: Unit selection function
PSH-L2-M-01 Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): OFF | Units: SI units only
PSH-LL-01 Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): ON | Units: Unit selection function
PSH-LL-M-01 Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): ON | Units: SI units only
PSH-RT-01 Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): OFF | Units: Unit selection function
PSH-RT-M-01 Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): OFF | Units: SI units only
PSH-RR-01 Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): ON | Units: Unit selection function
PSH-RR-M-01 Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): ON | Units: SI units only
Pressure SwitchesSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PSH Condensation Checker (Digital Temperature/Humidity Switch)

Brand SMC·Pressure Switches

Available part numbers (8)

PSH-L2-01, PSH-L2-M-01, PSH-LL-01, PSH-LL-M-01, PSH-RT-01, PSH-RT-M-01, PSH-RR-01, PSH-RR-M-01

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSH-L2-01Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): OFF | Units: Unit selection function
PSH-L2-M-01Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): OFF | Units: SI units only
PSH-LL-01Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): ON | Units: Unit selection function
PSH-LL-M-01Output: IO-Link/SW1 + SW2 | Pressurized RH display (factory): ON | Units: SI units only
PSH-RT-01Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): OFF | Units: Unit selection function
PSH-RT-M-01Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): OFF | Units: SI units only
PSH-RR-01Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): ON | Units: Unit selection function
PSH-RR-M-01Output: SW1 + SW2 + analog voltage | Pressurized RH display (factory): ON | Units: SI units only
