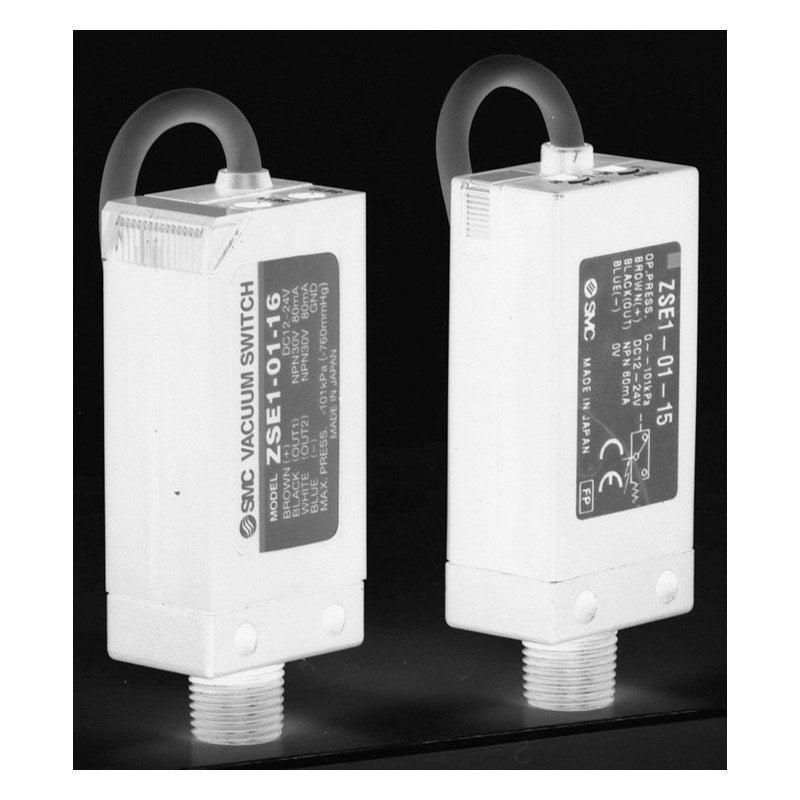

SMC ZSE1/ISE1 Compact Pressure Switch (Vacuum / Positive Pressure)

SMC ZSE1/ISE1 Compact Pressure Switch (Vacuum / Positive Pressure)

SMC ZSE1 (vacuum) and ISE1/ISE1L (positive pressure) compact electronic pressure switches with trimmer setting, mountable on ZM ejectors.

Key features

  • ZSE1 vacuum 0 to -101 kPa; ISE1 0 to 1 MPa; ISE1L low pressure 0 to 100 kPa
  • ZSE1-00 mounts directly on ZM ejector systems; 01 = individual R1/8 with M5 female thread inside
  • NPN 1 or 2 outputs, analog 1-5 V output, or PNP 1 output; adjustable hysteresis 1 to 10% on most types
  • Grommet or connector wiring; 3 m lead wire (L/CL) and NPTF1/8 (T1) not expanded
  • Connector lead wire assemblies ZS-20-A (no lead) and ZS-20-5A-30/-50 ordered separately

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Proof pressure ZSE1/ISE1L 500 kPa, ISE1 1.5 MPa
Power supply 12 to 24 VDC ±10%, reverse connection protection
Switch output Open collector 30 V, 80 mA max.
Response time 5 ms or less
Repeatability ±1% F.S. or less
Temperature characteristics ±3% F.S. or less
Enclosure IP40
Operating temperature 0 to 60°C
Mass 40 g (with 0.6 m lead wire)
Source SMC Korea catalog (SMCKR_ZSE1_ISE1.pdf), PDF p. 2-3
ISE1-01-14 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ISE1-01-14C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ISE1-01-14CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, without lead wire
ISE1-01-15 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ISE1-01-15C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ISE1-01-15CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ISE1-01-16 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ISE1-01-16C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ISE1-01-16CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Connector, without lead wire
ISE1-01-17 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ISE1-01-17C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ISE1-01-17CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Connector, without lead wire
ISE1-01-18 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Grommet, 0.6 m
ISE1-01-18C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, 0.6 m
ISE1-01-18CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, without lead wire
ISE1-01-19 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Grommet, 0.6 m
ISE1-01-19C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, 0.6 m
ISE1-01-19CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, without lead wire
ISE1-01-55 Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ISE1-01-55C Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ISE1-01-55CN Series: ISE1 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ISE1L-01-14 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ISE1L-01-14C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ISE1L-01-14CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, without lead wire
ISE1L-01-15 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ISE1L-01-15C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ISE1L-01-15CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ISE1L-01-16 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ISE1L-01-16C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ISE1L-01-16CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Connector, without lead wire
ISE1L-01-17 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ISE1L-01-17C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ISE1L-01-17CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Connector, without lead wire
ISE1L-01-18 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Grommet, 0.6 m
ISE1L-01-18C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, 0.6 m
ISE1L-01-18CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, without lead wire
ISE1L-01-19 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Grommet, 0.6 m
ISE1L-01-19C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, 0.6 m
ISE1L-01-19CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, without lead wire
ISE1L-01-55 Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ISE1L-01-55C Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ISE1L-01-55CN Series: ISE1L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ZSE1-00-14 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ZSE1-00-14C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ZSE1-00-14CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, without lead wire
ZSE1-00-15 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ZSE1-00-15C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ZSE1-00-15CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ZSE1-00-18 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out + analog, 3-turn | Wiring: Grommet, 0.6 m
ZSE1-00-18C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, 0.6 m
ZSE1-00-18CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, without lead wire
ZSE1-00-19 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out + analog, 200 deg | Wiring: Grommet, 0.6 m
ZSE1-00-19C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, 0.6 m
ZSE1-00-19CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, without lead wire
ZSE1-00-55 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: PNP 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ZSE1-00-55C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ZSE1-00-55CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZM ejector mounting | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ZSE1-01-14 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ZSE1-01-14C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ZSE1-01-14CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 3-turn trimmer | Wiring: Connector, without lead wire
ZSE1-01-15 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ZSE1-01-15C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ZSE1-01-15CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
ZSE1-01-16 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Grommet, 0.6 m
ZSE1-01-16C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Connector, 0.6 m
ZSE1-01-16CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 3-turn trimmer | Wiring: Connector, without lead wire
ZSE1-01-17 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ZSE1-01-17C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ZSE1-01-17CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 2 out, 200 deg trimmer | Wiring: Connector, without lead wire
ZSE1-01-18 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Grommet, 0.6 m
ZSE1-01-18C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, 0.6 m
ZSE1-01-18CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 3-turn | Wiring: Connector, without lead wire
ZSE1-01-19 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Grommet, 0.6 m
ZSE1-01-19C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, 0.6 m
ZSE1-01-19CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN 1 out + analog, 200 deg | Wiring: Connector, without lead wire
ZSE1-01-55 Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Grommet, 0.6 m
ZSE1-01-55C Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, 0.6 m
ZSE1-01-55CN Series: ZSE1 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: PNP 1 out, 200 deg trimmer | Wiring: Connector, without lead wire
Pressure SwitchesSMC
78 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZSE1/ISE1 Compact Pressure Switch (Vacuum / Positive Pressure)

Brand SMC·Pressure Switches

Available part numbers (78)

ISE1-01-14, ISE1-01-14C, ISE1-01-14CN, ISE1-01-15, ISE1-01-15C, ISE1-01-15CN, ISE1-01-16, ISE1-01-16C, ISE1-01-16CN, ISE1-01-17 + 68 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
