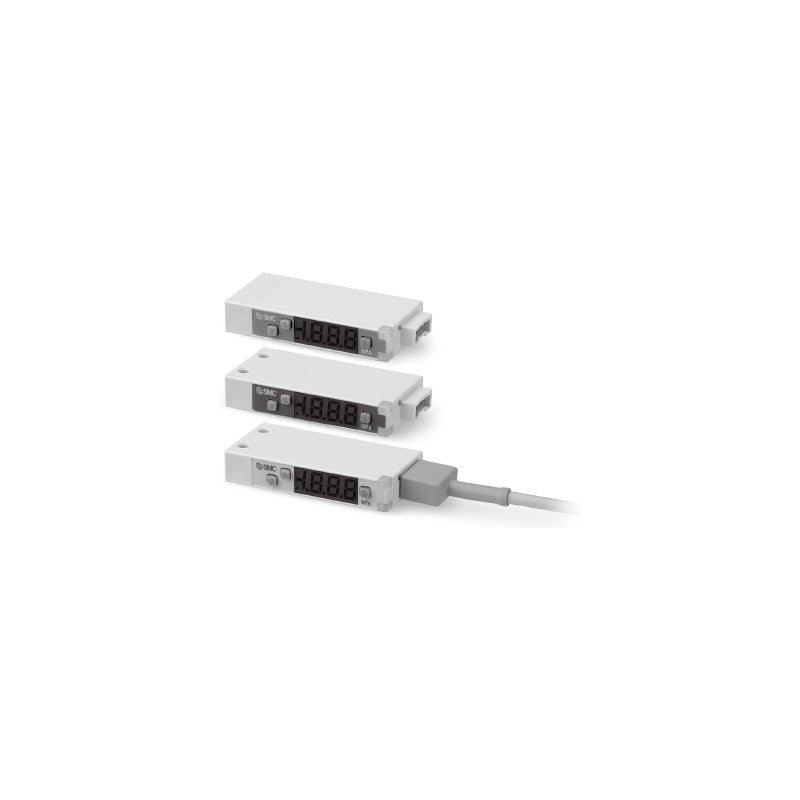

SMC ZSE10(F)/ISE10 Thin Digital Pressure Switch (9.8 mm, 2 Outputs)

SMC ZSE10(F)/ISE10 Thin Digital Pressure Switch (9.8 mm, 2 Outputs)

SMC ZSE10(F)/ISE10 thin 9.8 mm digital pressure switch with 2 NPN or PNP outputs for vacuum, compound or positive pressure.

Key features

  • 9.8 mm thin body halves vertical mounting space; multi-angle OUT1/OUT2 indicator lamps
  • Copy function transfers settings to up to 10 switches at once; 3-step setting
  • M5 female piping, side or bottom; R1/8 and NPT1/8 adapters made to order
  • Analog voltage output types (C, E) are made to order
  • Connector lead wire G (5-core 2 m with cover), panel mount adapter + front cover D, DIN rail adapter R and calibration certificate K ordered as suffixes

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Proof pressure ZSE10(F) 500 kPa; ISE10 1.5 MPa
Power supply voltage 12 to 24 VDC, ripple 10% or less
Current consumption 40 mA or less
Switch output NPN or PNP open collector 2 outputs, 80 mA max.
Response time 2.5 ms or less
Repeatability ±0.2% F.S. ±1 digit
Display 3 1/2-digit 7-segment LED, 1-color (red)
Enclosure IP40
Standards CE, UL/CSA (E216656), RoHS
Source SMC Korea catalog ZSE10(F)/ISE10 (SMCKR_ZSE10_F__ISE10.pdf), p. 67-70 (PDF p. 1-4)
ZSE10-M5-A Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: Unit switching
ZSE10-M5-A-M Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10-M5-A-P Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: Unit switching, initial psi
ZSE10-M5-B Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: Unit switching
ZSE10-M5-B-M Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10-M5-B-P Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: Unit switching, initial psi
ZSE10-M5R-A Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: Unit switching
ZSE10-M5R-A-M Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10-M5R-A-P Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: Unit switching, initial psi
ZSE10-M5R-B Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: Unit switching
ZSE10-M5R-B-M Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10-M5R-B-P Series: ZSE10: vacuum 0 to -101 kPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: Unit switching, initial psi
ZSE10F-M5-A Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: Unit switching
ZSE10F-M5-A-M Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10F-M5-A-P Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: Unit switching, initial psi
ZSE10F-M5-B Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: Unit switching
ZSE10F-M5-B-M Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10F-M5-B-P Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: Unit switching, initial psi
ZSE10F-M5R-A Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: Unit switching
ZSE10F-M5R-A-M Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10F-M5R-A-P Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: Unit switching, initial psi
ZSE10F-M5R-B Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: Unit switching
ZSE10F-M5R-B-M Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: SI units fixed (kPa/MPa)
ZSE10F-M5R-B-P Series: ZSE10F: compound -100 to 100 kPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: Unit switching, initial psi
ISE10-M5-A Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: Unit switching
ISE10-M5-A-M Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: SI units fixed (kPa/MPa)
ISE10-M5-A-P Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, side | Output: NPN 2 outputs | Unit: Unit switching, initial psi
ISE10-M5-B Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: Unit switching
ISE10-M5-B-M Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: SI units fixed (kPa/MPa)
ISE10-M5-B-P Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, side | Output: PNP 2 outputs | Unit: Unit switching, initial psi
ISE10-M5R-A Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: Unit switching
ISE10-M5R-A-M Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: SI units fixed (kPa/MPa)
ISE10-M5R-A-P Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, bottom | Output: NPN 2 outputs | Unit: Unit switching, initial psi
ISE10-M5R-B Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: Unit switching
ISE10-M5R-B-M Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: SI units fixed (kPa/MPa)
ISE10-M5R-B-P Series: ISE10: positive -0.1 to 1 MPa | Piping: M5 female, bottom | Output: PNP 2 outputs | Unit: Unit switching, initial psi
