SMC ZSE2/ISE2 Compact Pressure Switch (Vacuum / Positive Pressure)

SMC ZSE2/ISE2 Compact Pressure Switch (Vacuum / Positive Pressure)

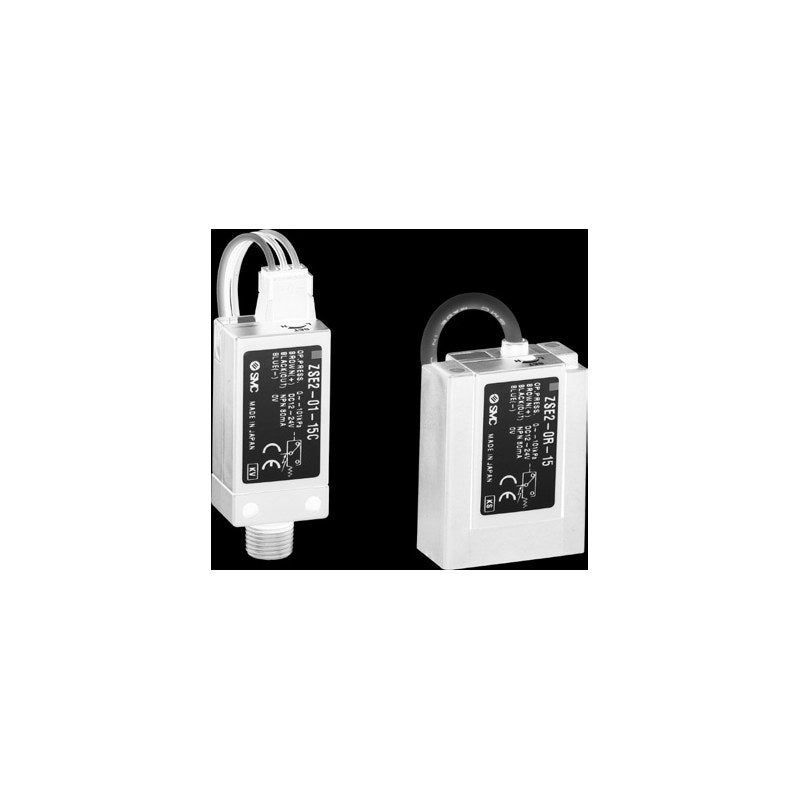

SMC ZSE2 (vacuum) and ISE2/ISE2L (positive pressure) compact electronic pressure switches for individual piping or mounting on ZX/ZR ejector systems.

Key features

  • ZSE2 vacuum 0 to -101 kPa; ISE2 0 to 1 MPa; ISE2L 0 to 100 kPa
  • ZSE2 piping: individual R1/8, ZX ejector mount with suction filter (0X), or ZR ejector base mount (0R)
  • NPN (15) or PNP (55) open collector, 1 set point, 200 degree trimmer, fixed hysteresis
  • Grommet or connector wiring; 3 m lead (L/CL), NPTF1/8 (T1) and M6 filter type (0XY) not expanded
  • Spare filter parts: case assembly ZX1-FK-PC, element ZX1-FE, gasket ZX1-FG; connector ZS-10-A

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Proof pressure ZSE2/ISE2L 500 kPa, ISE2 1.5 MPa
Power supply 12 to 24 VDC ±10%
Current consumption 17 mA or less
Switch output NPN 30 V 80 mA / PNP 80 mA
Response time 5 ms or less
Hysteresis 3% F.S. or less (fixed)
Repeatability ±1% F.S. or less
Enclosure IP40
Mass 35 g (with 0.6 m lead wire)
Source SMC Korea catalog (SMCKR_ZSE2_ISE2.pdf), PDF p. 2-3
ISE2-01-15 Series: ISE2 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Grommet, 0.6 m
ISE2-01-15C Series: ISE2 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Connector, 0.6 m
ISE2-01-15CN Series: ISE2 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Connector, without lead wire
ISE2-01-55 Series: ISE2 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Grommet, 0.6 m
ISE2-01-55C Series: ISE2 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Connector, 0.6 m
ISE2-01-55CN Series: ISE2 | Pressure range: 0 to 1 MPa (positive) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Connector, without lead wire
ISE2L-01-15 Series: ISE2L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Grommet, 0.6 m
ISE2L-01-15C Series: ISE2L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Connector, 0.6 m
ISE2L-01-15CN Series: ISE2L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Connector, without lead wire
ISE2L-01-55 Series: ISE2L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Grommet, 0.6 m
ISE2L-01-55C Series: ISE2L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Connector, 0.6 m
ISE2L-01-55CN Series: ISE2L | Pressure range: 0 to 100 kPa (low pressure) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Connector, without lead wire
ZSE2-01-15 Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Grommet, 0.6 m
ZSE2-01-15C Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Connector, 0.6 m
ZSE2-01-15CN Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: NPN open collector | Wiring: Connector, without lead wire
ZSE2-01-55 Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Grommet, 0.6 m
ZSE2-01-55C Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Connector, 0.6 m
ZSE2-01-55CN Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: Individual R1/8 (M5 female) | Output: PNP open collector | Wiring: Connector, without lead wire
ZSE2-0X-15 Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZX ejector mount, suction filter | Output: NPN open collector | Wiring: Grommet, 0.6 m
ZSE2-0X-15C Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZX ejector mount, suction filter | Output: NPN open collector | Wiring: Connector, 0.6 m
ZSE2-0X-15CN Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZX ejector mount, suction filter | Output: NPN open collector | Wiring: Connector, without lead wire
ZSE2-0X-55 Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZX ejector mount, suction filter | Output: PNP open collector | Wiring: Grommet, 0.6 m
ZSE2-0X-55C Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZX ejector mount, suction filter | Output: PNP open collector | Wiring: Connector, 0.6 m
ZSE2-0X-55CN Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZX ejector mount, suction filter | Output: PNP open collector | Wiring: Connector, without lead wire
ZSE2-0R-15 Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZR ejector base mount | Output: NPN open collector | Wiring: Grommet, 0.6 m
ZSE2-0R-15C Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZR ejector base mount | Output: NPN open collector | Wiring: Connector, 0.6 m
ZSE2-0R-15CN Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZR ejector base mount | Output: NPN open collector | Wiring: Connector, without lead wire
ZSE2-0R-55 Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZR ejector base mount | Output: PNP open collector | Wiring: Grommet, 0.6 m
ZSE2-0R-55C Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZR ejector base mount | Output: PNP open collector | Wiring: Connector, 0.6 m
ZSE2-0R-55CN Series: ZSE2 | Pressure range: 0 to -101 kPa (vacuum) | Piping: ZR ejector base mount | Output: PNP open collector | Wiring: Connector, without lead wire
Pressure SwitchesSMC
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZSE2/ISE2 Compact Pressure Switch (Vacuum / Positive Pressure)

Brand SMC·Pressure Switches

Available part numbers (30)

ISE2-01-15, ISE2-01-15C, ISE2-01-15CN, ISE2-01-55, ISE2-01-55C, ISE2-01-55CN, ISE2L-01-15, ISE2L-01-15C, ISE2L-01-15CN, ISE2L-01-55 + 20 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
