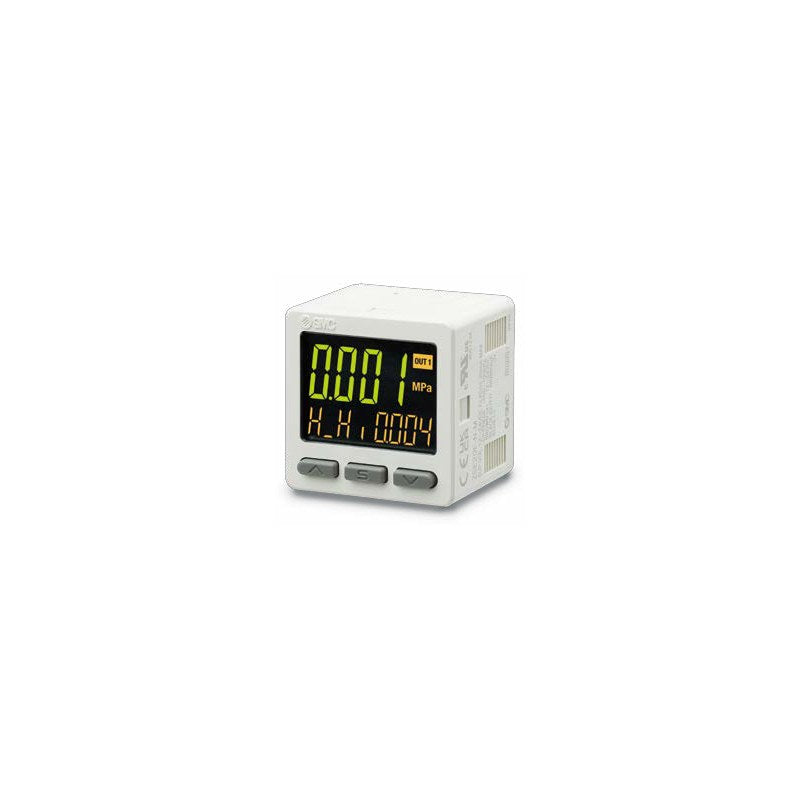

SMC ZSE20(F)/ISE20 3-Screen Digital Pressure Switch (1 Output, IP40)

SMC ZSE20(F)/ISE20 3-Screen Digital Pressure Switch (1 Output, IP40)

SMC ZSE20(F)/ISE20 3-screen high-precision digital pressure switch with one NPN or PNP switch output, for vacuum, compound or positive pressure.

Key features

  • 3-screen display shows current value, set value and label at once; simple 3-step setting
  • Vacuum (ZSE20), compound (ZSE20F) and positive pressure (ISE20) models
  • Piping: M5 female, R1/8, straight or elbow one-touch fittings (ø4, ø6, ø1/4 in), or bottom wiring R1/8
  • Chattering prevention delay 1.5 ms to 5000 ms, digital filter, peak/bottom hold, key lock
  • Connector lead wire, brackets A/B, panel mount adapter (+ front cover), and English/Japanese manual or calibration certificate (Y/K/T) are ordered as suffixes; listed codes are without these options (lead wire option L: 3-core 2 m or 3 m)

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Proof pressure ZSE: 500 kPa; ISE: 1.5 MPa
Power supply voltage 12 to 24 VDC ±10%, ripple 10% or less
Display 3-screen LCD (main red/green, 2 sub screens orange)
Display accuracy ±2% F.S. ±1 digit (25±3°C)
Repeatability ±0.2% F.S. ±1 digit
Switch output Max. load 80 mA, residual voltage 1 V or less, response 1.5 ms or less
Current consumption 25 mA or less
Enclosure IP40
Standards UL/CSA (E216656), CE/UKCA
Source SMC Korea catalog ZSE20(F)/ISE20 (SMCKR_ZSE20_F__ISE20.pdf), p. 11-13 (PDF p. 12-14)
ZSE20-N-M5 Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20-N-01 Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20-N-C4H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20-N-C6H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20-N-N7H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20-N-C4L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20-N-C6L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20-N-N7L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20-N-01B Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20-N-M-M5 Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20-N-M-01 Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20-N-M-C4H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20-N-M-C6H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20-N-M-N7H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20-N-M-C4L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20-N-M-C6L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20-N-M-N7L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20-N-M-01B Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20-N-P-M5 Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20-N-P-01 Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20-N-P-C4H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20-N-P-C6H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20-N-P-N7H Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20-N-P-C4L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20-N-P-C6L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20-N-P-N7L Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20-N-P-01B Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20-P-M5 Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20-P-01 Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20-P-C4H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20-P-C6H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20-P-N7H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20-P-C4L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20-P-C6L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20-P-N7L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20-P-01B Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20-P-M-M5 Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20-P-M-01 Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20-P-M-C4H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20-P-M-C6H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20-P-M-N7H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20-P-M-C4L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20-P-M-C6L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20-P-M-N7L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20-P-M-01B Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20-P-P-M5 Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20-P-P-01 Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20-P-P-C4H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20-P-P-C6H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20-P-P-N7H Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20-P-P-C4L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20-P-P-C6L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20-P-P-N7L Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20-P-P-01B Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-N-M5 Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20F-N-01 Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20F-N-C4H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20F-N-C6H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20F-N-N7H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20F-N-C4L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20F-N-C6L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20F-N-N7L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20F-N-01B Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-N-M-M5 Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20F-N-M-01 Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20F-N-M-C4H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20F-N-M-C6H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20F-N-M-N7H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20F-N-M-C4L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20F-N-M-C6L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20F-N-M-N7L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20F-N-M-01B Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-N-P-M5 Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20F-N-P-01 Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20F-N-P-C4H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20F-N-P-C6H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20F-N-P-N7H Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20F-N-P-C4L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20F-N-P-C6L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20F-N-P-N7L Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20F-N-P-01B Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-P-M5 Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20F-P-01 Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20F-P-C4H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20F-P-C6H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20F-P-N7H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20F-P-C4L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20F-P-C6L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20F-P-N7L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20F-P-01B Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-P-M-M5 Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20F-P-M-01 Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20F-P-M-C4H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20F-P-M-C6H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20F-P-M-N7H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20F-P-M-C4L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20F-P-M-C6L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20F-P-M-N7L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20F-P-M-01B Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-P-P-M5 Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20F-P-P-01 Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20F-P-P-C4H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20F-P-P-C6H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20F-P-P-N7H Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20F-P-P-C4L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20F-P-P-C6L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20F-P-P-N7L Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20F-P-P-01B Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20-N-M5 Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: M5 female, back
ISE20-N-01 Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20-N-C4H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20-N-C6H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20-N-N7H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20-N-C4L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20-N-C6L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20-N-N7L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20-N-01B Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20-N-M-M5 Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20-N-M-01 Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20-N-M-C4H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20-N-M-C6H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20-N-M-N7H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20-N-M-C4L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20-N-M-C6L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20-N-M-N7L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20-N-M-01B Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20-N-P-M5 Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20-N-P-01 Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20-N-P-C4H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20-N-P-C6H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20-N-P-N7H Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20-N-P-C4L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20-N-P-C6L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20-N-P-N7L Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20-N-P-01B Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20-P-M5 Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: M5 female, back
ISE20-P-01 Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20-P-C4H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20-P-C6H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20-P-N7H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20-P-C4L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20-P-C6L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20-P-N7L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20-P-01B Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20-P-M-M5 Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20-P-M-01 Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20-P-M-C4H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20-P-M-C6H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20-P-M-N7H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20-P-M-C4L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20-P-M-C6L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20-P-M-N7L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20-P-M-01B Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20-P-P-M5 Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20-P-P-01 Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20-P-P-C4H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20-P-P-C6H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20-P-P-N7H Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20-P-P-C4L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20-P-P-C6L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20-P-P-N7L Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20-P-P-01B Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
Pressure SwitchesSMC
162 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZSE20(F)/ISE20 3-Screen Digital Pressure Switch (1 Output, IP40)

Brand SMC·Pressure Switches

Available part numbers (162)

ZSE20-N-M5, ZSE20-N-01, ZSE20-N-C4H, ZSE20-N-C6H, ZSE20-N-N7H, ZSE20-N-C4L, ZSE20-N-C6L, ZSE20-N-N7L, ZSE20-N-01B, ZSE20-N-M-M5 + 152 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZSE20-N-M5Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20-N-01Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20-N-C4HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20-N-C6HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20-N-N7HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20-N-C4LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20-N-C6LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20-N-N7LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20-N-01BSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20-N-M-M5Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20-N-M-01Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20-N-M-C4HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20-N-M-C6HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20-N-M-N7HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20-N-M-C4LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20-N-M-C6LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20-N-M-N7LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20-N-M-01BSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20-N-P-M5Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20-N-P-01Series: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20-N-P-C4HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20-N-P-C6HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20-N-P-N7HSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20-N-P-C4LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20-N-P-C6LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20-N-P-N7LSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20-N-P-01BSeries: ZSE20: vacuum 0 to -101 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20-P-M5Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20-P-01Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20-P-C4HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20-P-C6HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20-P-N7HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20-P-C4LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20-P-C6LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20-P-N7LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20-P-01BSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20-P-M-M5Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20-P-M-01Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20-P-M-C4HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20-P-M-C6HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20-P-M-N7HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20-P-M-C4LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20-P-M-C6LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20-P-M-N7LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20-P-M-01BSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20-P-P-M5Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20-P-P-01Series: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20-P-P-C4HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20-P-P-C6HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20-P-P-N7HSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20-P-P-C4LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20-P-P-C6LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20-P-P-N7LSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20-P-P-01BSeries: ZSE20: vacuum 0 to -101 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-N-M5Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20F-N-01Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20F-N-C4HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20F-N-C6HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20F-N-N7HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20F-N-C4LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20F-N-C6LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20F-N-N7LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20F-N-01BSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-N-M-M5Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20F-N-M-01Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20F-N-M-C4HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20F-N-M-C6HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20F-N-M-N7HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20F-N-M-C4LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20F-N-M-C6LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20F-N-M-N7LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20F-N-M-01BSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-N-P-M5Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20F-N-P-01Series: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20F-N-P-C4HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20F-N-P-C6HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20F-N-P-N7HSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20F-N-P-C4LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20F-N-P-C6LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20F-N-P-N7LSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20F-N-P-01BSeries: ZSE20F: compound -100 to 100 kPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-P-M5Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: M5 female, back
ZSE20F-P-01Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20F-P-C4HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20F-P-C6HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20F-P-N7HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20F-P-C4LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20F-P-C6LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20F-P-N7LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20F-P-01BSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-P-M-M5Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20F-P-M-01Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20F-P-M-C4HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20F-P-M-C6HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20F-P-M-N7HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20F-P-M-C4LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20F-P-M-C6LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20F-P-M-N7LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20F-P-M-01BSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20F-P-P-M5Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20F-P-P-01Series: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20F-P-P-C4HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20F-P-P-C6HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20F-P-P-N7HSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20F-P-P-C4LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20F-P-P-C6LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20F-P-P-N7LSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20F-P-P-01BSeries: ZSE20F: compound -100 to 100 kPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20-N-M5Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: M5 female, back
ISE20-N-01Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20-N-C4HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20-N-C6HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20-N-N7HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20-N-C4LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20-N-C6LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20-N-N7LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20-N-01BSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20-N-M-M5Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20-N-M-01Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20-N-M-C4HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20-N-M-C6HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20-N-M-N7HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20-N-M-C4LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20-N-M-C6LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20-N-M-N7LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20-N-M-01BSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20-N-P-M5Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20-N-P-01Series: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20-N-P-C4HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20-N-P-C6HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20-N-P-N7HSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20-N-P-C4LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20-N-P-C6LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20-N-P-N7LSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20-N-P-01BSeries: ISE20: positive -0.1 to 1 MPa | Output: NPN 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20-P-M5Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: M5 female, back
ISE20-P-01Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20-P-C4HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20-P-C6HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20-P-N7HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20-P-C4LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20-P-C6LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20-P-N7LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20-P-01BSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20-P-M-M5Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20-P-M-01Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20-P-M-C4HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20-P-M-C6HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20-P-M-N7HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20-P-M-C4LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20-P-M-C6LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20-P-M-N7LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20-P-M-01BSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20-P-P-M5Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20-P-P-01Series: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20-P-P-C4HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20-P-P-C6HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20-P-P-N7HSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20-P-P-C4LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20-P-P-C6LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20-P-P-N7LSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20-P-P-01BSeries: ISE20: positive -0.1 to 1 MPa | Output: PNP 1 output | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
