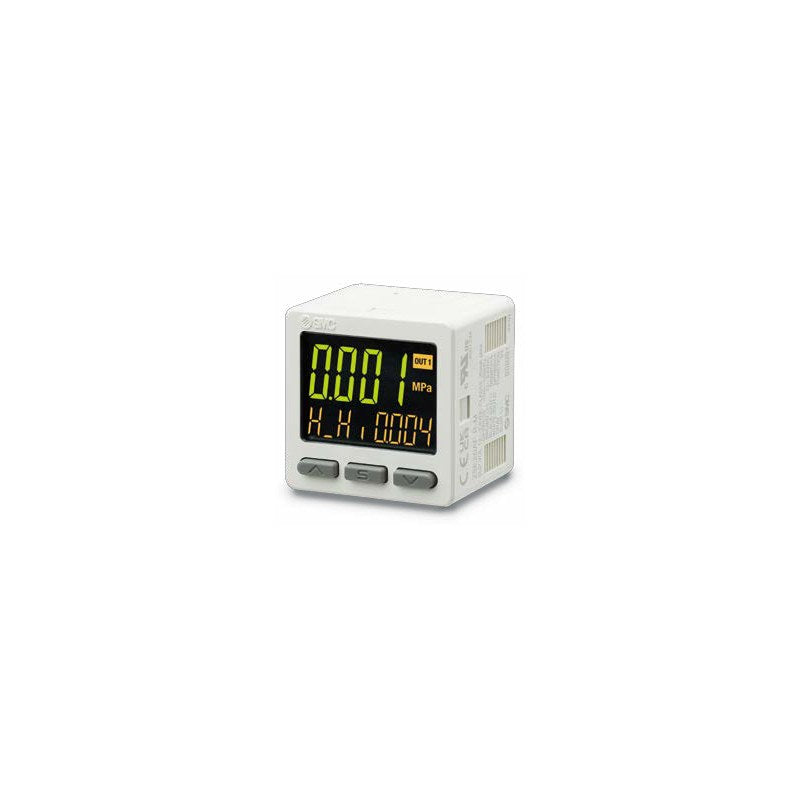

SMC ZSE20A(F)/ISE20A Digital Pressure Switch (2 Outputs + Analog, IP40)

SMC ZSE20A(F)/ISE20A Digital Pressure Switch (2 Outputs + Analog, IP40)

SMC ZSE20A(F)/ISE20A 3-screen high-precision digital pressure switch with two switch outputs plus analog voltage/current output or copy function.

Key features

  • 2 NPN/PNP switch outputs plus 1 to 5 V or 4 to 20 mA analog output, or copy function (X/Y)
  • Auto-shift input and copy function selectable; 3-screen display with simple 3-step setting
  • Vacuum (ZSE20A), compound (ZSE20AF) and positive pressure (ISE20A) models
  • Piping: M5 female, R1/8, straight or elbow one-touch fittings, or bottom wiring R1/8
  • Connector lead wire, brackets A/B, panel mount adapter (+ front cover), and English/Japanese manual or calibration certificate (Y/K/T) are ordered as suffixes; listed codes are without these options (lead wire option J: 5-core 2 m or 5 m)

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Proof pressure ZSE: 500 kPa; ISE: 1.5 MPa
Power supply voltage 12 to 24 VDC ±10%, ripple 10% or less
Display 3-screen LCD (main red/green, 2 sub screens orange)
Display accuracy ±2% F.S. ±1 digit (25±3°C)
Repeatability ±0.2% F.S. ±1 digit
Switch output Max. load 80 mA, residual voltage 1 V or less, response 1.5 ms or less
Current consumption 35 mA or less
Analog output Voltage 1 to 5 V (ZSE20AF 0.6 to 5 V), current 4 to 20 mA (ZSE20AF 2.4 to 20 mA)
Enclosure IP40
Source SMC Korea catalog ZSE20(F)/ISE20 (SMCKR_ZSE20_F__ISE20.pdf), p. 14-16 (PDF p. 15-17)
ZSE20A-R-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20A-R-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-R-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-R-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-R-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-R-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-R-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-R-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-R-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-R-M-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-R-M-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-R-M-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-R-M-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-R-M-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-R-M-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-R-M-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-R-M-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-R-M-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-R-P-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-R-P-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-R-P-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-R-P-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-R-P-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-R-P-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-R-P-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-R-P-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-R-P-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-S-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20A-S-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-S-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-S-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-S-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-S-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-S-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-S-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-S-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-S-M-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-S-M-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-S-M-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-S-M-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-S-M-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-S-M-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-S-M-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-S-M-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-S-M-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-S-P-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-S-P-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-S-P-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-S-P-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-S-P-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-S-P-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-S-P-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-S-P-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-S-P-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-T-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20A-T-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-T-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-T-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-T-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-T-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-T-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-T-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-T-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-T-M-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-T-M-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-T-M-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-T-M-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-T-M-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-T-M-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-T-M-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-T-M-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-T-M-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-T-P-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-T-P-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-T-P-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-T-P-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-T-P-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-T-P-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-T-P-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-T-P-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-T-P-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-V-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20A-V-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-V-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-V-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-V-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-V-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-V-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-V-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-V-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-V-M-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-V-M-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-V-M-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-V-M-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-V-M-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-V-M-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-V-M-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-V-M-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-V-M-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-V-P-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-V-P-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-V-P-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-V-P-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-V-P-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-V-P-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-V-P-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-V-P-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-V-P-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-X-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20A-X-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-X-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-X-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-X-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-X-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-X-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-X-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-X-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-X-M-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-X-M-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-X-M-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-X-M-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-X-M-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-X-M-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-X-M-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-X-M-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-X-M-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-X-P-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-X-P-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-X-P-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-X-P-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-X-P-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-X-P-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-X-P-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-X-P-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-X-P-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-Y-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20A-Y-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-Y-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-Y-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-Y-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-Y-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-Y-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-Y-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-Y-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-Y-M-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-Y-M-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-Y-M-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-Y-M-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-Y-M-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-Y-M-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-Y-M-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-Y-M-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-Y-M-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-Y-P-M5 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-Y-P-01 Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-Y-P-C4H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-Y-P-C6H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-Y-P-N7H Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-Y-P-C4L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-Y-P-C6L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-Y-P-N7L Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-Y-P-01B Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-R-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-R-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-R-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-R-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-R-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-R-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-R-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-R-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-R-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-R-M-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-R-M-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-R-M-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-R-M-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-R-M-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-R-M-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-R-M-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-R-M-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-R-M-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-R-P-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-R-P-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-R-P-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-R-P-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-R-P-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-R-P-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-R-P-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-R-P-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-R-P-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-S-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-S-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-S-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-S-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-S-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-S-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-S-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-S-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-S-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-S-M-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-S-M-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-S-M-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-S-M-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-S-M-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-S-M-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-S-M-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-S-M-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-S-M-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-S-P-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-S-P-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-S-P-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-S-P-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-S-P-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-S-P-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-S-P-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-S-P-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-S-P-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-T-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-T-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-T-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-T-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-T-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-T-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-T-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-T-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-T-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-T-M-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-T-M-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-T-M-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-T-M-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-T-M-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-T-M-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-T-M-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-T-M-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-T-M-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-T-P-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-T-P-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-T-P-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-T-P-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-T-P-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-T-P-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-T-P-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-T-P-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-T-P-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-V-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-V-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-V-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-V-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-V-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-V-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-V-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-V-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-V-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-V-M-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-V-M-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-V-M-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-V-M-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-V-M-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-V-M-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-V-M-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-V-M-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-V-M-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-V-P-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-V-P-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-V-P-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-V-P-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-V-P-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-V-P-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-V-P-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-V-P-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-V-P-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-X-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-X-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-X-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-X-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-X-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-X-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-X-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-X-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-X-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-X-M-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-X-M-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-X-M-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-X-M-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-X-M-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-X-M-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-X-M-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-X-M-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-X-M-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-X-P-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-X-P-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-X-P-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-X-P-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-X-P-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-X-P-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-X-P-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-X-P-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-X-P-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-Y-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-Y-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-Y-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-Y-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-Y-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-Y-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-Y-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-Y-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-Y-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-Y-M-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-Y-M-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-Y-M-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-Y-M-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-Y-M-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-Y-M-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-Y-M-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-Y-M-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-Y-M-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-Y-P-M5 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-Y-P-01 Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-Y-P-C4H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-Y-P-C6H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-Y-P-N7H Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-Y-P-C4L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-Y-P-C6L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-Y-P-N7L Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-Y-P-01B Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-R-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ISE20A-R-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-R-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-R-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-R-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-R-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-R-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-R-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-R-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-R-M-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-R-M-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-R-M-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-R-M-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-R-M-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-R-M-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-R-M-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-R-M-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-R-M-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-R-P-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-R-P-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-R-P-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-R-P-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-R-P-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-R-P-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-R-P-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-R-P-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-R-P-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-S-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ISE20A-S-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-S-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-S-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-S-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-S-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-S-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-S-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-S-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-S-M-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-S-M-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-S-M-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-S-M-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-S-M-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-S-M-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-S-M-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-S-M-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-S-M-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-S-P-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-S-P-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-S-P-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-S-P-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-S-P-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-S-P-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-S-P-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-S-P-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-S-P-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-T-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ISE20A-T-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-T-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-T-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-T-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-T-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-T-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-T-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-T-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-T-M-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-T-M-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-T-M-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-T-M-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-T-M-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-T-M-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-T-M-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-T-M-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-T-M-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-T-P-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-T-P-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-T-P-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-T-P-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-T-P-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-T-P-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-T-P-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-T-P-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-T-P-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-V-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ISE20A-V-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-V-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-V-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-V-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-V-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-V-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-V-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-V-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-V-M-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-V-M-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-V-M-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-V-M-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-V-M-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-V-M-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-V-M-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-V-M-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-V-M-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-V-P-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-V-P-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-V-P-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-V-P-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-V-P-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-V-P-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-V-P-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-V-P-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-V-P-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-X-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ISE20A-X-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-X-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-X-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-X-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-X-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-X-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-X-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-X-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-X-M-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-X-M-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-X-M-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-X-M-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-X-M-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-X-M-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-X-M-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-X-M-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-X-M-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-X-P-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-X-P-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-X-P-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-X-P-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-X-P-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-X-P-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-X-P-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-X-P-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-X-P-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-Y-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ISE20A-Y-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-Y-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-Y-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-Y-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-Y-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-Y-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-Y-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-Y-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-Y-M-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-Y-M-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-Y-M-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-Y-M-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-Y-M-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-Y-M-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-Y-M-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-Y-M-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-Y-M-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-Y-P-M5 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-Y-P-01 Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-Y-P-C4H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-Y-P-C6H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-Y-P-N7H Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-Y-P-C4L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-Y-P-C6L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-Y-P-N7L Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-Y-P-01B Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
Pressure SwitchesSMC
486 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZSE20A(F)/ISE20A Digital Pressure Switch (2 Outputs + Analog, IP40)

Brand SMC·Pressure Switches

Available part numbers (486)

ZSE20A-R-M5, ZSE20A-R-01, ZSE20A-R-C4H, ZSE20A-R-C6H, ZSE20A-R-N7H, ZSE20A-R-C4L, ZSE20A-R-C6L, ZSE20A-R-N7L, ZSE20A-R-01B, ZSE20A-R-M-M5 + 476 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZSE20A-R-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20A-R-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-R-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-R-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-R-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-R-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-R-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-R-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-R-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-R-M-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-R-M-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-R-M-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-R-M-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-R-M-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-R-M-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-R-M-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-R-M-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-R-M-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-R-P-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-R-P-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-R-P-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-R-P-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-R-P-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-R-P-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-R-P-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-R-P-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-R-P-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-S-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20A-S-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-S-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-S-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-S-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-S-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-S-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-S-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-S-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-S-M-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-S-M-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-S-M-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-S-M-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-S-M-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-S-M-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-S-M-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-S-M-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-S-M-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-S-P-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-S-P-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-S-P-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-S-P-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-S-P-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-S-P-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-S-P-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-S-P-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-S-P-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-T-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20A-T-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-T-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-T-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-T-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-T-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-T-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-T-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-T-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-T-M-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-T-M-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-T-M-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-T-M-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-T-M-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-T-M-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-T-M-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-T-M-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-T-M-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-T-P-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-T-P-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-T-P-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-T-P-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-T-P-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-T-P-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-T-P-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-T-P-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-T-P-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-V-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20A-V-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-V-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-V-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-V-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-V-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-V-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-V-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-V-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-V-M-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-V-M-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-V-M-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-V-M-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-V-M-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-V-M-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-V-M-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-V-M-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-V-M-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-V-P-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-V-P-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-V-P-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-V-P-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-V-P-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-V-P-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-V-P-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-V-P-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-V-P-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-X-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20A-X-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-X-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-X-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-X-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-X-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-X-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-X-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-X-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-X-M-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-X-M-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-X-M-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-X-M-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-X-M-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-X-M-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-X-M-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-X-M-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-X-M-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-X-P-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-X-P-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-X-P-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-X-P-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-X-P-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-X-P-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-X-P-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-X-P-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-X-P-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-Y-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20A-Y-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20A-Y-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20A-Y-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20A-Y-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20A-Y-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20A-Y-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20A-Y-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20A-Y-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-Y-M-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20A-Y-M-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20A-Y-M-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20A-Y-M-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20A-Y-M-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20A-Y-M-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20A-Y-M-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20A-Y-M-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20A-Y-M-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20A-Y-P-M5Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20A-Y-P-01Series: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20A-Y-P-C4HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20A-Y-P-C6HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20A-Y-P-N7HSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20A-Y-P-C4LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20A-Y-P-C6LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20A-Y-P-N7LSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20A-Y-P-01BSeries: ZSE20A: vacuum 0 to -101 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-R-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-R-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-R-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-R-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-R-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-R-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-R-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-R-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-R-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-R-M-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-R-M-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-R-M-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-R-M-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-R-M-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-R-M-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-R-M-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-R-M-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-R-M-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-R-P-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-R-P-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-R-P-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-R-P-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-R-P-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-R-P-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-R-P-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-R-P-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-R-P-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-S-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-S-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-S-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-S-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-S-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-S-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-S-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-S-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-S-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-S-M-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-S-M-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-S-M-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-S-M-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-S-M-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-S-M-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-S-M-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-S-M-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-S-M-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-S-P-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-S-P-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-S-P-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-S-P-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-S-P-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-S-P-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-S-P-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-S-P-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-S-P-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-T-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-T-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-T-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-T-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-T-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-T-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-T-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-T-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-T-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-T-M-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-T-M-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-T-M-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-T-M-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-T-M-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-T-M-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-T-M-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-T-M-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-T-M-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-T-P-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-T-P-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-T-P-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-T-P-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-T-P-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-T-P-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-T-P-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-T-P-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-T-P-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-V-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-V-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-V-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-V-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-V-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-V-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-V-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-V-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-V-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-V-M-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-V-M-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-V-M-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-V-M-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-V-M-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-V-M-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-V-M-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-V-M-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-V-M-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-V-P-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-V-P-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-V-P-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-V-P-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-V-P-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-V-P-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-V-P-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-V-P-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-V-P-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-X-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-X-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-X-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-X-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-X-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-X-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-X-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-X-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-X-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-X-M-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-X-M-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-X-M-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-X-M-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-X-M-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-X-M-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-X-M-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-X-M-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-X-M-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-X-P-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-X-P-01Series: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-X-P-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-X-P-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-X-P-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-X-P-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-X-P-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-X-P-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-X-P-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-Y-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ZSE20AF-Y-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ZSE20AF-Y-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ZSE20AF-Y-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ZSE20AF-Y-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ZSE20AF-Y-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ZSE20AF-Y-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ZSE20AF-Y-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ZSE20AF-Y-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-Y-M-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ZSE20AF-Y-M-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ZSE20AF-Y-M-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ZSE20AF-Y-M-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ZSE20AF-Y-M-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ZSE20AF-Y-M-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ZSE20AF-Y-M-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ZSE20AF-Y-M-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ZSE20AF-Y-M-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ZSE20AF-Y-P-M5Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ZSE20AF-Y-P-01Series: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ZSE20AF-Y-P-C4HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ZSE20AF-Y-P-C6HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ZSE20AF-Y-P-N7HSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ZSE20AF-Y-P-C4LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ZSE20AF-Y-P-C6LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ZSE20AF-Y-P-N7LSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ZSE20AF-Y-P-01BSeries: ZSE20AF: compound -100 to 100 kPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-R-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ISE20A-R-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-R-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-R-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-R-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-R-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-R-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-R-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-R-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-R-M-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-R-M-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-R-M-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-R-M-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-R-M-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-R-M-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-R-M-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-R-M-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-R-M-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-R-P-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-R-P-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-R-P-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-R-P-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-R-P-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-R-P-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-R-P-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-R-P-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-R-P-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-S-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ISE20A-S-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-S-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-S-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-S-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-S-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-S-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-S-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-S-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-S-M-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-S-M-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-S-M-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-S-M-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-S-M-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-S-M-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-S-M-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-S-M-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-S-M-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-S-P-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-S-P-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-S-P-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-S-P-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-S-P-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-S-P-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-S-P-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-S-P-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-S-P-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-T-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: M5 female, back
ISE20A-T-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-T-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-T-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-T-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-T-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-T-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-T-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-T-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-T-M-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-T-M-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-T-M-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-T-M-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-T-M-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-T-M-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-T-M-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-T-M-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-T-M-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-T-P-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-T-P-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-T-P-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-T-P-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-T-P-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-T-P-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-T-P-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-T-P-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-T-P-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog voltage | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-V-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: M5 female, back
ISE20A-V-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-V-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-V-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-V-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-V-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-V-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-V-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-V-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-V-M-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-V-M-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-V-M-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-V-M-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-V-M-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-V-M-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-V-M-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-V-M-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-V-M-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-V-P-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-V-P-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-V-P-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-V-P-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-V-P-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-V-P-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-V-P-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-V-P-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-V-P-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + analog current | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-X-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ISE20A-X-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-X-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-X-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-X-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-X-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-X-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-X-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-X-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-X-M-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-X-M-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-X-M-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-X-M-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-X-M-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-X-M-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-X-M-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-X-M-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-X-M-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-X-P-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-X-P-01Series: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-X-P-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-X-P-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-X-P-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-X-P-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-X-P-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-X-P-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-X-P-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: NPN 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring
ISE20A-Y-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: M5 female, back
ISE20A-Y-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), back
ISE20A-Y-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, straight
ISE20A-Y-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, straight
ISE20A-Y-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, straight
ISE20A-Y-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø4 one-touch, elbow
ISE20A-Y-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø6 one-touch, elbow
ISE20A-Y-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: ø1/4 in one-touch, elbow
ISE20A-Y-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching | Piping: R1/8 (M5 female), bottom wiring
ISE20A-Y-M-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: M5 female, back
ISE20A-Y-M-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), back
ISE20A-Y-M-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, straight
ISE20A-Y-M-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, straight
ISE20A-Y-M-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, straight
ISE20A-Y-M-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø4 one-touch, elbow
ISE20A-Y-M-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø6 one-touch, elbow
ISE20A-Y-M-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: ø1/4 in one-touch, elbow
ISE20A-Y-M-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: SI units fixed (kPa/MPa) | Piping: R1/8 (M5 female), bottom wiring
ISE20A-Y-P-M5Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: M5 female, back
ISE20A-Y-P-01Series: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), back
ISE20A-Y-P-C4HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, straight
ISE20A-Y-P-C6HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, straight
ISE20A-Y-P-N7HSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, straight
ISE20A-Y-P-C4LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø4 one-touch, elbow
ISE20A-Y-P-C6LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø6 one-touch, elbow
ISE20A-Y-P-N7LSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: ø1/4 in one-touch, elbow
ISE20A-Y-P-01BSeries: ISE20A: positive -0.1 to 1 MPa | Output: PNP 2 outputs + copy function | Unit: Unit switching, initial psi | Piping: R1/8 (M5 female), bottom wiring

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
