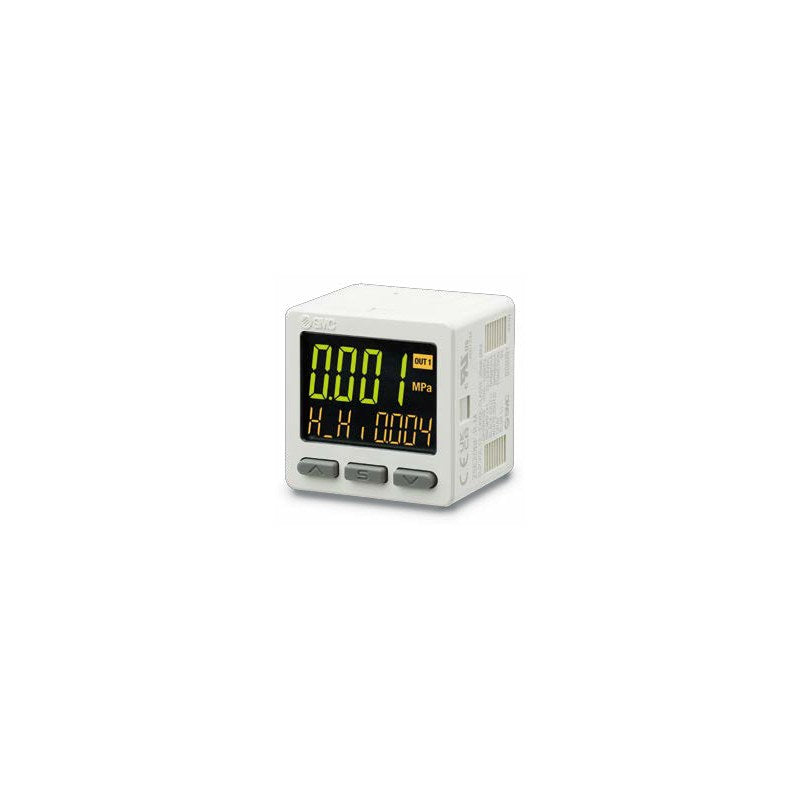

SMC ZSE20B(F)/ISE20B Digital Pressure Switch (IP65, Analog/M12)

SMC ZSE20B(F)/ISE20B IP65 3-screen high-precision digital pressure switch with 2 switch outputs plus analog output, in lead wire or M12 connector type.

Key features

IP65 enclosure; 3-screen display with simple 3-step setting
Lead wire type: 2 NPN/PNP outputs + analog voltage/current or copy function
M12 connector type (S): 1 output + analog or 2 outputs; lead wire not included
Piping: M5 female, R1/8, ø4/ø6 elbow one-touch fittings, bottom wiring R1/8 or Rc1/8
Connector lead wire W/V/R (2 or 5 m), brackets A/B/D/E, panel mount adapters and manual/certificate (Y/K/T) ordered as suffixes; not expanded

Specifications

Fluid	Air, non-corrosive gas, non-flammable gas
Proof pressure	ZSE: 500 kPa; ISE: 1.5 MPa
Power supply voltage	12 to 24 VDC ±10%, ripple 10% or less
Display	3-screen LCD (main red/green, 2 sub screens orange)
Display accuracy	±2% F.S. ±1 digit (25±3°C)
Repeatability	±0.2% F.S. ±1 digit
Switch output	Max. load 80 mA, residual voltage 1 V or less, response 1.5 ms or less
Current consumption	35 mA or less
Analog output	Voltage 1 to 5 V (ZSE20BF 0.6 to 5 V), current 4 to 20 mA (ZSE20BF 2.4 to 20 mA)
Enclosure	IP65
Source	SMC Korea catalog ZSE20(F)/ISE20 (SMCKR_ZSE20_F__ISE20.pdf), p. 17-20 (PDF p. 18-21)

ZSE20B-R-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-R-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-R-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-R-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-R-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-R-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-S-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-S-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-S-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-S-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-S-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-S-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-T-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-T-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-T-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-T-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-T-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-T-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-V-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-V-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-V-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-V-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-V-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-V-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-X-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-X-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-X-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-X-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-X-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-X-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-Y-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-Y-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-Y-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-Y-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-Y-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-Y-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-R-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-R-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-R-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-R-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-S-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-S-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-S-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-S-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-T-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-T-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-T-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-T-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-V-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-V-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-V-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-V-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-X-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-X-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-X-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-X-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-Y-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-Y-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-Y-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-Y-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-R-M-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-R-M-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-R-M-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-R-M-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-R-M-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-R-M-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-S-M-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-S-M-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-S-M-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-S-M-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-S-M-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-S-M-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-T-M-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-T-M-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-T-M-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-T-M-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-T-M-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-T-M-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-V-M-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-V-M-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-V-M-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-V-M-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-V-M-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-V-M-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-X-M-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-X-M-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-X-M-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-X-M-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-X-M-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-X-M-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-Y-M-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-Y-M-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-Y-M-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-Y-M-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-Y-M-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-Y-M-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-R-M-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-R-M-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-R-M-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-R-M-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-S-M-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-S-M-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-S-M-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-S-M-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-T-M-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-T-M-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-T-M-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-T-M-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-V-M-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-V-M-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-V-M-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-V-M-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-X-M-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-X-M-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-X-M-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-X-M-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-Y-M-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-Y-M-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-Y-M-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-Y-M-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-R-P-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-R-P-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-R-P-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-R-P-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-R-P-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-R-P-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-S-P-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-S-P-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-S-P-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-S-P-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-S-P-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-S-P-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-T-P-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-T-P-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-T-P-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-T-P-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-T-P-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-T-P-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-V-P-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-V-P-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-V-P-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-V-P-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-V-P-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-V-P-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-X-P-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-X-P-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-X-P-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-X-P-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-X-P-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-X-P-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-Y-P-M5		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20B-Y-P-01		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20B-Y-P-C4L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20B-Y-P-C6L		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20B-Y-P-01B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20B-Y-P-W1B		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20B-R-P-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-R-P-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-R-P-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-R-P-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-S-P-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-S-P-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-S-P-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-S-P-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-T-P-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-T-P-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-T-P-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-T-P-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-V-P-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-V-P-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-V-P-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-V-P-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-X-P-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-X-P-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-X-P-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-X-P-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20B-Y-P-M5-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20B-Y-P-01-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20B-Y-P-C4L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20B-Y-P-C6L-S		Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-R-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-R-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-R-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-R-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-R-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-R-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-S-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-S-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-S-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-S-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-S-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-S-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-T-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-T-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-T-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-T-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-T-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-T-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-V-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-V-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-V-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-V-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-V-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-V-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-X-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-X-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-X-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-X-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-X-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-X-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-Y-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-Y-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-Y-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-Y-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-Y-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-Y-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-R-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-R-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-R-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-R-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-S-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-S-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-S-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-S-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-T-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-T-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-T-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-T-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-V-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-V-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-V-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-V-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-X-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-X-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-X-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-X-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-Y-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-Y-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-Y-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-Y-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-R-M-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-R-M-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-R-M-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-R-M-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-R-M-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-R-M-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-S-M-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-S-M-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-S-M-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-S-M-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-S-M-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-S-M-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-T-M-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-T-M-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-T-M-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-T-M-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-T-M-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-T-M-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-V-M-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-V-M-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-V-M-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-V-M-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-V-M-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-V-M-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-X-M-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-X-M-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-X-M-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-X-M-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-X-M-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-X-M-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-Y-M-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-Y-M-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-Y-M-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-Y-M-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-Y-M-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-Y-M-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-R-M-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-R-M-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-R-M-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-R-M-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-S-M-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-S-M-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-S-M-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-S-M-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-T-M-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-T-M-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-T-M-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-T-M-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-V-M-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-V-M-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-V-M-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-V-M-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-X-M-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-X-M-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-X-M-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-X-M-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-Y-M-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-Y-M-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-Y-M-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-Y-M-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-R-P-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-R-P-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-R-P-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-R-P-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-R-P-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-R-P-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-S-P-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-S-P-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-S-P-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-S-P-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-S-P-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-S-P-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-T-P-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-T-P-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-T-P-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-T-P-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-T-P-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-T-P-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-V-P-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-V-P-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-V-P-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-V-P-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-V-P-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-V-P-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-X-P-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-X-P-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-X-P-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-X-P-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-X-P-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-X-P-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-Y-P-M5		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ZSE20BF-Y-P-01		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ZSE20BF-Y-P-C4L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ZSE20BF-Y-P-C6L		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ZSE20BF-Y-P-01B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-Y-P-W1B		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ZSE20BF-R-P-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-R-P-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-R-P-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-R-P-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-S-P-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-S-P-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-S-P-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-S-P-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-T-P-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-T-P-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-T-P-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-T-P-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-V-P-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-V-P-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-V-P-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-V-P-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-X-P-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-X-P-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-X-P-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-X-P-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ZSE20BF-Y-P-M5-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ZSE20BF-Y-P-01-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ZSE20BF-Y-P-C4L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ZSE20BF-Y-P-C6L-S		Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-R-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-R-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-R-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-R-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-R-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-R-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-S-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-S-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-S-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-S-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-S-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-S-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-T-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-T-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-T-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-T-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-T-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-T-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-V-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-V-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-V-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-V-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-V-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-V-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-X-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-X-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-X-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-X-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-X-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-X-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-Y-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-Y-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-Y-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-Y-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-Y-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-Y-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-R-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-R-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-R-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-R-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-S-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-S-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-S-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-S-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-T-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-T-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-T-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-T-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-V-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-V-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-V-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-V-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-X-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-X-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-X-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-X-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-Y-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-Y-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-Y-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-Y-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-R-M-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-R-M-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-R-M-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-R-M-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-R-M-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-R-M-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-S-M-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-S-M-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-S-M-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-S-M-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-S-M-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-S-M-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-T-M-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-T-M-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-T-M-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-T-M-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-T-M-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-T-M-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-V-M-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-V-M-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-V-M-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-V-M-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-V-M-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-V-M-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-X-M-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-X-M-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-X-M-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-X-M-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-X-M-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-X-M-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-Y-M-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-Y-M-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-Y-M-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-Y-M-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-Y-M-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-Y-M-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-R-M-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-R-M-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-R-M-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-R-M-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-S-M-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-S-M-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-S-M-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-S-M-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-T-M-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-T-M-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-T-M-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-T-M-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-V-M-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-V-M-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-V-M-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-V-M-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-X-M-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-X-M-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-X-M-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-X-M-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-Y-M-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-Y-M-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-Y-M-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-Y-M-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-R-P-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-R-P-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-R-P-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-R-P-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-R-P-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-R-P-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-S-P-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-S-P-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-S-P-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-S-P-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-S-P-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-S-P-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-T-P-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-T-P-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-T-P-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-T-P-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-T-P-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-T-P-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-V-P-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-V-P-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-V-P-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-V-P-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-V-P-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-V-P-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-X-P-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-X-P-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-X-P-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-X-P-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-X-P-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-X-P-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-Y-P-M5		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
ISE20B-Y-P-01		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
ISE20B-Y-P-C4L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
ISE20B-Y-P-C6L		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
ISE20B-Y-P-01B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
ISE20B-Y-P-W1B		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
ISE20B-R-P-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-R-P-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-R-P-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-R-P-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-S-P-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-S-P-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-S-P-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-S-P-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-T-P-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-T-P-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-T-P-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-T-P-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-V-P-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-V-P-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-V-P-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-V-P-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-X-P-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-X-P-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-X-P-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-X-P-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
ISE20B-Y-P-M5-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
ISE20B-Y-P-01-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
ISE20B-Y-P-C4L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
ISE20B-Y-P-C6L-S		Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow

Pressure SwitchesSMC

540 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZSE20B(F)/ISE20B Digital Pressure Switch (IP65, Analog/M12)

Brand SMC·Pressure Switches

Available part numbers (540)

ZSE20B-R-M5, ZSE20B-R-01, ZSE20B-R-C4L, ZSE20B-R-C6L, ZSE20B-R-01B, ZSE20B-R-W1B, ZSE20B-S-M5, ZSE20B-S-01, ZSE20B-S-C4L, ZSE20B-S-C6L + 530 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ZSE20B-R-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-R-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-R-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-R-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-R-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-R-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-S-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-S-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-S-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-S-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-S-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-S-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-T-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-T-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-T-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-T-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-T-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-T-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-V-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-V-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-V-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-V-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-V-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-V-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-X-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-X-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-X-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-X-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-X-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-X-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-Y-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-Y-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-Y-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-Y-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-Y-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-Y-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-R-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-R-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-R-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-R-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-S-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-S-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-S-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-S-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-T-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-T-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-T-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-T-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-V-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-V-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-V-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-V-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-X-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-X-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-X-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-X-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-Y-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-Y-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-Y-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-Y-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-R-M-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-R-M-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-R-M-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-R-M-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-R-M-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-R-M-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-S-M-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-S-M-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-S-M-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-S-M-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-S-M-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-S-M-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-T-M-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-T-M-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-T-M-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-T-M-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-T-M-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-T-M-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-V-M-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-V-M-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-V-M-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-V-M-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-V-M-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-V-M-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-X-M-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-X-M-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-X-M-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-X-M-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-X-M-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-X-M-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-Y-M-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-Y-M-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-Y-M-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-Y-M-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-Y-M-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-Y-M-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-R-M-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-R-M-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-R-M-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-R-M-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-S-M-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-S-M-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-S-M-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-S-M-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-T-M-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-T-M-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-T-M-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-T-M-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-V-M-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-V-M-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-V-M-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-V-M-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-X-M-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-X-M-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-X-M-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-X-M-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-Y-M-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-Y-M-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-Y-M-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-Y-M-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-R-P-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-R-P-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-R-P-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-R-P-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-R-P-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-R-P-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-S-P-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-S-P-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-S-P-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-S-P-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-S-P-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-S-P-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-T-P-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-T-P-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-T-P-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-T-P-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-T-P-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-T-P-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-V-P-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-V-P-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-V-P-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-V-P-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-V-P-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-V-P-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-X-P-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-X-P-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-X-P-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-X-P-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-X-P-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-X-P-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-Y-P-M5	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20B-Y-P-01	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20B-Y-P-C4L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20B-Y-P-C6L	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20B-Y-P-01B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20B-Y-P-W1B	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20B-R-P-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-R-P-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-R-P-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-R-P-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-S-P-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-S-P-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-S-P-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-S-P-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-T-P-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-T-P-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-T-P-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-T-P-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-V-P-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-V-P-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-V-P-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-V-P-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-X-P-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-X-P-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-X-P-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-X-P-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20B-Y-P-M5-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20B-Y-P-01-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20B-Y-P-C4L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20B-Y-P-C6L-S	Series: ZSE20B: vacuum 0 to -101 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-R-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-R-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-R-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-R-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-R-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-R-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-S-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-S-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-S-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-S-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-S-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-S-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-T-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-T-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-T-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-T-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-T-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-T-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-V-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-V-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-V-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-V-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-V-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-V-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-X-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-X-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-X-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-X-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-X-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-X-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-Y-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-Y-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-Y-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-Y-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-Y-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-Y-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-R-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-R-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-R-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-R-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-S-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-S-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-S-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-S-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-T-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-T-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-T-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-T-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-V-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-V-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-V-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-V-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-X-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-X-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-X-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-X-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-Y-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-Y-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-Y-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-Y-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-R-M-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-R-M-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-R-M-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-R-M-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-R-M-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-R-M-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-S-M-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-S-M-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-S-M-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-S-M-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-S-M-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-S-M-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-T-M-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-T-M-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-T-M-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-T-M-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-T-M-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-T-M-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-V-M-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-V-M-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-V-M-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-V-M-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-V-M-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-V-M-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-X-M-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-X-M-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-X-M-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-X-M-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-X-M-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-X-M-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-Y-M-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-Y-M-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-Y-M-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-Y-M-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-Y-M-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-Y-M-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-R-M-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-R-M-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-R-M-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-R-M-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-S-M-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-S-M-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-S-M-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-S-M-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-T-M-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-T-M-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-T-M-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-T-M-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-V-M-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-V-M-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-V-M-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-V-M-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-X-M-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-X-M-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-X-M-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-X-M-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-Y-M-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-Y-M-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-Y-M-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-Y-M-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-R-P-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-R-P-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-R-P-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-R-P-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-R-P-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-R-P-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-S-P-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-S-P-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-S-P-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-S-P-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-S-P-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-S-P-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-T-P-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-T-P-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-T-P-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-T-P-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-T-P-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-T-P-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-V-P-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-V-P-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-V-P-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-V-P-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-V-P-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-V-P-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-X-P-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-X-P-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-X-P-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-X-P-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-X-P-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-X-P-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-Y-P-M5	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ZSE20BF-Y-P-01	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ZSE20BF-Y-P-C4L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ZSE20BF-Y-P-C6L	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ZSE20BF-Y-P-01B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ZSE20BF-Y-P-W1B	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ZSE20BF-R-P-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-R-P-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-R-P-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-R-P-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-S-P-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-S-P-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-S-P-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-S-P-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-T-P-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-T-P-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-T-P-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-T-P-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-V-P-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-V-P-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-V-P-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-V-P-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-X-P-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-X-P-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-X-P-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-X-P-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ZSE20BF-Y-P-M5-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ZSE20BF-Y-P-01-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ZSE20BF-Y-P-C4L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ZSE20BF-Y-P-C6L-S	Series: ZSE20BF: compound -100 to 100 kPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-R-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-R-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-R-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-R-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-R-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-R-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-S-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-S-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-S-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-S-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-S-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-S-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-T-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-T-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-T-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-T-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-T-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-T-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-V-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-V-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-V-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-V-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-V-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-V-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-X-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-X-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-X-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-X-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-X-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-X-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-Y-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-Y-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-Y-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-Y-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-Y-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-Y-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-R-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-R-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-R-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-R-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-S-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-S-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-S-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-S-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-T-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-T-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-T-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-T-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-V-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-V-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-V-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-V-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-X-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-X-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-X-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-X-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-Y-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-Y-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-Y-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-Y-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-R-M-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-R-M-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-R-M-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-R-M-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-R-M-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-R-M-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-S-M-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-S-M-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-S-M-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-S-M-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-S-M-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-S-M-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-T-M-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-T-M-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-T-M-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-T-M-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-T-M-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-T-M-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-V-M-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-V-M-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-V-M-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-V-M-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-V-M-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-V-M-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-X-M-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-X-M-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-X-M-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-X-M-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-X-M-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-X-M-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-Y-M-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-Y-M-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-Y-M-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-Y-M-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-Y-M-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-Y-M-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: SI units fixed (kPa/MPa) \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-R-M-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-R-M-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-R-M-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-R-M-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-S-M-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-S-M-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-S-M-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-S-M-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-T-M-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-T-M-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-T-M-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-T-M-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-V-M-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-V-M-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-V-M-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-V-M-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-X-M-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-X-M-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-X-M-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-X-M-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-Y-M-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-Y-M-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-Y-M-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-Y-M-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: SI units fixed (kPa/MPa) \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-R-P-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-R-P-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-R-P-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-R-P-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-R-P-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-R-P-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-S-P-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-S-P-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-S-P-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-S-P-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-S-P-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-S-P-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-T-P-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-T-P-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-T-P-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-T-P-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-T-P-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-T-P-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog voltage \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-V-P-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-V-P-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-V-P-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-V-P-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-V-P-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-V-P-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + analog current \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-X-P-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-X-P-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-X-P-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-X-P-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-X-P-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-X-P-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-Y-P-M5	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: M5 female
	ISE20B-Y-P-01	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female)
	ISE20B-Y-P-C4L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø4 one-touch, elbow
	ISE20B-Y-P-C6L	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: ø6 one-touch, elbow
	ISE20B-Y-P-01B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: R1/8 (M5 female), bottom wiring
	ISE20B-Y-P-W1B	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs + copy function \| Unit: Unit switching, initial psi \| Connection: Lead wire connector \| Piping: Rc1/8, bottom wiring
	ISE20B-R-P-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-R-P-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-R-P-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-R-P-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-S-P-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-S-P-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-S-P-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-S-P-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-T-P-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-T-P-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-T-P-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-T-P-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog voltage \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-V-P-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-V-P-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-V-P-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-V-P-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 1 output + analog current \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-X-P-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-X-P-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-X-P-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-X-P-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: NPN 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow
	ISE20B-Y-P-M5-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: M5 female
	ISE20B-Y-P-01-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: R1/8
	ISE20B-Y-P-C4L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø4 one-touch, elbow
	ISE20B-Y-P-C6L-S	Series: ISE20B: positive -0.1 to 1 MPa \| Output: PNP 2 outputs \| Unit: Unit switching, initial psi \| Connection: M12 connector (S) \| Piping: ø6 one-touch, elbow

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →

Item added to your cart

SMC ZSE20B(F)/ISE20B Digital Pressure Switch (IP65, Analog/M12)
