• SMC ZSE20B(F)-L/ISE20B-L IO-Link Digital Pressure Switch (IP65)
1 1

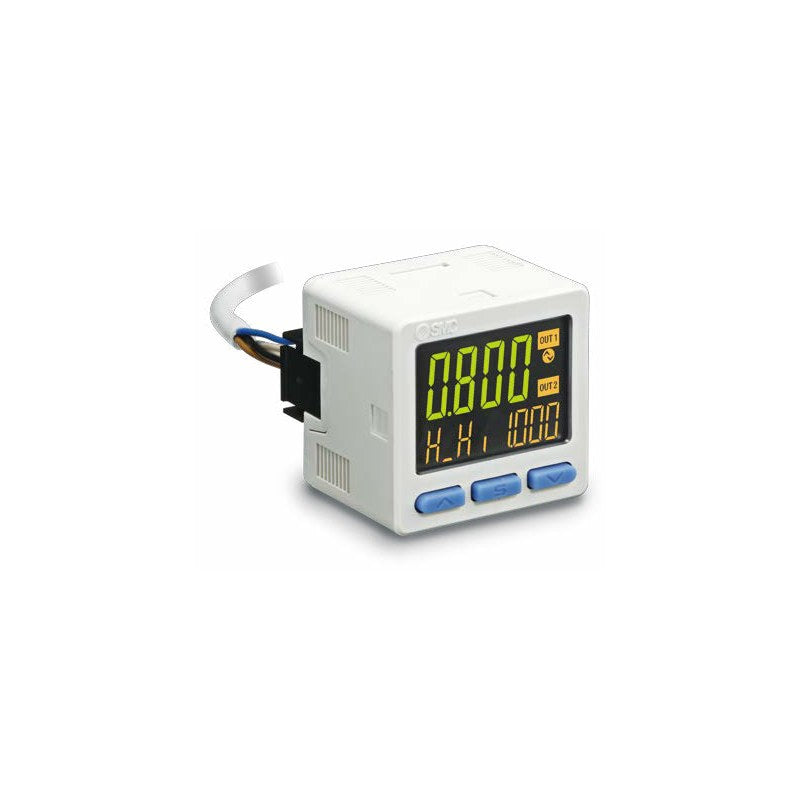

SMC ZSE20B(F)-L/ISE20B-L IO-Link Digital Pressure Switch (IP65)

SMC ZSE20B(F)-L/ISE20B-L IO-Link Digital Pressure Switch (IP65)

SMC ZSE20B(F)-L/ISE20B-L IP65 3-screen digital pressure switch with IO-Link communication and one switch output, in lead wire or M12 connector type.

Key features

  • IO-Link device with process data diagnostic bits for easy fault detection; switch output selectable PNP or NPN in SIO mode
  • Vacuum (ZSE20B-L), compound (ZSE20BF-L) and positive pressure (ISE20B-L) models
  • Lead wire connector type or M12 connector type (S, lead wire not included)
  • Piping: M5 female, R1/8, bottom wiring R1/8 or Rc1/8
  • Delay time and digital filter variable in 0.01 s steps; options (lead wires, brackets, panel adapters) ordered as suffixes

Specifications

Fluid Air, non-corrosive gas, non-flammable gas
Proof pressure ZSE: 500 kPa; ISE: 1.5 MPa
Power supply voltage 12 to 24 VDC (switch use); 18 to 30 VDC (IO-Link)
Current consumption 35 mA or less
Display 3-screen LCD
Display accuracy ±2% F.S. ±1 digit (25±3°C)
Switch output Max. load 80 mA, max. 30 V (NPN), residual 1.5 V or less
Enclosure IP65
Standards CE/UKCA
Source SMC Korea catalog ZSE20(F)/ISE20 (SMCKR_ZSE20_F__ISE20.pdf), p. 21-24 (PDF p. 22-25)
ZSE20B-L-M5 Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: M5 female
ZSE20B-L-01 Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20B-L-01B Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20B-L-W1B Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20B-L-M5-S Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: M5 female
ZSE20B-L-01-S Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: R1/8
ZSE20B-L-M-M5 Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: M5 female
ZSE20B-L-M-01 Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20B-L-M-01B Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20B-L-M-W1B Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20B-L-M-M5-S Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: M5 female
ZSE20B-L-M-01-S Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: R1/8
ZSE20B-L-P-M5 Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: M5 female
ZSE20B-L-P-01 Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20B-L-P-01B Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20B-L-P-W1B Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20B-L-P-M5-S Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: M5 female
ZSE20B-L-P-01-S Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: R1/8
ZSE20BF-L-M5 Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: M5 female
ZSE20BF-L-01 Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20BF-L-01B Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-L-W1B Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20BF-L-M5-S Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: M5 female
ZSE20BF-L-01-S Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: R1/8
ZSE20BF-L-M-M5 Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: M5 female
ZSE20BF-L-M-01 Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20BF-L-M-01B Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-L-M-W1B Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20BF-L-M-M5-S Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: M5 female
ZSE20BF-L-M-01-S Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: R1/8
ZSE20BF-L-P-M5 Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: M5 female
ZSE20BF-L-P-01 Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20BF-L-P-01B Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-L-P-W1B Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20BF-L-P-M5-S Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: M5 female
ZSE20BF-L-P-01-S Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: R1/8
ISE20B-L-M5 Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: M5 female
ISE20B-L-01 Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ISE20B-L-01B Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ISE20B-L-W1B Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ISE20B-L-M5-S Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: M5 female
ISE20B-L-01-S Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: R1/8
ISE20B-L-M-M5 Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: M5 female
ISE20B-L-M-01 Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ISE20B-L-M-01B Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ISE20B-L-M-W1B Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ISE20B-L-M-M5-S Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: M5 female
ISE20B-L-M-01-S Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: R1/8
ISE20B-L-P-M5 Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: M5 female
ISE20B-L-P-01 Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ISE20B-L-P-01B Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ISE20B-L-P-W1B Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ISE20B-L-P-M5-S Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: M5 female
ISE20B-L-P-01-S Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: R1/8
Pressure SwitchesSMC
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZSE20B(F)-L/ISE20B-L IO-Link Digital Pressure Switch (IP65)

Brand SMC·Pressure Switches

Available part numbers (54)

ZSE20B-L-M5, ZSE20B-L-01, ZSE20B-L-01B, ZSE20B-L-W1B, ZSE20B-L-M5-S, ZSE20B-L-01-S, ZSE20B-L-M-M5, ZSE20B-L-M-01, ZSE20B-L-M-01B, ZSE20B-L-M-W1B + 44 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZSE20B-L-M5Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: M5 female
ZSE20B-L-01Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20B-L-01BSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20B-L-W1BSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20B-L-M5-SSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: M5 female
ZSE20B-L-01-SSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: R1/8
ZSE20B-L-M-M5Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: M5 female
ZSE20B-L-M-01Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20B-L-M-01BSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20B-L-M-W1BSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20B-L-M-M5-SSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: M5 female
ZSE20B-L-M-01-SSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: R1/8
ZSE20B-L-P-M5Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: M5 female
ZSE20B-L-P-01Series: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20B-L-P-01BSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20B-L-P-W1BSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20B-L-P-M5-SSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: M5 female
ZSE20B-L-P-01-SSeries: ZSE20B: vacuum 0 to -101 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: R1/8
ZSE20BF-L-M5Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: M5 female
ZSE20BF-L-01Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20BF-L-01BSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-L-W1BSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20BF-L-M5-SSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: M5 female
ZSE20BF-L-01-SSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: R1/8
ZSE20BF-L-M-M5Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: M5 female
ZSE20BF-L-M-01Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20BF-L-M-01BSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-L-M-W1BSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20BF-L-M-M5-SSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: M5 female
ZSE20BF-L-M-01-SSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: R1/8
ZSE20BF-L-P-M5Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: M5 female
ZSE20BF-L-P-01Series: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ZSE20BF-L-P-01BSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ZSE20BF-L-P-W1BSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ZSE20BF-L-P-M5-SSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: M5 female
ZSE20BF-L-P-01-SSeries: ZSE20BF: compound -100 to 100 kPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: R1/8
ISE20B-L-M5Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: M5 female
ISE20B-L-01Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ISE20B-L-01BSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ISE20B-L-W1BSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ISE20B-L-M5-SSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: M5 female
ISE20B-L-01-SSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching | Connection: M12 connector (S) | Piping: R1/8
ISE20B-L-M-M5Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: M5 female
ISE20B-L-M-01Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ISE20B-L-M-01BSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ISE20B-L-M-W1BSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ISE20B-L-M-M5-SSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: M5 female
ISE20B-L-M-01-SSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: SI units fixed (kPa/MPa) | Connection: M12 connector (S) | Piping: R1/8
ISE20B-L-P-M5Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: M5 female
ISE20B-L-P-01Series: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female)
ISE20B-L-P-01BSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: R1/8 (M5 female), bottom wiring
ISE20B-L-P-W1BSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: Lead wire connector | Piping: Rc1/8, bottom wiring
ISE20B-L-P-M5-SSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: M5 female
ISE20B-L-P-01-SSeries: ISE20B: positive -0.1 to 1 MPa | Output: IO-Link / 1 switch output | Unit: Unit switching, initial psi | Connection: M12 connector (S) | Piping: R1/8

Need a different model, or a part not listed here? Send us your parts list →
