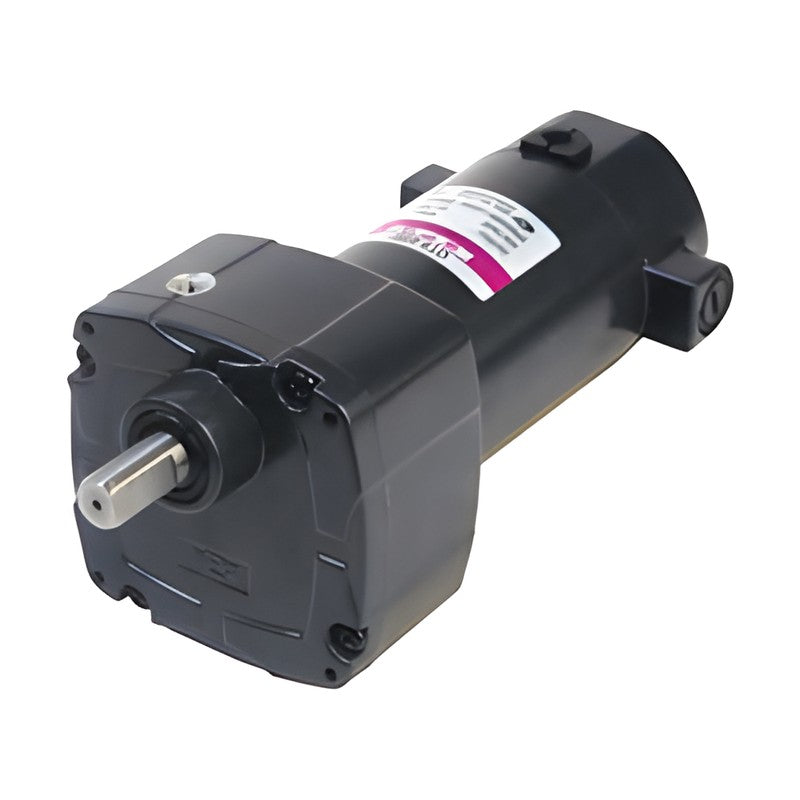

SPG BS2 DC Geared Motors (26-44 W, 24/130 V)

SPG BS2 DC Geared Motors (26-44 W, 24/130 V)

SPG BS2 series sealed DC geared motors, 26 W and 44 W, for 24 V or 130 V DC, ratios 1/6 to 1/450.

Key features

  • Vented gear housing for extended seal life
  • Industrial lip-type seals on motor and output shaft
  • Needle bearing on output shaft for higher radial load and long life
  • Permanently oil-lubricated gearing
  • Precision-cut helical pinion for strength and low noise

Specifications

Motor type Permanent magnet DC geared motor
Gearbox 85.3 mm square
Output shaft 12.7 mm dia.
Peak gear torque 46.09 kg-cm (40.00 lb-in)
Run duty 2000 h
Source SPG DC Geared Motor catalog, p. 40-41
BS23DA6 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/6
BS23DA12 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/12
BS23DA18 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/18
BS23DA30 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/30
BS23DA60 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/60
BS23DA90 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/90
BS23DA180 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/180
BS23DA300 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/300
BS23DA450 Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/450
BS23DB6 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/6
BS23DB12 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/12
BS23DB18 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/18
BS23DB30 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/30
BS23DB60 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/60
BS23DB90 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/90
BS23DB180 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/180
BS23DB300 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/300
BS23DB450 Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/450
BS24DA6 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/6
BS24DA12 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/12
BS24DA18 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/18
BS24DA30 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/30
BS24DA60 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/60
BS24DA90 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/90
BS24DA180 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/180
BS24DA300 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/300
BS24DA450 Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/450
BS24DB6 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/6
BS24DB12 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/12
BS24DB18 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/18
BS24DB30 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/30
BS24DB60 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/60
BS24DB90 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/90
BS24DB180 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/180
BS24DB300 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/300
BS24DB450 Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/450
DC Geared MotorsSPG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG BS2 DC Geared Motors (26-44 W, 24/130 V)

Brand SPG·DC Geared Motors

Available part numbers (36)

BS23DA6, BS23DA12, BS23DA18, BS23DA30, BS23DA60, BS23DA90, BS23DA180, BS23DA300, BS23DA450, BS23DB6 + 26 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BS23DA6Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/6
BS23DA12Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/12
BS23DA18Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/18
BS23DA30Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/30
BS23DA60Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/60
BS23DA90Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/90
BS23DA180Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/180
BS23DA300Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/300
BS23DA450Model: BS23DA | Voltage: 24 V DC | Output: 26 W | Gear ratio: 1/450
BS23DB6Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/6
BS23DB12Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/12
BS23DB18Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/18
BS23DB30Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/30
BS23DB60Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/60
BS23DB90Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/90
BS23DB180Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/180
BS23DB300Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/300
BS23DB450Model: BS23DB | Voltage: 130 V DC | Output: 26 W | Gear ratio: 1/450
BS24DA6Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/6
BS24DA12Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/12
BS24DA18Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/18
BS24DA30Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/30
BS24DA60Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/60
BS24DA90Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/90
BS24DA180Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/180
BS24DA300Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/300
BS24DA450Model: BS24DA | Voltage: 24 V DC | Output: 44 W | Gear ratio: 1/450
BS24DB6Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/6
BS24DB12Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/12
BS24DB18Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/18
BS24DB30Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/30
BS24DB60Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/60
BS24DB90Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/90
BS24DB180Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/180
BS24DB300Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/300
BS24DB450Model: BS24DB | Voltage: 130 V DC | Output: 44 W | Gear ratio: 1/450
