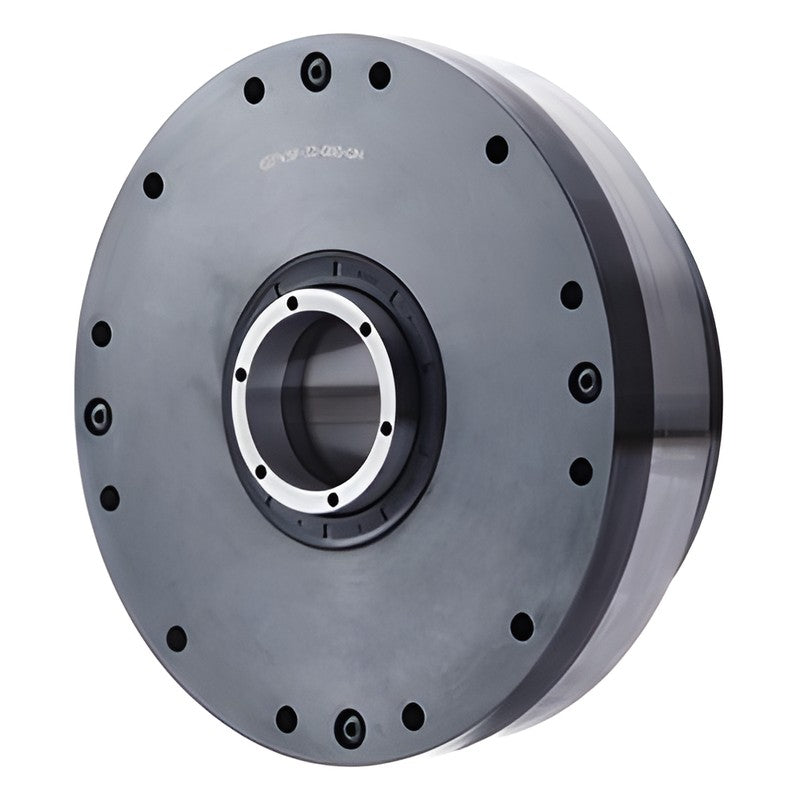

SPG KSH Unit Silk-Hat Hollow Shaft Strain Wave Units (Size 14-32)

SPG KSH Unit Silk-Hat Hollow Shaft Strain Wave Units (Size 14-32)

SPG KSH series unit silk-hat hollow shaft strain wave gear reducer, housed unit with large hollow input shaft, in sizes 14-32 with reduction ratios 1/50 to 1/120.

Key features

  • Housed unit with large-diameter hollow shaft for cables and shafts to pass through
  • Built-in cross roller bearing; coaxial input and output
  • Zero backlash with high positioning and rotational accuracy
  • High torque capacity and high torsional stiffness
  • Sizes 14, 17, 20, 25, 32; ratios 50, 80, 100, 120 (size 14: 50-100)
  • Rated torque 5.5-137 Nm at 2,000 rpm input

Specifications

Model form KSF-<size>-<ratio>-UH
Reducer principle Strain wave gear (flexspline / circular spline / wave generator)
Backlash Zero backlash
Max. input speed (oil) 14,000 / 10,000 / 10,000 / 7,500 / 7,000 rpm (size 14/17/20/25/32)
Max. input speed (grease) 8,500 / 7,300 / 6,500 / 5,600 / 4,800 rpm (size 14/17/20/25/32)
Avg. input speed (grease) 3,500 rpm
Transmission accuracy 1.5 arcmin (size 14-17), 1 arcmin (size 20-32)
Inertia (x10^-4 kgm2) 0.091 / 0.193 / 0.404 / 1.07 / 2.85 (size 14-32)
Source SPG KSH Precision Reducer catalog, p. 5, 18-20
KSF-14-050-UH Size: 14 | Ratio: 1/50 | Rated torque: 5.5 Nm | Start/stop torque: 18 Nm | Momentary max torque: 35 Nm | Weight: 0.71 kg
KSF-14-080-UH Size: 14 | Ratio: 1/80 | Rated torque: 8 Nm | Start/stop torque: 23 Nm | Momentary max torque: 47 Nm | Weight: 0.71 kg
KSF-14-100-UH Size: 14 | Ratio: 1/100 | Rated torque: 8 Nm | Start/stop torque: 28 Nm | Momentary max torque: 54 Nm | Weight: 0.71 kg
KSF-17-050-UH Size: 17 | Ratio: 1/50 | Rated torque: 16 Nm | Start/stop torque: 34 Nm | Momentary max torque: 70 Nm | Weight: 1 kg
KSF-17-080-UH Size: 17 | Ratio: 1/80 | Rated torque: 22 Nm | Start/stop torque: 43 Nm | Momentary max torque: 87 Nm | Weight: 1 kg
KSF-17-100-UH Size: 17 | Ratio: 1/100 | Rated torque: 24 Nm | Start/stop torque: 54 Nm | Momentary max torque: 110 Nm | Weight: 1 kg
KSF-17-120-UH Size: 17 | Ratio: 1/120 | Rated torque: 24 Nm | Start/stop torque: 54 Nm | Momentary max torque: 86 Nm | Weight: 1 kg
KSF-20-050-UH Size: 20 | Ratio: 1/50 | Rated torque: 25 Nm | Start/stop torque: 56 Nm | Momentary max torque: 98 Nm | Weight: 1.38 kg
KSF-20-080-UH Size: 20 | Ratio: 1/80 | Rated torque: 34 Nm | Start/stop torque: 74 Nm | Momentary max torque: 127 Nm | Weight: 1.38 kg
KSF-20-100-UH Size: 20 | Ratio: 1/100 | Rated torque: 40 Nm | Start/stop torque: 82 Nm | Momentary max torque: 147 Nm | Weight: 1.38 kg
KSF-20-120-UH Size: 20 | Ratio: 1/120 | Rated torque: 40 Nm | Start/stop torque: 87 Nm | Momentary max torque: 147 Nm | Weight: 1.38 kg
KSF-25-050-UH Size: 25 | Ratio: 1/50 | Rated torque: 39 Nm | Start/stop torque: 98 Nm | Momentary max torque: 186 Nm | Weight: 2.1 kg
KSF-25-080-UH Size: 25 | Ratio: 1/80 | Rated torque: 63 Nm | Start/stop torque: 137 Nm | Momentary max torque: 255 Nm | Weight: 2.1 kg
KSF-25-100-UH Size: 25 | Ratio: 1/100 | Rated torque: 67 Nm | Start/stop torque: 157 Nm | Momentary max torque: 284 Nm | Weight: 2.1 kg
KSF-25-120-UH Size: 25 | Ratio: 1/120 | Rated torque: 67 Nm | Start/stop torque: 167 Nm | Momentary max torque: 304 Nm | Weight: 2.1 kg
KSF-32-050-UH Size: 32 | Ratio: 1/50 | Rated torque: 76 Nm | Start/stop torque: 216 Nm | Momentary max torque: 382 Nm | Weight: 4.5 kg
KSF-32-080-UH Size: 32 | Ratio: 1/80 | Rated torque: 118 Nm | Start/stop torque: 304 Nm | Momentary max torque: 568 Nm | Weight: 4.5 kg
KSF-32-100-UH Size: 32 | Ratio: 1/100 | Rated torque: 137 Nm | Start/stop torque: 333 Nm | Momentary max torque: 647 Nm | Weight: 4.5 kg
KSF-32-120-UH Size: 32 | Ratio: 1/120 | Rated torque: 137 Nm | Start/stop torque: 353 Nm | Momentary max torque: 686 Nm | Weight: 4.5 kg
Strain Wave Gear ReducersSPG
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG KSH Unit Silk-Hat Hollow Shaft Strain Wave Units (Size 14-32)

Brand SPG·Strain Wave Gear Reducers

Available part numbers (19)

KSF-14-050-UH, KSF-14-080-UH, KSF-14-100-UH, KSF-17-050-UH, KSF-17-080-UH, KSF-17-100-UH, KSF-17-120-UH, KSF-20-050-UH, KSF-20-080-UH, KSF-20-100-UH + 9 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KSF-14-050-UHSize: 14 | Ratio: 1/50 | Rated torque: 5.5 Nm | Start/stop torque: 18 Nm | Momentary max torque: 35 Nm | Weight: 0.71 kg
KSF-14-080-UHSize: 14 | Ratio: 1/80 | Rated torque: 8 Nm | Start/stop torque: 23 Nm | Momentary max torque: 47 Nm | Weight: 0.71 kg
KSF-14-100-UHSize: 14 | Ratio: 1/100 | Rated torque: 8 Nm | Start/stop torque: 28 Nm | Momentary max torque: 54 Nm | Weight: 0.71 kg
KSF-17-050-UHSize: 17 | Ratio: 1/50 | Rated torque: 16 Nm | Start/stop torque: 34 Nm | Momentary max torque: 70 Nm | Weight: 1 kg
KSF-17-080-UHSize: 17 | Ratio: 1/80 | Rated torque: 22 Nm | Start/stop torque: 43 Nm | Momentary max torque: 87 Nm | Weight: 1 kg
KSF-17-100-UHSize: 17 | Ratio: 1/100 | Rated torque: 24 Nm | Start/stop torque: 54 Nm | Momentary max torque: 110 Nm | Weight: 1 kg
KSF-17-120-UHSize: 17 | Ratio: 1/120 | Rated torque: 24 Nm | Start/stop torque: 54 Nm | Momentary max torque: 86 Nm | Weight: 1 kg
KSF-20-050-UHSize: 20 | Ratio: 1/50 | Rated torque: 25 Nm | Start/stop torque: 56 Nm | Momentary max torque: 98 Nm | Weight: 1.38 kg
KSF-20-080-UHSize: 20 | Ratio: 1/80 | Rated torque: 34 Nm | Start/stop torque: 74 Nm | Momentary max torque: 127 Nm | Weight: 1.38 kg
KSF-20-100-UHSize: 20 | Ratio: 1/100 | Rated torque: 40 Nm | Start/stop torque: 82 Nm | Momentary max torque: 147 Nm | Weight: 1.38 kg
KSF-20-120-UHSize: 20 | Ratio: 1/120 | Rated torque: 40 Nm | Start/stop torque: 87 Nm | Momentary max torque: 147 Nm | Weight: 1.38 kg
KSF-25-050-UHSize: 25 | Ratio: 1/50 | Rated torque: 39 Nm | Start/stop torque: 98 Nm | Momentary max torque: 186 Nm | Weight: 2.1 kg
KSF-25-080-UHSize: 25 | Ratio: 1/80 | Rated torque: 63 Nm | Start/stop torque: 137 Nm | Momentary max torque: 255 Nm | Weight: 2.1 kg
KSF-25-100-UHSize: 25 | Ratio: 1/100 | Rated torque: 67 Nm | Start/stop torque: 157 Nm | Momentary max torque: 284 Nm | Weight: 2.1 kg
KSF-25-120-UHSize: 25 | Ratio: 1/120 | Rated torque: 67 Nm | Start/stop torque: 167 Nm | Momentary max torque: 304 Nm | Weight: 2.1 kg
KSF-32-050-UHSize: 32 | Ratio: 1/50 | Rated torque: 76 Nm | Start/stop torque: 216 Nm | Momentary max torque: 382 Nm | Weight: 4.5 kg
KSF-32-080-UHSize: 32 | Ratio: 1/80 | Rated torque: 118 Nm | Start/stop torque: 304 Nm | Momentary max torque: 568 Nm | Weight: 4.5 kg
KSF-32-100-UHSize: 32 | Ratio: 1/100 | Rated torque: 137 Nm | Start/stop torque: 333 Nm | Momentary max torque: 647 Nm | Weight: 4.5 kg
KSF-32-120-UHSize: 32 | Ratio: 1/120 | Rated torque: 137 Nm | Start/stop torque: 353 Nm | Momentary max torque: 686 Nm | Weight: 4.5 kg
