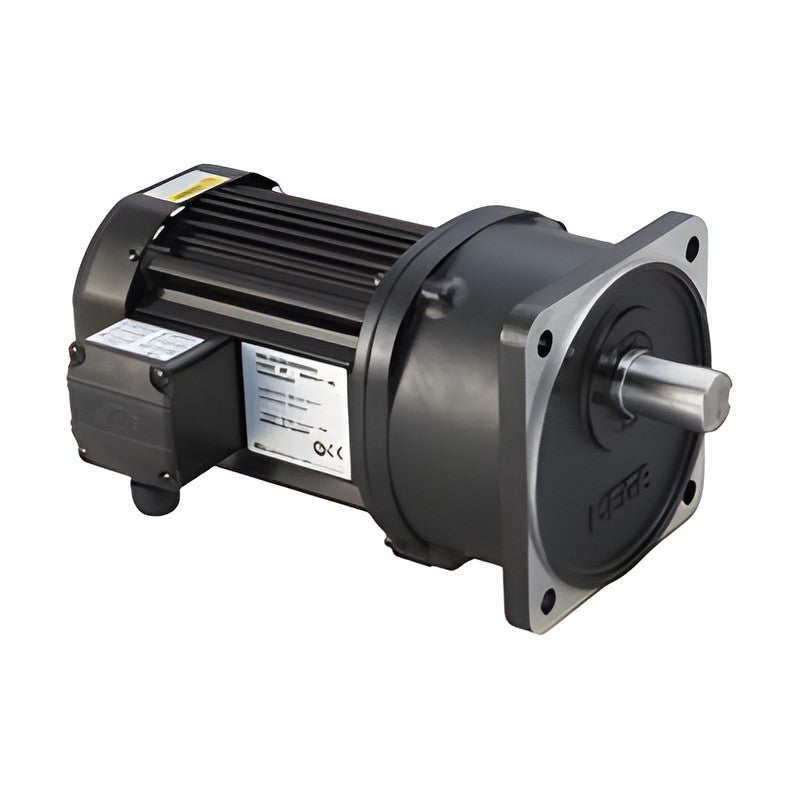

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 5.5-15 kW)

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 5.5-15 kW)

SPG PMK MEGA series small flange-mount 3-phase industrial geared motors, 5.5-15 kW, with parallel-shaft gearing in frames 181-270 and ratios 1/5-1/100.

Key features

  • PMK MEGA series parallel-shaft industrial geared motor, small flange mounted, vertical installation
  • 3-phase 4-pole motor, 5.5-15 kW, 4 gear frame sizes (181-270), ratios 1/5-1/100
  • Compact size meeting the Korean minimum-efficiency regulation; IP55 (brake type C: IP40), class F insulation
  • Mounting dimensions (A, B, C, D) compatible with geared motors of major Korean manufacturers
  • Ratios marked with a star in the catalog are speed-limited (output torque capped at the allowable torque); use a larger frame for torque duty
  • Supplied as lead box type (A), 220/380 V 60 Hz (R4)

Specifications

Series PMK (MEGA series, parallel shaft, small flange mounted, vertical installation)
Phase / poles 3-phase, 4 poles
Motor output 5.5-15 kW
Efficiency grade P: premium efficiency (IE3 class)
Frame (output shaft height) 181, 205, 235, 270
Reduction ratio 1/5 to 1/100
Duty / insulation / cooling Continuous / class F / TEFC
Motor option A: Lead box (IP55)
Voltage R4: 220/380 V 60 Hz
Terminal box location L: 9 o'clock (standard); T/R/B on request
Source SPG Industrial Geared Motor (MEGA series) catalog, p. 5, 48-55
PMK181-5-PA550R4L Output: 5.5 kW | Frame: 181 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK181-10-PA550R4L Output: 5.5 kW | Frame: 181 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK181-15-PA550R4L Output: 5.5 kW | Frame: 181 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK181-20-PA550R4L Output: 5.5 kW | Frame: 181 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK205-30-PA550R4L Output: 5.5 kW | Frame: 205 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK235-40-PA550R4L Output: 5.5 kW | Frame: 235 | Ratio: 1/40 | Speed (60 Hz): 45 r/min
PMK235-50-PA550R4L Output: 5.5 kW | Frame: 235 | Ratio: 1/50 | Speed (60 Hz): 36 r/min
PMK235-60-PA550R4L Output: 5.5 kW | Frame: 235 | Ratio: 1/60 | Speed (60 Hz): 30 r/min
PMK270-60-PA550R4L Output: 5.5 kW | Frame: 270 | Ratio: 1/60 | Speed (60 Hz): 30 r/min
PMK270-75-PA550R4L Output: 5.5 kW | Frame: 270 | Ratio: 1/75 | Speed (60 Hz): 24 r/min
PMK270-90-PA550R4L Output: 5.5 kW | Frame: 270 | Ratio: 1/90 | Speed (60 Hz): 20 r/min
PMK270-100-PA550R4L Output: 5.5 kW | Frame: 270 | Ratio: 1/100 | Speed (60 Hz): 18 r/min
PMK181-5-PA750R4L Output: 7.5 kW | Frame: 181 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK181-10-PA750R4L Output: 7.5 kW | Frame: 181 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK205-15-PA750R4L Output: 7.5 kW | Frame: 205 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK205-20-PA750R4L Output: 7.5 kW | Frame: 205 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK205-30-PA750R4L Output: 7.5 kW | Frame: 205 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK235-30-PA750R4L Output: 7.5 kW | Frame: 235 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK270-40-PA750R4L Output: 7.5 kW | Frame: 270 | Ratio: 1/40 | Speed (60 Hz): 45 r/min
PMK270-50-PA750R4L Output: 7.5 kW | Frame: 270 | Ratio: 1/50 | Speed (60 Hz): 36 r/min
PMK270-60-PA750R4L Output: 7.5 kW | Frame: 270 | Ratio: 1/60 | Speed (60 Hz): 30 r/min
PMK205-5-PA11KR4L Output: 11 kW | Frame: 205 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK205-10-PA11KR4L Output: 11 kW | Frame: 205 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK235-15-PA11KR4L Output: 11 kW | Frame: 235 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK235-20-PA11KR4L Output: 11 kW | Frame: 235 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK270-30-PA11KR4L Output: 11 kW | Frame: 270 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK235-5-PA15KR4L Output: 15 kW | Frame: 235 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK235-10-PA15KR4L Output: 15 kW | Frame: 235 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK270-15-PA15KR4L Output: 15 kW | Frame: 270 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK270-20-PA15KR4L Output: 15 kW | Frame: 270 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK270-30-PA15KR4L Output: 15 kW | Frame: 270 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
Industrial MotorsSPG
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 5.5-15 kW)

Brand SPG·Industrial Motors

Available part numbers (31)

PMK181-5-PA550R4L, PMK181-10-PA550R4L, PMK181-15-PA550R4L, PMK181-20-PA550R4L, PMK205-30-PA550R4L, PMK235-40-PA550R4L, PMK235-50-PA550R4L, PMK235-60-PA550R4L, PMK270-60-PA550R4L, PMK270-75-PA550R4L + 21 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMK181-5-PA550R4LOutput: 5.5 kW | Frame: 181 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK181-10-PA550R4LOutput: 5.5 kW | Frame: 181 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK181-15-PA550R4LOutput: 5.5 kW | Frame: 181 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK181-20-PA550R4LOutput: 5.5 kW | Frame: 181 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK205-30-PA550R4LOutput: 5.5 kW | Frame: 205 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK235-40-PA550R4LOutput: 5.5 kW | Frame: 235 | Ratio: 1/40 | Speed (60 Hz): 45 r/min
PMK235-50-PA550R4LOutput: 5.5 kW | Frame: 235 | Ratio: 1/50 | Speed (60 Hz): 36 r/min
PMK235-60-PA550R4LOutput: 5.5 kW | Frame: 235 | Ratio: 1/60 | Speed (60 Hz): 30 r/min
PMK270-60-PA550R4LOutput: 5.5 kW | Frame: 270 | Ratio: 1/60 | Speed (60 Hz): 30 r/min
PMK270-75-PA550R4LOutput: 5.5 kW | Frame: 270 | Ratio: 1/75 | Speed (60 Hz): 24 r/min
PMK270-90-PA550R4LOutput: 5.5 kW | Frame: 270 | Ratio: 1/90 | Speed (60 Hz): 20 r/min
PMK270-100-PA550R4LOutput: 5.5 kW | Frame: 270 | Ratio: 1/100 | Speed (60 Hz): 18 r/min
PMK181-5-PA750R4LOutput: 7.5 kW | Frame: 181 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK181-10-PA750R4LOutput: 7.5 kW | Frame: 181 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK205-15-PA750R4LOutput: 7.5 kW | Frame: 205 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK205-20-PA750R4LOutput: 7.5 kW | Frame: 205 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK205-30-PA750R4LOutput: 7.5 kW | Frame: 205 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK235-30-PA750R4LOutput: 7.5 kW | Frame: 235 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK270-40-PA750R4LOutput: 7.5 kW | Frame: 270 | Ratio: 1/40 | Speed (60 Hz): 45 r/min
PMK270-50-PA750R4LOutput: 7.5 kW | Frame: 270 | Ratio: 1/50 | Speed (60 Hz): 36 r/min
PMK270-60-PA750R4LOutput: 7.5 kW | Frame: 270 | Ratio: 1/60 | Speed (60 Hz): 30 r/min
PMK205-5-PA11KR4LOutput: 11 kW | Frame: 205 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK205-10-PA11KR4LOutput: 11 kW | Frame: 205 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK235-15-PA11KR4LOutput: 11 kW | Frame: 235 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK235-20-PA11KR4LOutput: 11 kW | Frame: 235 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK270-30-PA11KR4LOutput: 11 kW | Frame: 270 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
PMK235-5-PA15KR4LOutput: 15 kW | Frame: 235 | Ratio: 1/5 | Speed (60 Hz): 360 r/min
PMK235-10-PA15KR4LOutput: 15 kW | Frame: 235 | Ratio: 1/10 | Speed (60 Hz): 180 r/min
PMK270-15-PA15KR4LOutput: 15 kW | Frame: 270 | Ratio: 1/15 | Speed (60 Hz): 120 r/min
PMK270-20-PA15KR4LOutput: 15 kW | Frame: 270 | Ratio: 1/20 | Speed (60 Hz): 90 r/min
PMK270-30-PA15KR4LOutput: 15 kW | Frame: 270 | Ratio: 1/30 | Speed (60 Hz): 60 r/min
