• SPG RM3 Compact DC Motors (30 mm Dia.)
1 1

SPG RM3 Compact DC Motors (30 mm Dia.)

SPG RM3 Compact DC Motors (30 mm Dia.)

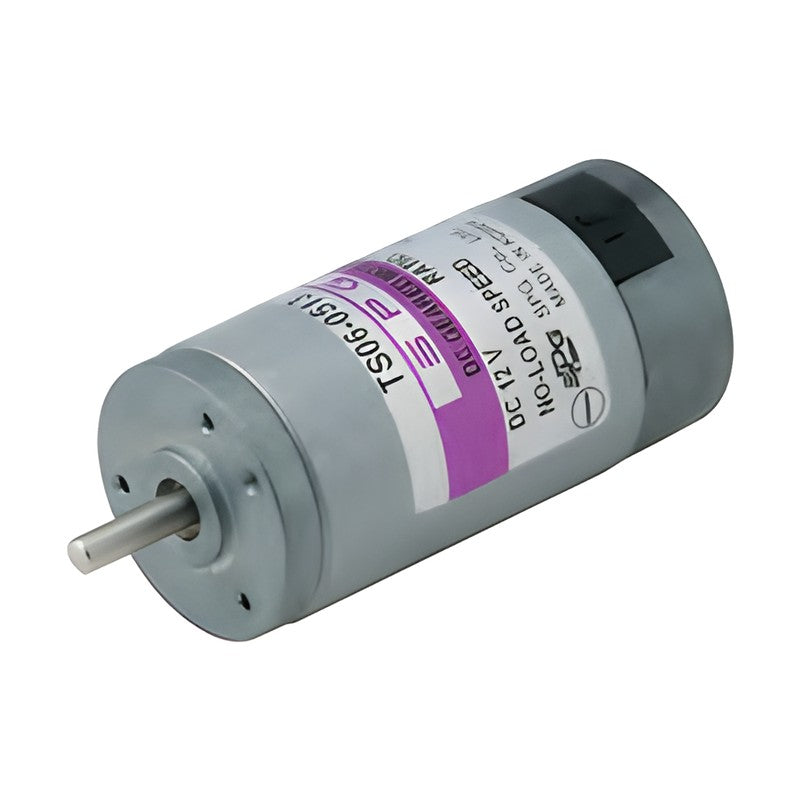

SPG RM3 series compact permanent-magnet DC motors, 30 mm diameter, for 12 V or 24 V DC supply.

Key features

  • Permanent-magnet brushed DC design with high starting torque and high efficiency
  • Easy speed control and simple reversal of rotation direction
  • 3 motor lengths with increasing continuous torque
  • Sleeve (metal) or ball bearing versions
  • Terminal or lead-wire connection
  • Optional rear mounting pattern on end cap

Specifications

Motor type Permanent magnet brushed DC motor
Motor diameter 30 mm
Spec voltage Data at 24 V DC; 12 V (A) available
Run duty 500 h (rated voltage, no load)
Weight 0.59-0.89 kg
Code structure RM + dia + length + voltage + bearing + connector
Source SPG DC Geared Motor catalog, p. 3, 6
RM32AMT Model: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM32AML Model: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM32ABT Model: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Terminal
RM32ABL Model: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Lead wire
RM32BMT Model: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM32BML Model: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM32BBT Model: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Terminal
RM32BBL Model: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Lead wire
RM33AMT Model: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM33AML Model: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM33ABT Model: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Terminal
RM33ABL Model: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Lead wire
RM33BMT Model: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM33BML Model: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM33BBT Model: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Terminal
RM33BBL Model: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Lead wire
RM34AMT Model: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM34AML Model: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM34ABT Model: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Terminal
RM34ABL Model: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Lead wire
RM34BMT Model: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM34BML Model: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM34BBT Model: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Terminal
RM34BBL Model: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Lead wire
DC Geared MotorsSPG
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG RM3 Compact DC Motors (30 mm Dia.)

Brand SPG·DC Geared Motors

Available part numbers (24)

RM32AMT, RM32AML, RM32ABT, RM32ABL, RM32BMT, RM32BML, RM32BBT, RM32BBL, RM33AMT, RM33AML + 14 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM32AMTModel: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM32AMLModel: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM32ABTModel: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Terminal
RM32ABLModel: RM32 (length 50.6 mm) | Voltage: 12 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Lead wire
RM32BMTModel: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM32BMLModel: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM32BBTModel: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Terminal
RM32BBLModel: RM32 (length 50.6 mm) | Voltage: 24 V DC | Rated at 24 V: 5800 rpm, 0.011 N-m | Bearing: Ball | Connector: Lead wire
RM33AMTModel: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM33AMLModel: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM33ABTModel: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Terminal
RM33ABLModel: RM33 (length 53.7 mm) | Voltage: 12 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Lead wire
RM33BMTModel: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM33BMLModel: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM33BBTModel: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Terminal
RM33BBLModel: RM33 (length 53.7 mm) | Voltage: 24 V DC | Rated at 24 V: 6550 rpm, 0.014 N-m | Bearing: Ball | Connector: Lead wire
RM34AMTModel: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM34AMLModel: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM34ABTModel: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Terminal
RM34ABLModel: RM34 (length 60.0 mm) | Voltage: 12 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Lead wire
RM34BMTModel: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Terminal
RM34BMLModel: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Metal (sleeve) | Connector: Lead wire
RM34BBTModel: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Terminal
RM34BBLModel: RM34 (length 60.0 mm) | Voltage: 24 V DC | Rated at 24 V: 8120 rpm, 0.018 N-m | Bearing: Ball | Connector: Lead wire
