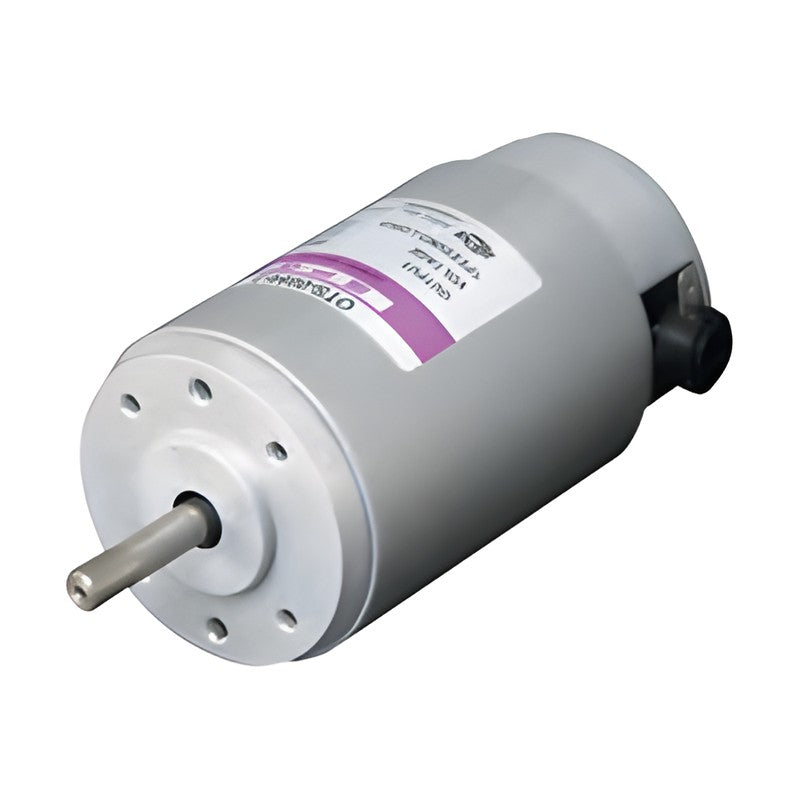

SPG RM5 Compact DC Motors (54 mm Dia.)

SPG RM5 Compact DC Motors (54 mm Dia.)

SPG RM5 series compact permanent-magnet DC motors, 54 mm diameter, for 12 V or 24 V DC supply.

Key features

  • Permanent-magnet brushed DC design with high starting torque and high efficiency
  • Easy speed control and simple reversal of rotation direction
  • 5 motor lengths with increasing continuous torque
  • Ball bearings as standard
  • Terminal connection
  • Optional rear mounting pattern on end cap

Specifications

Motor type Permanent magnet brushed DC motor
Motor diameter 54 mm
Spec voltage Data at 24 V DC; 12 V (A) available
Run duty 2000 h (rated voltage, no load)
Weight 0.59-1.12 kg
Bearing Ball (B)
Connector Terminal (T)
Code structure RM + dia + length + voltage + bearing + connector
Source SPG DC Geared Motor catalog, p. 3, 10
RM51ABT Model: RM51 (length 75.0 mm) | Voltage: 12 V DC | Rated at 24 V: 3725 rpm, 0.06 N-m
RM51BBT Model: RM51 (length 75.0 mm) | Voltage: 24 V DC | Rated at 24 V: 3725 rpm, 0.06 N-m
RM52ABT Model: RM52 (length 81.0 mm) | Voltage: 12 V DC | Rated at 24 V: 3595 rpm, 0.09 N-m
RM52BBT Model: RM52 (length 81.0 mm) | Voltage: 24 V DC | Rated at 24 V: 3595 rpm, 0.09 N-m
RM53ABT Model: RM53 (length 94.0 mm) | Voltage: 12 V DC | Rated at 24 V: 2930 rpm, 0.15 N-m
RM53BBT Model: RM53 (length 94.0 mm) | Voltage: 24 V DC | Rated at 24 V: 2930 rpm, 0.15 N-m
RM54ABT Model: RM54 (length 103.4 mm) | Voltage: 12 V DC | Rated at 24 V: 3180 rpm, 0.18 N-m
RM54BBT Model: RM54 (length 103.4 mm) | Voltage: 24 V DC | Rated at 24 V: 3180 rpm, 0.18 N-m
RM55ABT Model: RM55 (length 113.0 mm) | Voltage: 12 V DC | Rated at 24 V: 2510 rpm, 0.22 N-m
RM55BBT Model: RM55 (length 113.0 mm) | Voltage: 24 V DC | Rated at 24 V: 2510 rpm, 0.22 N-m
DC Geared MotorsSPG
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG RM5 Compact DC Motors (54 mm Dia.)

Brand SPG·DC Geared Motors

Available part numbers (10)

RM51ABT, RM51BBT, RM52ABT, RM52BBT, RM53ABT, RM53BBT, RM54ABT, RM54BBT, RM55ABT, RM55BBT

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM51ABTModel: RM51 (length 75.0 mm) | Voltage: 12 V DC | Rated at 24 V: 3725 rpm, 0.06 N-m
RM51BBTModel: RM51 (length 75.0 mm) | Voltage: 24 V DC | Rated at 24 V: 3725 rpm, 0.06 N-m
RM52ABTModel: RM52 (length 81.0 mm) | Voltage: 12 V DC | Rated at 24 V: 3595 rpm, 0.09 N-m
RM52BBTModel: RM52 (length 81.0 mm) | Voltage: 24 V DC | Rated at 24 V: 3595 rpm, 0.09 N-m
RM53ABTModel: RM53 (length 94.0 mm) | Voltage: 12 V DC | Rated at 24 V: 2930 rpm, 0.15 N-m
RM53BBTModel: RM53 (length 94.0 mm) | Voltage: 24 V DC | Rated at 24 V: 2930 rpm, 0.15 N-m
RM54ABTModel: RM54 (length 103.4 mm) | Voltage: 12 V DC | Rated at 24 V: 3180 rpm, 0.18 N-m
RM54BBTModel: RM54 (length 103.4 mm) | Voltage: 24 V DC | Rated at 24 V: 3180 rpm, 0.18 N-m
RM55ABTModel: RM55 (length 113.0 mm) | Voltage: 12 V DC | Rated at 24 V: 2510 rpm, 0.22 N-m
RM55BBTModel: RM55 (length 113.0 mm) | Voltage: 24 V DC | Rated at 24 V: 2510 rpm, 0.22 N-m
