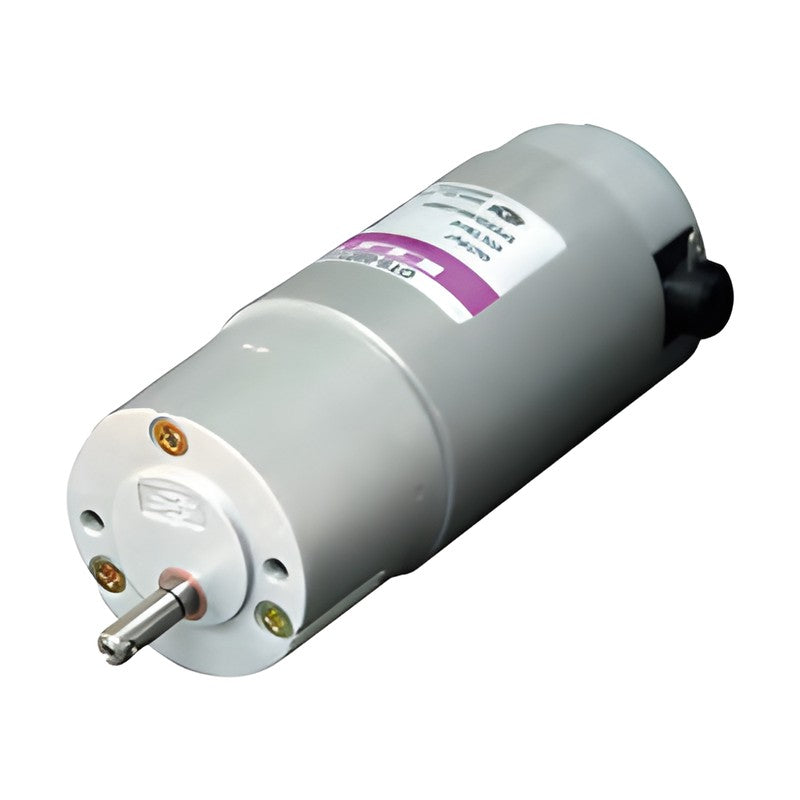

SPG RS5 Compact DC Geared Motors (54 mm Dia.)

SPG RS5 Compact DC Geared Motors (54 mm Dia.)

SPG RS5 series compact DC geared motors, 54 mm diameter motor with in-line gearbox, 12 V or 24 V DC.

Key features

  • Permanent-magnet DC motor integrated with an in-line reduction gearbox
  • 3 gear ratios from 1/5.9 to 1/65.5, coded by letter
  • Bearing options for motor and gearbox (oilless metal or ball)
  • Terminal connection
  • Permissible gearbox torque up to 2.12 N-m
  • Easy speed control and reversing by supply polarity

Specifications

Motor type Permanent magnet DC, in-line spur gearbox
Motor diameter 54 mm
Gear ratios 1/5.9 to 1/65.5
Max. permissible gearbox torque 2.12 N-m
Torque data At 24 V DC; actual speed 2-20% below no-load
Connector Terminal (T)
Code structure RS + dia + length + voltage + bearing + connector + ratio
Source SPG DC Geared Motor catalog, p. 4, 11
RS51AXTA Model: RS51 (overall 109.9 mm) | Voltage: 12 V DC | Bearing: Ball | Gear ratio: 1/5.9
RS51AXTC Model: RS51 (overall 109.9 mm) | Voltage: 12 V DC | Bearing: Ball | Gear ratio: 1/19.7
RS51AXTE Model: RS51 (overall 109.9 mm) | Voltage: 12 V DC | Bearing: Ball | Gear ratio: 1/65.5
RS51AZTA Model: RS51 (overall 109.9 mm) | Voltage: 12 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/5.9
RS51AZTC Model: RS51 (overall 109.9 mm) | Voltage: 12 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/19.7
RS51AZTE Model: RS51 (overall 109.9 mm) | Voltage: 12 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/65.5
RS51BXTA Model: RS51 (overall 109.9 mm) | Voltage: 24 V DC | Bearing: Ball | Gear ratio: 1/5.9
RS51BXTC Model: RS51 (overall 109.9 mm) | Voltage: 24 V DC | Bearing: Ball | Gear ratio: 1/19.7
RS51BXTE Model: RS51 (overall 109.9 mm) | Voltage: 24 V DC | Bearing: Ball | Gear ratio: 1/65.5
RS51BZTA Model: RS51 (overall 109.9 mm) | Voltage: 24 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/5.9
RS51BZTC Model: RS51 (overall 109.9 mm) | Voltage: 24 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/19.7
RS51BZTE Model: RS51 (overall 109.9 mm) | Voltage: 24 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/65.5
RS52AXTA Model: RS52 (overall 115.9 mm) | Voltage: 12 V DC | Bearing: Ball | Gear ratio: 1/5.9
RS52AXTC Model: RS52 (overall 115.9 mm) | Voltage: 12 V DC | Bearing: Ball | Gear ratio: 1/19.7
RS52AXTE Model: RS52 (overall 115.9 mm) | Voltage: 12 V DC | Bearing: Ball | Gear ratio: 1/65.5
RS52AZTA Model: RS52 (overall 115.9 mm) | Voltage: 12 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/5.9
RS52AZTC Model: RS52 (overall 115.9 mm) | Voltage: 12 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/19.7
RS52AZTE Model: RS52 (overall 115.9 mm) | Voltage: 12 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/65.5
RS52BXTA Model: RS52 (overall 115.9 mm) | Voltage: 24 V DC | Bearing: Ball | Gear ratio: 1/5.9
RS52BXTC Model: RS52 (overall 115.9 mm) | Voltage: 24 V DC | Bearing: Ball | Gear ratio: 1/19.7
RS52BXTE Model: RS52 (overall 115.9 mm) | Voltage: 24 V DC | Bearing: Ball | Gear ratio: 1/65.5
RS52BZTA Model: RS52 (overall 115.9 mm) | Voltage: 24 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/5.9
RS52BZTC Model: RS52 (overall 115.9 mm) | Voltage: 24 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/19.7
RS52BZTE Model: RS52 (overall 115.9 mm) | Voltage: 24 V DC | Bearing: Ball motor, oilless gearbox | Gear ratio: 1/65.5
